Imperial (Middleby)  |  SKU: PCVDE-1

Imperial (Middleby) PCVDE-1 Convection Ovens

$7,013.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Training video Middleby financial flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

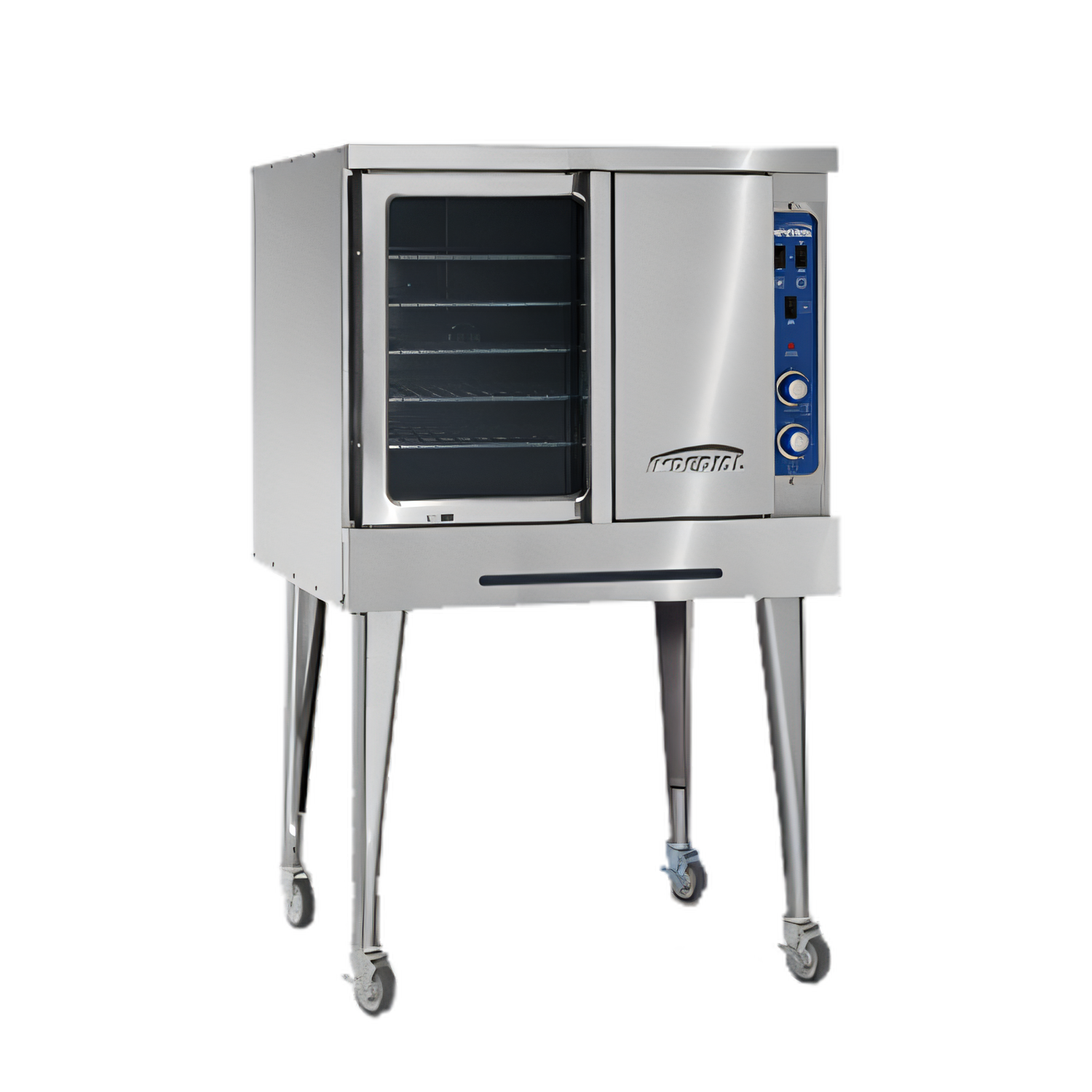

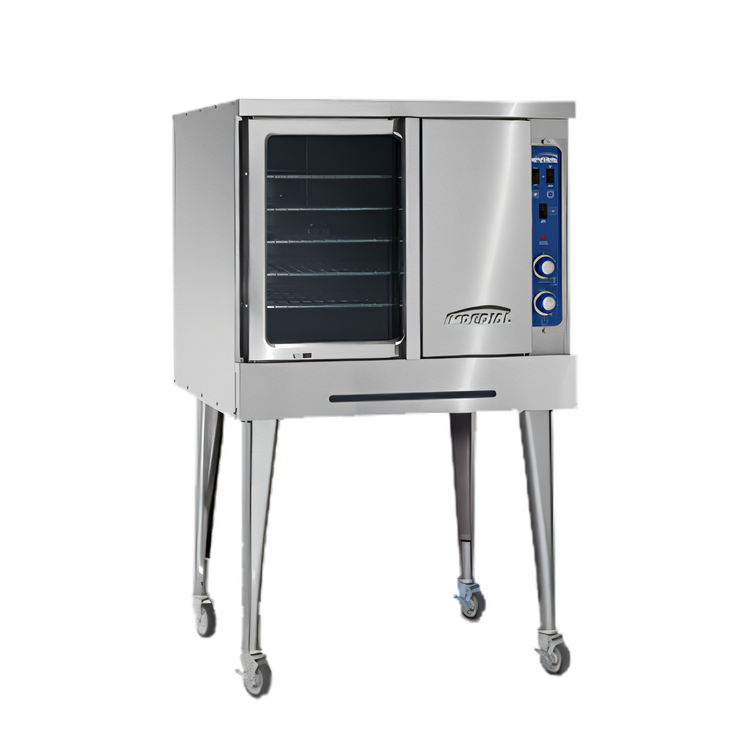

Imperial PCVDE-1 Electric Convection Oven – Bakery Depth (Quick Ship)

1-Deck | Manual Controls | 2-Speed Fan | 11 kW Total Input

Skip the wait without sacrificing performance. The Imperial PCVDE-1 bakery-depth convection oven ships fast and delivers the even baking, rock-solid construction and simple manual controls professional kitchens rely on every day.

Key Features

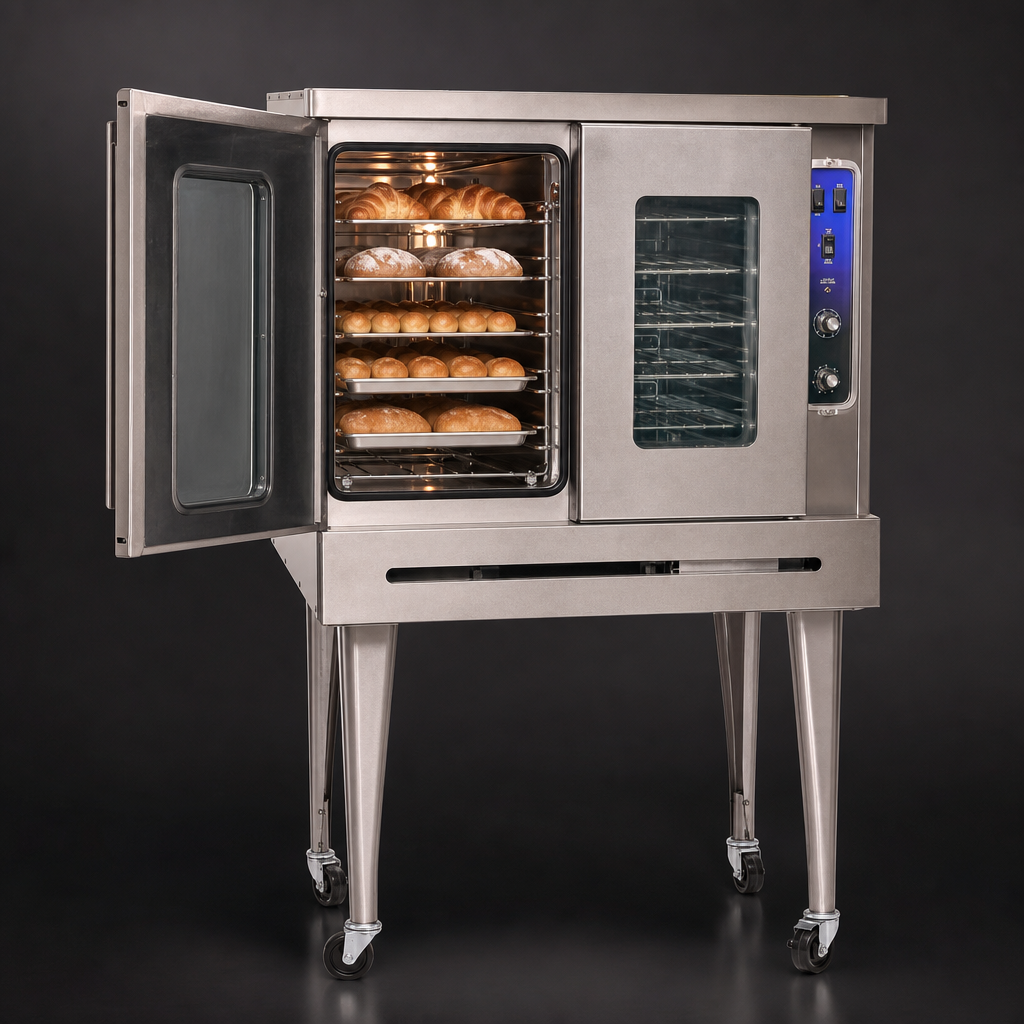

  • Bakery-depth cavity (44-7/8" deep) accepts full-size sheet pans front-to-back.

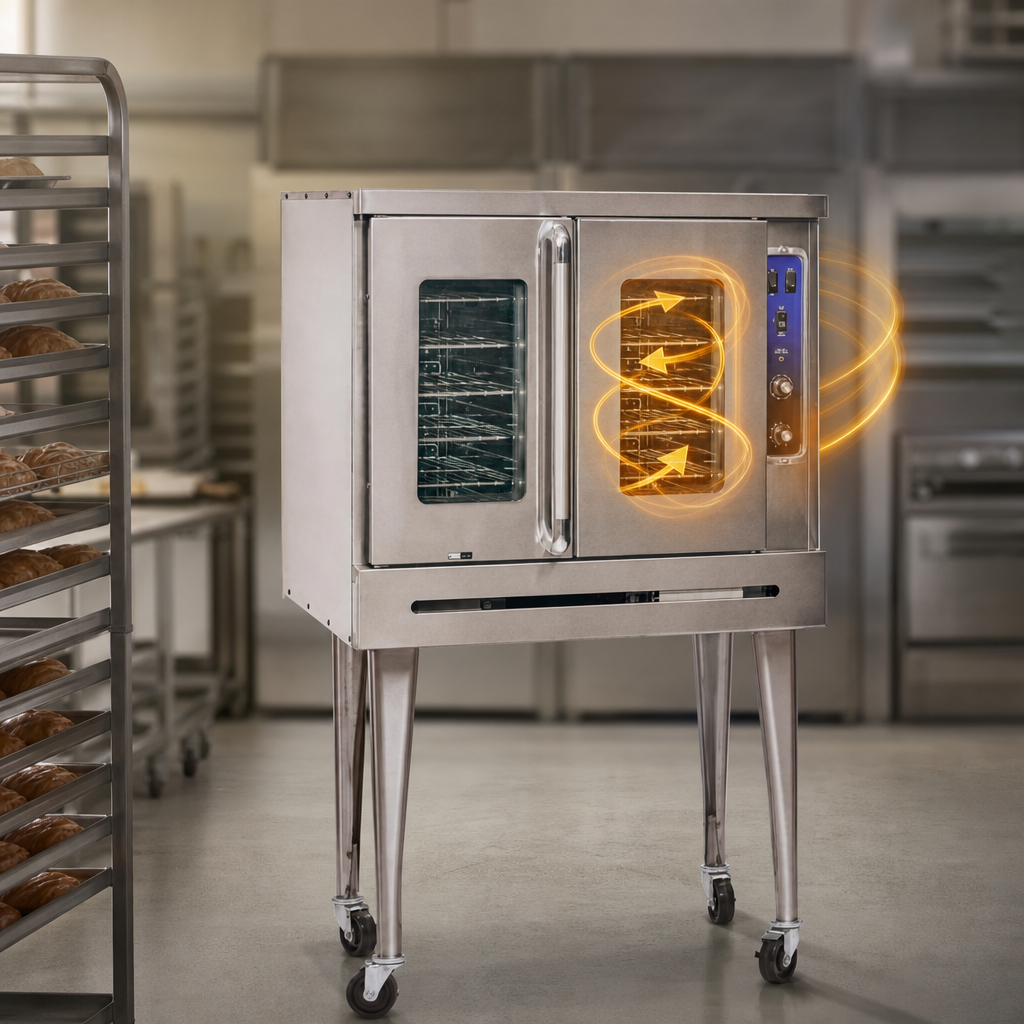

  • Turbo-Flow™ air system surrounds food with uniform heat for consistent color, higher yields and faster recovery.
  • Manual control panel: 60-minute timer with buzzer, 150-500 °F thermostat and 2-speed fan switch.
  • ½ HP fan motor with cool-down mode handles both delicate pastries and high-volume roasts.
  • Dual-pane glass doors, 60/40 split, open together with one hand and swing 130° for full access.
  • Five chrome racks included; ten positions maximize menu flexibility.
  • Porcelainized interior and two halogen lights make monitoring and clean-up a breeze.
  • All-stainless exterior (front, sides, doors, top & 6" legs) stands up to heavy use and keeps your line looking sharp.
  • cETLus, ETL-Sanitation & CE listed for safety and sanitation.
  • Part of Imperial’s Quick Ship program—get it when you need it.

Specifications

Model PCVDE-1 (Bakery Depth, Single Deck)
Pan Capacity 5 full-size (18" × 26") sheet pans, 10 rack positions
Exterior Dimensions 38" W × 44-7/8" D × 64" H (965 × 1140 × 1526 mm)
Interior Dimensions 29" W × 28" H × 29" D (737 × 711 × 737 mm)
Heat Input 11 kW total
Electrical 208 V or 240 V, 1 Ø (48 A) or 3 Ø (24–28 A)
480 V 3 Ø (12 A) available for export
Fan Motor ½ HP, 2-speed, 1725/1140 RPM
Temperature Range 150-500 °F (66-260 °C)
Construction Stainless steel front, sides, doors, top & legs
Shipping Weight Approx. 611 lb (277 kg)
Warranty 1 year parts & labor

Perfect For

  • Retail bakeries & pastry shops
  • Restaurants & hotel kitchens
  • Institutions and commissaries needing high throughput
  • Caterers seeking reliable, energy-efficient electric cooking
Installation Note: Unit must be hard-wired on a non-combustible floor. Provide 0" clearance from non-combustible surfaces (6" from combustible side walls). Follow all local codes and have a qualified electrician complete connections.

Availability shown is based on Imperial’s Quick Ship inventory and may change without notice. Contact us to confirm stock and shipping lead times.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

CE, cETLus, ETL-Sanitation

Height

64.0in

Width

38.0in

Depth

45.5in

Shipping Weight

611.0lbs

Interior Finish

porcelain interior

Size

deep/bakery size

Base

legs

Type

standard

Control Type

thermostatic controls

Deck Qty

1 deck

Exterior Finish

stainless steel front & sides

kW (per deck)

11.0 - 15.99 kW

Capacity per Compartment

5 pan capacity, per compartment

Specifications

(QUICK SHIP) Convection Oven, electric, (1) deck, bakery depth, manual controls, (2) speed fan motor, dual open 60/40 doors, window, (5) racks, interior lights, stainless steel front, sides, doors, top & legs, cETLus, ETL-Sanitation, CE
