Imperial (Middleby) IR-G72-C Pro Series Gas Ranges
Imperial (Middleby) IR-G72-C Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IR-G72-C Pro Series Gas Ranges
Description

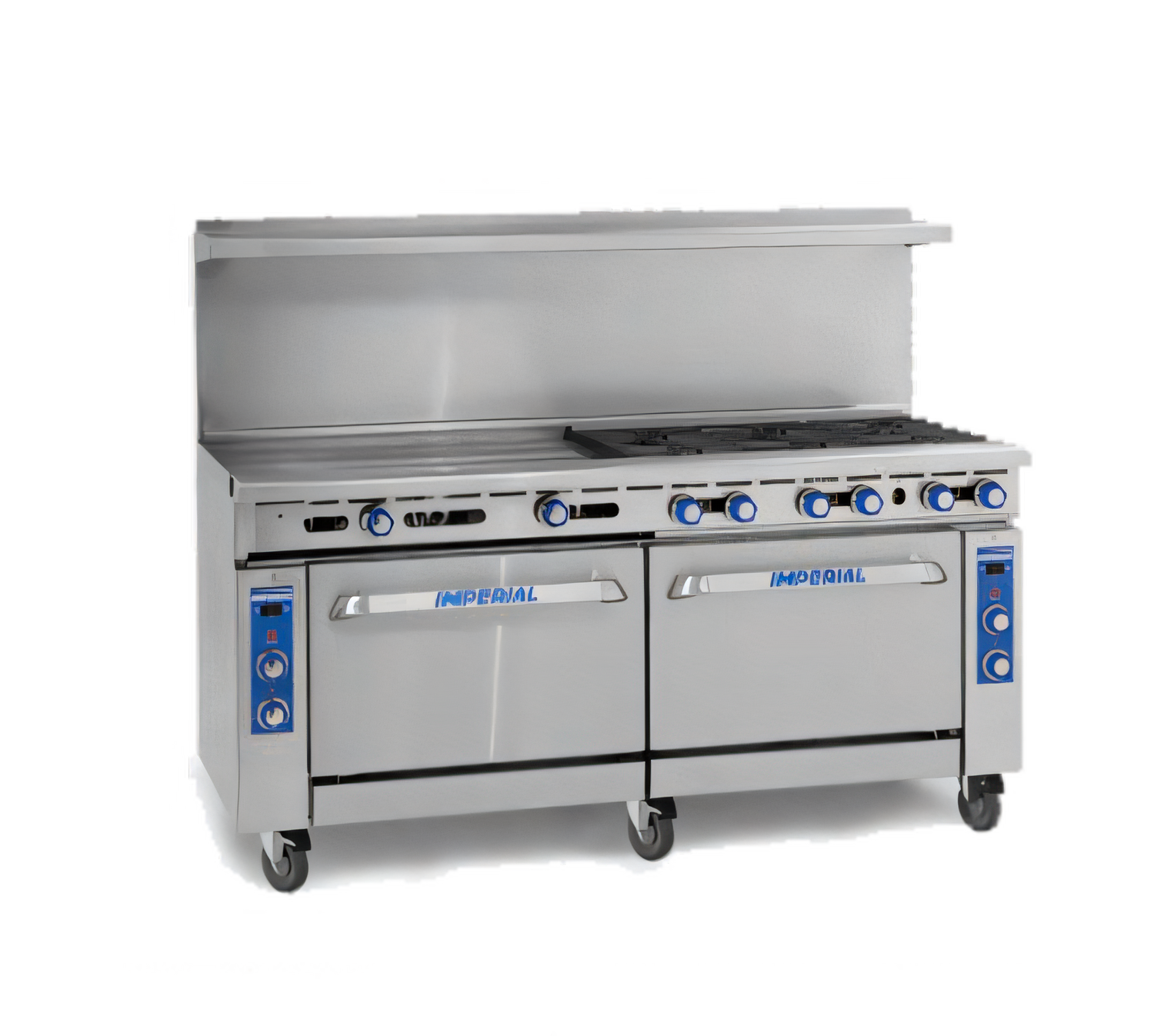

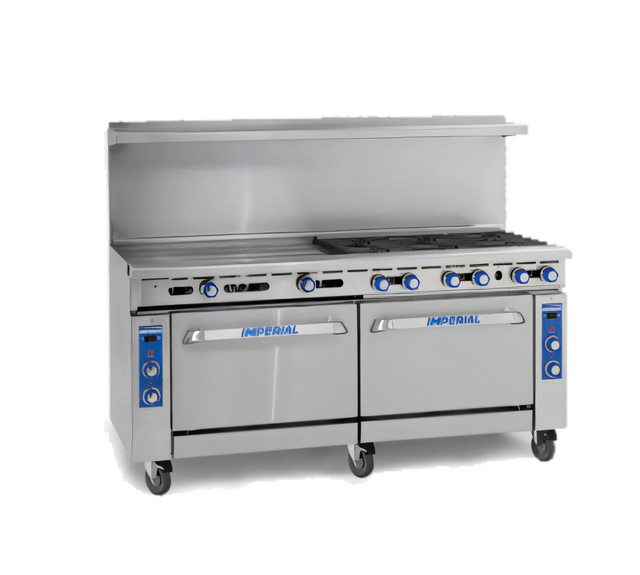

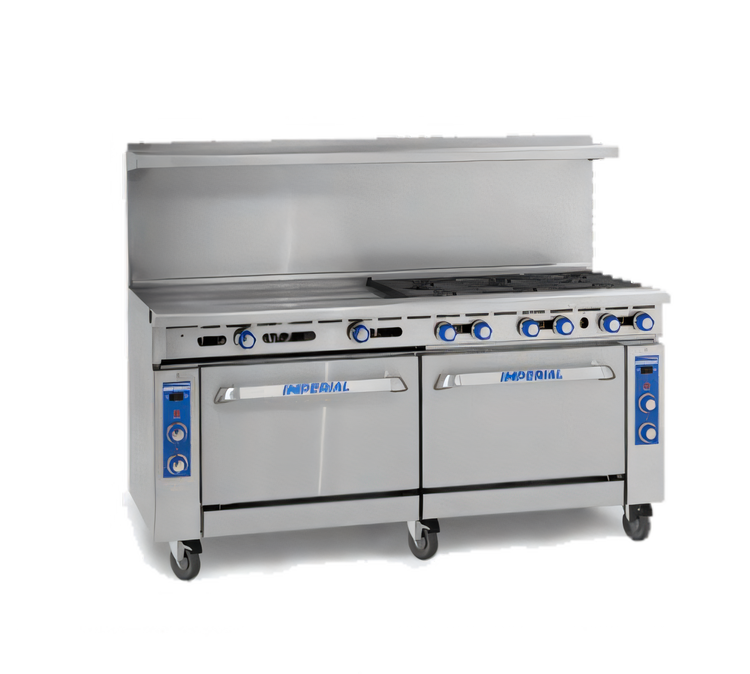

Imperial Pro Series 72" Gas Restaurant Range – Griddle Top & Dual Ovens
Model IR-G72-C | 190,000 BTU | NSF, CSA Star & Flame, CEBuilt for the busiest kitchens, the Imperial Pro Series 72" Range combines a full-width 3/4" thick griddle with both a chef-depth convection oven and a standard bake oven—all inside a rugged, fully stainless body. Whether you’re searing, sautéing, baking or roasting, this single piece of equipment delivers the capacity, consistency and durability serious food-service operations demand.
Why You’ll Love It
- One station, endless menus – 72" cooking surface, 21" plate depth and dual ovens handle breakfast through dinner rush.
- Even, responsive heat – Griddle burner every 12" plus heat deflectors for uniform temps and fast recovery.
- True chef-depth ovens – Accept 18" x 26" sheet pans left-to-right for maximum capacity.
- Saves labor – Porcelainized oven interiors, removable crumb tray and extra-wide grease trough speed up clean-down.
- All-stainless exterior – Front, sides, backguard, landing ledge, shelf and kick plate stand up to daily abuse.
- Field-convertible gas – 3/4" rear connection, 5" W.C. natural or 10" W.C. LP manifold pressure.

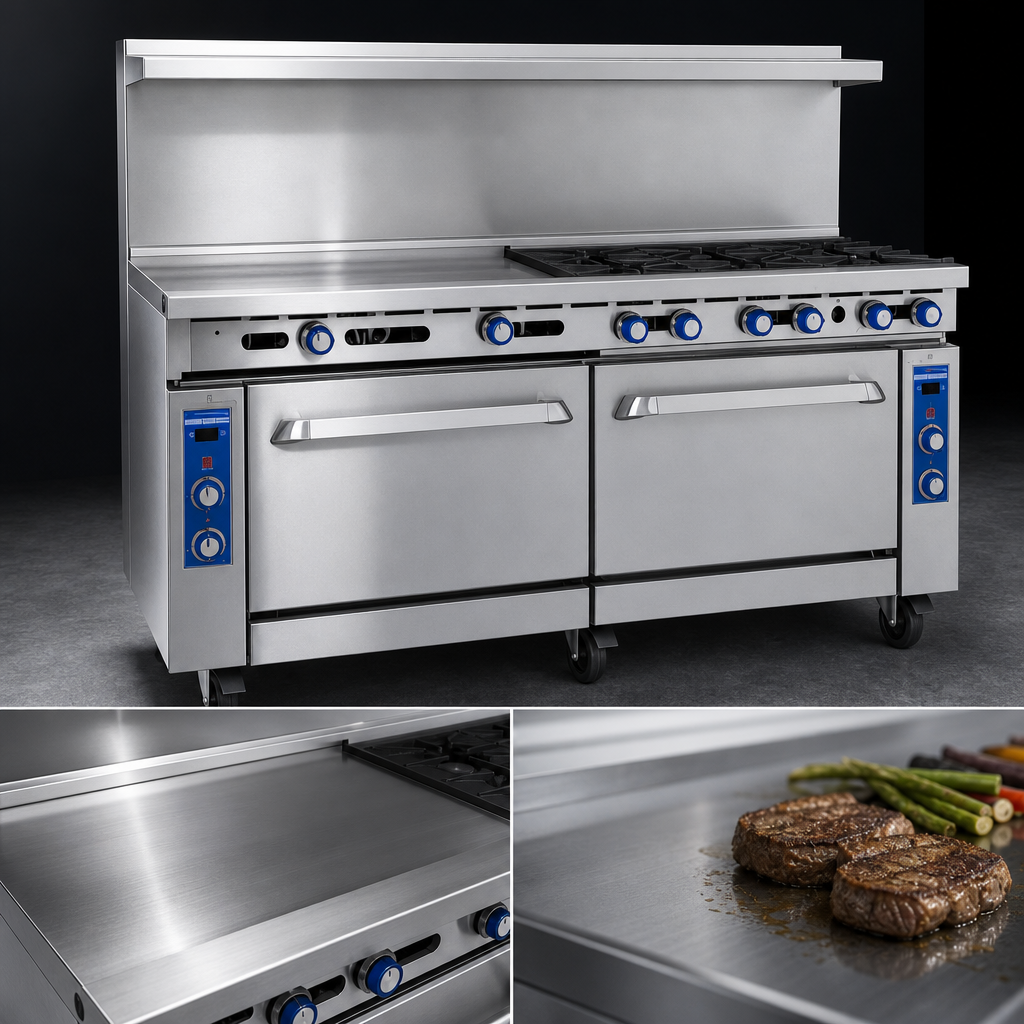

High-Capacity Griddle
- Full 72" width, 3/4" (19 mm) thick highly-polished steel plate.
- 21" (533 mm) plate depth lets you stage multiple zones front to back.
- 20,000 BTU burner for every 12" section (total 120,000 BTU).
- 3" (76 mm) wide grease trough with removable 4-qt can for quick dumping.

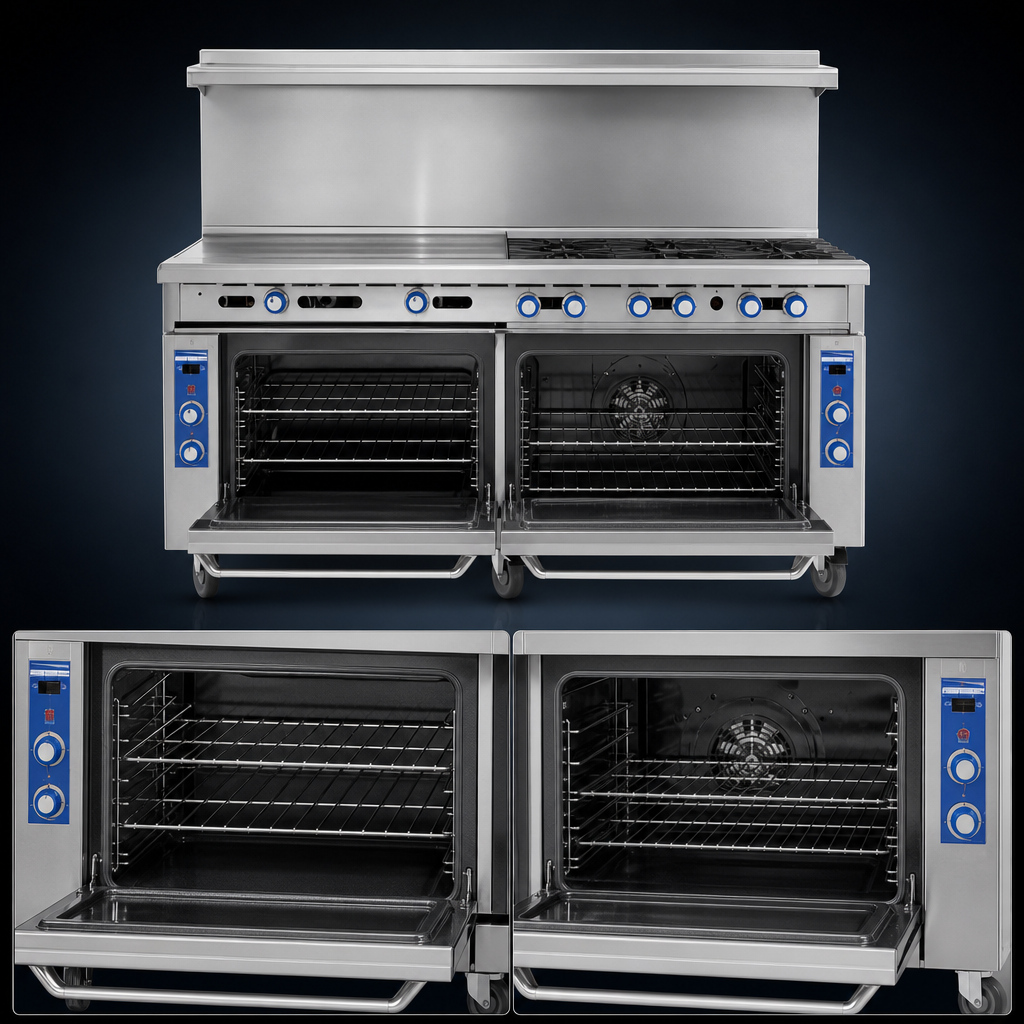

Dual Oven Performance
- Convection Oven – 30,000 BTU burner with 1/2 hp blower cuts cook times, reduces shrinkage and features a 3-position cook / cool-down switch.
- Standard Oven – 35,000 BTU linear burner, exclusive heat deflector and chef-depth cavity for even baking.
- Each oven interior: porcelainized sides, rear, deck and door liner for effortless wipe-out.
- One chrome rack (standard) & three chrome racks (convection) included.
- Heavy-duty hinged doors with stamped liners maximize heat retention.
Built to Last
- Welded, polished stainless steel seams prevent grease intrusion.
- 3.5" deep stainless landing ledge—perfect for plating & tool storage.
- 6" heavy-duty legs with adjustable feet; optional 6" casters available.
- Durable cast-aluminum control knobs resist heat and cracking.
Technical Specifications
| Overall Width | 72" (1829 mm) |
|---|---|
| Depth (w/ landing ledge) | 31 1/2" (800 mm) |
| Height (to top of backguard) | 56 1/2" (1435 mm) |
| Total Gas Input | 190,000 BTU/hr (56 kW) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural 5" W.C. | LP 10" W.C. |
| Electrical (convection blower) | 120 V / 1 ph / 6 A, cord & plug supplied |
| Oven Interior (Convection) | 26 1/2" W × 22 1/2" D × 14" H |
| Oven Interior (Standard) | 26 1/2" W × 26" D × 14" H |
| Certifications | NSF, CSA Star, CSA Flame, CE |
| Warranty | 1-year parts & labor (factory authorized service network) |
Popular Options & Accessories
- 6" or 11" stainless backguards, or stub back
- Grooved or thermostatic griddle plate
- 6" locking caster set
- Quick-disconnect gas hose & gas shut-off valve
- 220 V motor & transformer for export applications
- Extra chrome oven racks
Imperial warrants this equipment to the original purchaser for one (1) year on parts & labor. See full warranty statement for terms and conditions.
