Imperial (Middleby)  |  Pro Series  |  SKU: IR-G60-C-XB

Imperial (Middleby) IR-G60-C-XB Pro Series Gas Ranges

$18,018.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Pro Series 60" Gas Griddle Range with Convection Oven & Cabinet

Imperial | Model IR-G60-C-XB

Built for the busiest kitchens, Imperial’s Pro Series 60" griddle range delivers powerful, even heat across a full-width polished steel plate while a high-performance convection oven turns out perfectly cooked batches all day long. With durable stainless construction, simple manual controls and a built-in storage cabinet, this single piece of equipment does the work of three—saving space, labor and energy.

Why You’ll Love It

  • High-capacity cooking: 130,000 BTU (38 kW) total output.
  • Full 60" griddle: 3/4" (19 mm) polished steel plate with 21" depth for maximum heat retention and sear.
  • Even heating: Individual 20,000 BTU burners every 12" with heat deflectors for consistent surface temperatures.

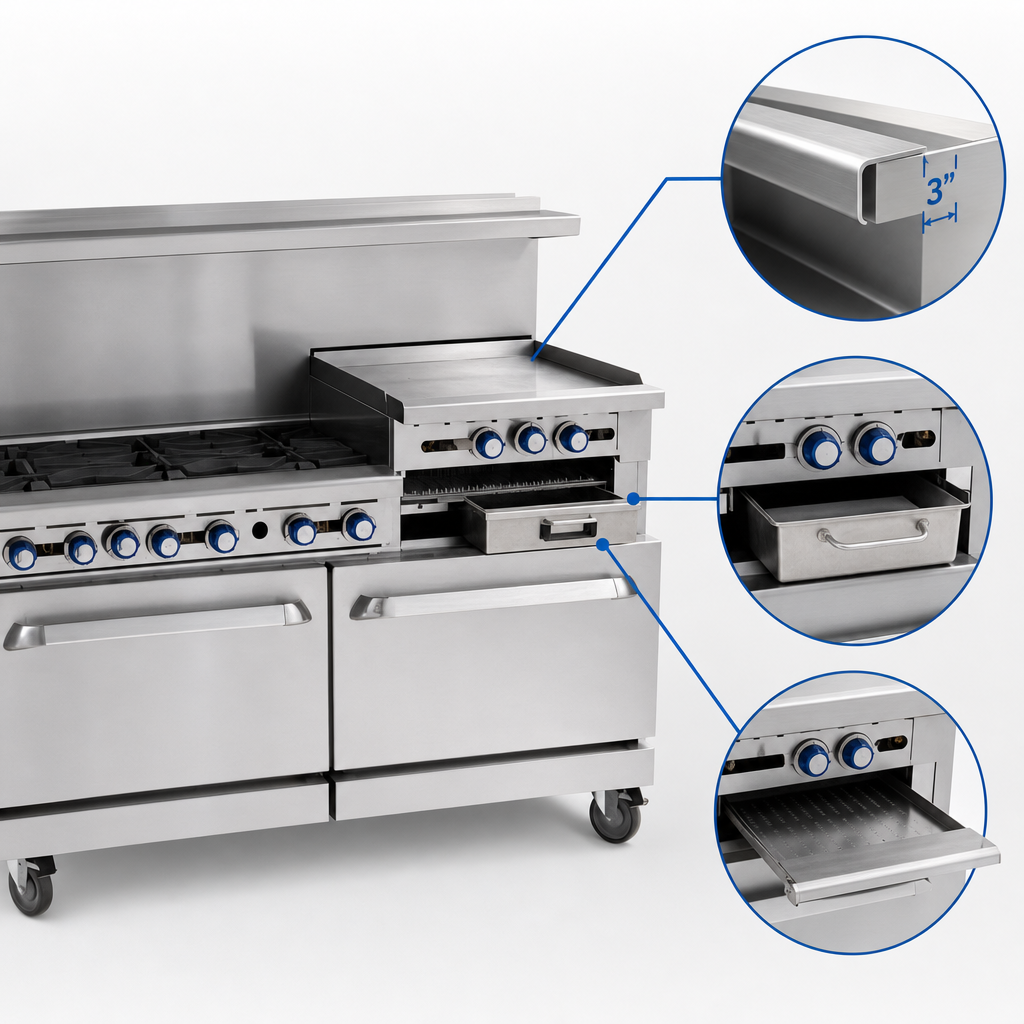

  • Easy grease management: 3" extra-wide trough plus large, removable grease can and full-width crumb tray.
  • True convection baking: 30,000 BTU burner, 1/2 HP blower and three chrome racks speed production while reducing shrinkage.
  • Rugged build: Welded stainless steel front, sides, backguard, landing ledge & kick plate stand up to daily abuse.
  • Space-saving cabinet base: Open storage with bottom shelf keeps sheet pans, utensils or smallwares close at hand.
  • Simple to install: 6" legs with adjustable feet; single 3/4" gas connection and 120 V plug for the blower motor.
  • Certified & protected: NSF, CE, CSA Star & Flame approvals plus a 1-year parts & labor warranty.

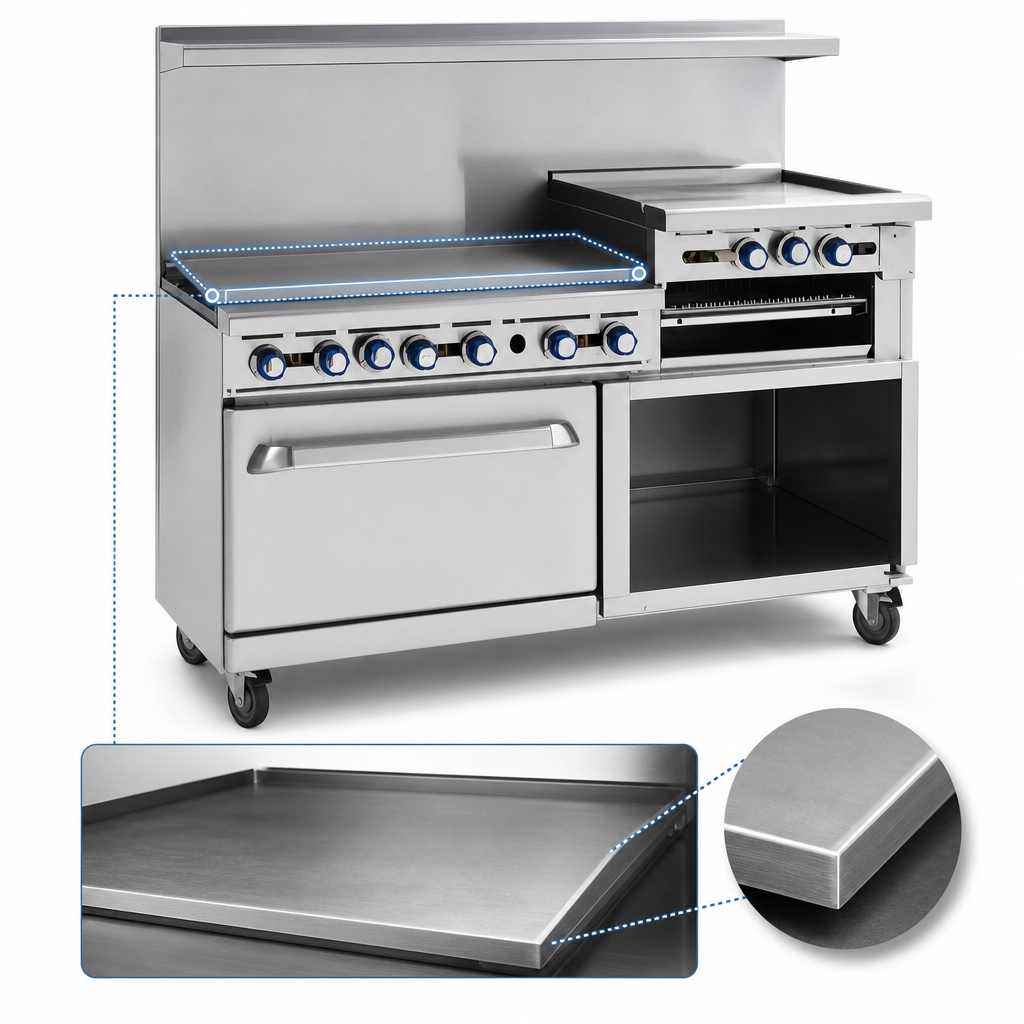

60" Griddle Performance

  • Highly polished, non-stick 3/4" steel plate resists warping.
  • Burners located 12" on center with integral heat deflectors.
  • 3" wide stainless splash guards contain splatter.
  • Trough, grease can and crumb tray lift out without tools for fast cleanup.
  • Optional accessories: thermostatic controls, grooved plate, safety valve & quick disconnect gas hose (sold separately).

Convection Oven Highlights

  • Porcelainized interior: 26-1/2" W × 22-1/2" D × 14" H fits standard 18" × 26" sheet pans left-to-right.
  • Three chrome racks included; five rack positions for menu flexibility.
  • Three-position switch (cook / cool / off) with automatic fan cut-off when the door opens.
  • Heavy-duty, spring-balanced door with stay-cool “Chef’s” handle.

Specifications

Overall width 60" (1524 mm)
Overall depth 31-1/2" (800 mm)
Overall height (with backguard) 56-1/2" (1435 mm)
Cooking surface 60" W × 21" D griddle, 3/4" plate
Total gas input 130,000 BTU / hr (38 kW)
Griddle burners (5) × 20,000 BTU
Oven burner 30,000 BTU with 1/2 HP blower
Electrical (convection fan) 120 V, 1-phase, 6 A, NEMA 5-15P cord
Gas connection 3/4" NPT, natural 5" WC or LP 10" WC
Certifications NSF, CE, CSA Flame, CSA Star
Ship weight ~1,120 lb (508 kg)
Warranty 1 year parts & labor
Install on non-combustible flooring with supplied 6" legs (or optional casters). Provide 0" clearance to non-combustible and 8" (203 mm) to combustible surfaces. A single 3/4" gas shut-off valve is required within 4 feet of the unit.
Warranty Reminder: Coverage is valid only when the range is installed and serviced by an Imperial-authorized technician and operated in accordance with the factory manual.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

60.0in

Depth

31.5in

Shipping Weight

1120.0lbs

Exterior Finish

stainless steel front & sides

Control Type

manual controls

Plate Thickness

.750" = 3/4"

Base

(1) convection oven, (1) cabinet

Top

(1) griddle

Vent

backriser with hi-shelf

Specifications

Pro Series Restaurant Range, gas, 60"W, (1) 60"W griddle, 3/4" polished steel plate, 3"W grease trough, removable grease can & crumb tray, (1) convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, (1) open cabinet, bottom shelf, manual controls, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 130,000 BTU, 38kW, NSF, CE, CSA Flame, CSA Star
