Imperial (Middleby)  |  Pro Series  |  SKU: IR-8-G24-C-XB

Imperial (Middleby) IR-8-G24-C-XB Pro Series Gas Ranges

$18,426.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Parts manual Training video Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

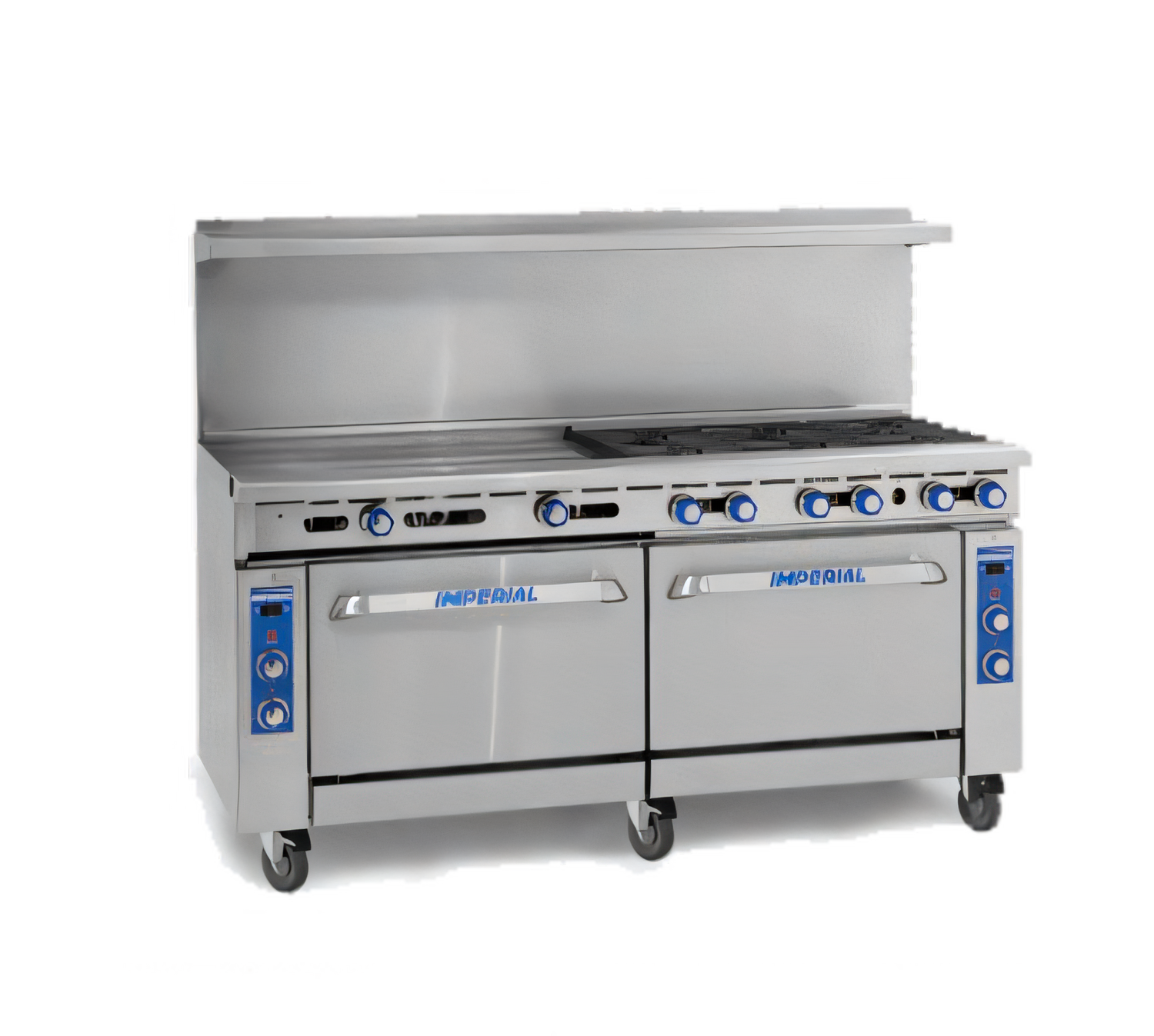

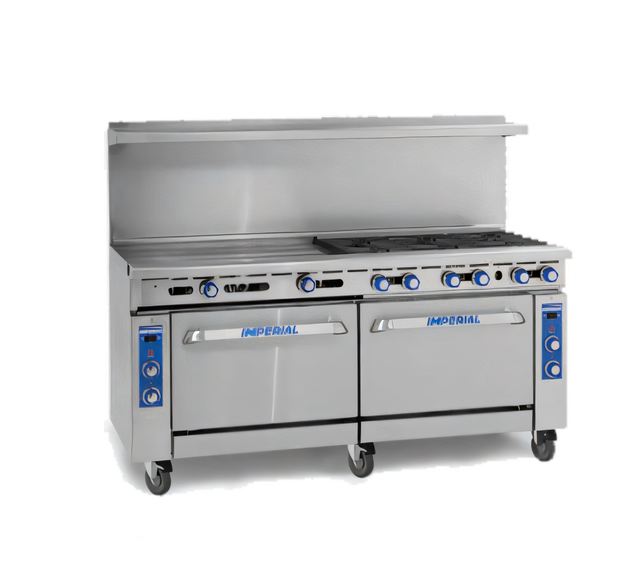

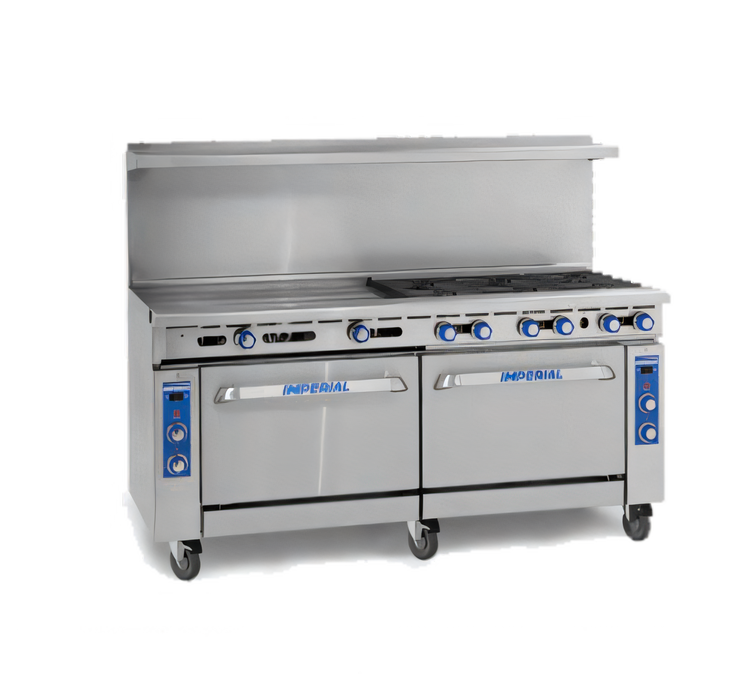

Imperial Pro Series 72" Gas Restaurant Range

Model IR-8-G24-C-XB  |  8 Open Burners • 24" Griddle • Convection Oven • Cabinet Base

Designed for demanding commercial kitchens, the Imperial Pro Series 72" range delivers powerhouse performance, all-day reliability, and chef-focused ergonomics in one rugged platform. Combine searing 32,000 BTU open burners, a precision 24" griddle, and a high-volume convection oven—then add an open cabinet base for instant storage—and you have a single station that drives every part of service from breakfast to banquet.

Key Benefits

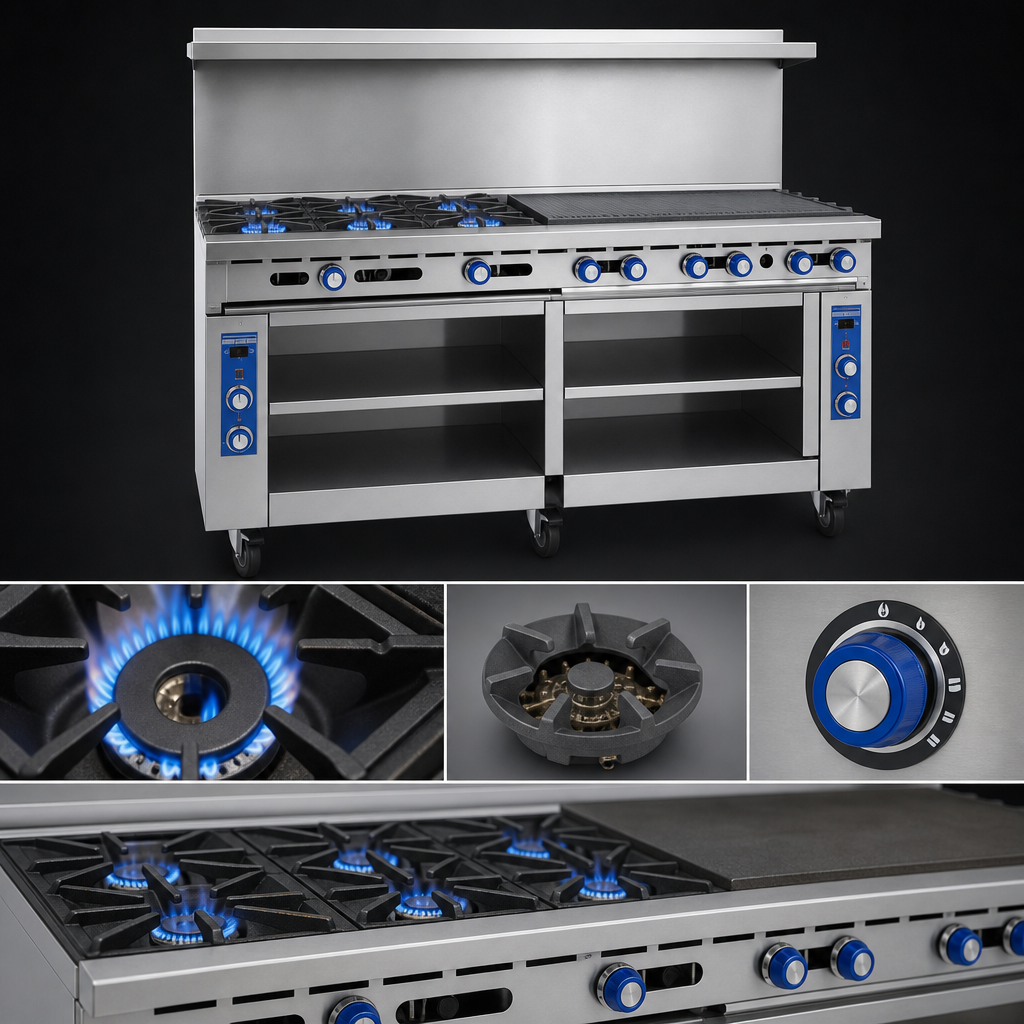

  • 8 PyroCentric™ open burners – 32,000 BTU each with 7,000 BTU low-simmer ring for delicate sauces.

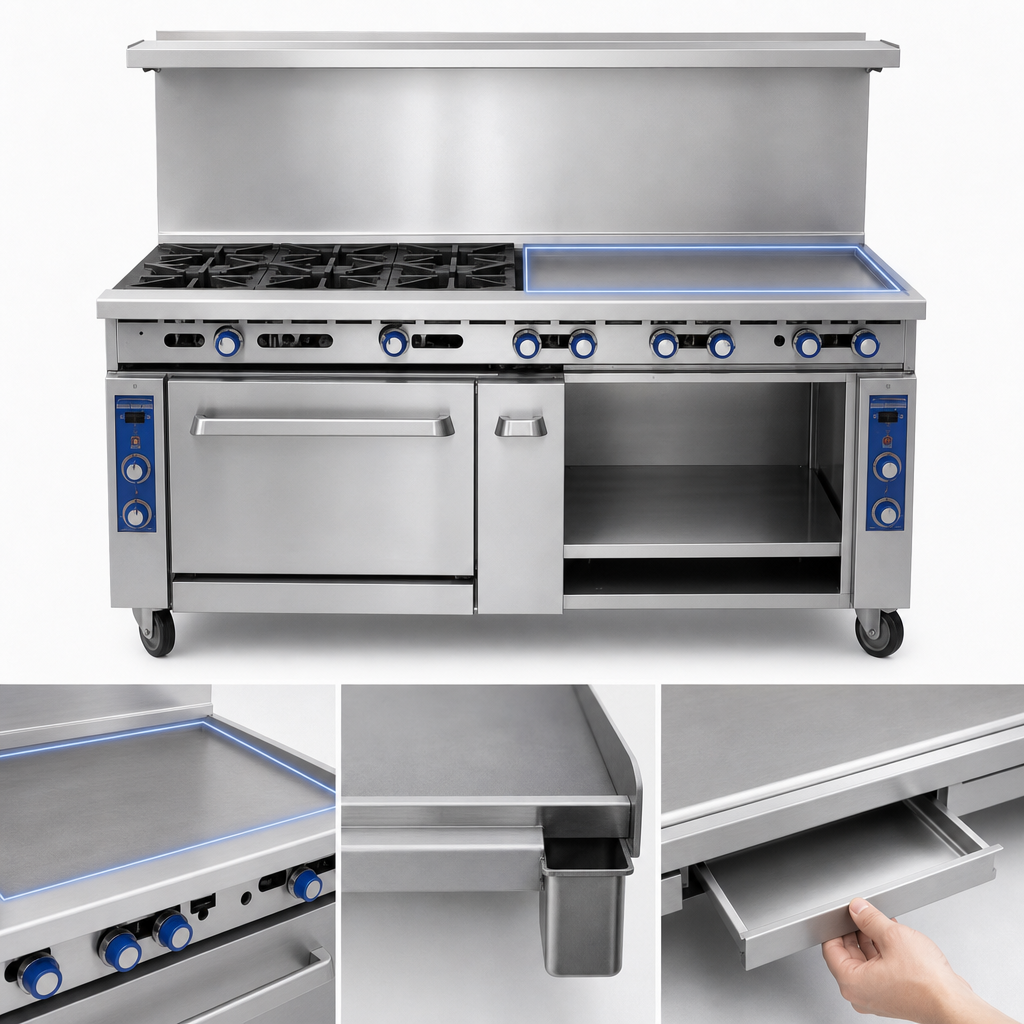

  • 24" griddle section – ¾" polished steel plate, two 20,000 BTU burners (every 12") and a 3" wide grease trough that feeds a removable pan.
  • 30,000 BTU convection oven – ½ HP blower moves heat for faster, even cooking and reduced shrinkage; three chrome racks included.
  • Durable cast-iron top grates – front 12" × 12", rear 12" × 13" with hot-air dam for stockpots.
  • All-stainless exterior – front, sides, backguard, landing ledge & kick plate resist corrosion and wipe clean fast.
  • Open cabinet base – bottom shelf keeps sheet pans, stockpots or hotel pans right at hand.
  • Easy service – lift-off burner heads, removable crumb tray and grease pan speed nightly clean-up.
  • 6" heavy-duty legs with adjustable feet level the unit on any surface.
  • Certified NSF, CE, CSA Flame & Star for broad code compliance.

Built for Performance

  • Linear, oven-length burner and exclusive heat deflector ensure even cavity temps.
  • Chef-depth interior (26½" W × 22½" D × 14" H) fits full-size 18" × 26" sheet pans left-to-right.
  • Three-position switch: cook, cool-down, or fan-off when the door opens.
  • Manual gas controls give chefs instant flame response without electronics.

Specifications

Width × Depth × Height 72" W × 31 ½" D × 56 ½" H (1829 × 800 × 1435 mm)
Cook Surface Height 36" (with 6" legs)
Total Gas Input 326,000 BTU/hr  (96 kW)
Open Burners 8 × 32,000 BTU PyroCentric™
Griddle 24" W, ¾" steel plate, 2 × 20,000 BTU
Convection Oven 30,000 BTU with ½ HP blower, 3 chrome racks
Gas Connection ¾" NPT rear manifold; 5" W.C. Natural / 10" W.C. LP
Electrical (oven fan) 120 V, 1 φ, 6 A
Shipping Weight 1,190 lb (540 kg)
Certifications NSF, CE, CSA Flame, CSA Star
Warranty 1-year limited parts & labor

Included

  • (3) chrome oven racks
  • Removable crumb tray & grease pan
  • Stainless steel backguard with high-shelf

Popular Options

  • 6" or 11" higher stainless backguards / stub-back
  • Griddle thermostatic control or grooved plate
  • 6" heavy-duty locking casters
  • Quick-disconnect gas hose & gas shut-off valve
  • 220 V motor & transformer for export
  • Extra oven racks or wok/saute burner heads
Installation Note: Legs or casters are required when the unit is placed on a non-combustible floor. Provide 0" clearance to non-combustible surfaces and 8" clearance to combustible surfaces. Follow all local codes and the installation manual.

Need financing? Ask about flexible payment options through Middleby | Centra Funding.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

72.0in

Depth

31.5in

Shipping Weight

1190.0lbs

Exterior Finish

stainless steel front & sides

Top

(8) open burners, (1) 24" griddle

Vent

backriser with hi-shelf

Base

(1) convection oven, (1) cabinet

Plate Thickness

.750" = 3/4"

Specifications

Pro Series Restaurant Range, gas, 72"W, (8) open burners & pilot lights, low simmer feature, cast iron grates, (1) 24" griddle, 3/4" polished steel plate, 3"W grease trough, removable grease pan & crumb tray, (1) convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, manual controls, (1) open cabinet base with bottom shelf, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 326,000 BTU, 96kW, NSF, CE, CSA Flame, CSA Star
