Imperial (Middleby)  |  Pro Series  |  SKU: IR-6-RG24-C

Imperial (Middleby) IR-6-RG24-C Pro Series Gas Ranges

$15,287.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Middleby financial flyer Training video Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

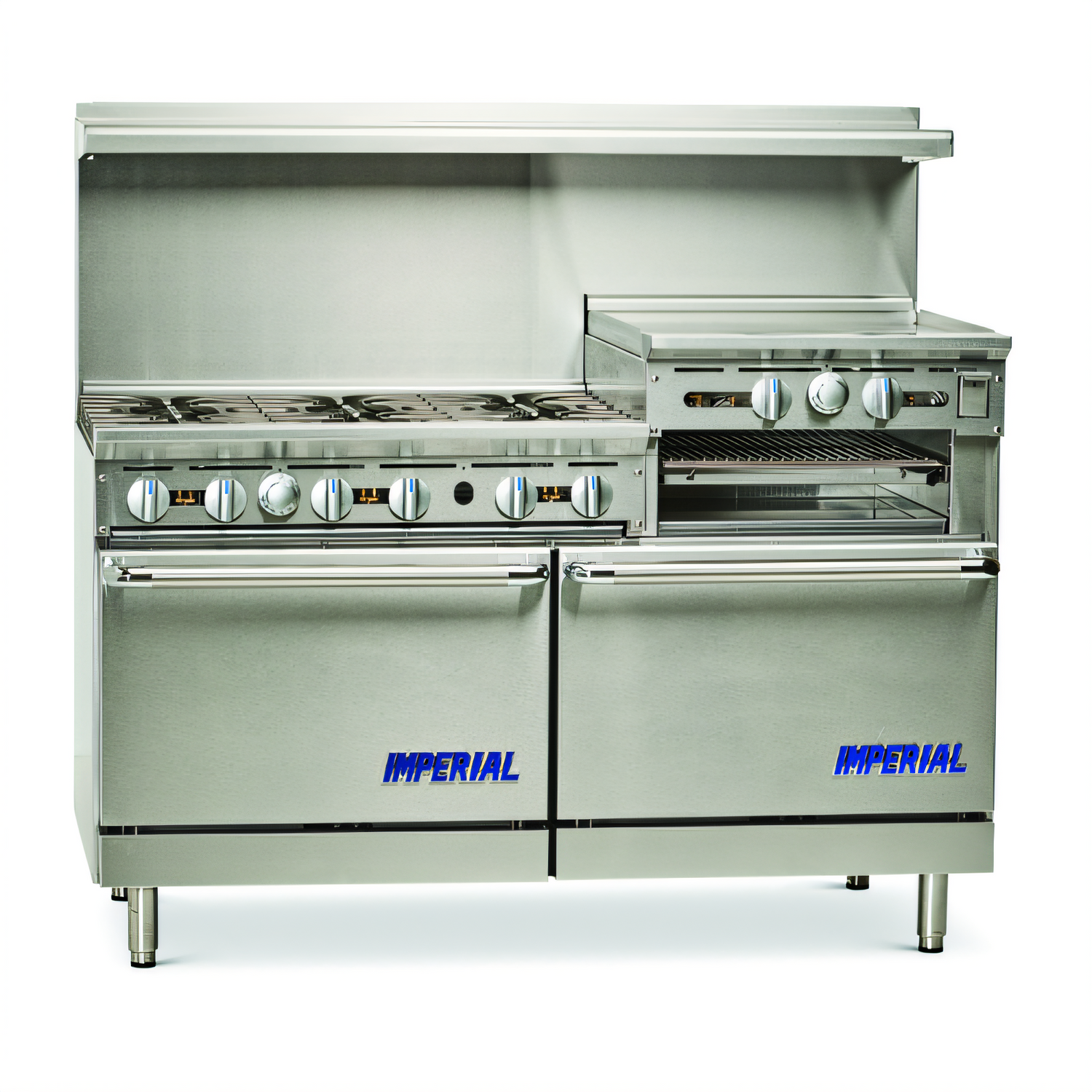

Imperial Pro Series 60" Gas Restaurant Range with Raised Griddle/Broiler & Convection Oven – Model IR-6-RG24-C

297,000 BTU • 6 Open Burners • 24" Raised Griddle • Convection & Standard Ovens

Turn a single 5-foot footprint into a full-service cookline. The Imperial IR-6-RG24-C pairs the power of six PyroCentric™ burners with a right-side raised griddle/broiler and dual ovens, giving busy kitchens unmatched flexibility, speed and consistency.

Key Features

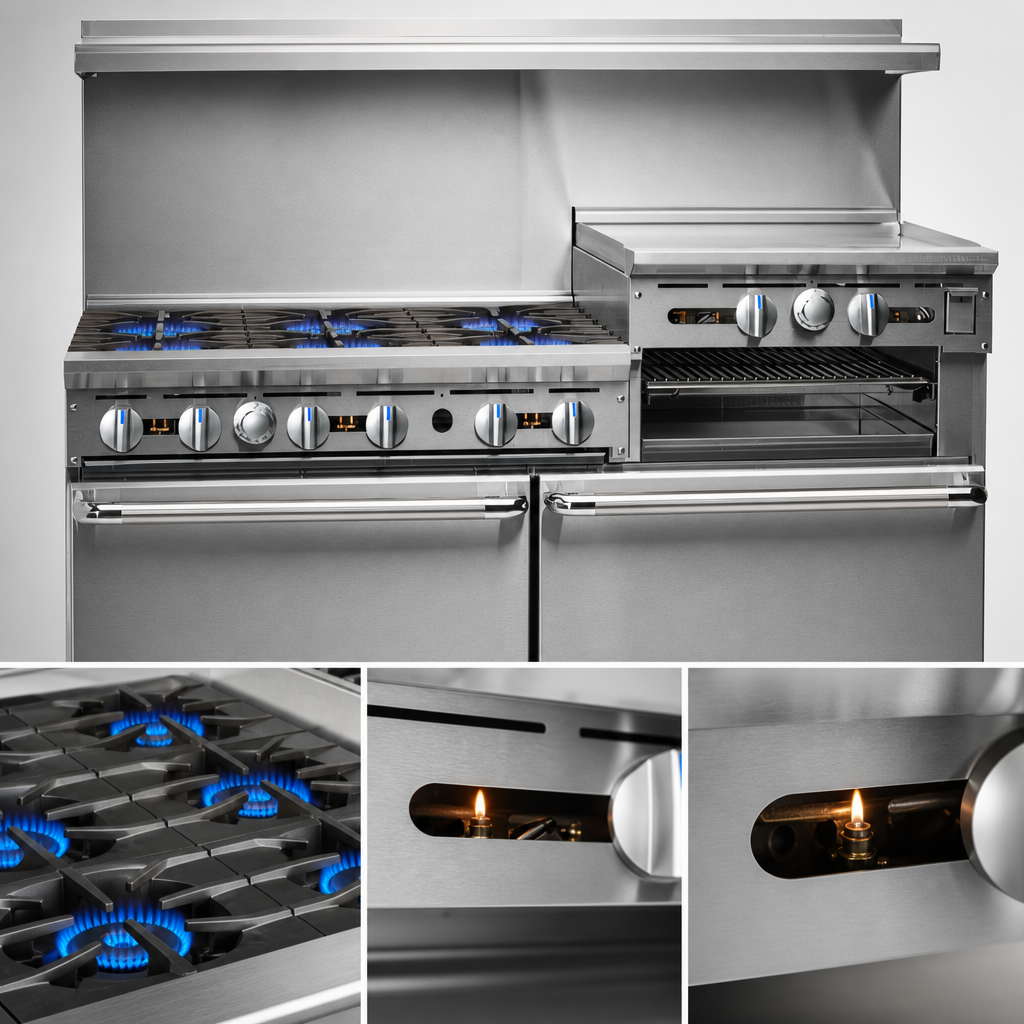

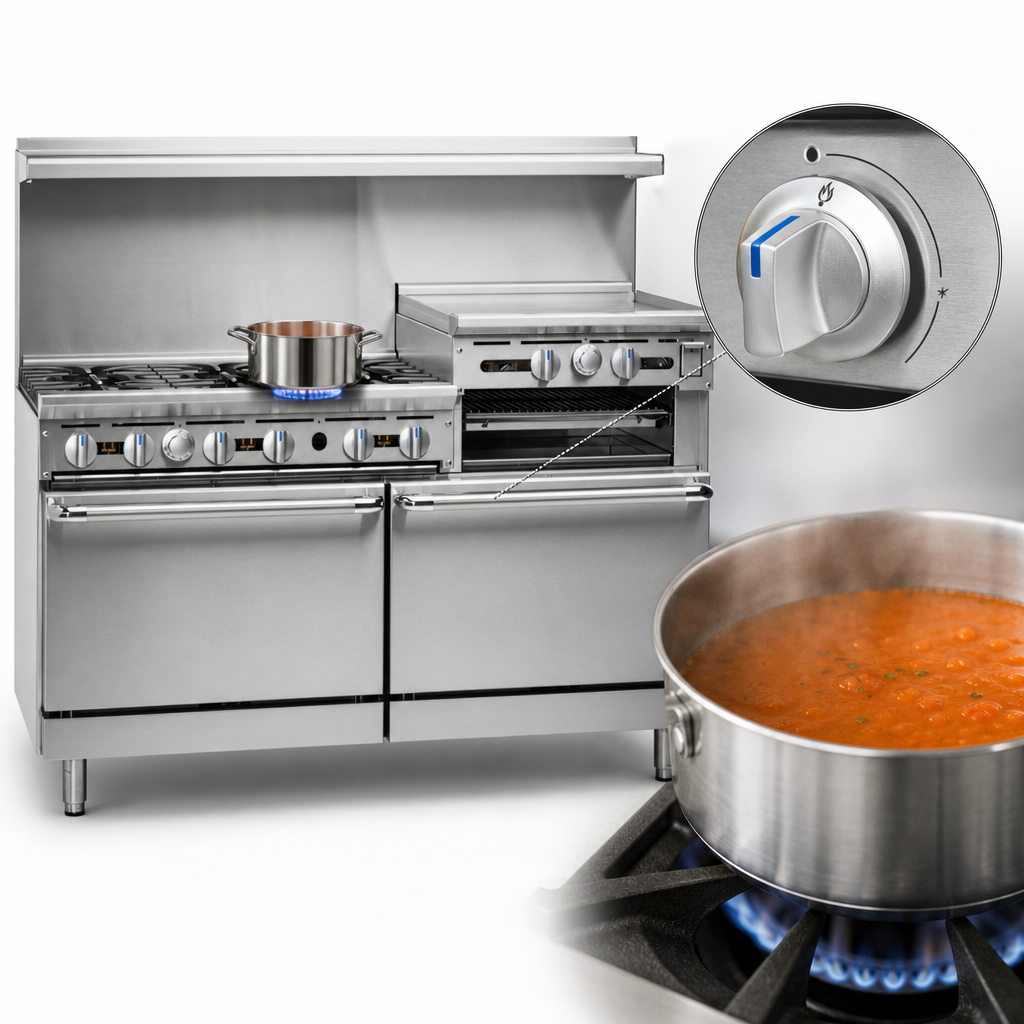

  • Six 32,000 BTU PyroCentric™ burners with individual pilots and 7,000 BTU low-simmer setting.
  • Continuous cast-iron grates let heavy stockpots slide safely from section to section.
  • 24" raised griddle/broiler, ¾" polished steel plate with 3" grease trough, removable grease can & broiler drip tray.
  • 30,000 BTU convection oven (½ HP blower) with porcelainized interior and three chrome racks.
  • 35,000 BTU Chef-Depth standard oven with porcelainized interior and one chrome rack.
  • All-stainless front, sides, backguard, high-shelf, 3.5" landing ledge & kick plate for easy cleanup.
  • Durable cast-aluminum control knobs and full-width removable crumb tray.
  • 6" adjustable stainless steel legs for perfect leveling.
  • NSF, CE, CSA Flame & CSA Star certified.

Performance Advantages

  • Total input: 297,000 BTU (87 kW) for quick heat-up & rapid recovery.
  • Exclusive heat deflector and linear oven burner for even baking and roasting.
  • Raised broiler lets you finish, melt or caramelize without tying up open burners.

Specifications

Manufacturer / Series Imperial (Middleby) – Pro Series
Model IR-6-RG24-C
Cooking Configuration 6 open burners + 24" raised griddle/broiler
Total BTU Input 297,000 BTU | 87 kW
Burner Output 32,000 BTU each (open burners)
Griddle Plate ¾" polished steel, 21" depth, 20,000 BTU per 12"
Convection Oven 30,000 BTU, ½ HP blower, 26½" W × 22½" D × 14" H, 3 racks
Standard Oven 35,000 BTU, 26½" W × 26" D × 14" H, 1 rack
External Dimensions 60" W × 31½" D × 56½" H (overall height to top of backguard)
Gas Connection ¾" NPT rear manifold  •  Natural 5" W.C. / LP 10" W.C.
Electrical (fan) 120 V, 1 Phase, 6 Amps
Ship Weight ≈1,150 lb (522 kg)
Certifications NSF, CE, CSA Flame, CSA Star
Warranty 1-year parts & labor

What’s Included

  • (3) chrome convection-oven racks
  • (1) chrome standard-oven rack
  • Full-width removable crumb tray
  • Removable grease can & broiler drip tray
  • 6" adjustable legs

Optional Accessories (sold separately)

  • 6" & 11" stainless steel backguards or stubback
  • Reinforcement channels for salamander or cheese melter
  • Thermostatic or grooved griddle plate
  • Quick-disconnect hose & gas shut-off valve
  • 6" heavy-duty swivel casters
  • Additional oven racks
Installation Notice: For use only on non-combustible floors. Provide 0" clearance to non-combustible surfaces and at least 8" clearance to combustible surfaces. ¾" gas connection and 120 V outlet required.

Prefer monthly payments? Ask about Middleby Equipment Financing and get cooking sooner.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

60.0in

Depth

31.5in

Shipping Weight

1150.0lbs

Vent

backriser with hi-shelf

Base

(1) standard oven, (1) convection oven

Top

(6) open burners, (1) 24" griddle/broiler

Exterior Finish

stainless steel front & sides

Control Type

manual controls

Plate Thickness

.750" = 3/4"

Specifications

Pro Series Restaurant Range, gas, 60"W, (6) open burners & pilot lights, low simmer feature, cast iron grates, (1) 24" raised griddle/broiler, 3/4" polished steel plate, 3" grease trough, removable grease can & crumb tray, (1) convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, (1) standard oven, porcelain interior, (1) chrome rack, manual controls, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 297,000 BTU, 87kW, NSF, CE, CSA Flame, CSA Star
