Imperial (Middleby) IR-6-G24-C-XB Pro Series Gas Ranges
Description

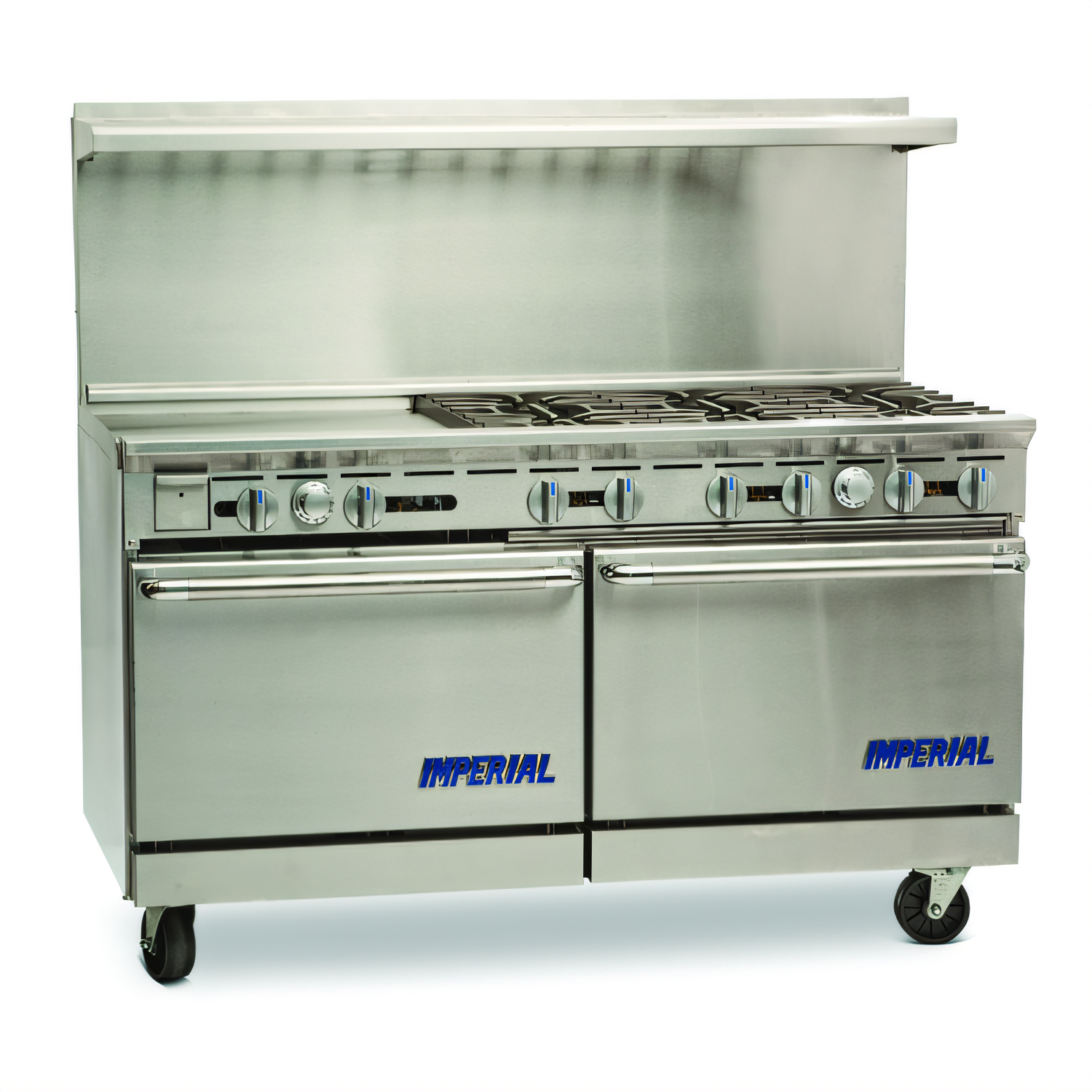

Imperial Pro Series 60" Gas Restaurant Range – 6 Burners, 24" Griddle & Convection Oven
Model IR-6-G24-C-XB | 262,000 BTU • 77 kWFire up six powerful PyroCentric™ burners, sear on a mirror-finished 24" steel griddle and finish dishes fast in a full-size convection oven—all in one rugged 60" platform. The Imperial Pro Series range is purpose-built for high-volume kitchens that refuse to compromise on performance, durability or cleanability.
Highlights

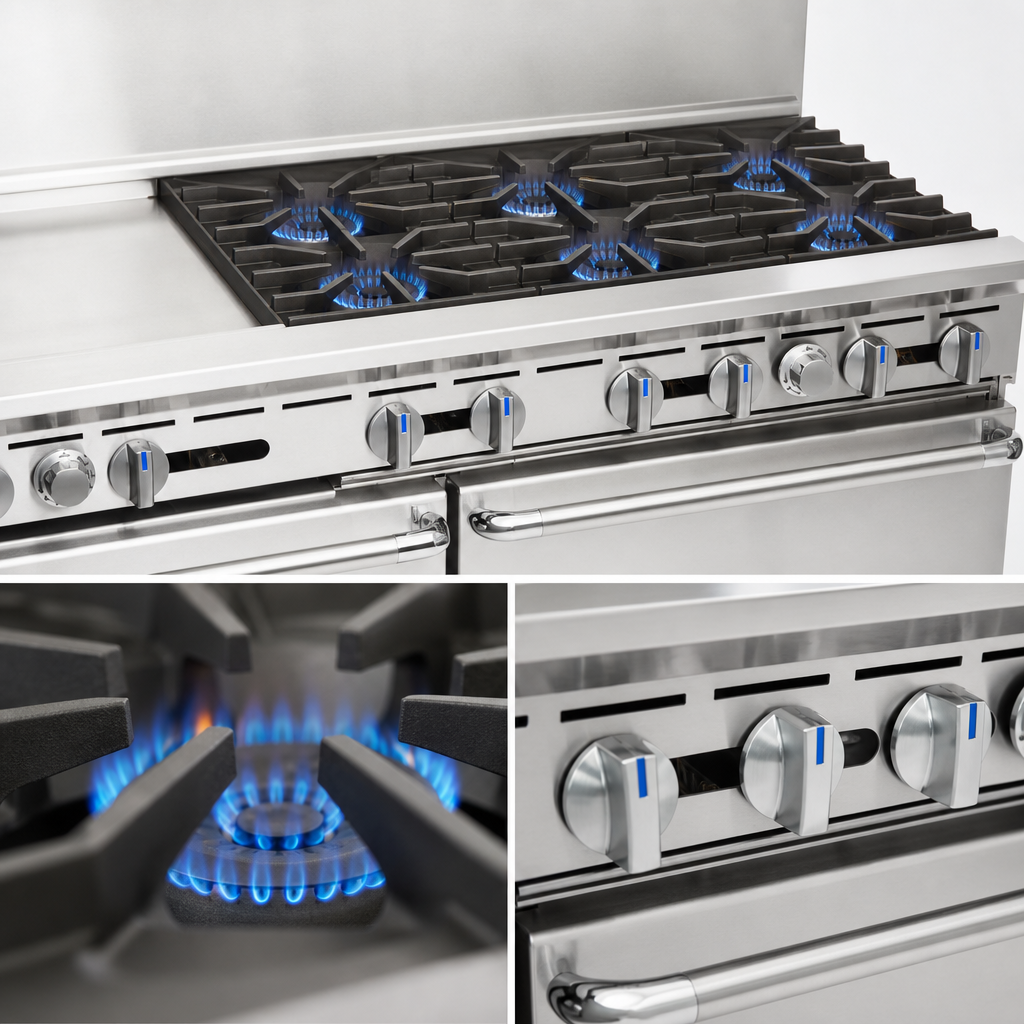

- Six 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer inner ring

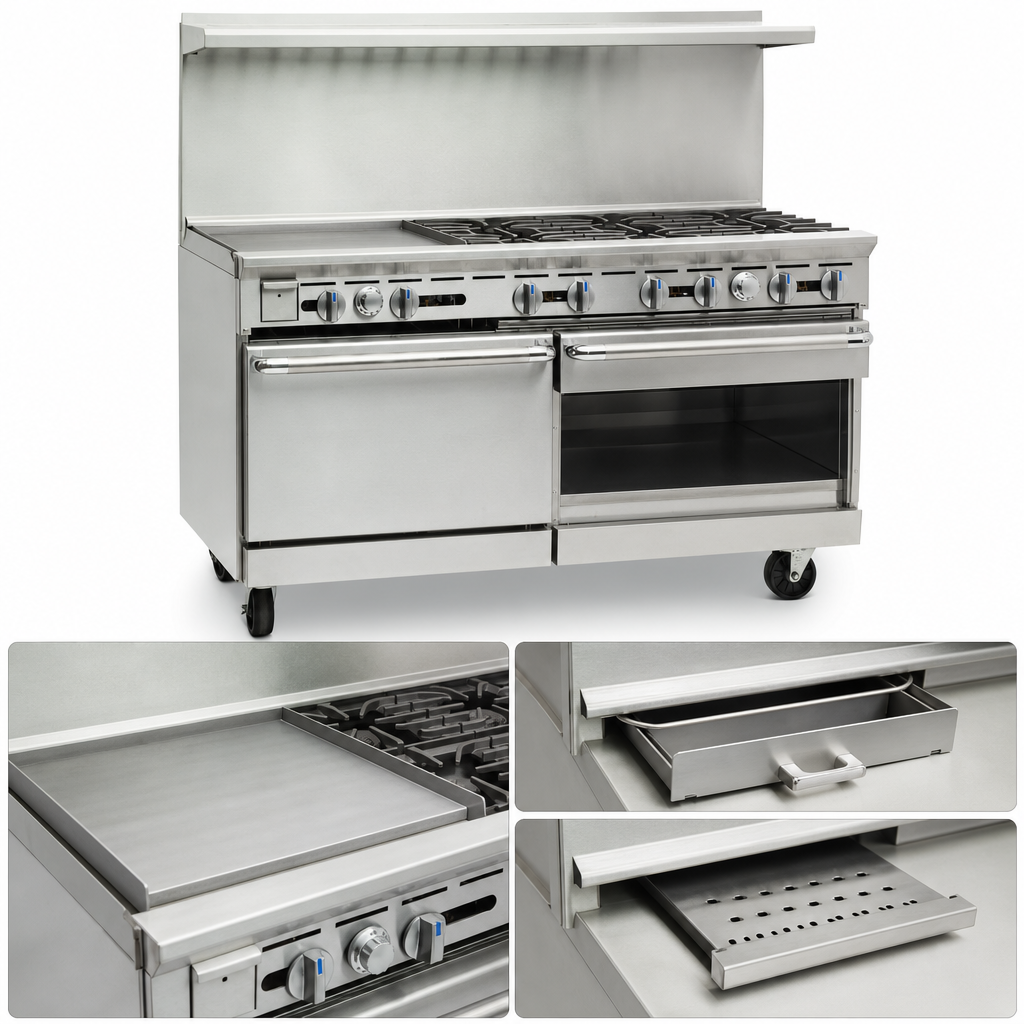

- Highly polished 24" (610 mm) x 21" griddle; 3" grease trough + removable can
- 30,000 BTU convection oven with ½ HP blower & 3 chrome racks
- Open cabinet base with bottom shelf keeps cookware close at hand
- Full stainless steel front, sides, 3½" landing ledge, backsplash & shelf
- Removable cast-iron grates & crumb tray for fast daily clean-up
- NSF, CE, CSA Flame & CSA Star certified
- Backed by Imperial’s 1-year parts & labor warranty
Unmatched Cooking Performance
- Two rings of flame on every burner deliver even heat from low-simmer to full boil.
- Standing pilots provide instant ignition; burners lift off—no screws, no gaskets.
- Griddle burners (20,000 BTU every 12") paired with a heat deflector ensure edge-to-edge consistency.
- Convection fan has a 3-position switch (cook / cool-down / off) and stops automatically when the door opens.
Construction That Works as Hard as You Do
- Seam-welded, polished stainless steel exterior resists dents, scratches and corrosion.
- 26½" chef-depth porcelainized oven interior wipes clean in seconds.
- Heavy-duty cast-iron grates (12" × 12" front, 12" × 13" rear) let stockpots slide effortlessly across sections.
- 6" adjustable stainless steel legs level the unit on uneven floors; optional casters available.
Certifications
- NSF listed for sanitation
- CE compliant
- CSA Flame & CSA Star certified for gas safety & performance
Specifications
| Overall Width | 60" (1524 mm) |
|---|---|
| Depth (to door) | 31½" (800 mm) |
| Height (to cooktop / with backguard) | 36" / 56½" (914 / 1435 mm) |
| Total Gas Input | 262,000 BTU / 77 kW |
| Oven Interior (W × D × H) | 26½" × 22½" × 14" (673 × 572 × 356 mm) |
| Electrical (convection motor) | 120 V, 1 ph, 6 A |
| Gas Connection | ¾" NPT rear manifold; 5" WC natural / 10" WC LP |
| Shipping Weight | 1,065 lb (483 kg) |
| Included Accessories | (3) chrome oven racks, removable crumb tray, grease can |
One-year limited parts & labor warranty. See Imperial warranty statement for full terms.
