Key specifications
- BTU
- 297,000 BTU
- Amps
- 6 Amps
- Phase
- 1-Phase
- Dimensions
- 60.0"W × 31.5"D × 56.5"H
- Type
- Range
- Installation Type
- Floor Model

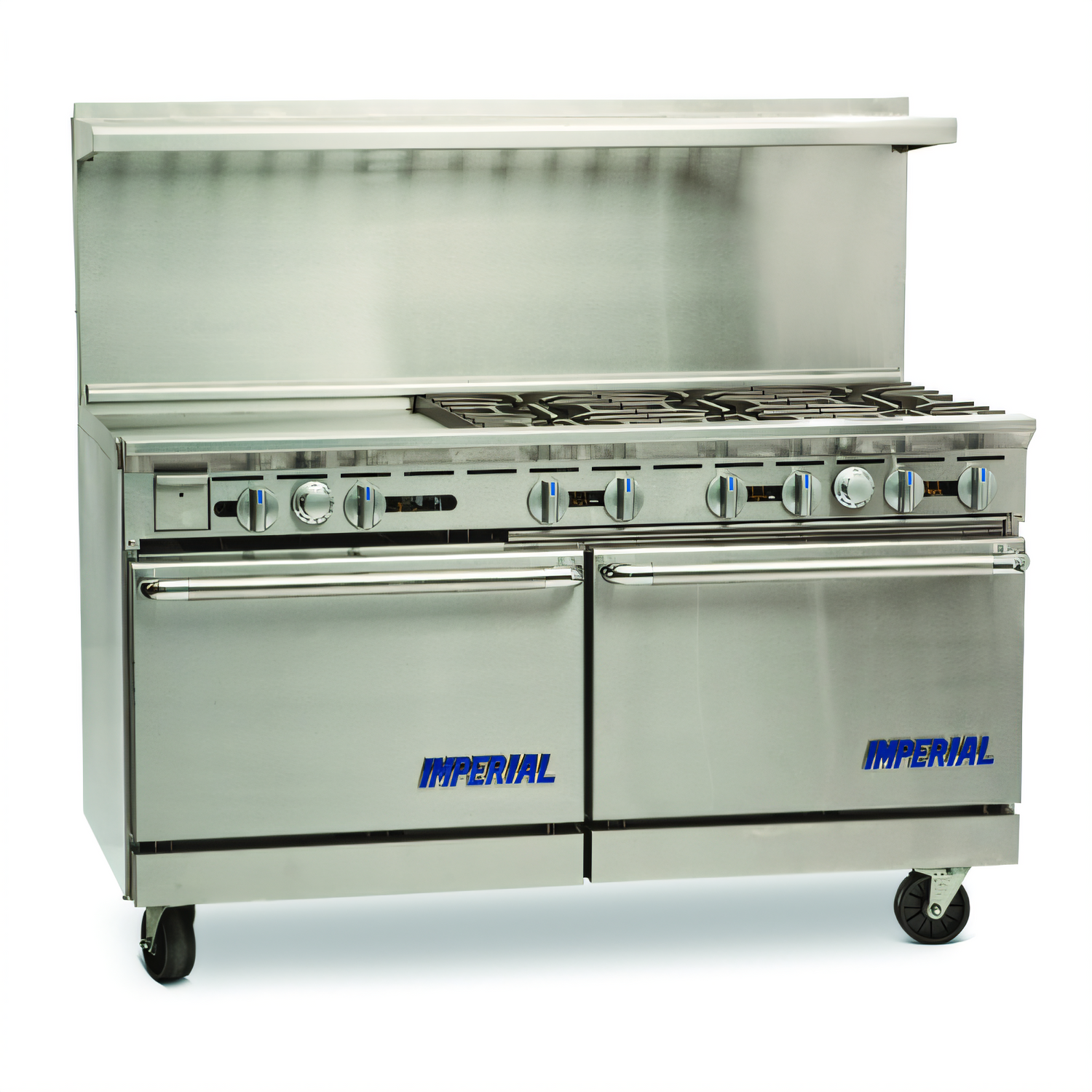

Imperial Pro Series IR-6-G24-C 60-Inch Gas Range, 6 Burners
- 1 Standard & 1 Convection Oven
- 2 Convection Ovens
- 6 open burners + 24 in griddle
- 10 open burners
- 4 open burners + 36 in griddle
- 2 open burners + 48 in griddle
- 60 in griddle
- 6 open burners + 24 in raised griddle/broiler
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Imperial Pro Series IR-6-G24-C is a 60-inch floor-model gas range with six open burners, a 24-inch griddle, one convection oven, and one standard oven.
- Open burners: Six cast iron-grated burners with pilot lights and a low-simmer feature.
- Griddle: A 24-inch griddle with a 3/4-inch steel plate, 3-inch grease trough, and removable grease can.
- Ovens: One convection oven with a 1/2 HP blower motor and three chrome racks, plus one standard oven with one chrome rack.
- Construction: Stainless steel front, sides, backguard, shelf, landing ledge, and kick plate with porcelain oven interiors.
- Cleaning and support: Removable crumb tray, six-inch legs, and adjustable feet.
Overall Dimensions:
60.0"W x 31.5"D x 56.5"HProduct Weight:
1115.0 lbOpen Burners

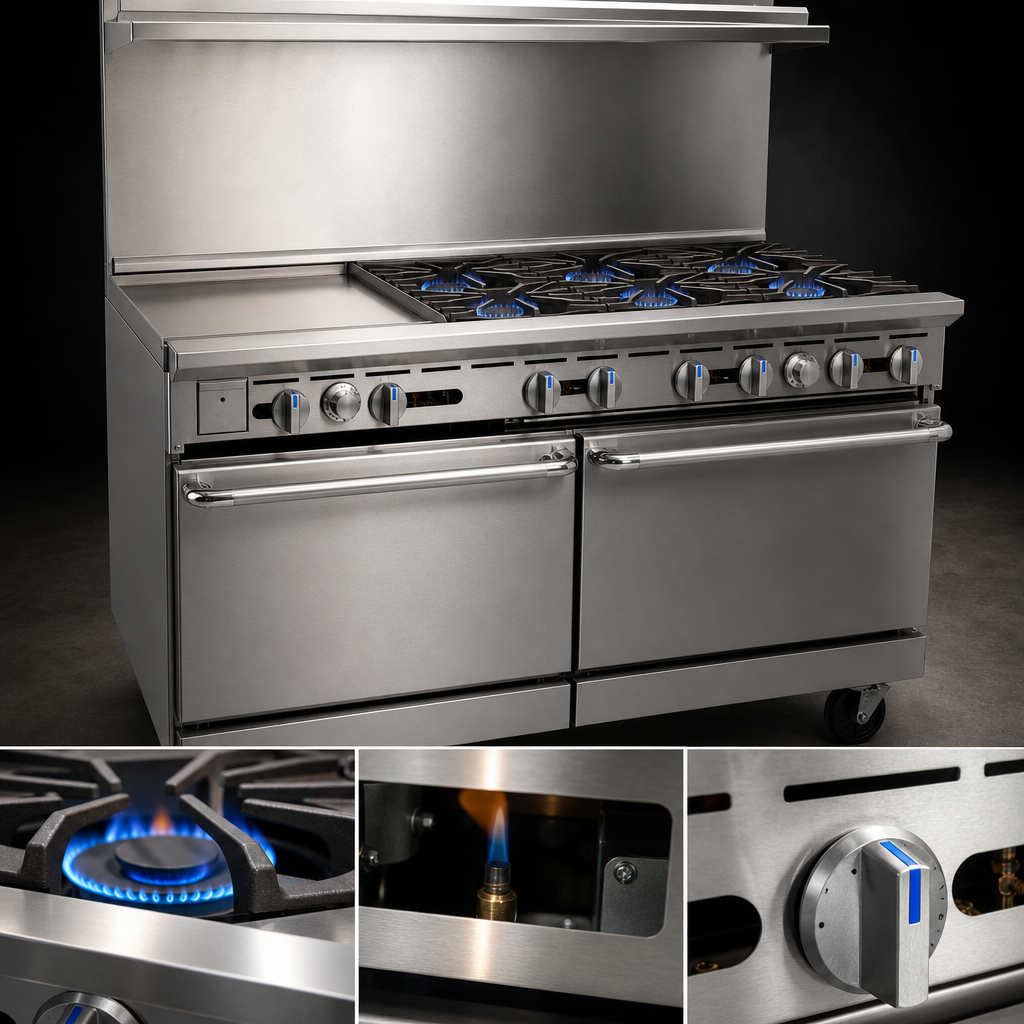

Six open burners use cast iron grates and include pilot lights and a low-simmer feature.
24-Inch Griddle

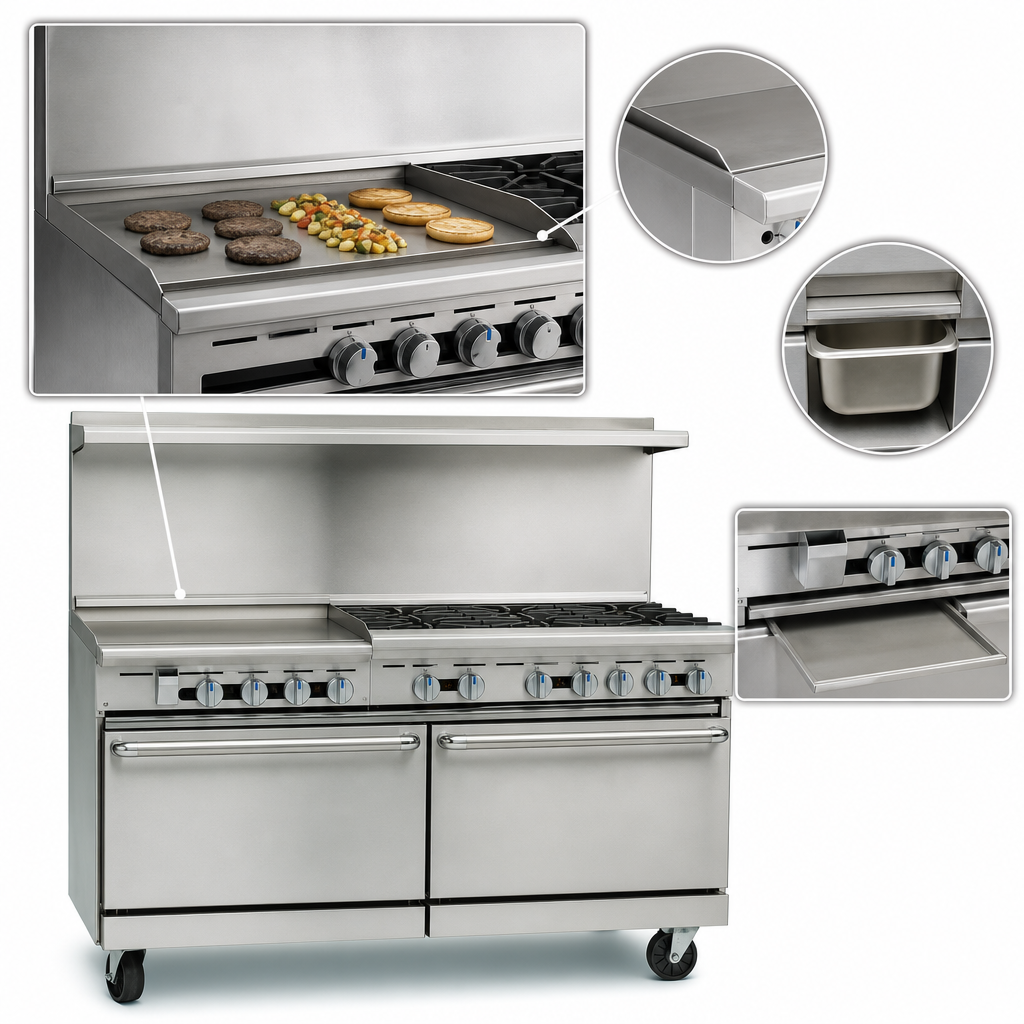

The griddle has a 3/4-inch steel plate, 3-inch grease trough, and removable grease can.
Convection Oven
The convection oven includes a 1/2 HP blower motor and three chrome racks.
Standard Oven
The standard oven includes one chrome rack.
Manual Controls
The range uses manual controls.
Stainless Steel Exterior
Stainless steel is used for the front, sides, backguard, shelf, landing ledge, and kick plate.
Porcelain Oven Interiors
Both oven interiors have a porcelain finish.
Removable Cleaning Components
The grease can and crumb tray are removable.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
