Imperial (Middleby) IR-4-G36-C Pro Series Gas Ranges
Description

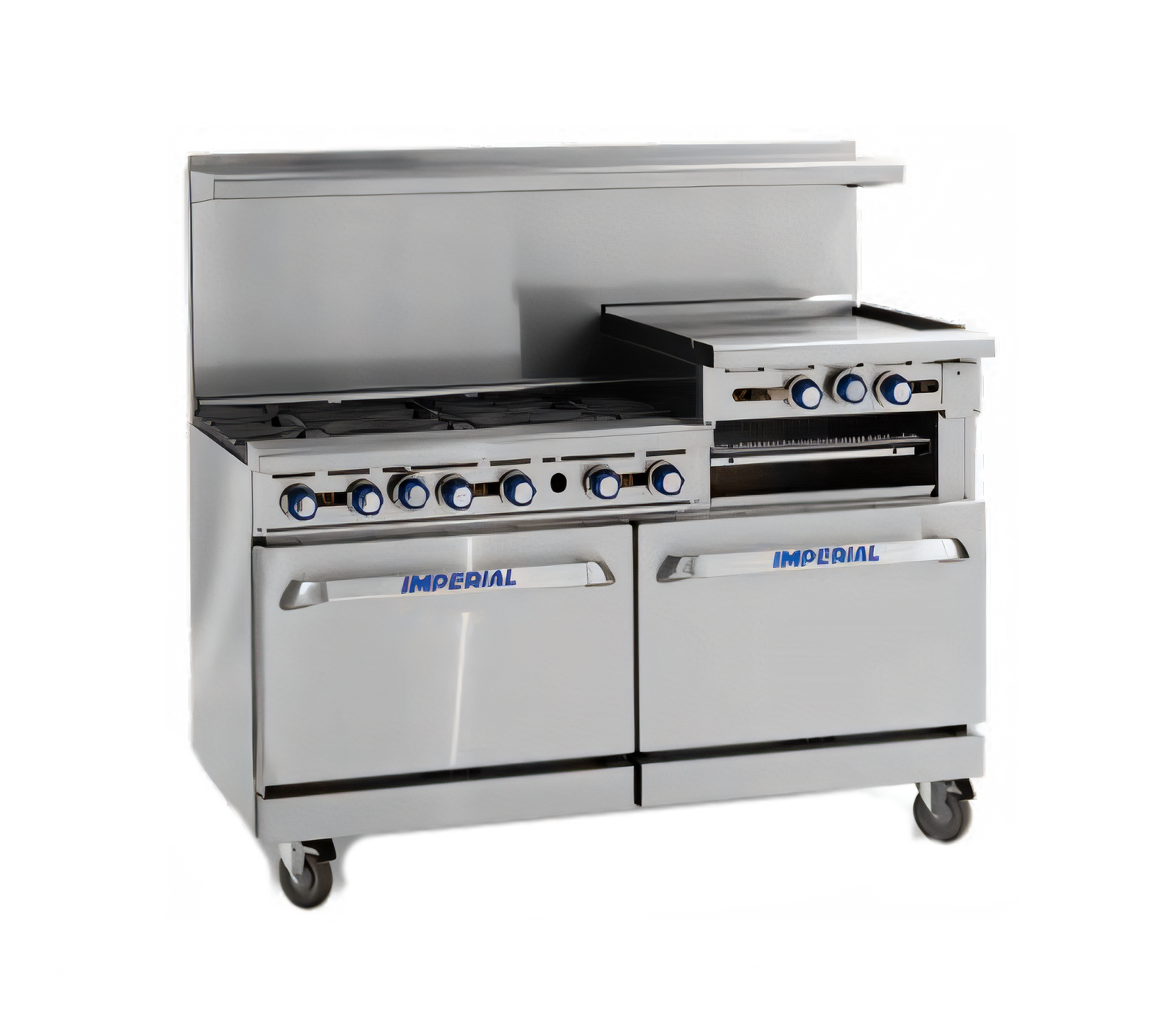

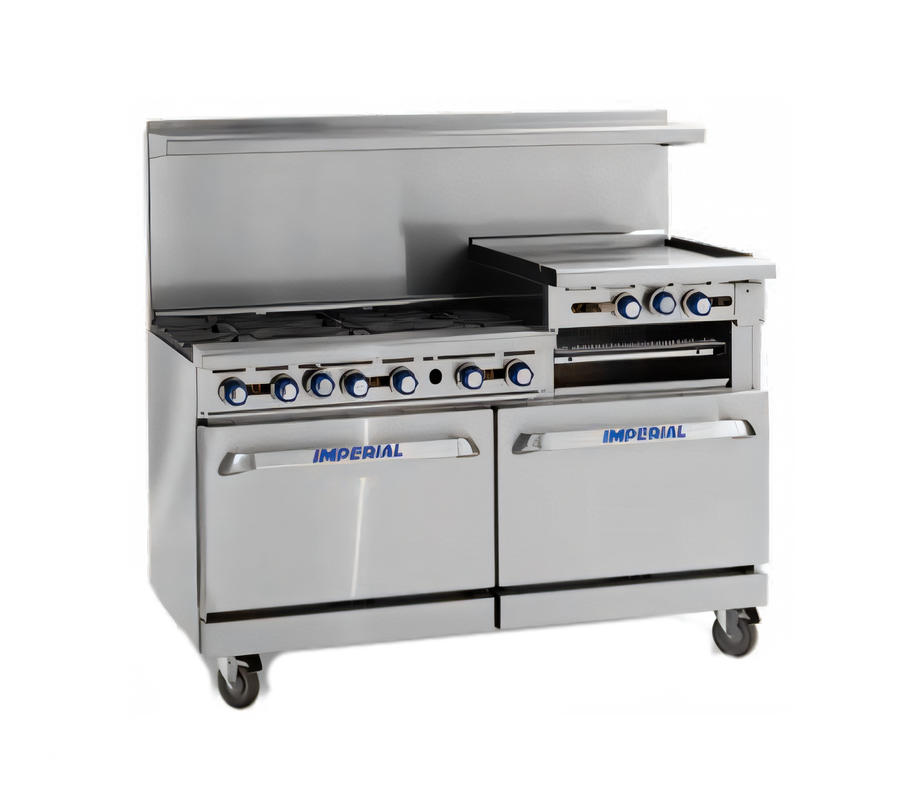

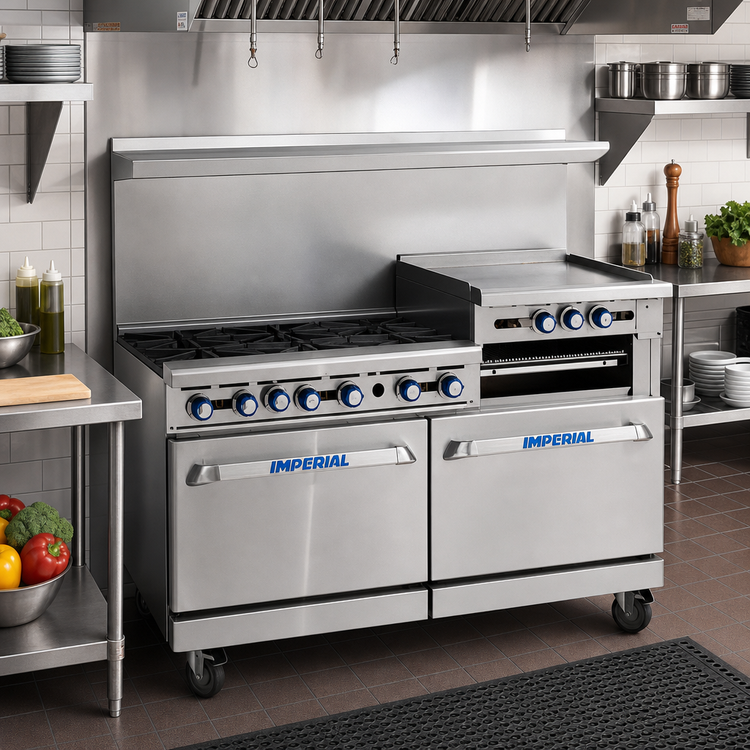

Imperial Pro Series 60" Gas Restaurant Range
Model IR-4-G36-C | 4 Open Burners • 36" Griddle • Convection & Standard OvensBring multi-zone cooking power to the line in one heavy-duty footprint. The Imperial Pro Series couples 32,000 BTU PyroCentric™ burners with a 3/4" polished steel griddle plate and dual ovens—giving chefs the speed, consistency and durability they demand during peak service.
Top Reasons You’ll Love It

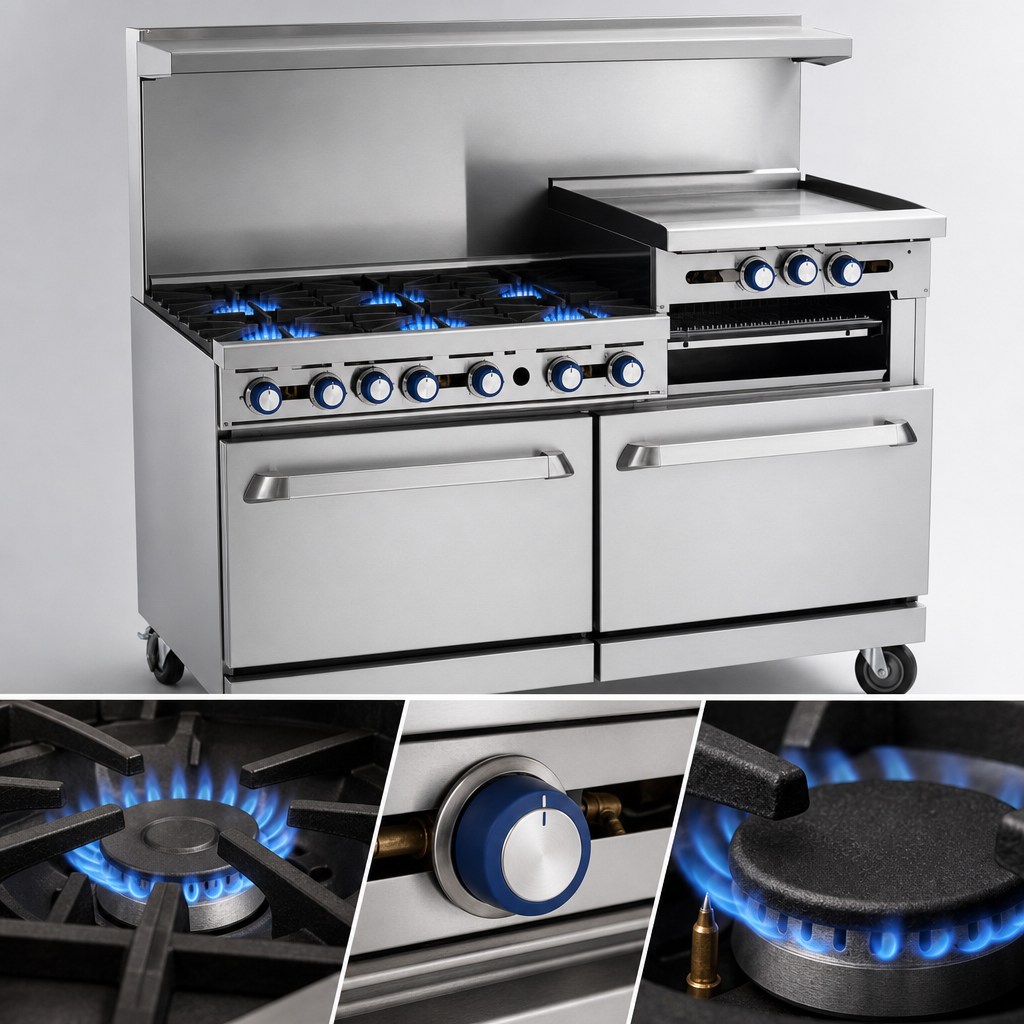

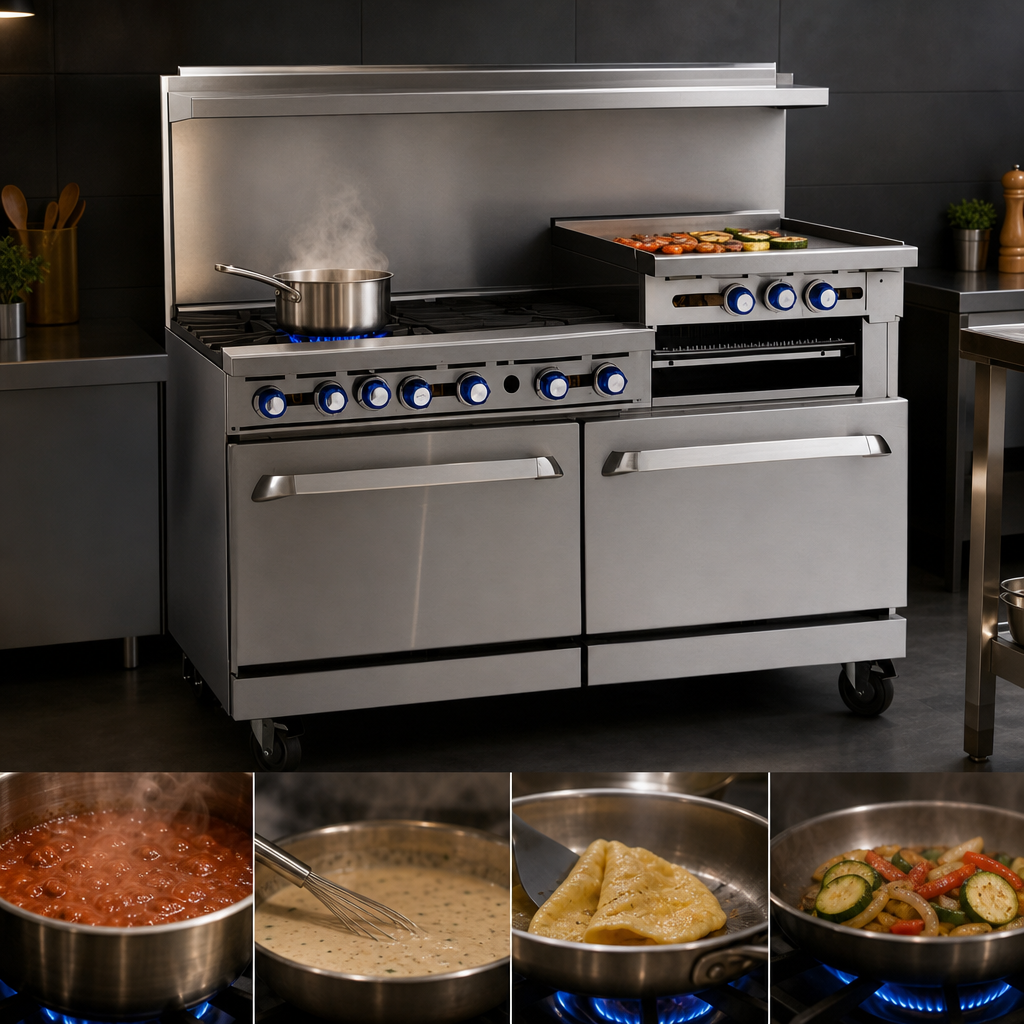

- 4 × 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer setting.
- 36" (914 mm) griddle with 3/4" polished steel plate for fast, even heat transfer.
- 3" stainless grease trough, full-width crumb tray and removable grease can for quick clean-up.
- Convection oven (30,000 BTU) with 1/2 HP blower motor and 3 chrome racks—ideal for high-volume baking & roasting.
- Standard oven (35,000 BTU) accepts full-size 18" × 26" sheet pans left-to-right or front-to-back.
- Porcelainized oven interiors and heavy-duty door hinges built for years of service.
- All-stainless front, sides, backguard, 3.5" landing ledge & kick plate resist corrosion and wipe clean.
- 6" adjustable stainless legs included; optional casters available.
- NSF, CE, CSA Flame & CSA Star listed for safety and sanitation.
Built for Peak Performance
Imperial’s two-ring PyroCentric burners are anti-clogging, lift-off for effortless cleaning, and ignite instantly with standing pilots. A heat deflector under each griddle burner guarantees an even cooking surface, while the convection fan’s three-position switch lets you cool-down the cavity between batches.
Technical Specifications
| Gas Type | Natural or Propane |
|---|---|
| Total Input | 253,000 BTU /hr (74 kW) |
| Open Burners | 4 × 32,000 BTU with low-simmer |
| Griddle Width | 36" (914 mm) – 3/4" steel plate |
| Ovens | 1 × Convection (30,000 BTU) & 1 × Standard (35,000 BTU) |
| Convection Oven Power | 120 V, 1 ph, 6 A, 1/2 HP motor |
| Cooktop Width | 60" (1524 mm) |
| Overall Dimensions | 60" W × 31-1/2" D × 56-1/2" H (with backguard) |
| Shipping Weight | ≈1,140 lb (517 kg) |
| Gas Connection | 3/4" NPT rear manifold |
| Clearances | 0" sides & rear (non-combustible); 8" combustible |
What Ships in the Box
- (3) chrome convection-oven racks & (1) chrome standard-oven rack
- Removable crumb tray, grease can & rack guides
- 6" stainless adjustable legs
- User & installation manuals
Popular Factory Options
- 6" or 11" stainless backguards, stub backs
- Thermostatic or grooved griddle plate
- 6" heavy-duty casters
- Quick-disconnect hose & gas shut-off valve
- 220 V convection motor kit
Warranty
1-year limited parts & labor warranty backed by Imperial’s national service network.
