Imperial (Middleby) IR-12-XB Pro Series Gas Ranges
Description

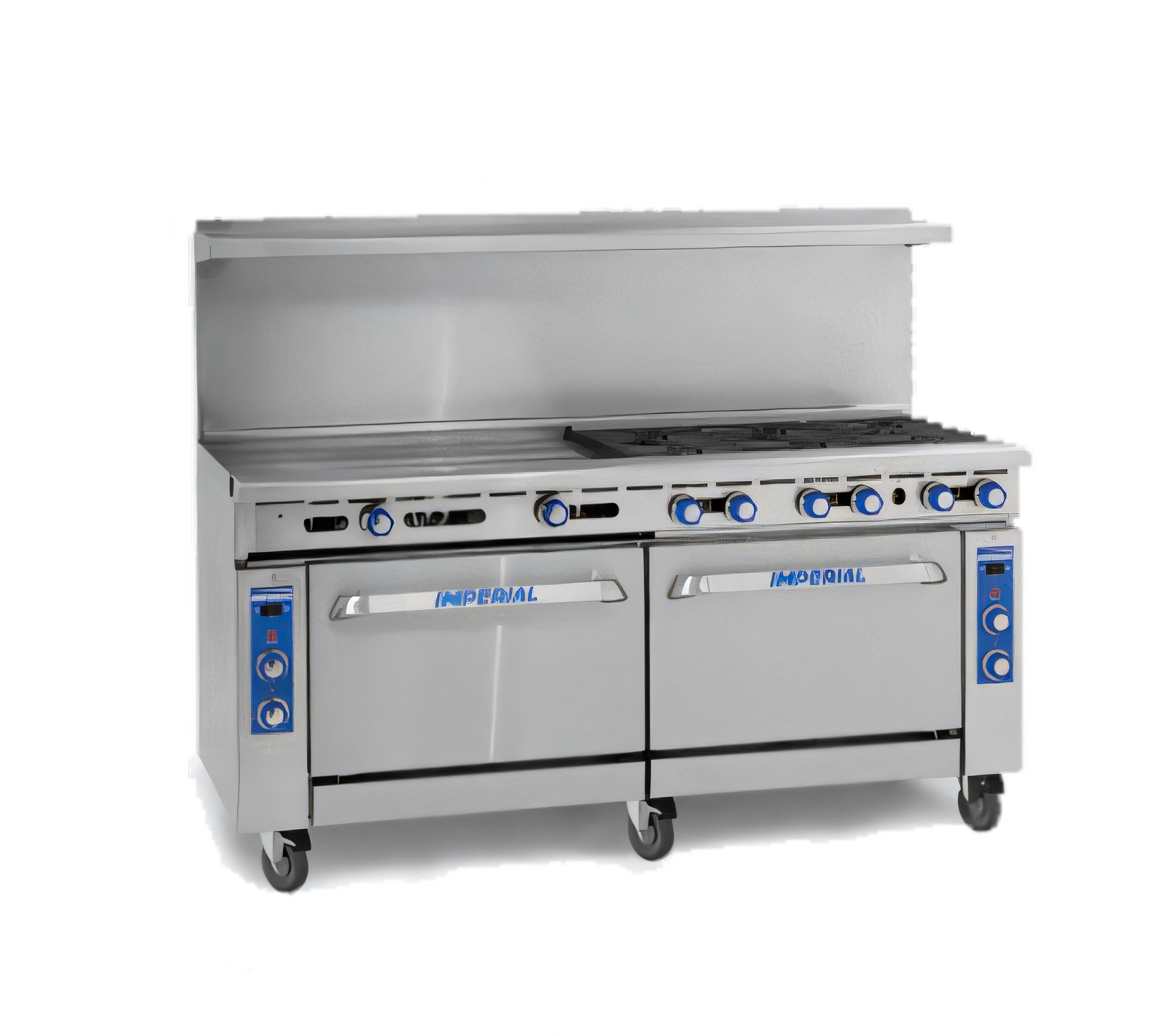

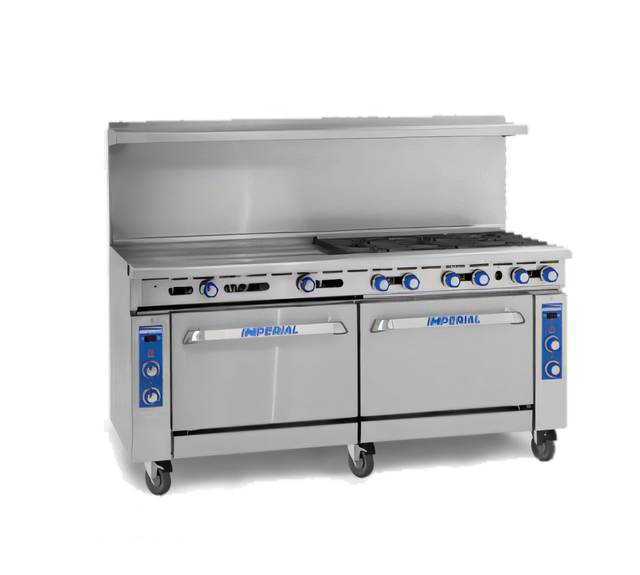

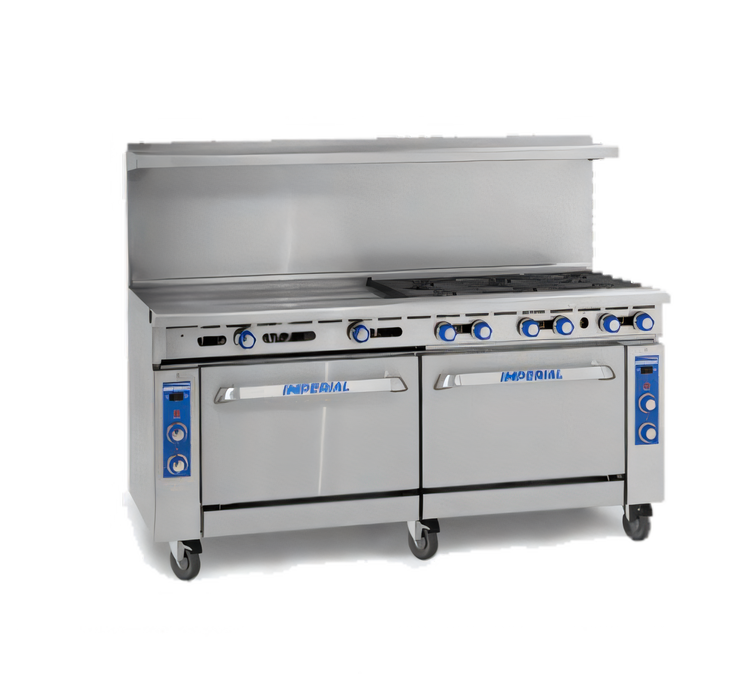

Imperial Pro Series IR-12-XB 72" Gas Restaurant Range
12 Open Burners • Standard Oven • Cabinet BaseBuilt for the busiest commercial kitchens, the Imperial Pro Series IR-12-XB delivers serious power, rock-solid construction, and chef-focused ergonomics in one 72" footprint. From searing steaks on the 32,000 BTU PyroCentric™ burners to baking in the full-sheet, chef-depth oven, this range is ready for every ticket that hits the rail.
Key Features

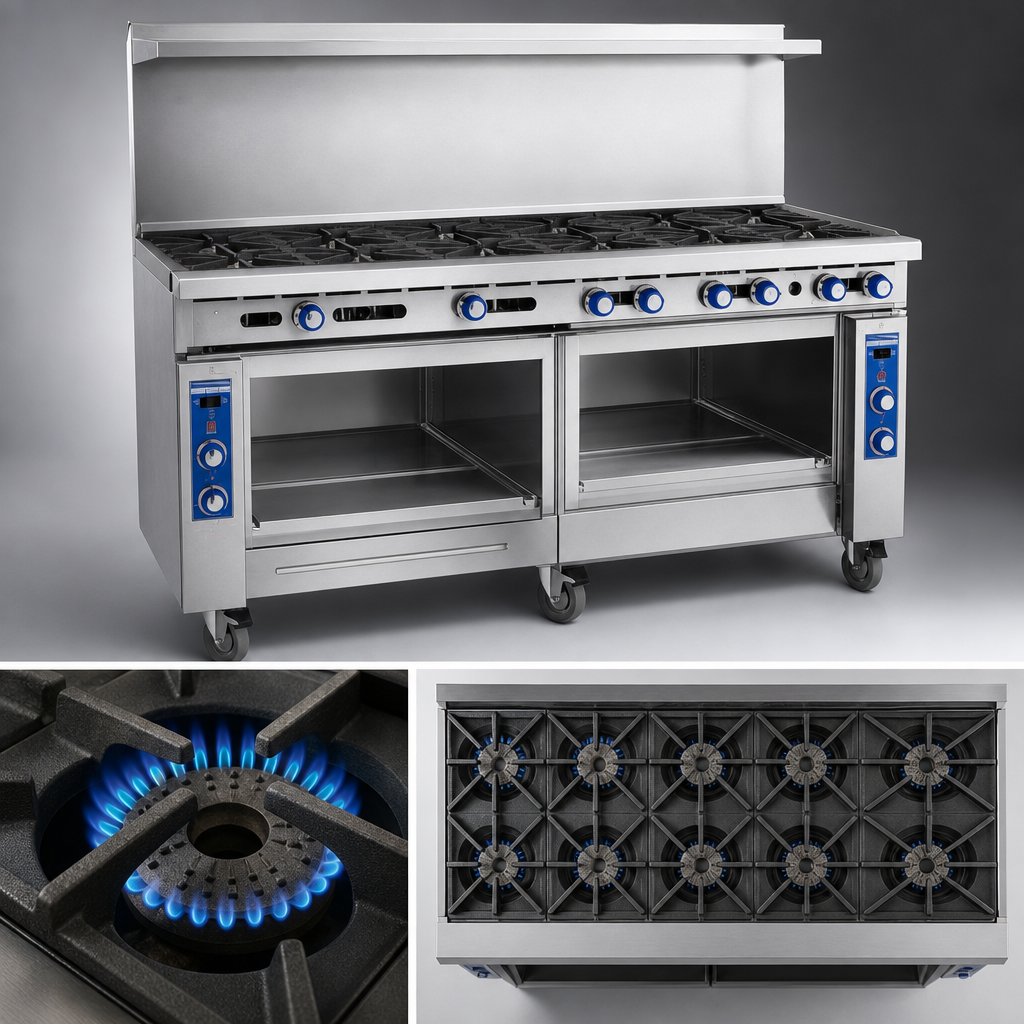

- 12 PyroCentric™ 32,000 BTU open burners with 7,000 BTU low-simmer setting.
- Lift-off, anti-clog cast-iron burner heads & grates for quick cleaning—no gaskets or screws.
- Two-piece cast-iron grate design (front 12"x12", rear 12"x13") lets pans slide easily across sections and the 3.5" landing ledge.
- Full-width removable crumb tray keeps the cooktop clear and sanitary.
- 35,000 BTU chef-depth standard oven (26-1/2" W × 26" D × 14" H) fits full-size sheet pans left-to-right or front-to-back.
- Porcelain-lined oven interior, heavy-duty door hinge, and one chrome rack included.
- Open cabinet base with stainless bottom shelf for sheet pans, smallwares, or mise en place.
- All-stainless exterior—front, sides, backguard, shelf, 3.5" landing ledge & kick plate—welded and polished.
- 6" heavy-duty legs with adjustable feet (casters available).
- Manual gas controls for intuitive, reliable operation—no electricity required.
- NSF, CE, CSA Flame & CSA Star certified for gas safety and sanitation.
Specifications
| Model | IR-12-XB (Pro Series) |
|---|---|
| Exterior Dimensions | 72" W × 31-1/2" D × 56-1/2" H (1829 × 800 × 1435 mm) |
| Open Burners | 12 × 32,000 BTU (PyroCentric) | Total Top Heat: 384,000 BTU |
| Oven Output | 35,000 BTU (standard oven) |
| Total BTU | 419,000 BTU (123 kW) |
| Oven Interior | 26-1/2" W × 26" D × 14" H | Fits full-size 18" × 26" sheet pans |
| Gas Connection / Pressure | 3/4" NPT | 5.0" W.C. Natural Gas • 10.0" W.C. LP |
| Shipping Weight | 1,085 lb (493 kg) |
| Certifications | NSF Listed, CE Mark, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor (see Imperial terms) |
Ideal For
- High-volume restaurants & QSR kitchens
- Catering halls and banquet operations
- University & corporate dining
- Culinary schools seeking durable teaching equipment
