Imperial (Middleby)  |  Pro Series  |  SKU: IR-12-SU-XB

Imperial (Middleby) IR-12-SU-XB Pro Series Gas Ranges

$16,770.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Parts manual Training video Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Pro Series 72" Step-Up Gas Restaurant Range

12 Burners • Standard Oven • Cabinet Base • Model IR-12-SU-XB

Handle the heaviest dinner rush with the fire-power only Imperial delivers. This 72-inch Pro Series step-up range marries a dozen 32,000 BTU PyroCentric™ burners with a chef-depth oven and built-in storage, giving your line an unbeatable combination of speed, capacity and rugged reliability.

Key Features
  • 419,000 BTU total output keeps production humming during peak hours.

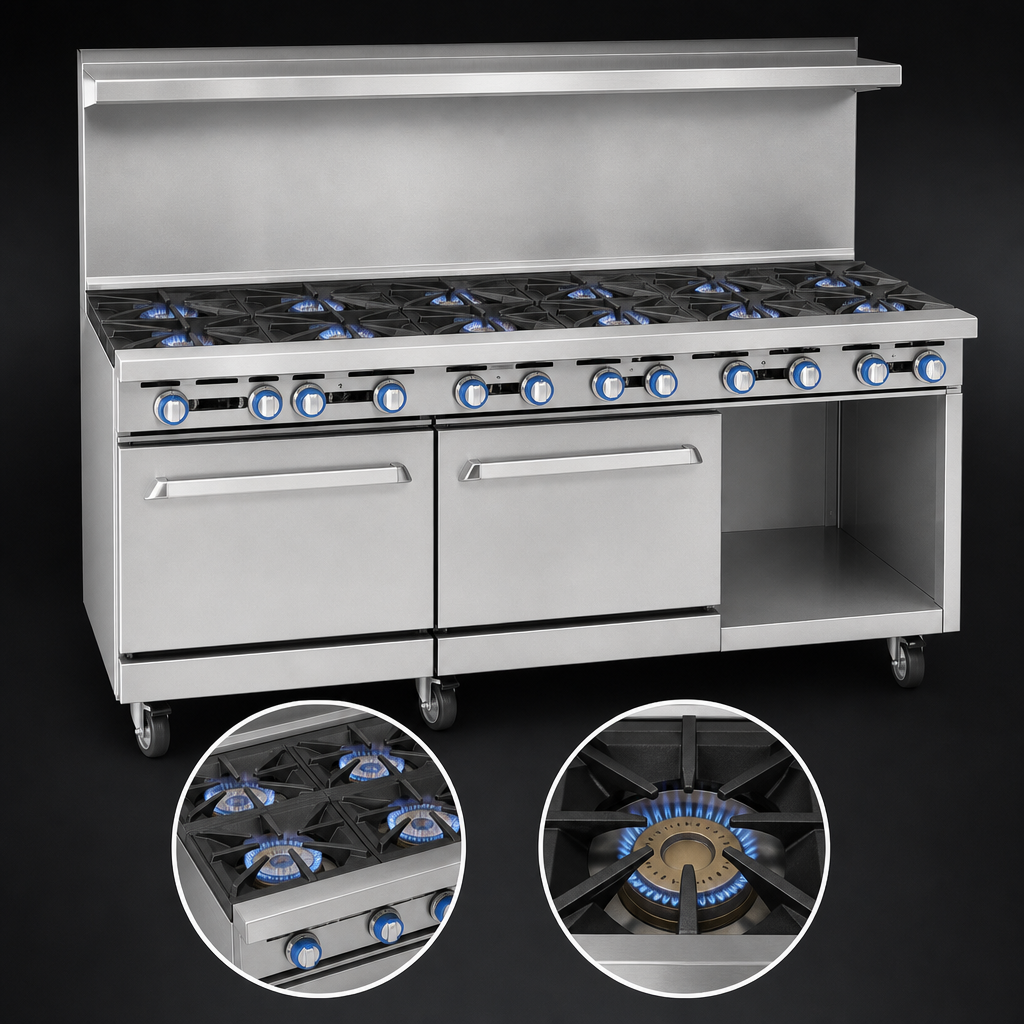

  • 12 PyroCentric™ open burners (32,000 BTU each) feature dual flame rings, anti-clog ports and a dedicated 7,000 BTU simmer.
  • Step-up design raises the rear six burners 4" for easy access to stock pots without crowding the front line.
  • Two-piece cast-iron grate system (12" × 12" front, 12" × 13" rear) lets pans glide from section to section.

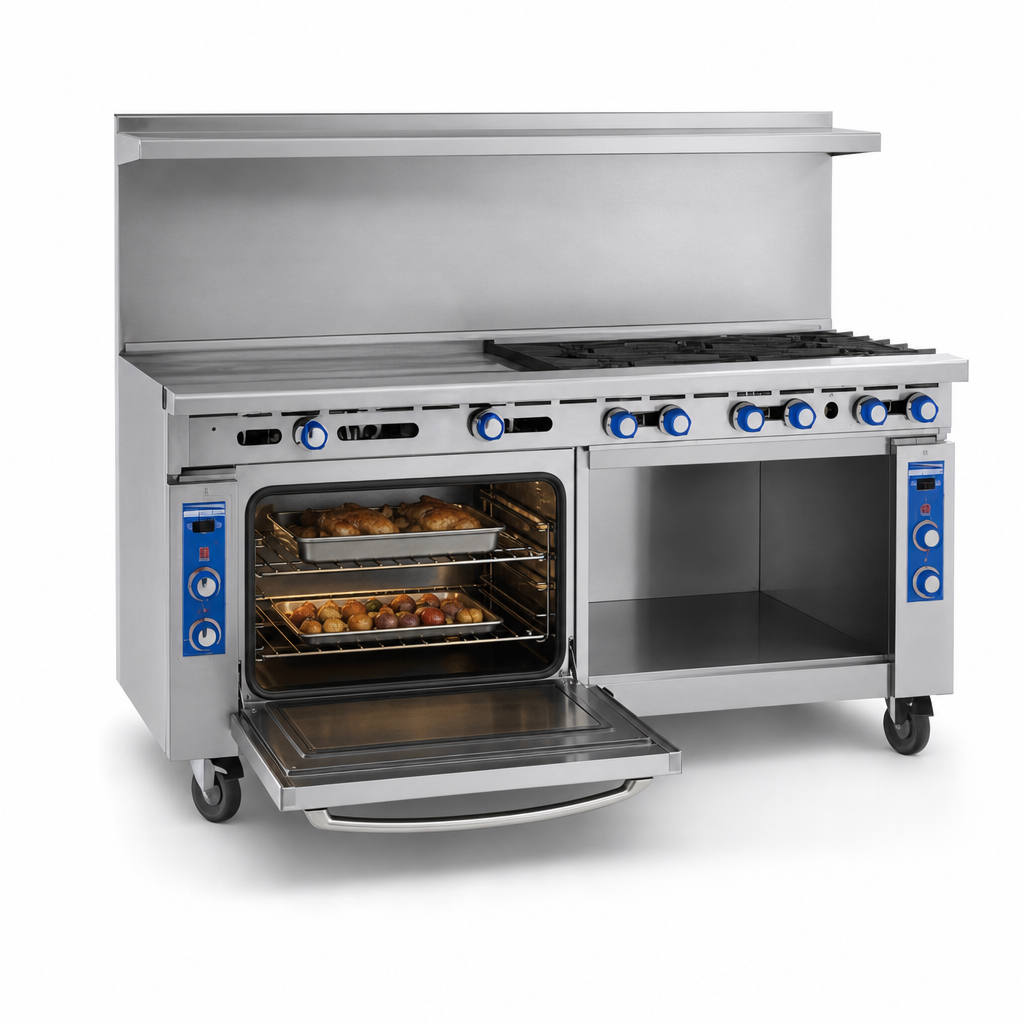

  • Chef-depth standard oven (35,000 BTU) fits full-size 18" × 26" sheet pans left-to-right or front-to-back; porcelain interior wipes clean.
  • Includes 1 chrome rack with multiple positions.
  • Open cabinet base with bottom shelf keeps pans, lids and smallwares within arm’s reach.
  • All-stainless exterior, 3.5" landing ledge, welded seams and the signature round Chef’s handle for a professional finish.
  • Full-width removable crumb tray and lift-off burner heads slash nightly clean-up time.
  • 6" heavy-duty legs with adjustable feet included; optional locking casters available.
  • NSF, CE, CSA Star & CSA Flame certified.
Specifications
Overall width 72" (1829 mm)
Overall depth 31.5" (800 mm)
Overall height (to top of backguard) 56.5" (1435 mm)
Burners 12 open (6 front, 6 step-up rear)
BTU per burner 32,000 BTU (7,000 BTU low simmer)
Oven type / output Standard, chef-depth / 35,000 BTU
Oven interior (W × D × H) 26.5" × 26" × 14" (673 × 660 × 356 mm)
Included oven racks 1 chrome rack
Total BTU 419,000 BTU (123 kW)
Gas connection 3/4" NPT rear manifold
Manifold pressure Natural 5.0" W.C. | Propane 10.0" W.C.
Shipping weight ≈ 1,205 lb (545 kg)
Certifications NSF, CE, CSA Star, CSA Flame
Warranty 1-year parts & labor
Popular Options & Accessories
  • 6" or 11" stainless steel backguards
  • Locking caster kit
  • Interchangeable wok or sauté burner heads & rings
  • Additional chrome oven racks
  • Quick-disconnect gas hose & shut-off valve
  • Reinforcement channels for salamander or cheesemelter
Gas notice: Unit ships ready for natural gas. LP conversion kit must be installed by a qualified technician.

Need financing? Middleby Equipment Financing offers fast approvals and affordable monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

72.0in

Depth

31.5in

Shipping Weight

1085.0lbs

Base

(1) standard oven, (1) cabinet

Vent

backriser with hi-shelf

Top

(6) open burners, (6) step-up open burners

Exterior Finish

stainless steel front & sides

Specifications

Pro Series Restaurant Range, gas, 72", (6) open burners & standing pilot lights, (6) step-up open burners & standing pilot lights, (1) standard oven, porcelain interior, (1) chrome rack, round stainless steel chef's handle, (1) open cabinet with bottom shelf, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 419,000 BTU, NSF, CE, CSA Flame, CSA Star
