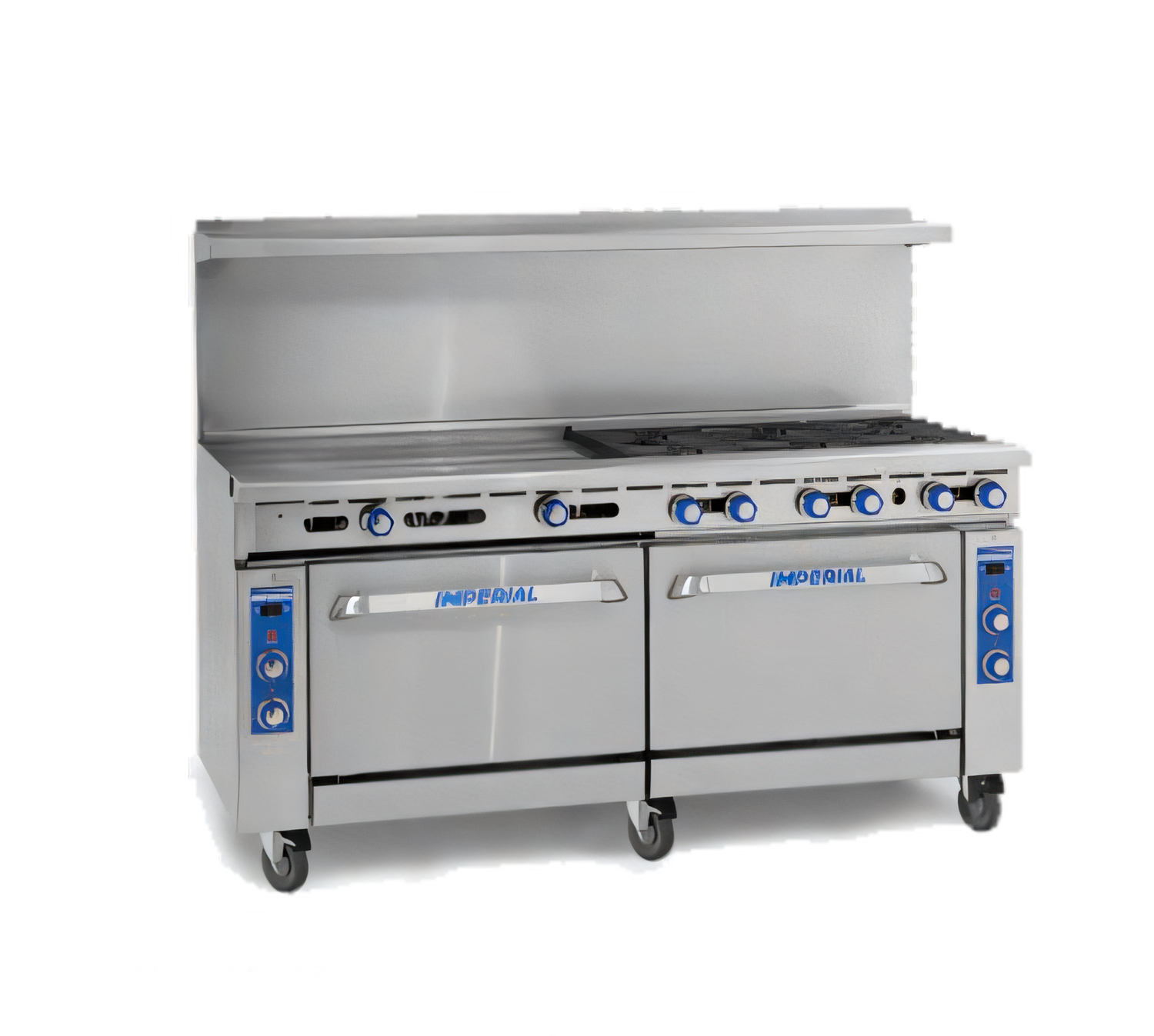

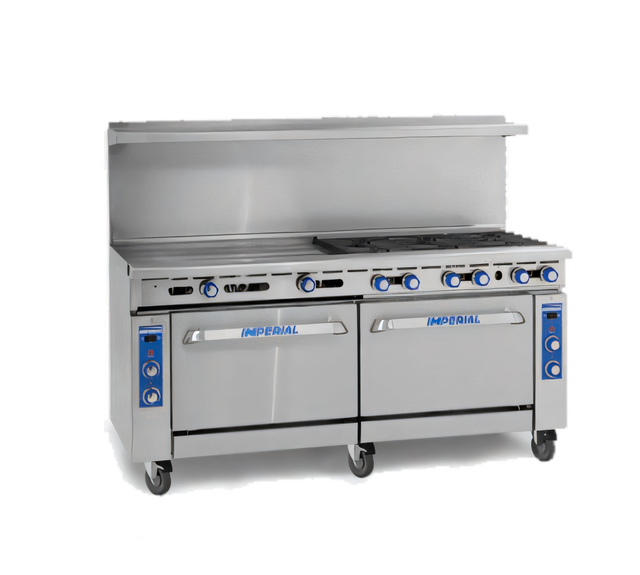

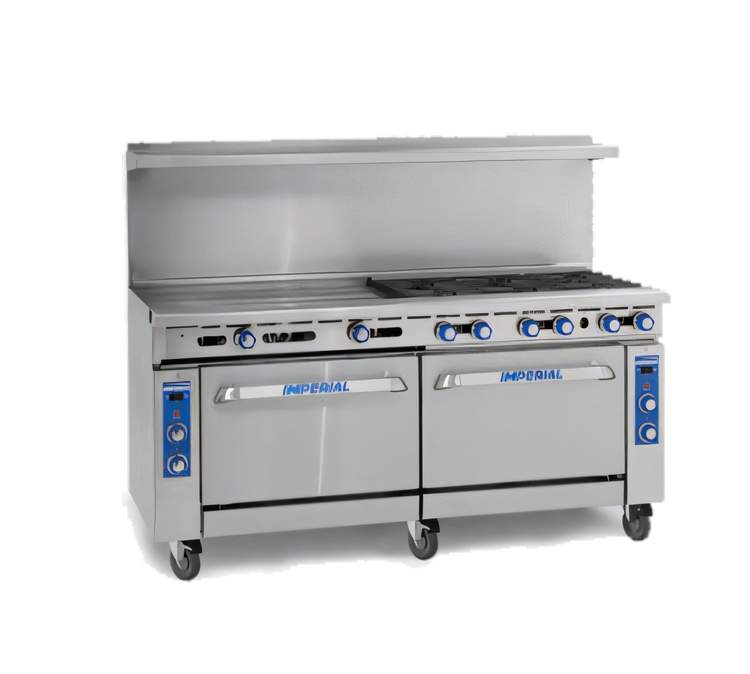

Imperial (Middleby) IR-12-SU Pro Series Gas Ranges
Description
Imperial Pro Series 72" Step-Up Gas Range – 12 Open Burners & 2 Standard Ovens
Model IR-12-SU | 454,000 BTU | NSF, CE, CSA Flame & StarEngineered for high-volume, high-heat kitchens, the Imperial Pro Series Step-Up Range packs massive firepower, rugged stainless-steel construction and chef-friendly ergonomics into one 72-inch powerhouse.
Key Features
- 12 PyroCentric™ cast-iron open burners – 32,000 BTU each with a 7,000 BTU low-simmer ring.

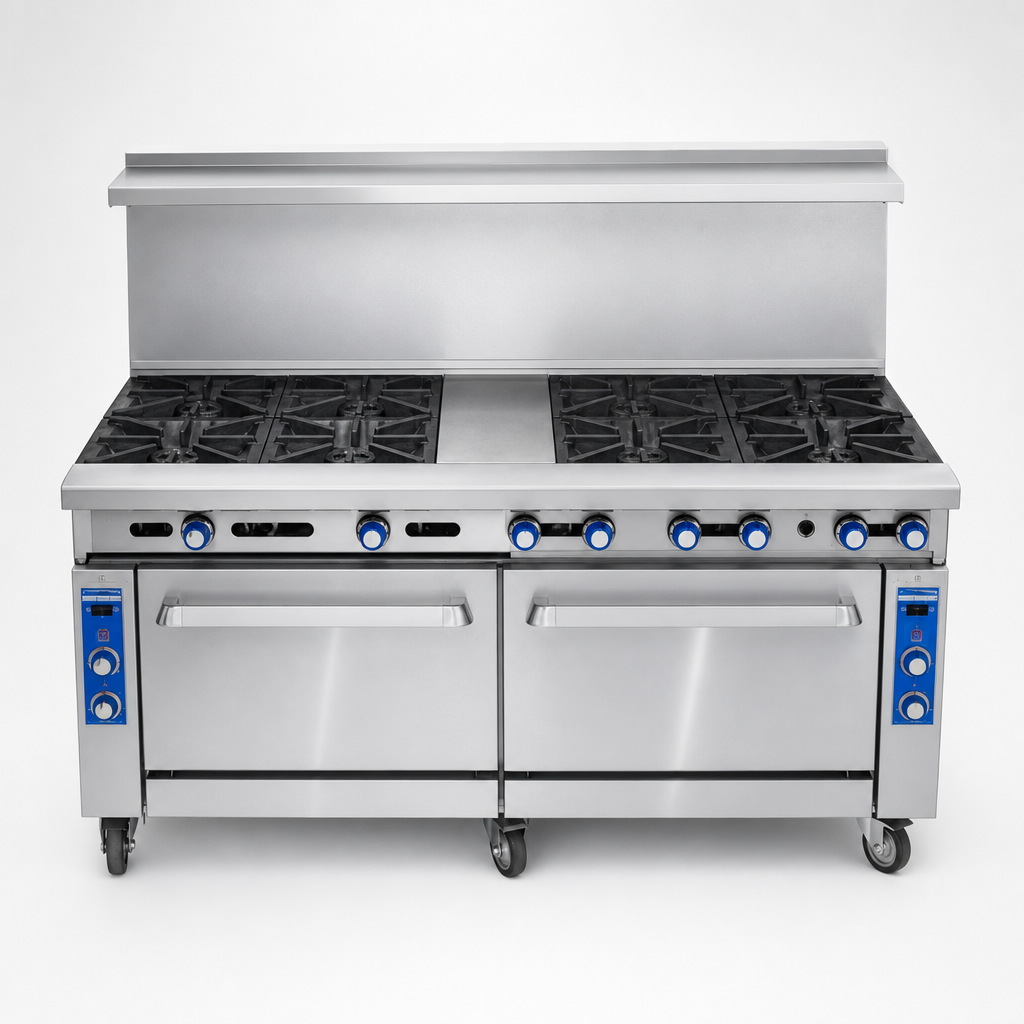

- Step-up configuration: 6 front burners at standard height, 6 rear burners raised for superior stock-pot clearance and visibility.
- Two Chef-Depth standard ovens (35,000 BTU each) with porcelainized interior and one chrome rack per cavity.
- Linear oven burners & exclusive heat deflector deliver even baking temperatures throughout the cavity.
- Two-piece, heavy-duty cast-iron grates (front 12" × 12", rear 12" × 13") let pots glide across the surface with ease.
- Stainless-steel front, sides, high-shelf, 3.5" landing ledge, backguard & kick plate resist corrosion and daily wear.
- Full-width removable crumb tray under the burner box speeds end-of-shift clean-up.
- Round stainless-steel “Chef’s” handles stay cool to the touch and stand up to heavy use.
- 6" heavy-duty legs with adjustable feet for fast leveling on any kitchen floor.

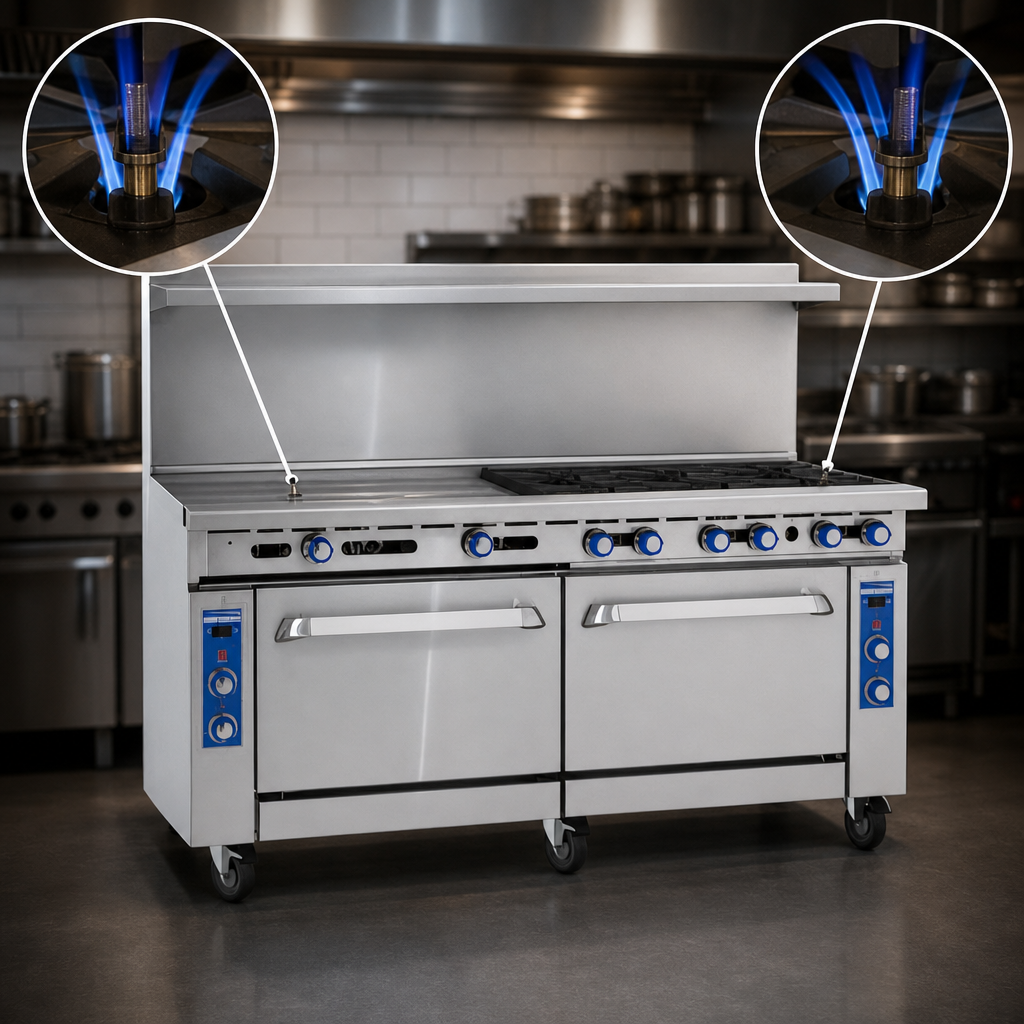

- Individual standing pilots provide instant flame on every burner; ovens feature 100 % safety pilots.
At-a-Glance Specifications
| Cooking Surface | 72" W – (6) front + (6) rear step-up open burners |
|---|---|
| Total Heat Output | 454,000 BTU/hr (133 kW) |
| Open Burner Rating | 32,000 BTU each (PyroCentric™ cast iron) |
| Ovens | (2) Chef-Depth standard ovens, 26-1/2" W × 26" D × 14" H interior, 35,000 BTU each |
| Oven Racks Supplied | 1 chrome rack per oven (2 total) |
| Exterior Finish | All stainless steel with welded & polished seams |
| Gas Type / Connection | Natural or Propane (field convertible) – 3/4" NPT rear manifold |
| Manifold Pressure | NG 5.0" W.C. / LP 10.0" W.C. |
| Certifications | NSF Listed, CE, CSA Flame & CSA Star |
| Warranty | 1-year parts & labor (factory authorized service) |
Why the Step-Up Design Rocks the Line
- Improved sightlines to rear pots for safer, faster service.
- Rear burners sit higher, letting full-size stock pots clear the front line without crowding.
- Creates a natural staging shelf so cooks can slide pans forward for finishing or plating.
Popular Accessories (sold separately)
- 6" or 11" stainless-steel backguards
- Salamander / cheese-melter mounting channels
- Wok or sauté burner heads & 10" stainless-steel wok ring
- Extra chrome oven racks
- Grooved, chrome-plated or thermostatic griddle plates
- Flexible gas hose, quick-disconnect & 6" caster kit
Imperial recommends installing this range under a properly sized commercial ventilation hood and connecting with a flexible gas hose for simplified cleaning and maintenance.
