Imperial (Middleby) IR-12 Pro Series Gas Ranges
Description
Imperial Pro Series IR-12 72" Gas Restaurant Range – 12 Open Burners & Dual Standard Ovens
454,000 BTU | Chef-Depth ovens | NSF, CE, CSA Flame & StarBring powerhouse cooking to the line with the Imperial Pro Series IR-12. Twelve high-performance burners and two full-size ovens give you the volume, versatility and rugged construction demanded by the busiest commercial kitchens.
Key Features

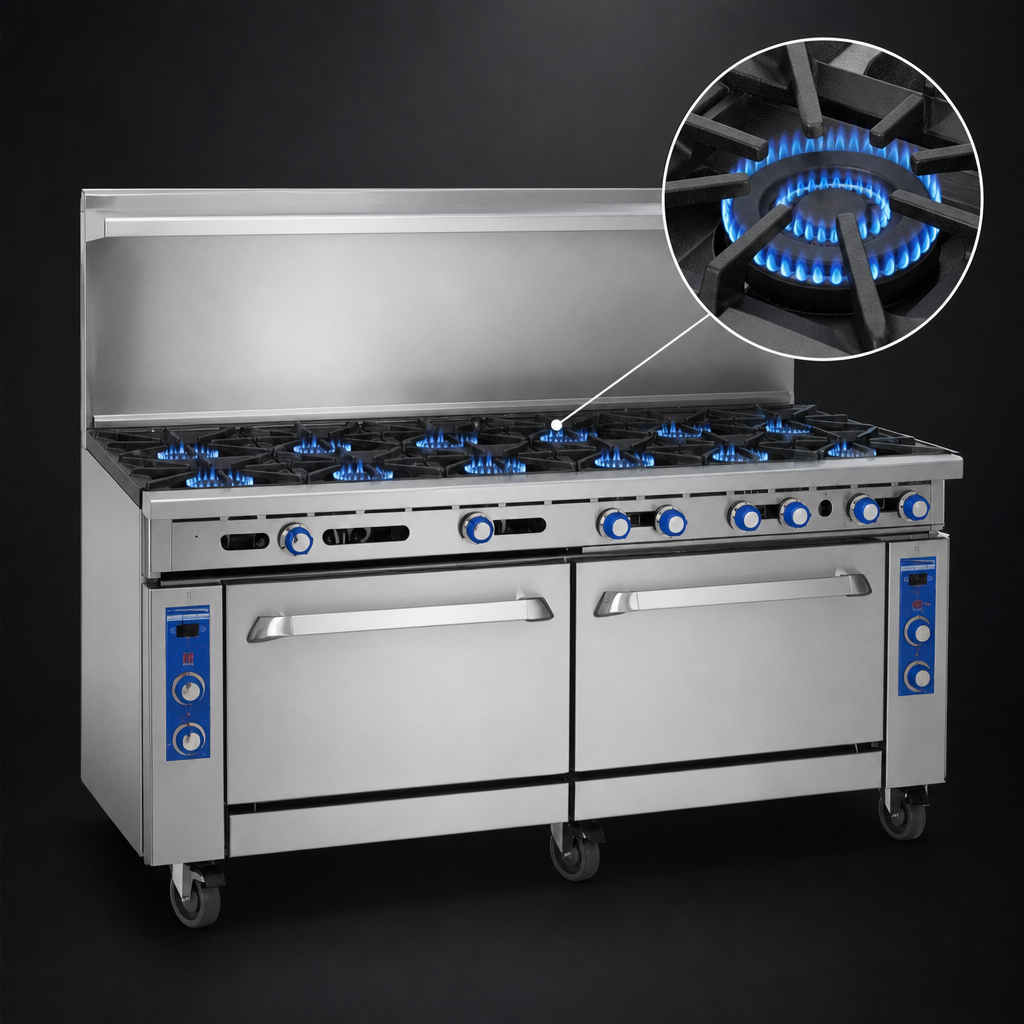

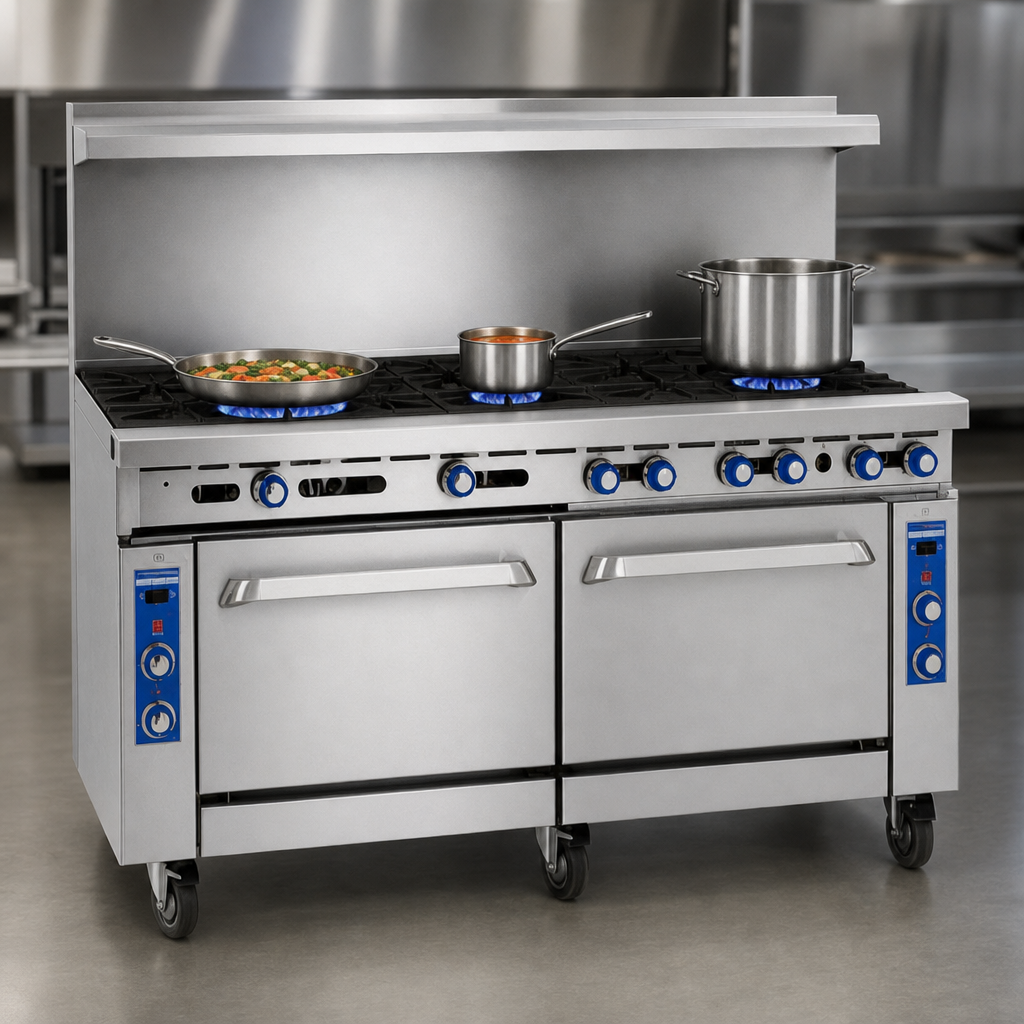

- 12 PyroCentric™ open burners – 32,000 BTU each with a 7,000 BTU low-simmer setting
- Cast-iron, anti-clog burner heads lift off—no screws or gaskets—for fast cleaning
- Individual standing pilots for instant ignition
- Full-width removable stainless steel crumb tray under the burners
- (2) Chef-Depth standard ovens, 35,000 BTU each, accept 18" × 26" sheet pans left-to-right or front-to-back
- Porcelainized oven interior, sides, deck and door liner for easy wipe-down
- (1) chrome rack per oven; five rack positions
- All-stainless front, sides, backguard, 3.5" landing ledge, shelf & kick plate
- Heavy-duty 6" legs with adjustable feet (casters optional)
- Durable cast-aluminum control knobs and manual gas valves
Built for Consistent Results
The exclusive two-ring burner design delivers even heat across any pan, while an integrated heat deflector drives energy back into the oven cavity—saving fuel and keeping your kitchen cooler. Whether you’re rapidly boiling stock or holding sauces at a delicate simmer, the IR-12 maintains rock-solid temperatures shift after shift.
Specifications
| Model | IR-12 (natural gas) |
|---|---|
| Overall width | 72" / 1829 mm |
| Depth (including landing ledge) | 31-1/2" / 800 mm |
| Height to cooktop / top of backguard | 36" / 914 mm | 56-1/2" / 1435 mm |
| Total BTU output | 454,000 BTU / 133 kW |
| Burners | 12 × 32,000 BTU open burners (7,000 BTU simmer) |
| Ovens | (2) Standard, 35,000 BTU each |
| Oven interior (W × D × H) | 26-1/2" × 26" × 14" (673 × 660 × 356 mm) |
| Gas connection | 3/4" NPT (rear) |
| Construction | Stainless steel exterior, cast-iron grates |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Popular Options & Accessories
- 6" or 11" stainless steel backguards, or stubback
- Reinforcement channels for salamander or cheese melter
- 6" heavy-duty swivel casters
- Additional chrome oven racks
- Interchangeable wok or sauté burner heads
- Quick-disconnect hose & 3/4" gas shut-off valve
Imperial reserves the right to improve products without notice. Always verify gas type, clearances and local code requirements prior to installation.
