Imperial (Middleby) IR-12-CC Pro Series Gas Ranges
Imperial (Middleby) IR-12-CC Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IR-12-CC Pro Series Gas Ranges
Description
Imperial Pro Series 72" Gas Restaurant Range – 12 Burners / Dual Convection (IR-12-CC)
Model IR-12-CC | Natural or Propane GasPower, capacity and durability come together in Imperial’s flagship 72-inch range. Twelve high-performance open burners line the cooktop while two full-size convection ovens handle high-volume baking, roasting and finishing. A stainless-steel chassis, chef-friendly details and NSF, CE, CSA approvals make the IR-12-CC a turnkey solution for busy restaurants, hotels and institutional kitchens.
Why You’ll Love It
- Massive fire power — 444,000 BTU (130 kW) total for the fastest ticket times.

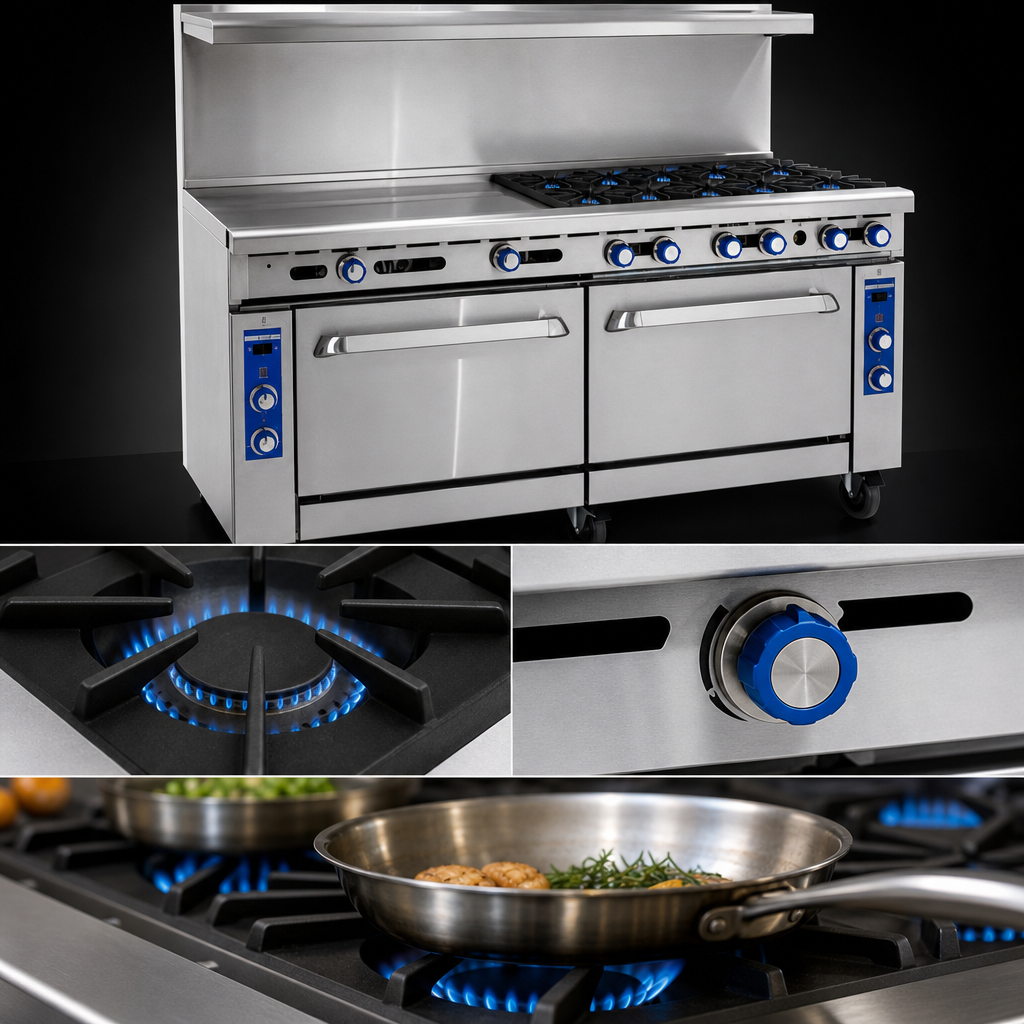

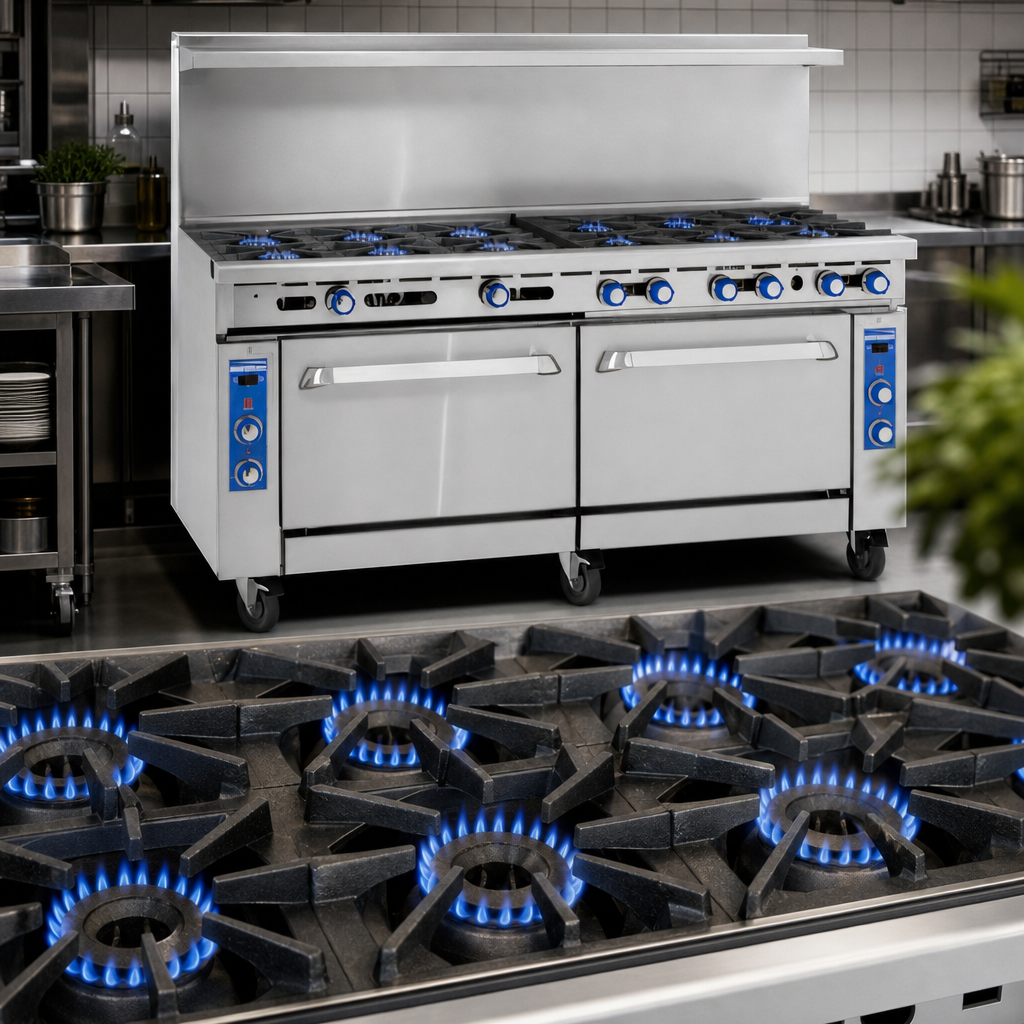

- Twelve 32,000 BTU PyroCentric™ burners with a 7,000 BTU low-simmer ring for precise sauce work.
- Lift-off, anti-clog burners and heavy cast-iron grates for effortless cleaning and long service life.
- Dual 30,000 BTU convection ovens with ½ HP blower motors cook evenly and reduce shrinkage.
- Chef-Depth oven cavities (26-½" W × 22-½" D × 14" H) fit 18" × 26" sheet pans left-to-right or front-to-back.
- Three chrome racks per oven on multi-position guides increase production flexibility.
- Electronic ignition with countdown timer and a fan cut-off switch when the door opens.
- Stainless-steel front, sides, backsplash, shelf, 3-½" landing ledge and kick plate withstand daily abuse.
- Full-width removable crumb tray, porcelainized oven interiors and front-access grease collection keep cleaning to a minimum.
- 6" adjustable legs included (casters optional) for easy leveling and sanitation compliance.
Technical Specifications
| Cooktop | 12 open burners, PyroCentric™ 32,000 BTU each (with 7,000 BTU simmer) |
|---|---|
| Ovens | 2 convection, 30,000 BTU each, ½ HP blower motor, 3 chrome racks per oven |
| Total Input | 444,000 BTU / 130 kW |
| Gas Connection | ¾" NPT, 5.0" WC (Natural) or 10.0" WC (LP) |
| Electrical (ovens) | 120 V, 1-phase, 6 A |
| Exterior Dimensions | 72" W × 31-½" D × 56-½" H (1829 × 800 × 1435 mm) |
| Oven Interior | 26-½" W × 22-½" D × 14" H (673 × 572 × 356 mm) |
| Shipping Weight | 1,255 lb / 568 kg |
| Construction | Stainless steel front, sides, backsplash, landing ledge & kick plate; cast-iron grates |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor (USA & Canada) |
Popular Factory Options
- 6" or 11" stainless-steel backguard, stub-back
- Reinforced channels for mounting salamander / cheese melter
- 6" swivel casters (front locking)
- Thermostatic or grooved griddle sections (factory-installed, replaces burners)
- Wok or sauté burner heads (interchangeable)
- Quick-disconnect gas hose & gas shut-off valve
- Additional oven racks
Need flexible payments? Ask us about Middleby Equipment Financing and turn this purchase into affordable monthly installments.
