Imperial (Middleby)  |  Pro Series  |  SKU: IR-10-SU

Imperial (Middleby) IR-10-SU Pro Series Gas Ranges

$14,080.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts manual Training video Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Pro Series 60″ Step-Up Gas Range

10 PyroCentric™ open burners | 2 Standard Ovens | 390,000 BTU

Bring relentless power and rock-solid reliability to the cookline with Imperial’s flagship step-up range. Ten heavy-duty burners give chefs a roomy, two-tier workspace while dual porcelain-lined ovens handle everything from sheet-pan roasting to back-up baking—all in just five feet of floor space.

Key advantages

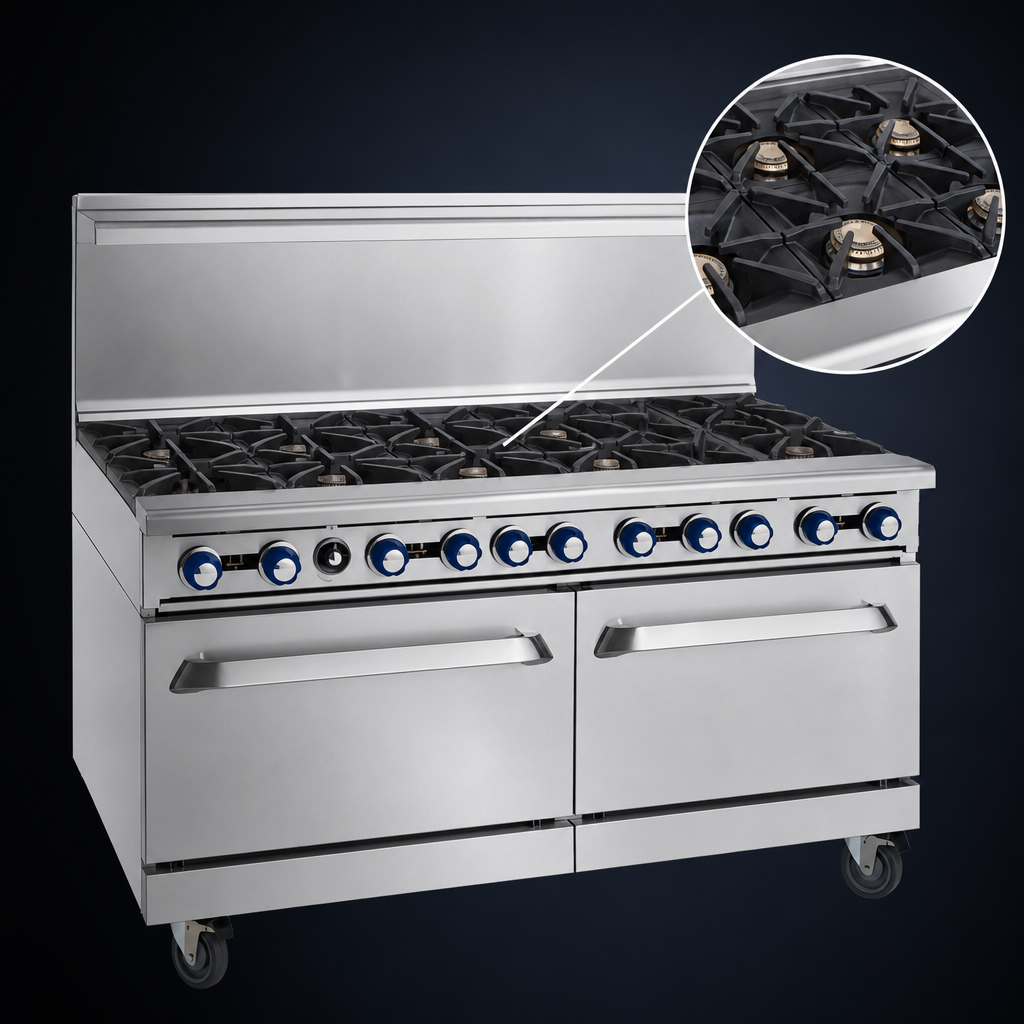

  • Ten 32,000 BTU PyroCentric™ burners (5 front, 5 elevated rear) with 7,000 BTU low-simmer capability.
  • Individually piped standing pilots deliver instant ignition and service-friendly access.
  • Two space-saver standard ovens (27,000 BTU each) with porcelainized interior and a chrome rack per cavity.
  • Linear oven burner & exclusive heat deflector ensure even bake temperatures front-to-back.
  • Two-piece cast-iron grate system: 12″ × 12″ front & 12″ × 13″ rear sections handle large stockpots with ease.
  • 3.5″ deep stainless landing ledge plus full-width removable crumb tray for faster plating and cleanup.
  • Round, cool-touch stainless chef’s handle spans both oven doors for effortless, one-hand operation.
  • All stainless-steel front, sides, shelf, backguard & kick plate—built to survive the rush and wipe down fast.
  • 6″ heavy-duty legs with adjustable feet; optional casters drop in without tools.
  • NSF, CE, CSA Flame & CSA Star certified for food-service safety and sanitation.
Performance & utilities
Model IR-10-SU (Pro Series Step-Up)
Total Input 390,000 BTU/hr • 114 kW
Open Burners 10 × 32,000 BTU PyroCentric™
Ovens 2 × Standard (Space-Saver) – 27,000 BTU each
Oven Interior (W × D × H) 20″ × 26″ × 14″ (508 × 660 × 356 mm)
Exterior Dimensions 60″ W × 31 ½″ D × 56 ½″ H (1524 × 800 × 1435 mm)
Gas Connection ¾″ NPT rear manifold
Manifold Pressure Natural 5″ WC | Propane 10″ WC
Shipping Weight ≈ 980 lb / 444 kg
What’s included
  • (2) Chrome oven racks – one for each cavity
  • Full-width removable stainless crumb tray
  • 6″ adjustable legs
  • 1-year parts & labor warranty backed by Imperial’s nationwide service network
Popular add-ons (sold separately)
  • 6″ or 11″ stainless backguards
  • Heavy-duty caster kit
  • Wok ring & interchangeable wok/​sauté burner heads
  • Extra chrome oven racks
  • Quick-disconnect gas hose with restraining device
Installation note: Unit must be installed on a non-combustible floor with legs or casters—or curb-mounted with a 2″ overhang. Allow 0″ clearance to non-combustible surfaces and 8″ (203 mm) to combustible materials.

Ask about Middleby Equipment Financing for fast credit decisions and low, fixed monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

60.0in

Depth

31.5in

Shipping Weight

980.0lbs

Base

(2) standard ovens

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Top

(5) open burners, (5) step-up open burners

Specifications

Pro Series Restaurant Range, gas, 60", (5) open burners & standing pilot lights, (5) step-up open burners & standing pilot lights, (2) standard ovens, porcelain interior, (1) chrome rack per oven, round stainless steel chef's handle, removable crumb tray, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 390,000 BTU, NSF, CE, CSA Flame, CSA Star
