Imperial (Middleby) IR-10-CC Pro Series Gas Ranges
Description

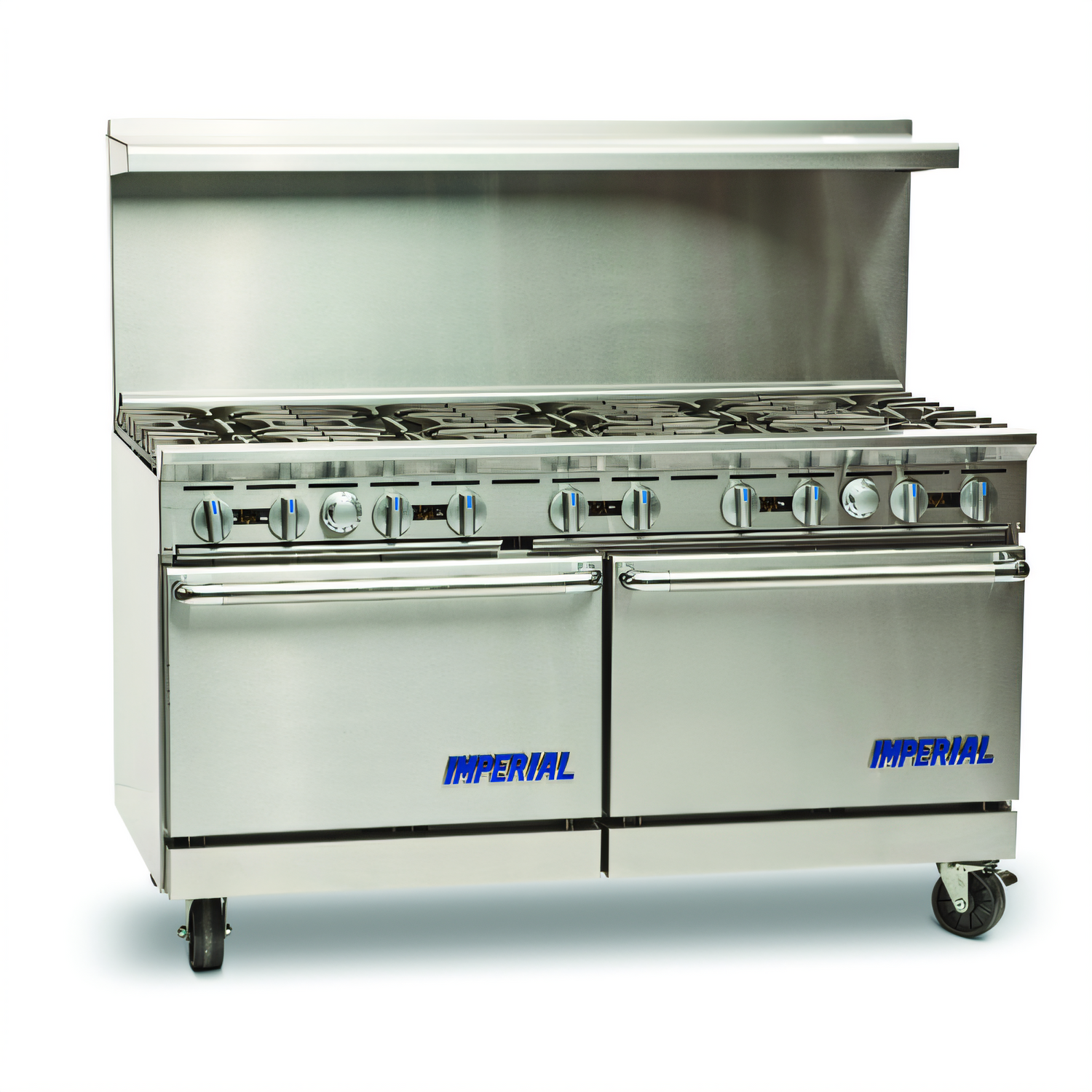

Imperial Pro Series 60" Gas Restaurant Range – 10 Burners & Dual Convection Ovens
Model IR-10-CC | 380,000 BTU | NSF & CE CertifiedBuilt for the busiest commercial kitchens, the Imperial Pro Series IR-10-CC combines ten powerful PyroCentric™ open burners with two full-size convection ovens in one rugged, 60-inch footprint. Expect rapid heat-up, precise low-simmer control, and consistent baking results shift after shift.
Why You’ll Love It

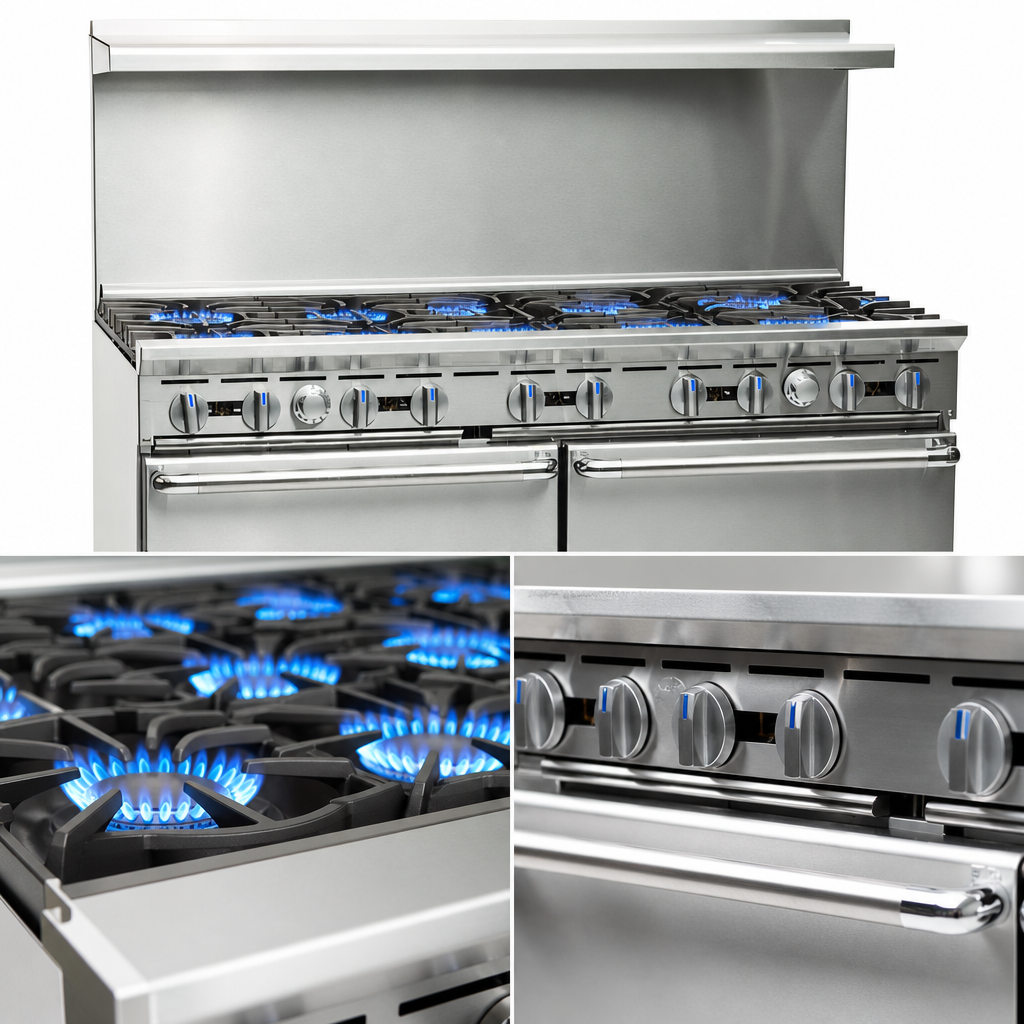

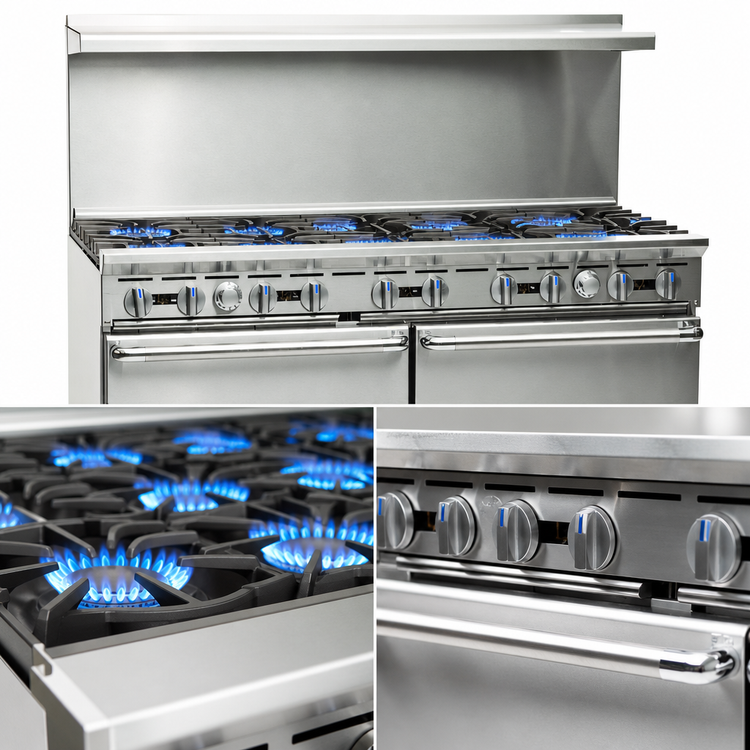

- Ten 32,000 BTU PyroCentric™ burners with separate 7,000 BTU low-simmer rings for delicate sauces.
- Two 30,000 BTU convection ovens, each powered by a ½ HP blower for faster, even cooking and reduced shrinkage.
- Heavy-duty cast-iron top grates (front 12" × 12", rear 12" × 13") let stock pots slide effortlessly across the cooking surface.
- All-stainless exterior—front, sides, backguard, landing ledge (3½" deep) & kick plate—stands up to daily abuse and cleans in seconds.
- Full-width removable crumb tray and lift-off burner heads speed up end-of-day clean-down.
- 6" adjustable stainless-steel legs for rock-solid installation or optional heavy-duty casters (sold separately).
- Manual burner and oven controls—simple to operate and easy to service.

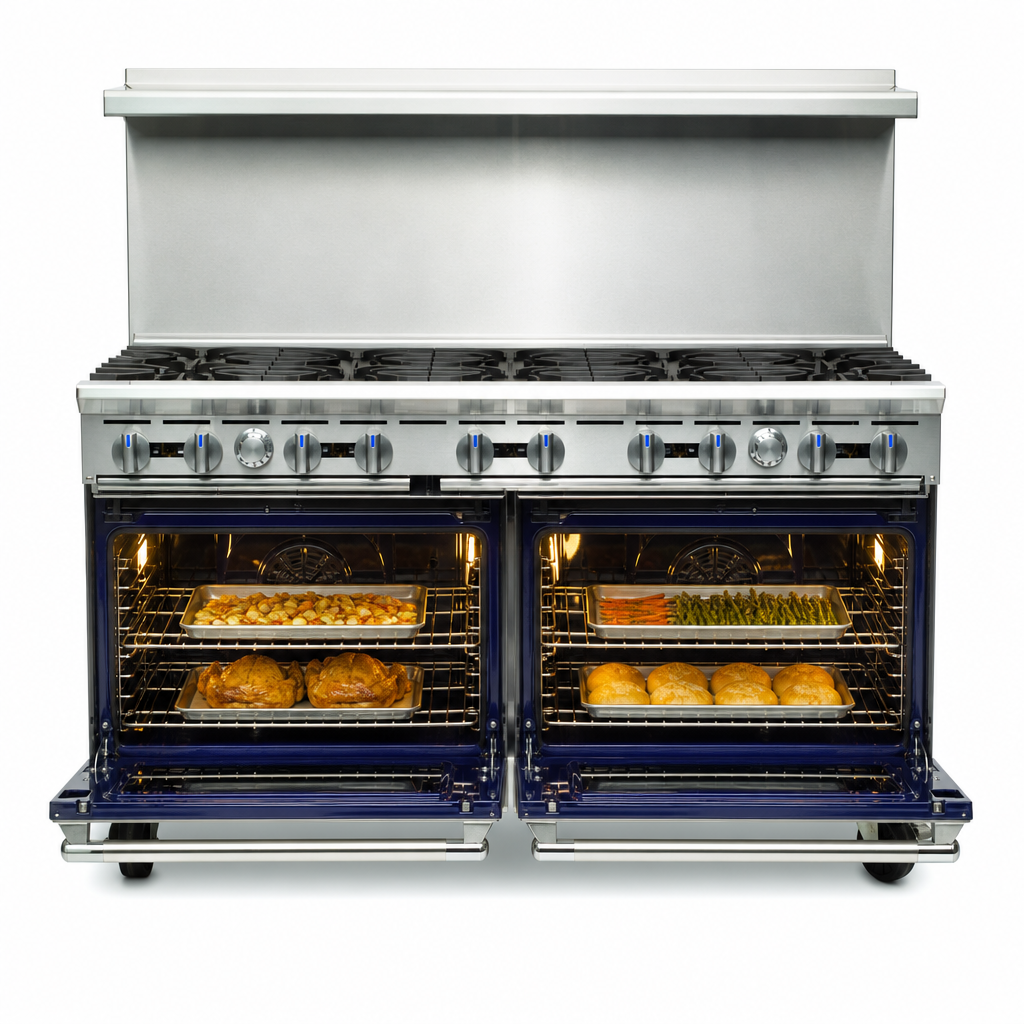

Chef-Depth Convection Ovens
- Interior: 26½" W × 22½" D × 14" H – fits 18" × 26" sheet pans left-to-right or front-to-back.
- Three chrome racks per oven with multiple rack positions.
- Porcelain-coated interior surfaces resist corrosion and wipe clean.
- Fan-cool-down switch extends component life; blower stops when door opens for safety.
Technical Specs
| Model | IR-10-CC |
|---|---|
| Total Heat Output | 380,000 BTU / 111 kW |
| Open Burners | 10 × 32,000 BTU (7,000 BTU simmer ring) • Standing pilots |
| Ovens | 2 convection, 30,000 BTU each • ½ HP blower motors |
| Electrical | 120 V / 1 ph / 6 A (blowers) |
| Gas Connection | ¾" NPT (natural or LP – specify) |
| Exterior Dimensions | 60" W × 31½" D × 56½" H |
| Oven Interior (each) | 26½" W × 22½" D × 14" H |
| Certifications | NSF • CE • CSA Flame • CSA Star |
| Ship Weight | ≈ 1,090 lb / 493 kg (crated) |
| Warranty | 1-year parts & labor (factory authorized service) |
Installation Notes
- Legs or casters are required when installing on non-combustible floors; provide 0" side/rear clearance to non-combustibles, 8" to combustibles.
- Minimum 120 V electrical connection required for convection blowers.
- Factory options: 6" or 11" backguards, quick-disconnect hose, gas shut-off valve, wok or sauté burner heads, extra oven racks & more.
Need easy financing? Imperial is part of the Middleby family—flexible equipment financing is available upon request.
