Description

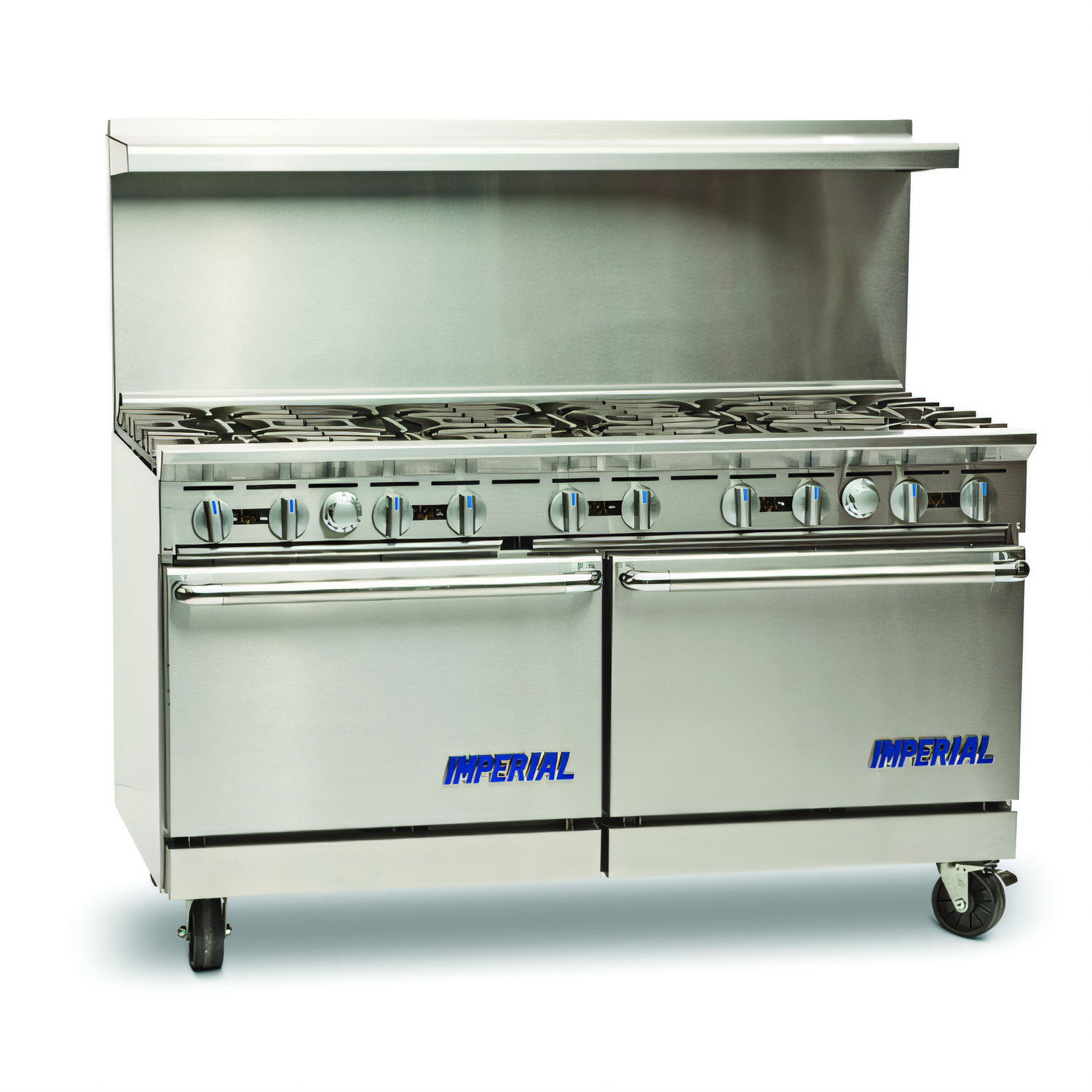

Imperial Pro Series 60" Gas Restaurant Range – 10 Burners with Convection & Standard Ovens (Model IR-10-C)
385,000 BTU • Chef-Depth Cavities • NSF, CE & CSA CertifiedEngineered for high-volume kitchens, Imperial’s Pro Series IR-10-C pairs ten powerful open burners with both a convection and a standard chef-depth oven – all wrapped in durable stainless steel. From rapid boils to delicate sauces, searing sauté pans to full-size sheet-pan baking, this 60-inch range delivers the flexibility and reliability chefs count on every service.
Why Choose the IR-10-C

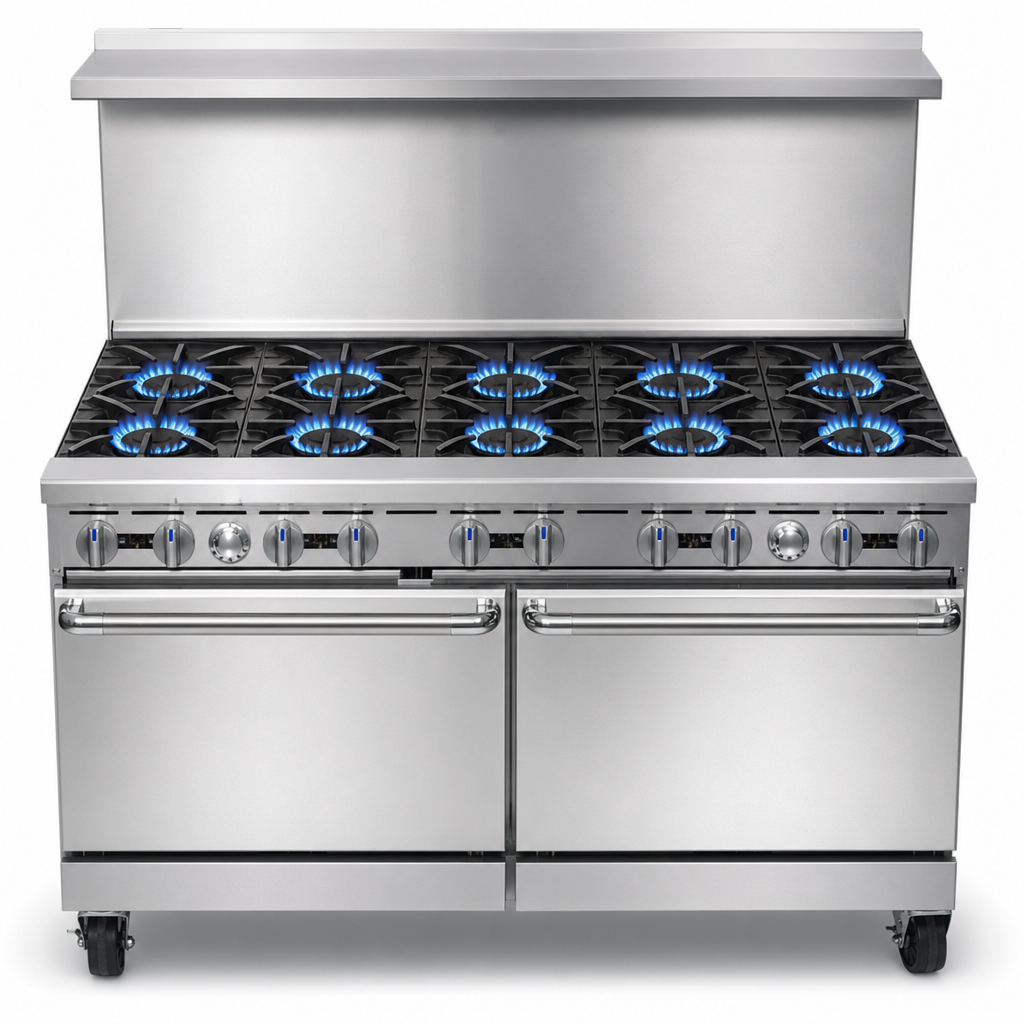

- Ten 32,000 BTU PyroCentric™ open burners (7,000 BTU low-simmer) for precise, even heat.
- Heavy-duty cast-iron grates (12" × 12" front, 12" × 13" rear) let stock pots glide smoothly across sections and the 3-½" landing ledge.

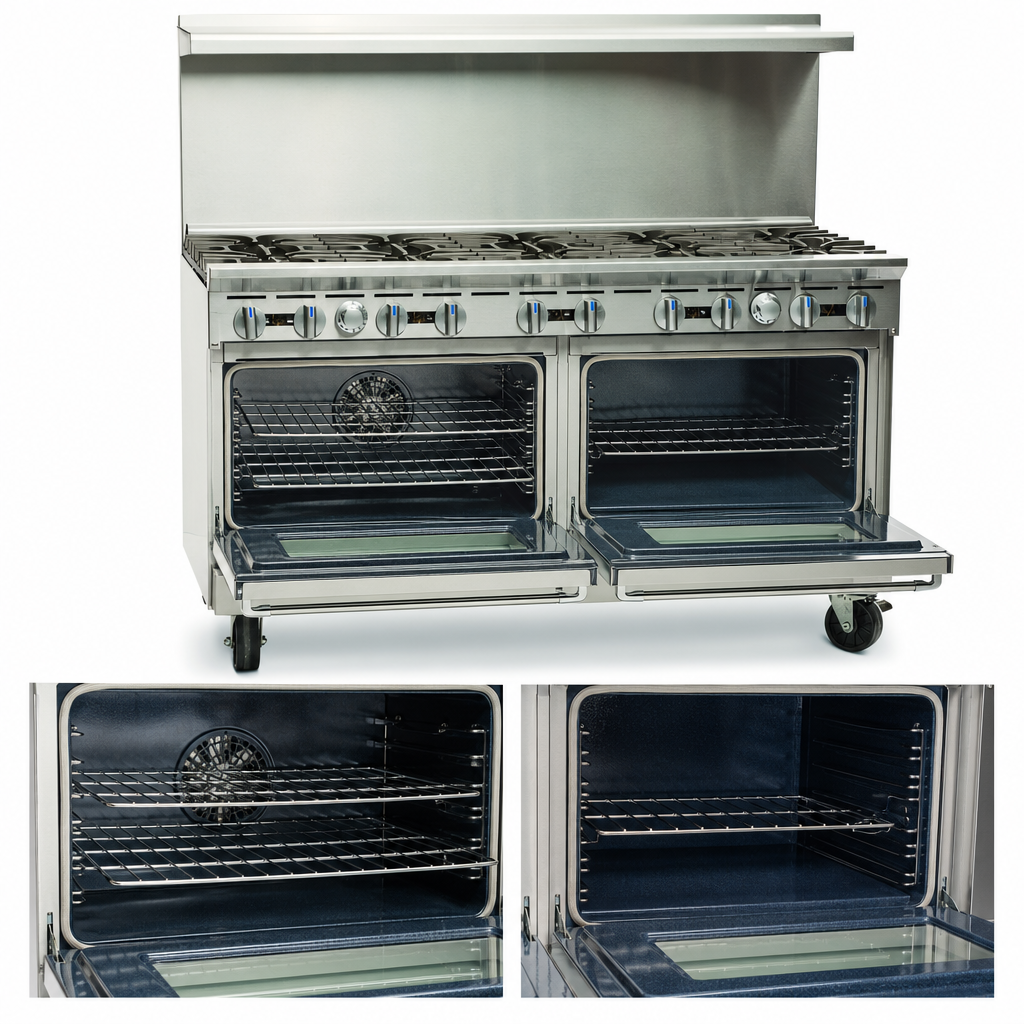

- Chef-Depth standard oven (35,000 BTU) fits 18" × 26" sheet pans left-to-right and front-to-back.
- 30,000 BTU convection oven with ½ HP blower motor cooks faster with less shrinkage; three chrome racks included.
- Lift-off, anti-clog burners and full-width crumb tray speed up daily cleaning – no gaskets or screws to trap debris.
- All-stainless exterior, welded seams and adjustable 6" legs withstand the demands of busy lines.
- Manual, standing-pilot controls keep operation simple and dependable.
Performance Highlights
- Even-heat burner baffle and exclusive heat deflector maximize cavity temperature uniformity.
- Porcelainized oven interiors, deck and door liners resist stains and wipe clean effortlessly.
- Fan-cool-down mode shuts the convection blower off automatically when the door opens.
- Durable cast-aluminum control knobs are easy to read, grip and replace.
- One-year parts & labor warranty backed by Imperial’s nationwide service network.
Technical Specifications
Model | IR-10-C (Pro Series) |
---|---|
Total Gas Output | 385,000 BTU / 113 kW |
Open Burners | 10 × 32,000 BTU (7,000 BTU simmer) |
Oven Configuration |
• 30,000 BTU Convection (26-½" W × 22-½" D × 14" H, 3 chrome racks) • 35,000 BTU Standard (26-½" W × 26" D × 14" H, 1 chrome rack) |
Electrical (Convection Fan & Ignition) | 120 V, 1 Ø, 6 A, 6-ft cord & plug |
Gas Inlet / Manifold Pressure | ¾" NPT • 5" WC Natural | 10" WC Propane |
Overall Dimensions | 60" W × 31-½" D × 56-½" H (with 6" legs & 17" backguard) |
Shipping Weight | ≈ 1,035 lb / 468 kg |
Certifications | NSF • CE • CSA Flame • CSA Star |
Warranty | 1-year parts & labor (USA/Canada) |
Popular Options (Sold Separately)
- 6" or 11" stainless-steel backguard / stub back
- 6" heavy-duty locking casters
- Extra oven racks
- Reinforcement channels for salamander / cheesemelter
- ¾" quick-disconnect gas hose & shut-off valve kit
