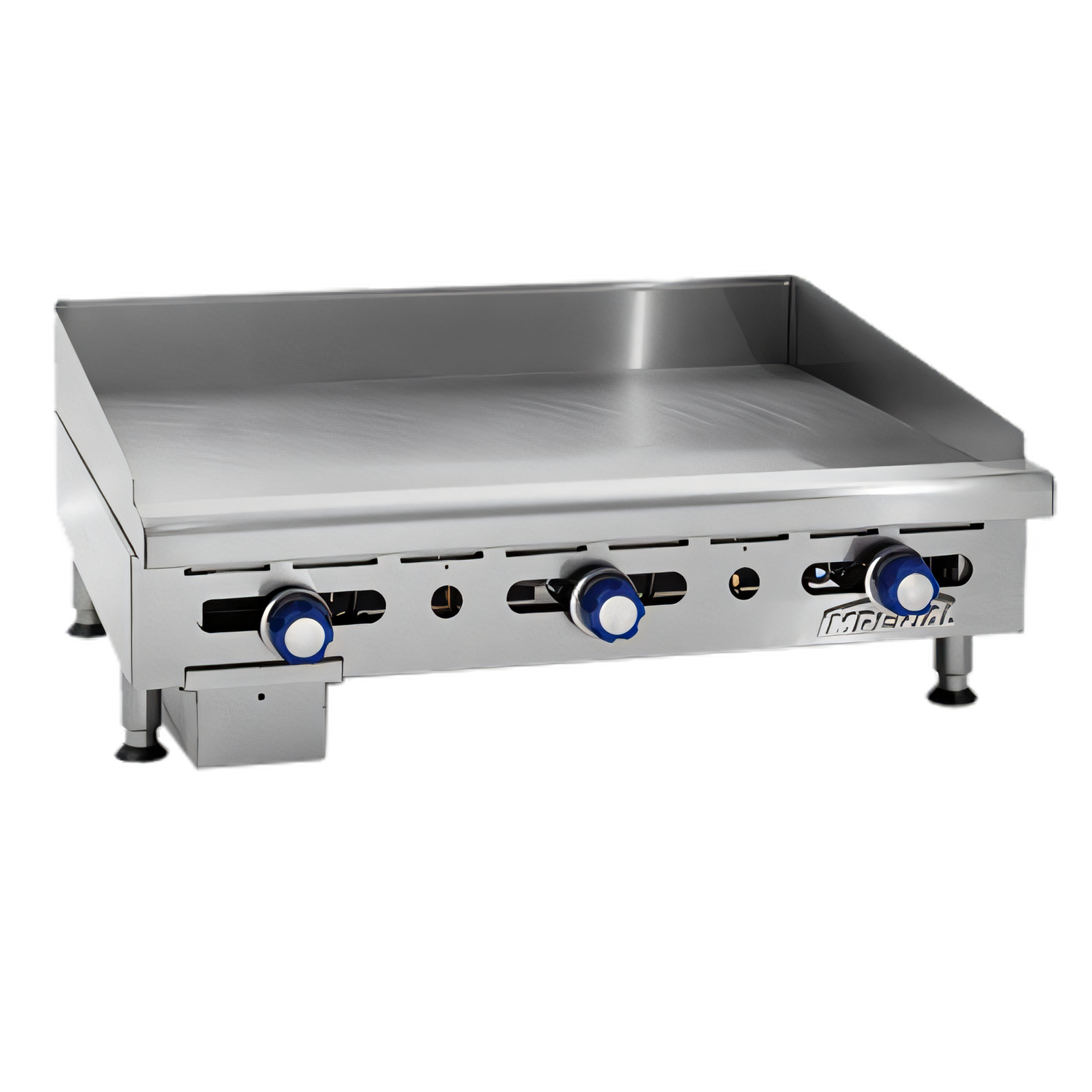

Imperial IMGA-3628 Manual Gas Griddle – 36" Countertop
90,000 BTU | 3⁄4" polished steel plate | cETLus & NSF certifiedBuilt for volume kitchens that demand quick recovery, the Imperial IMGA-3628 delivers even heat, rugged construction, and chef-friendly clean-ups in a compact 36" footprint.
Why you’ll love it

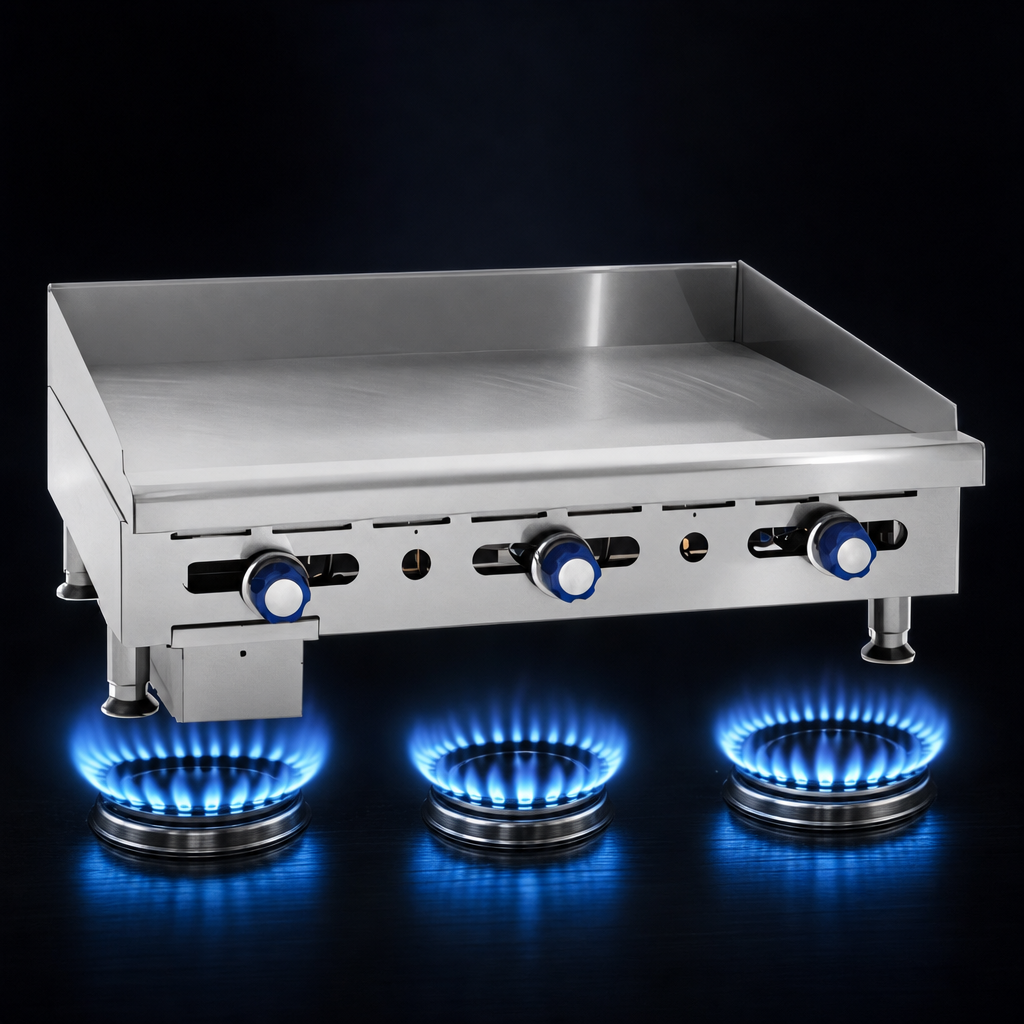

- Serious firepower — Three manually controlled burners at 30,000 BTU each (90,000 BTU total / 26 kW).
- Even heat edge-to-edge — Aeration baffles between burners spread heat uniformly across the 36" × 24" plate.
- Durable 3⁄4" steel plate — Highly polished surface holds temperature and recovers fast during peak rushes.

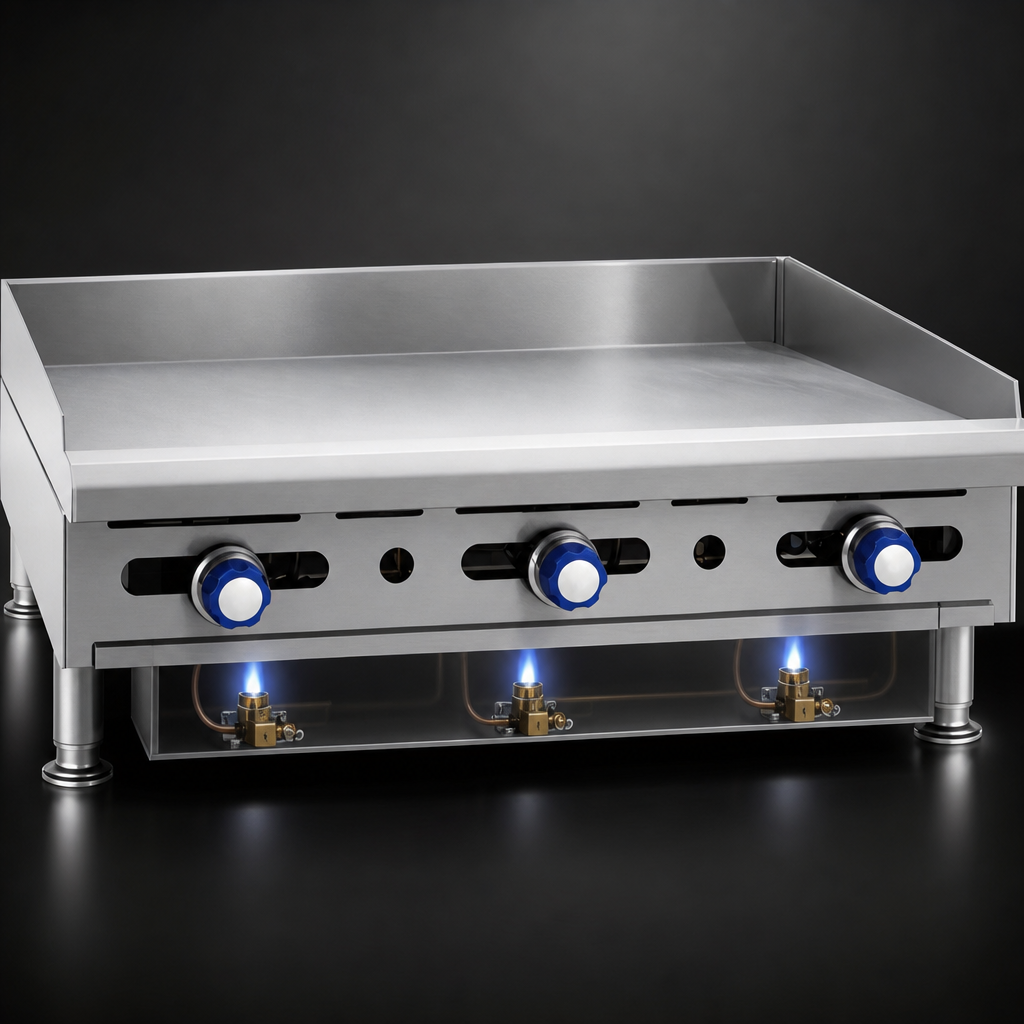

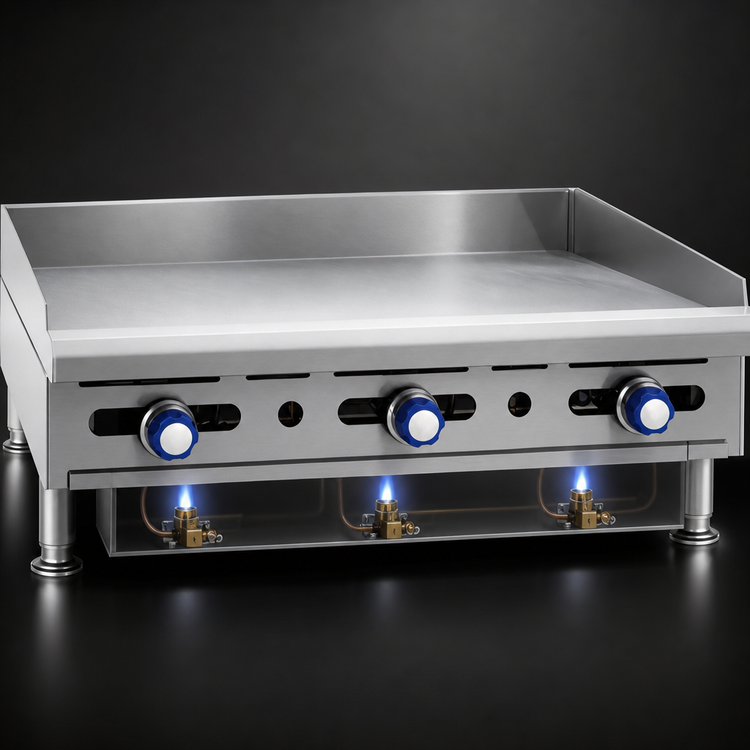

- Instant ignition — Continuous pilots keep the griddle ready to cook whenever you are.
- Mess-free grease management — 4" wide gutter channels runoff to a 1 gal. can with a weep hole that signals when it’s time to empty.
- All-stainless exterior — Front, sides, splash guards, ledge and 4" adjustable legs resist corrosion and wipe down fast.
- Range-match profile — Pairs perfectly with refrigerated bases or equipment stands (stands, casters & chrome/grooved plates available).
- Peace-of-mind warranty — 1-year parts & labor backed by Imperial’s nationwide service network.
Technical Specifications
| Model | IMGA-3628 |
|---|---|
| Cooking surface | 36" W × 24" D (914 × 610 mm) |
| Plate thickness | 3⁄4" (19 mm) smooth polished steel |
| Number of burners | 3 manually controlled, cast iron |
| Total output | 90,000 BTU/hr (26 kW) |
| Controls | Adjustable gas valves, continuous pilots |
| Gas inlet | 3⁄4" NPT rear |
| Manifold pressure | Natural 5" W.C. | Propane 10" W.C. |
| Overall dimensions | 36" W × 32-3⁄8" D × 14" H (914 × 822 × 356 mm) |
| Shipping (crated) | 38-1⁄2" W × 36" D × 16-1⁄2" H – 305 lb (138 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Installation & clearance
- For use on non-combustible countertops only.
- 0" clearance required from non-combustible surfaces.
- Provide 6" (152 mm) clearance from combustible surfaces.
- Factory-supplied 4" stainless steel legs included; equipment stands and casters sold separately.
Need help choosing the right setup? Chat with our equipment experts or explore flexible financing through Middleby’s Culinary Finance program.
$4,241.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IMGA-3628 36" gas griddle—90,000 BTU, 3/4" polished steel plate, 3 burners, stainless body, grease gutter with removable can, NSF/cETLus approved.
Manufacturer
Imperial (Middleby)
Certifications
NSF, cETLus
Height
14.0in
Width
36.0in
Depth
32.38in
Shipping Weight
305.0lbs
Cooking Surface Width (side - side)
31" - 36"
Controls
manual controls
Exterior Finish
stainless steel front & sides
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
24" - 29"
Plate Thickness
3/4"
Specifications
Griddle, countertop, gas, 36" W x 24" D cooking surface, (3) griddle burners, 3/4" thick, smooth polished steel plate, aeration baffles, manual controls, continuous pilot, 4" wide grease gutter, removable 1 gallon grease can with weep hole, stainless steel front, sides, ledge & splash guards, 4" stainless steel, legs, 90,000 BTU, 26kW, cETLus, NSF
