Imperial (Middleby) IHR-XX-SC-72 Spec Series Undercounter & Worktop Refrigeration
Imperial (Middleby) IHR-XX-SC-72 Spec Series Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IHR-XX-SC-72 Spec Series Undercounter & Wor...
Description

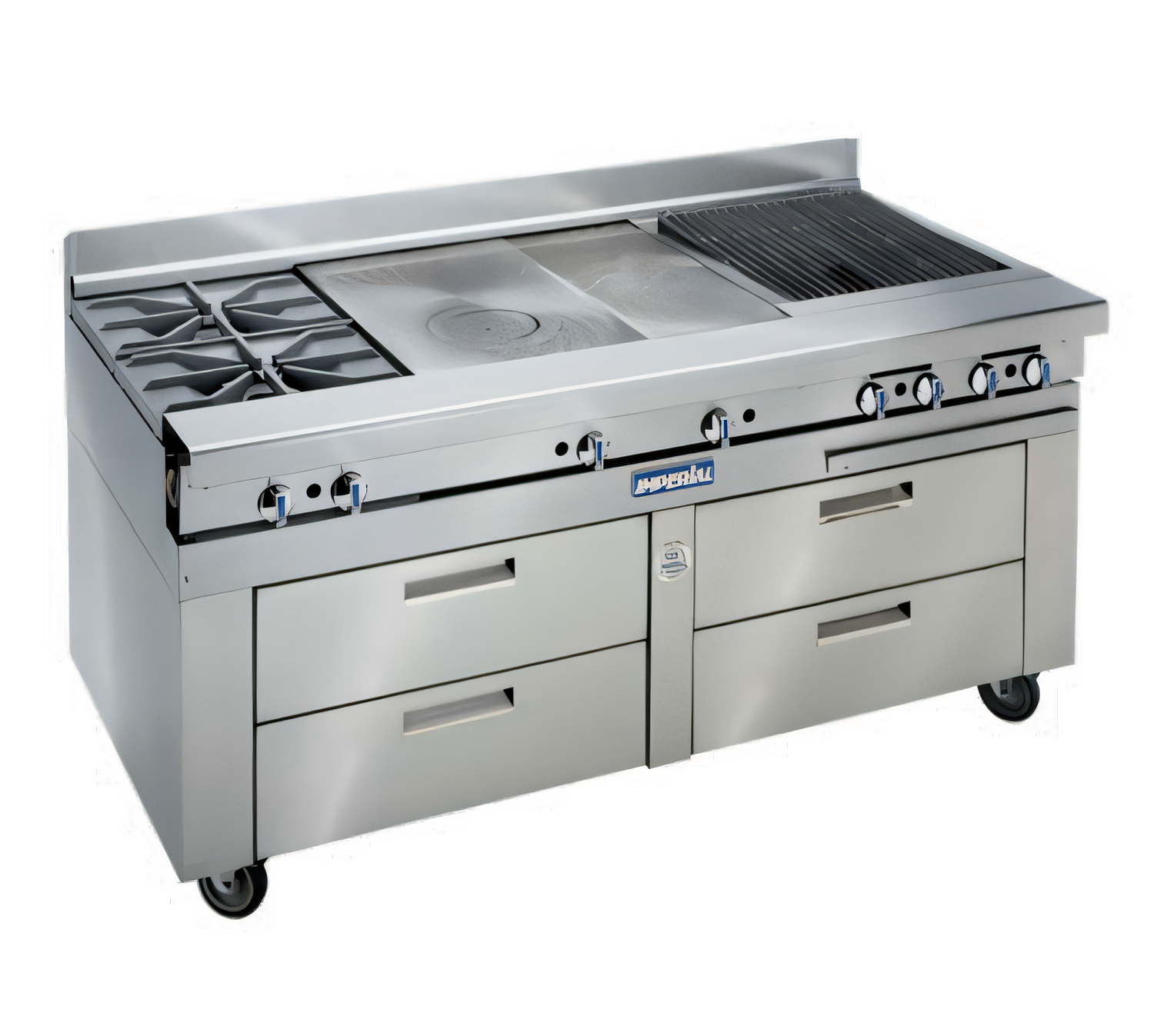

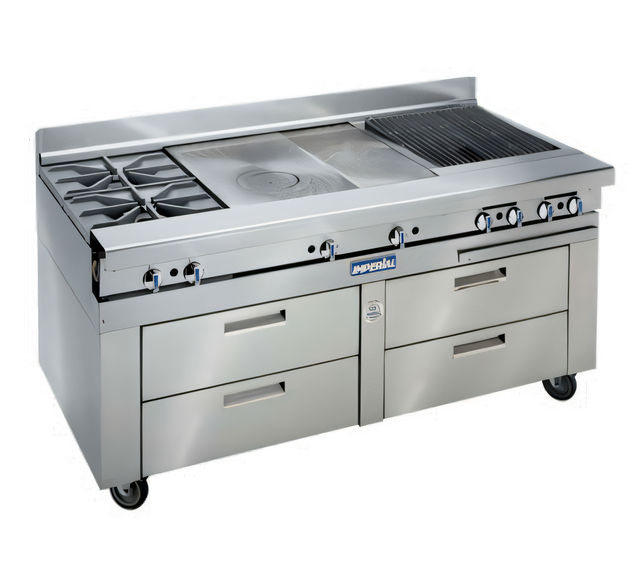

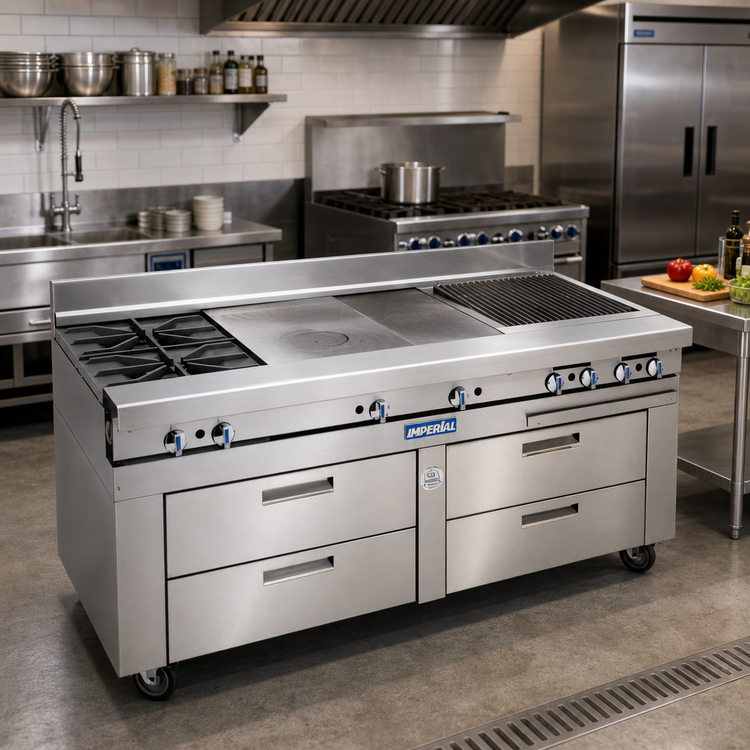

Spec Series 72" Sizzle 'N Chill Refrigerated Base
Model IHR-XX-SC-72 · 4 Drawers · 8 Full-Size PansBring cold storage right to the cookline. Imperial’s heavy-duty Sizzle 'N Chill keeps ingredients at a food-safe 36–40°F beneath your range or griddle, cutting down on steps and ticket times while standing up to the heat of the busiest kitchen.
Key Features

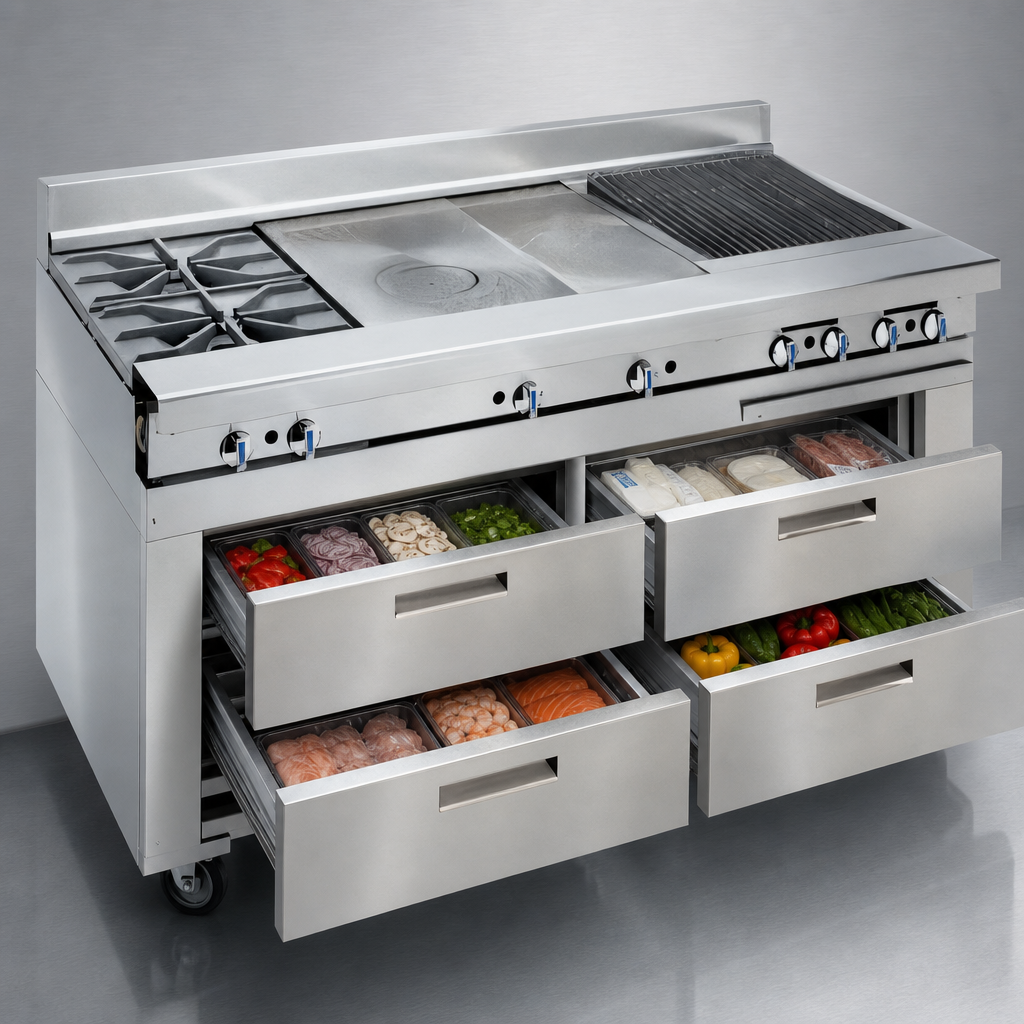

- (4) self-closing drawers – each holds two 12"×20" full-size pans (8 total)
- Digital thermostat with easy-read display
- Self-contained 1/5 HP refrigeration – simply plug into a standard 120 V outlet (3 A)
- Foamed-in-place polyurethane insulation prevents heat transfer from the cooking surface
- Stainless-steel drawer guides & bearings rated for 275 lb (125 kg) per drawer
- Drawer dividers included for flexible fractional-pan layouts up to 6" deep
- All-stainless front, sides, drawer fronts, guides & bearing assemblies
- 6" heavy-duty plate-mounted casters (front locking) for quick cleaning access
- cETLus & ETL Sanitation listed
At-a-Glance Specifications
| Exterior width | 72" (1829 mm) |
|---|---|
| Exterior depth | 38" (965 mm) |
| Exterior height | 36" (914 mm) to cooktop |
| Drawers / pan capacity | 4 drawers / 8 full-size pans |
| Temperature range | 36–40 °F (2.2–4.4 °C) |
| Compressor | 1/5 HP, air-cooled |
| Refrigeration | Self-contained, rear-mounted |
| Electrical | 120 V / 60 Hz / 1-phase, 3.0 A, 6' cord with 3-prong plug |
| Construction | Stainless steel front, sides, drawer fronts, guides & bearings |
| Mobility | (4) 6" plate-mounted casters (locking fronts) |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1-year parts & labor |
Why Operators Love Sizzle 'N Chill
- Cut steps – proteins, garnishes and sauces stay right under the flame for faster plating.
- Energy-smart – quick-recovery system draws only 3 amps.
- No installation headaches – roll it in, plug it in, start cooking.
- Built to last – oversize bearings, flush handles and full stainless construction handle the toughest shifts.
Looking to pair this base with an Imperial cooktop or explore financing? Contact our team — we're here to help configure the perfect line for your kitchen.
