Imperial (Middleby)  |  Spec Series  |  SKU: IHR-XX-SC-36

Imperial (Middleby) IHR-XX-SC-36 Spec Series Undercounter & Worktop Refrigeration

$15,633.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Training video Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

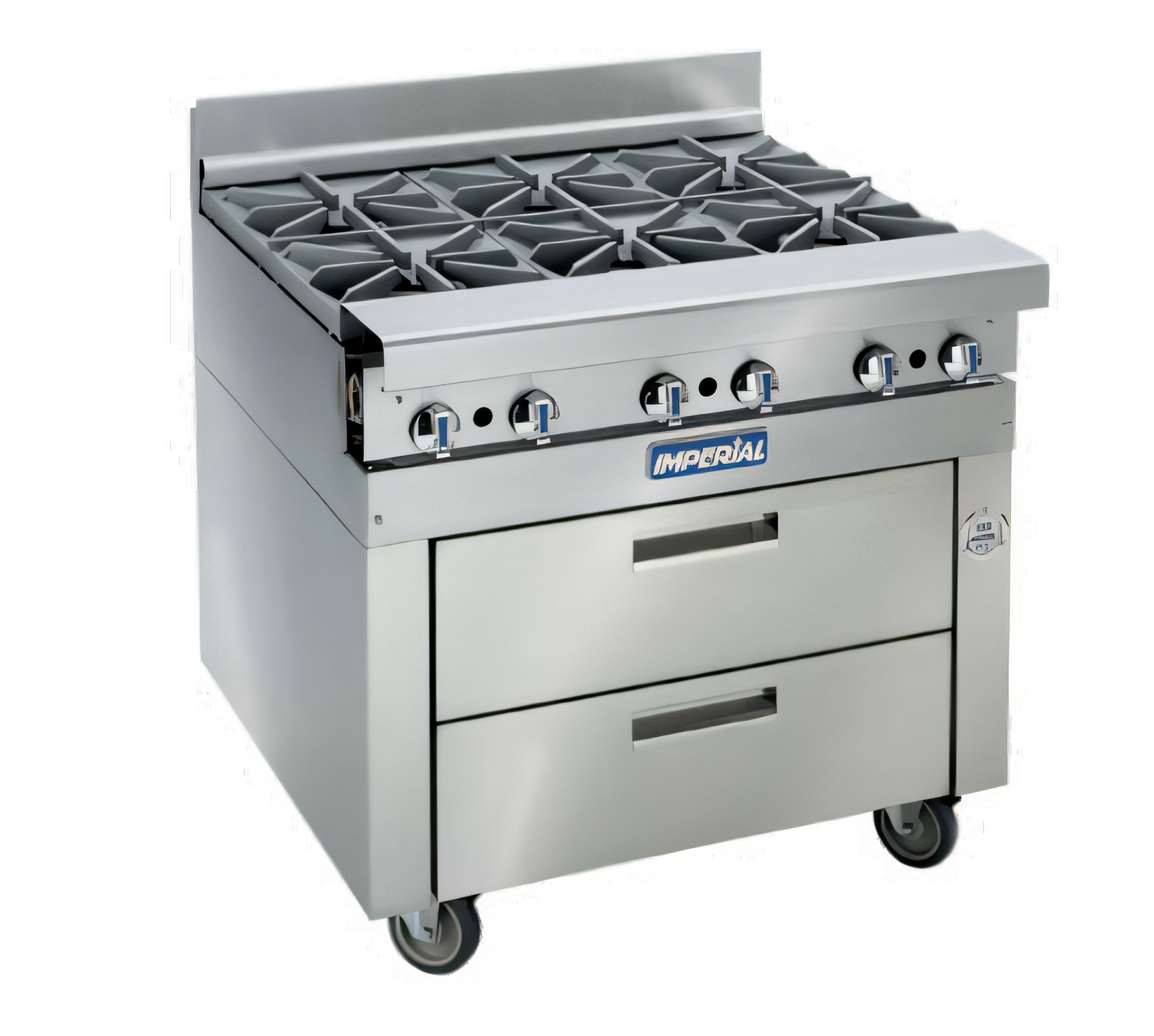

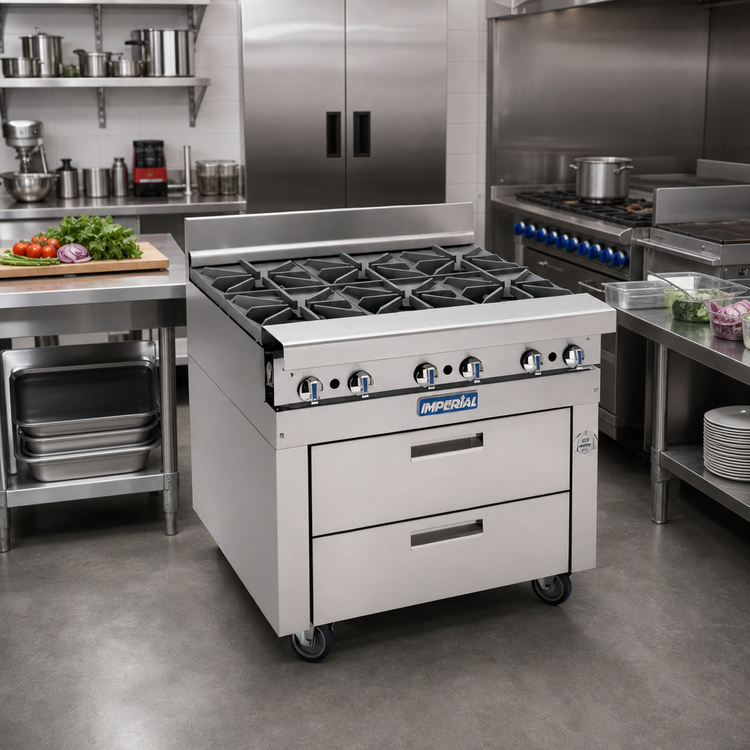

Spec Series 36" Sizzle ’N Chill Refrigerated Base

Imperial | Model IHR-XX-SC-36 • Self-Contained, Two-Drawer

Prep, cook and chill in one ergonomic workstation. Imperial’s heavy-duty Sizzle ’N Chill keeps ingredients at a food-safe 36–40 °F directly under your range, griddle or broiler—so every pan, portion and garnish is always within arm’s reach.

Why you’ll love it
  • Two self-closing drawers – each fits 2 full-size (12 × 20") pans up to 6" deep (4-pan total capacity)
  • Front-mounted digital thermostat & thermometer for at-a-glance temperature checks
  • Energy-efficient 1/5 HP compressor; totally self-contained—just roll in and plug into any 120 V outlet
  • Foamed-in-place polyurethane insulation blocks heat migration from the hot line above
  • Oversized stainless drawer guides & bearings rated to 275 lb for years of slam-proof service
  • Drawer dividers included for effortless fractional-pan layouts
  • All-stainless exterior (front, sides, drawer fronts, guides & bearings) wipes clean fast
  • 6" heavy-duty plate-mounted casters (front two locking) for rock-solid mobility
  • cETLus & ETL Sanitation listed for electrical and food-safety compliance
Consistent, line-ready cooling

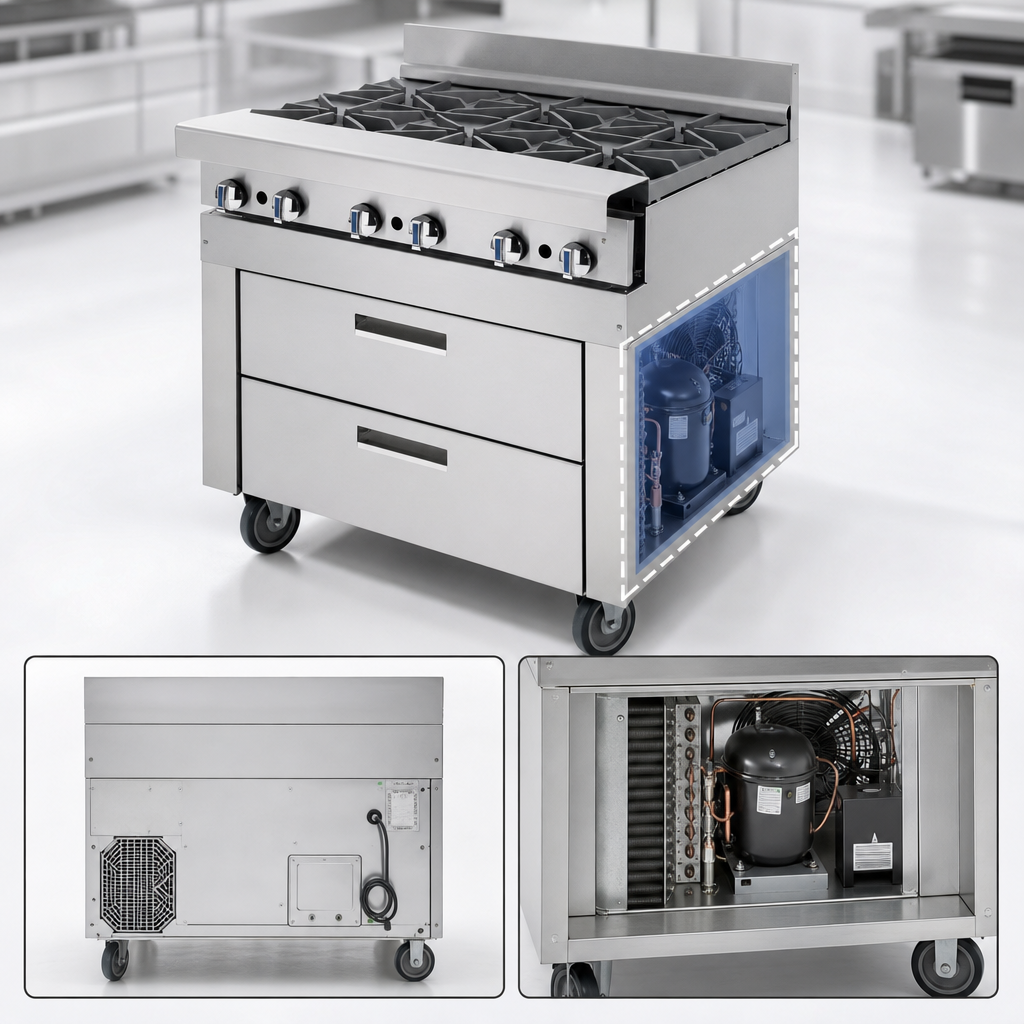

The Spec Series base maintains its 36–40 °F set point even when the kitchen peaks at 100 °F. A non-electrical condensate pan eliminates excess water with zero maintenance, while unitized refrigeration components slide out the front for quick service access.

Specifications
Exterior width 36" (914 mm)
Exterior depth 38" (965 mm)
Exterior height 36" (914 mm) to cook-top surface
Drawers / Pan capacity 2 drawers / 4 full-size pans (6" deep max)
Temperature range 36 – 40 °F (2.2 – 4.4 °C)
Refrigeration system Self-contained, 1/5 HP compressor
Electrical 120 V / 60 Hz / 1-ph, 3.0 A, 6' cord & NEMA 5-15P plug
Construction Stainless steel front, drawer fronts, sides, guides & bearings; foamed-in-place insulation
Mobility 6" heavy-duty casters (2 locking)
Certifications cETLus, ETL-Sanitation
Warranty 1-year parts & labor
Perfect for
  • High-volume restaurants needing refrigerated mise en place under the cook line
  • Ghost kitchens and food halls with limited back-of-house space
  • Any Imperial IHR Spec Series range installation requiring cold storage below
Installation note: Unit must be installed on a non-combustible floor with legs or casters. Provide 0" clearance from non-combustible and 8" (203 mm) from combustible surfaces.

Need more capacity? A 72" four-drawer Sizzle ’N Chill is also available—ask your rep for details.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

cETLus, ETL-Sanitation

Height

25.0in

Width

36.0in

Depth

38.0in

Shipping Weight

470.0lbs

Refrigeration

self-contained, rear mounted

Top Finish

stainless steel top

Compressor HP

1/4 HP

Width

25" - 36" wide

Drawer Qty

2 drawers

Exterior Finish

galvanized & stainless steel exterior

Specifications

Spec Series Sizzle 'N Chill System, 36", (2) drawers, (4) pan capacity, digital thermostat, self-contained, includes drawer dividers, stainless steel front, drawer fronts, sides, guides & bearings, casters, 120v/60/1-ph, 1/5 HP, 6' cord & plug, 3.0 amps, cETLus, ETL-Sanitation
