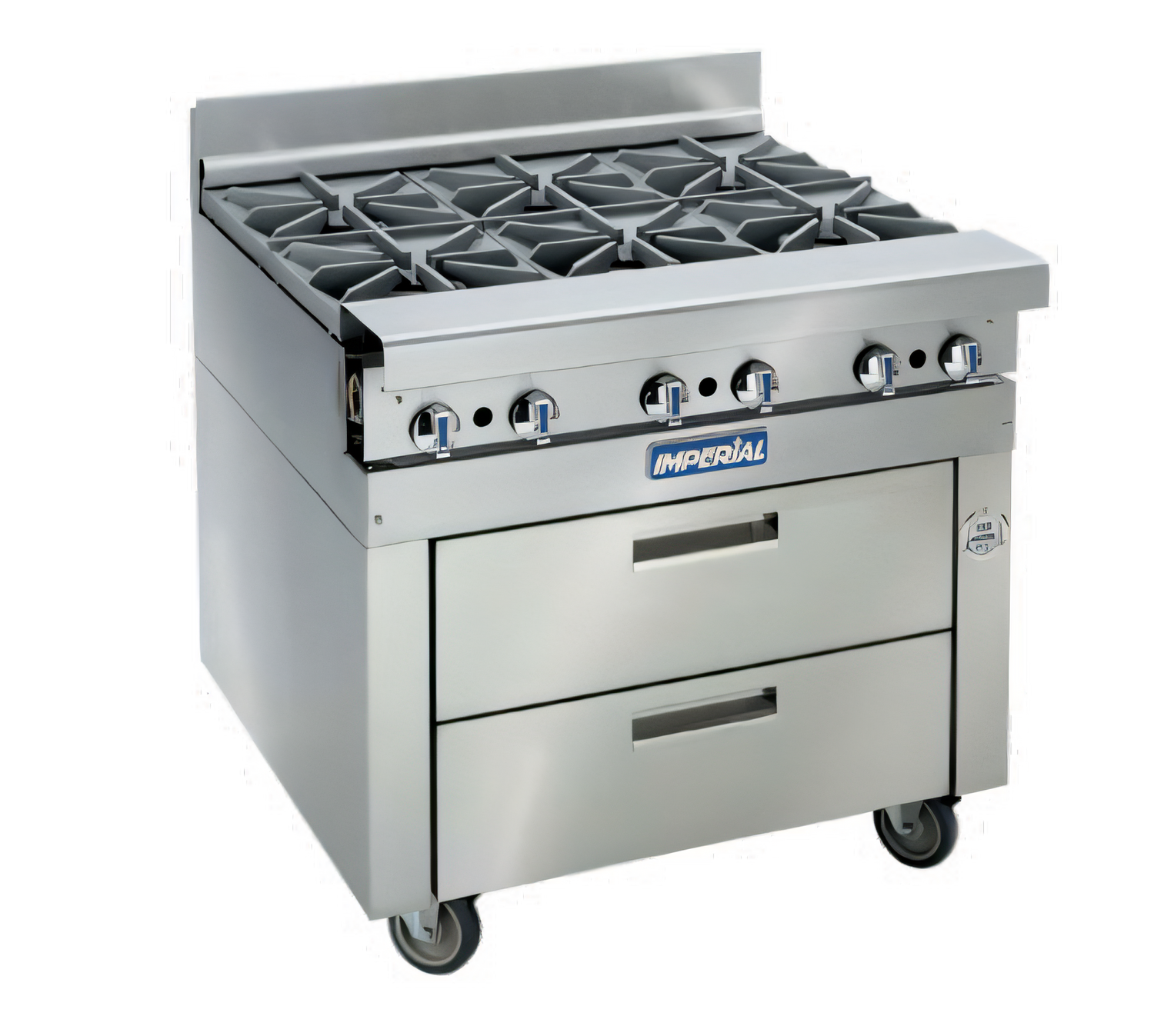

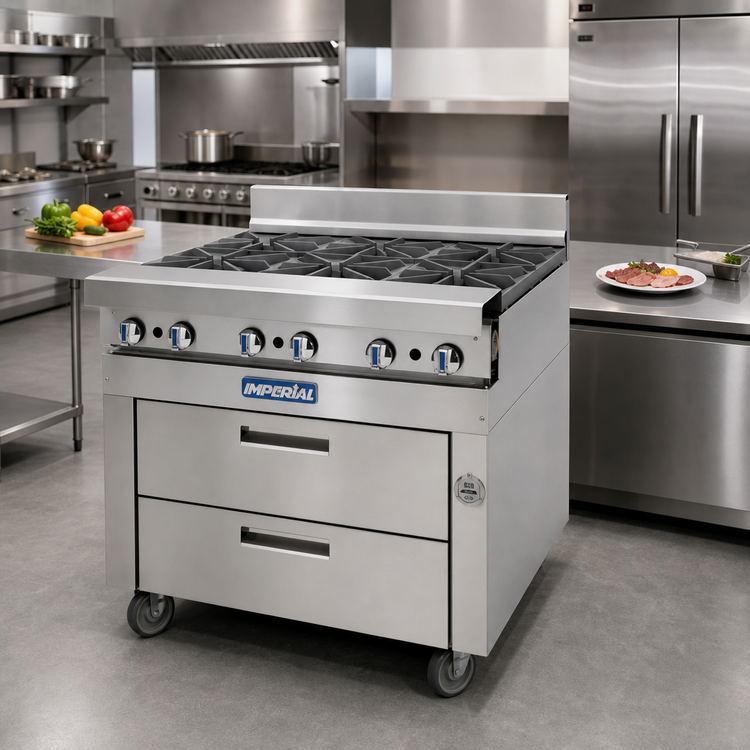

Imperial Spec Series 36" Sizzle ‘N Chill Remote Refrigerated Base
2-Drawer | 4 Full-Size Pan Capacity | Digital ThermostatKeep raw proteins, mise en place or cold garnishes exactly where your chefs need them—right under the cookline—with Imperial’s heavy-duty Spec Series Sizzle ‘N Chill system. Built for demanding commercial kitchens, this 36" refrigerated base uses a remote 1/5 HP refrigeration system to deliver consistent 36–40 °F drawer temperatures, even in 100 °F ambient conditions.
Key advantages
- Space-saving refrigerated storage directly beneath ranges, griddles or broilers
- Remote refrigeration keeps heat & noise out of the kitchen while simplifying service access
- Front-mounted digital thermostat & thermometer—easy to read at a glance
- Self-closing drawers rated for 275 lb with oversized stainless-steel guides & bearings
- Foamed-in-place polyurethane insulation prevents temperature migration from the cooktop above
- Ships with drawer dividers to support fractional-size pans up to 6" deep (pans not included)
- Stainless-steel front, drawer fronts, sides, guides & bearings for maximum durability
- Shipped on 6" adjustable legs—meets NSF clearance requirements for non-combustible floors
Performance you can count on
- Maintains 36–40 °F (2.2–4.4 °C) internal temperature
- Reliable operation in up to 100 °F (37.8 °C) ambient kitchens
- Non-electrical condensate evaporation—no drain line required
- Full-length, flush-mounted handles reduce snag points in tight cooklines
Specifications
| Model | Spec Series IHR-XX-RM-36 (Remote) |
|---|---|
| Overall width | 36" / 914 mm |
| Drawers | 2 self-closing drawers |
| Pan capacity | 4 full-size pans (2 per drawer) | supports fractional pans with included dividers |
| Temperature range | 36–40 °F (2.2–4.4 °C) |
| Refrigeration | Remote, 1/5 HP compressor (condensing unit supplied/installed separately) |
| Electrical | 120 V / 60 Hz / 1-ph | 3.0 A | 6′ cord & 3-prong plug |
| Construction | All stainless-steel front, drawer fronts, sides, guides & bearings; foamed-in-place insulation |
| Legs | 6" (152 mm) stainless-steel legs, adjustable |
| Certifications | cETLus | ETL Sanitation |
| Warranty | 1-year parts & labor (factory-authorized service network) |
Included with your purchase
- Factory-installed drawer dividers/pan supports
- 6" stainless-steel legs
- Operator’s manual & warranty registration

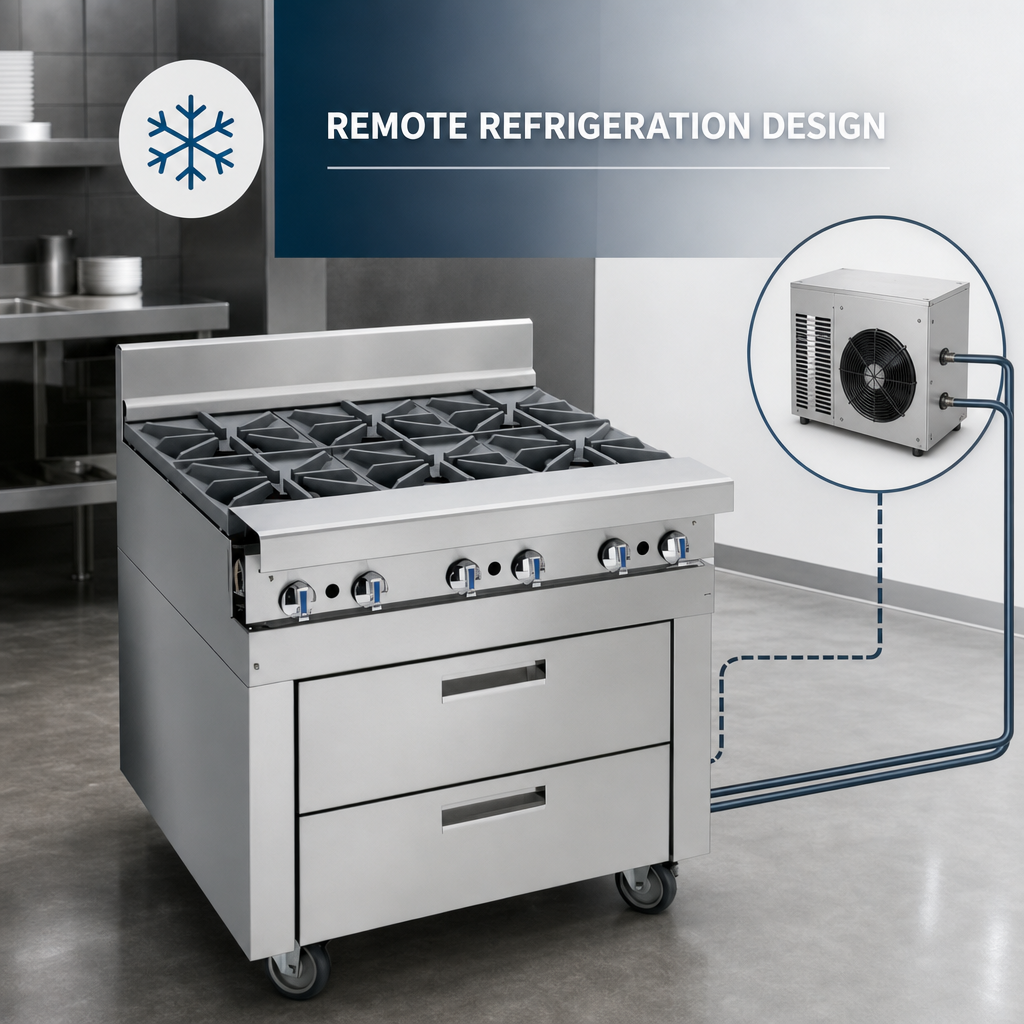

Important: This model is designed for remote refrigeration.
A compatible condensing unit, refrigeration lines and installation are required and
are not included with the base.
Need flexible payment options? Middleby’s equipment financing program can turn this purchase into low monthly payments—ask your sales rep for details.
Imperial (Middleby)
Imperial (Middleby) IHR-XX-RM-36 Spec Series Undercounter & Worktop Refrigeration
SKU: IHR-XX-RM-36
$12,878.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Spec Series 36" undercounter refrigerated worktop with 2 drawers, Sizzle 'N Chill, digital thermostat, stainless steel, remote-ready.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
cETLus, ETL-Sanitation
Height
25.0in
Width
36.0in
Depth
38.0in
Shipping Weight
350.0lbs
Top Finish
stainless steel top
Compressor HP
1/4 HP
Width
25" - 36" wide
Refrigeration
remote (refrigeration not included)
Exterior Finish
galvanized & stainless steel exterior
Drawer Qty
2 drawers
Specifications
Spec Series Sizzle 'N Chill System, 36", (2) drawers, (4) pan capacity, digital thermostat, designed for remote refrigeration, front mount thermostat, includes drawer dividers, stainless steel front, drawer fronts, sides, guides & bearings, 6" legs, 120v/60/1-ph, 1/5 HP, 6' cord & plug, 3.0 amps, cETLus, ETL-Sanitation
