Imperial Spec Series 36″ Modular Radiant Charbroiler – 90,000 BTU
Model IHR-RB-M | Gas Countertop Unit | cETLus & NSF ListedBuilt for demanding commercial kitchens, Imperial’s Spec Series modular charbroiler delivers true steak-house flavor in a compact countertop design. Six high-performance stainless steel burners, rugged cast-iron radiants and a slanted grate system combine to produce even, controllable heat and those signature grill marks your guests love—all while simplifying cleanup and conserving energy.
Key Advantages
- 90,000 BTU (26 kW) total output – six individually controlled 15,000 BTU burners spaced every 6″ for precise zone cooking.

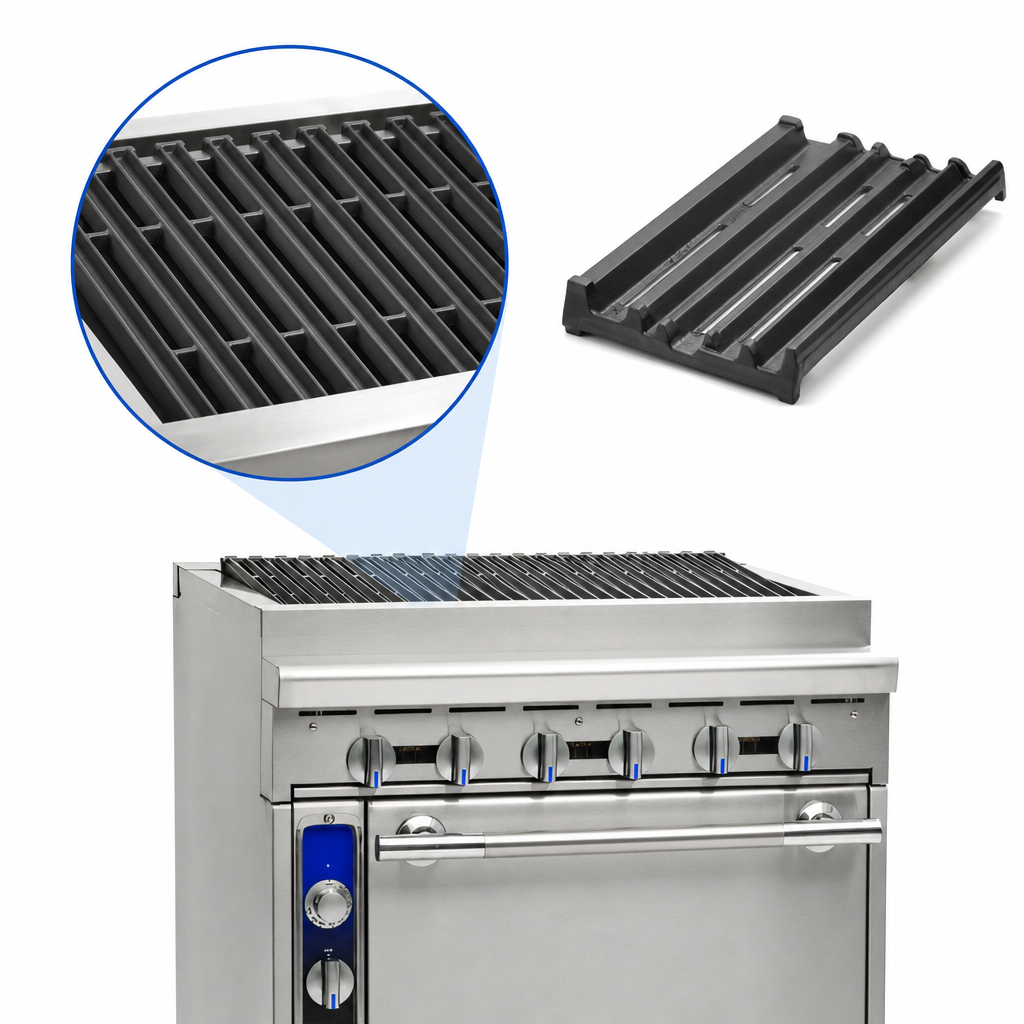

- Reinforced cast-iron radiants capture and radiate heat evenly while shielding burners from drippings.
- Heavy-duty, slanted cast-iron top grates (3″ × 22″ sections) create restaurant-quality char marks and remove tool-free for cleaning.
- Full-width 7″ landing ledge keeps plates, pans and seasoning within easy reach.
- Front grease gutter plus extra-large removable drip pan and crumb tray speed daily maintenance.
- Fully insulated cooktop helps retain heat and reduce gas consumption.
- All-stainless exterior—front, sides, stub back and ledge—for long-lasting durability and a professional look.
- Durable cast-aluminum knobs with heat-protective grips stand up to the busiest line.
- 6″ heavy-duty legs with adjustable feet included; optional equipment stand or casters available.
Built for Real-World Workflows
- Tool-free removal of grates, radiants, burner cover and crumb tray slashes downtime between shifts.
- 3/4″ rear gas connection with factory pressure regulator simplifies installation.
- Zero clearance needed to non-combustible sides/rear; 8″ clearance to combustibles.

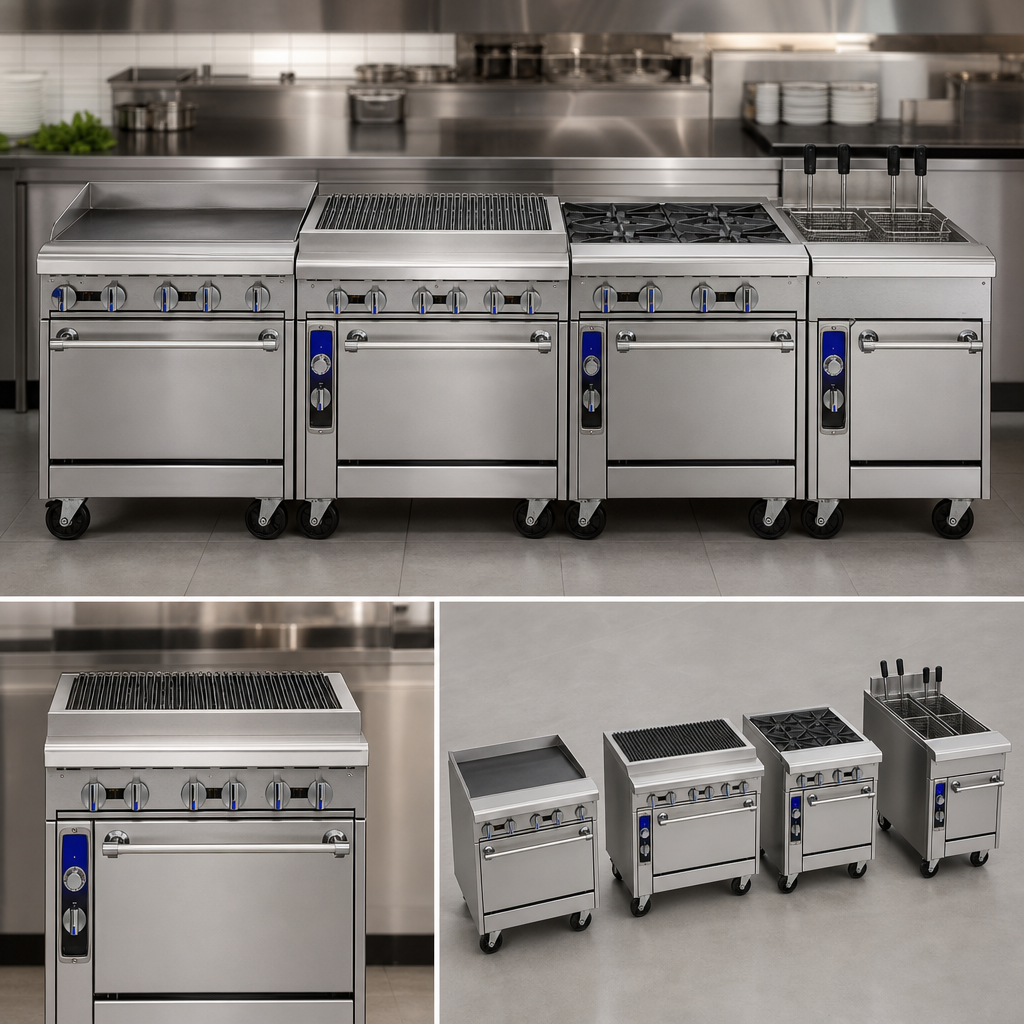

- Matching Spec Series backguards, common landing ledges and stands allow seamless line-ups.
At-a-Glance Specs
| Cooking surface | 36″ W × 18″ D (914 × 457 mm) |
|---|---|
| Total BTU | 90,000 BTU (26 kW) |
| Burners | Six stainless steel, individually controlled (15,000 BTU each) |
| Gas type | Natural or Propane – 5.0″ W.C. (Nat) / 10.0″ W.C. (LP) |
| Gas connection | 3/4″ NPT rear manifold |
| Overall dimensions | 36″ W × 38″ D × 11″ H (914 × 965 × 279 mm) – countertop |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service network) |
Need a complete cooking suite? Ask about matching Spec Series ranges, ovens and shelving to build a seamless cookline.
$8,854.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-RB-M 36" gas Spec Series range: heavy-duty, 90,000 BTU, charbroiler, cast iron grates, stainless steel, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
11.0in
Width
36.0in
Depth
38.0in
Shipping Weight
825.0lbs
Base
modular
Exterior Finish
stainless steel front & sides
Top
(1) charbroiler
Specifications
Spec Series Heavy Duty Range, gas, 36"W, modular, charbroiler, cast iron radiants, slanted cast iron top grates, front grease gutter, removable crumb tray & drip pan, stainless steel front, sides, 7"D landing ledge & stub back, 90,000 BTU, 26kW, cETLus, NSF
