Imperial Spec Series™ 36" Gas Plancha Top Range – Open Cabinet Base
Model: IHR-PL36-XB | 30,000 BTU (9 kW)Built for demanding commercial kitchens, Imperial’s Spec Series™ plancha range combines heavy-duty performance with a sleek, all-stainless exterior. The ½" thick polished steel plancha delivers fast, even heat for searing, sautéing and finishing, while the open cabinet base keeps sheet pans, hotel pans or smallwares right where you need them.
Performance & Convenience

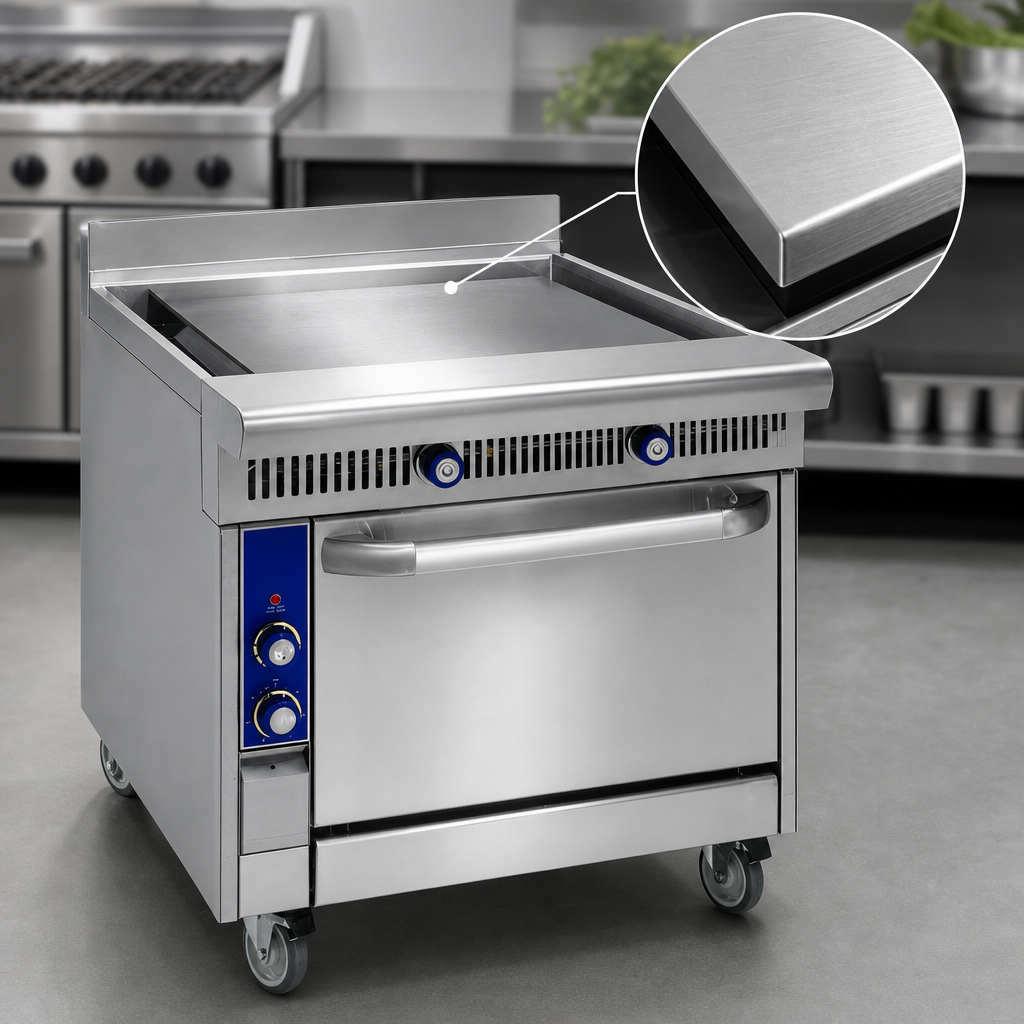

- ½" (13 mm) thick polished steel griddle plate – retains heat and recovers rapidly.
- 28" W x 22 ½" D cooking surface provides ample space for proteins, vegetables and tortillas.
- 30,000 BTU/hr (9 kW) gas burner system for quick heat-up and consistent temperatures.
- 5" (127 mm) deep stainless steel landing ledge doubles as a plating or resting zone.
- Extra-wide front grease trough for easy scraping and fast clean-ups.

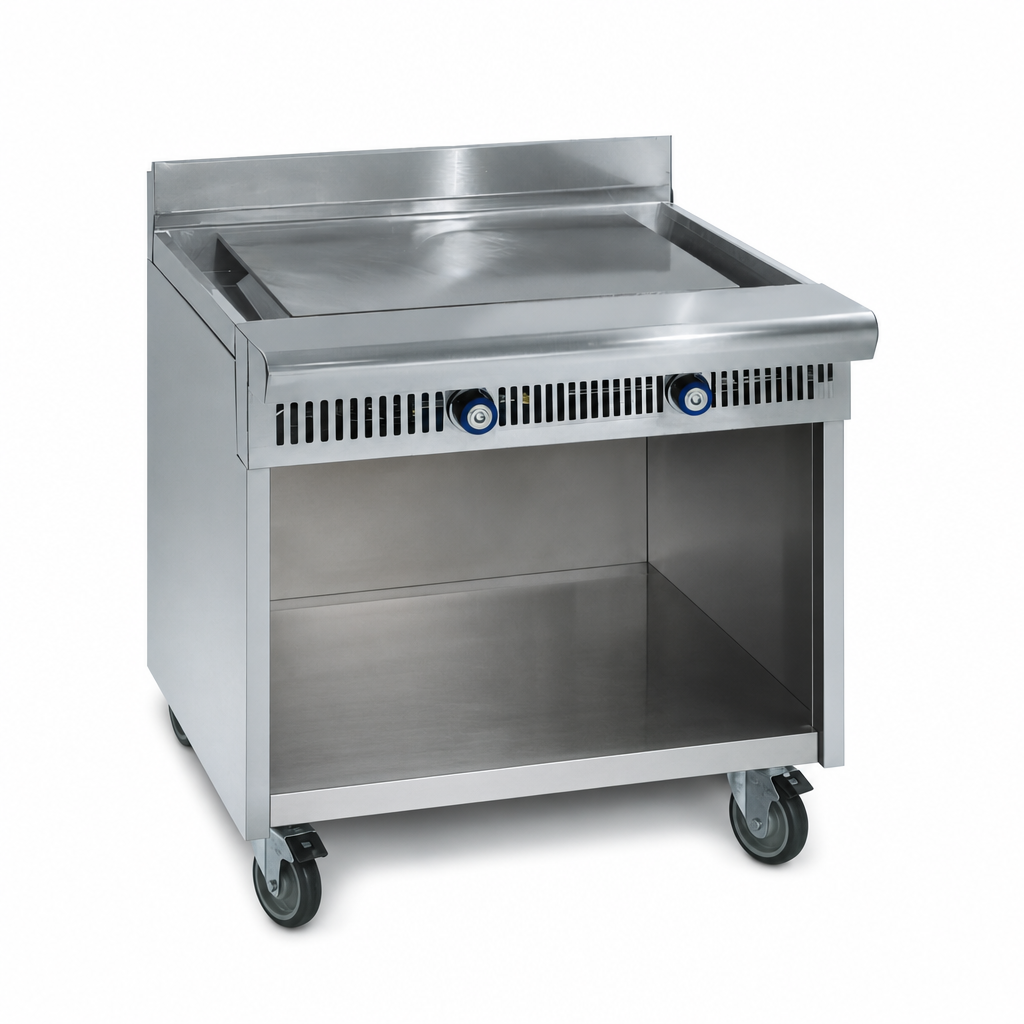

- Open cabinet base stores full-size sheet pans, cutting boards or bulk dry goods.
Heavy-Duty Construction
- Stainless steel front, sides, backguard, landing ledge & kick plate withstand daily abuse.
- Welded & polished seams create a seamless, professional appearance.
- Cast-aluminum control knobs stay cool and feature a heat-shielded grip.
- 6" (152 mm) tubular legs with adjustable feet level the unit on uneven floors.
- Enclosed 1-¼" (32 mm) front gas manifold protects components from splashes.
Technical Specifications
| Model | IHR-PL36-XB |
|---|---|
| Cooking Surface | 28" W × 22 ½" D × ½" thick steel |
| Total Output | 30,000 BTU/hr • 9 kW |
| Gas Connection | ¾" NPT (rear) |
| Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Overall Dimensions | 36" W × 38" D × 36" H (to cooktop) |
| Shipping Weight | 478 lb • 217 kg |
| Clearances | 0" from non-combustible | 8" (203 mm) from combustible |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Popular Options & Accessories (sold separately)
- Stainless steel backsplashes or high shelves
- Salamander or cheese-melter mounting channels
- Landing-ledge cut-outs for food pans
- 6" (152 mm) casters for mobility
- Stainless steel equipment stand for modular use
This equipment is listed to cETLus standards for gas safety and sanitation and carries NSF certification for foodservice use.
Peace-of-Mind Warranty
Imperial backs every Spec Series range with a full 1-year parts & labor warranty when installed and serviced by an authorized technician.
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
