Imperial (Middleby) IHR-PL36 Spec Series Gas Ranges
Description

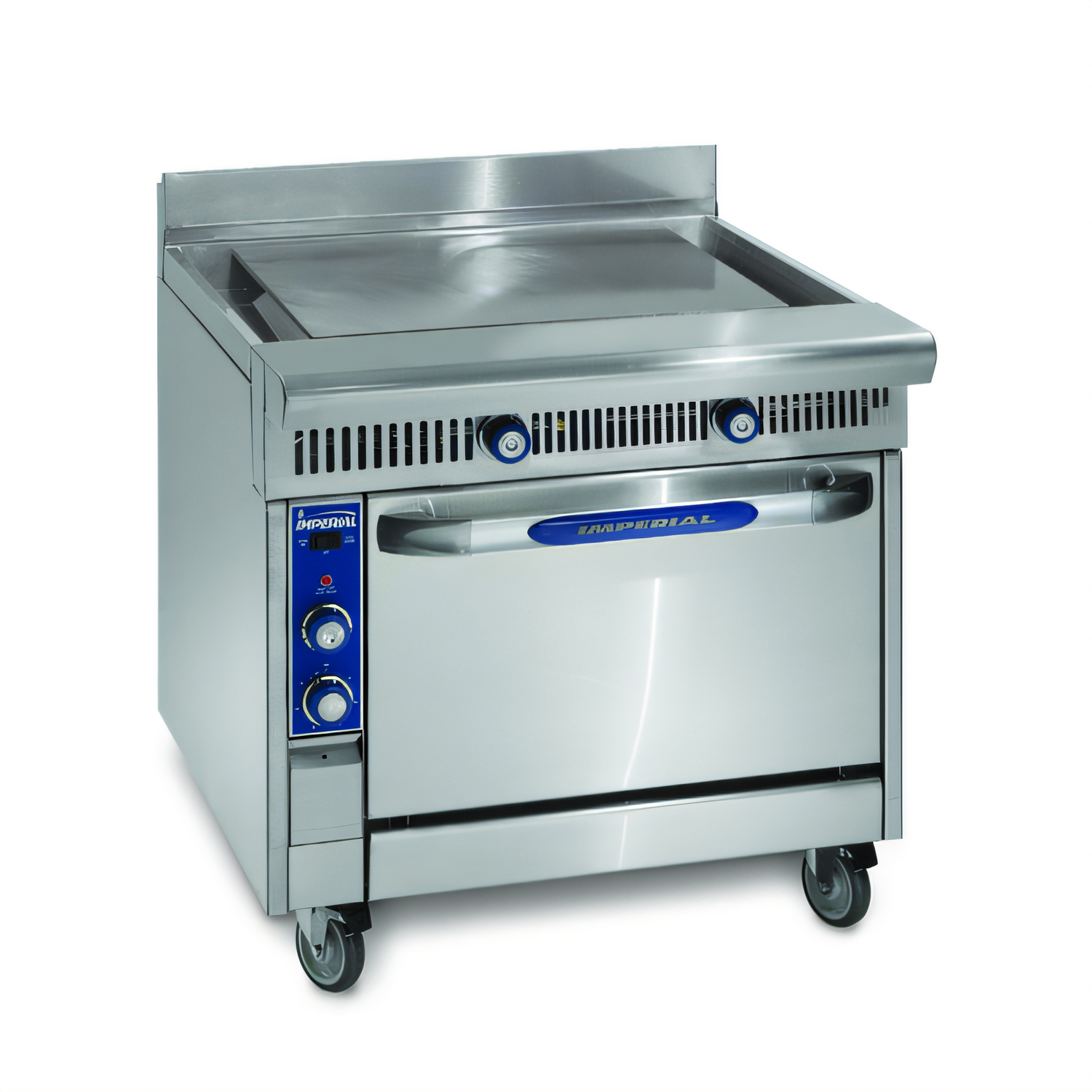

Spec Series™ 36" Gas Plancha Range + Standard Oven
Imperial Model IHR-PL36 | 70,000 BTU (21 kW)Built for chefs who demand power, precision and a flawless finish, the Imperial Spec Series™ IHR-PL36 puts a ½" (8 mm) polished-steel plancha and a high-performance oven in one rugged, stainless-steel chassis. From searing proteins to finishing sauces and baking sides, this heavy-duty range keeps every station moving in high-volume kitchens.
Why you’ll love it

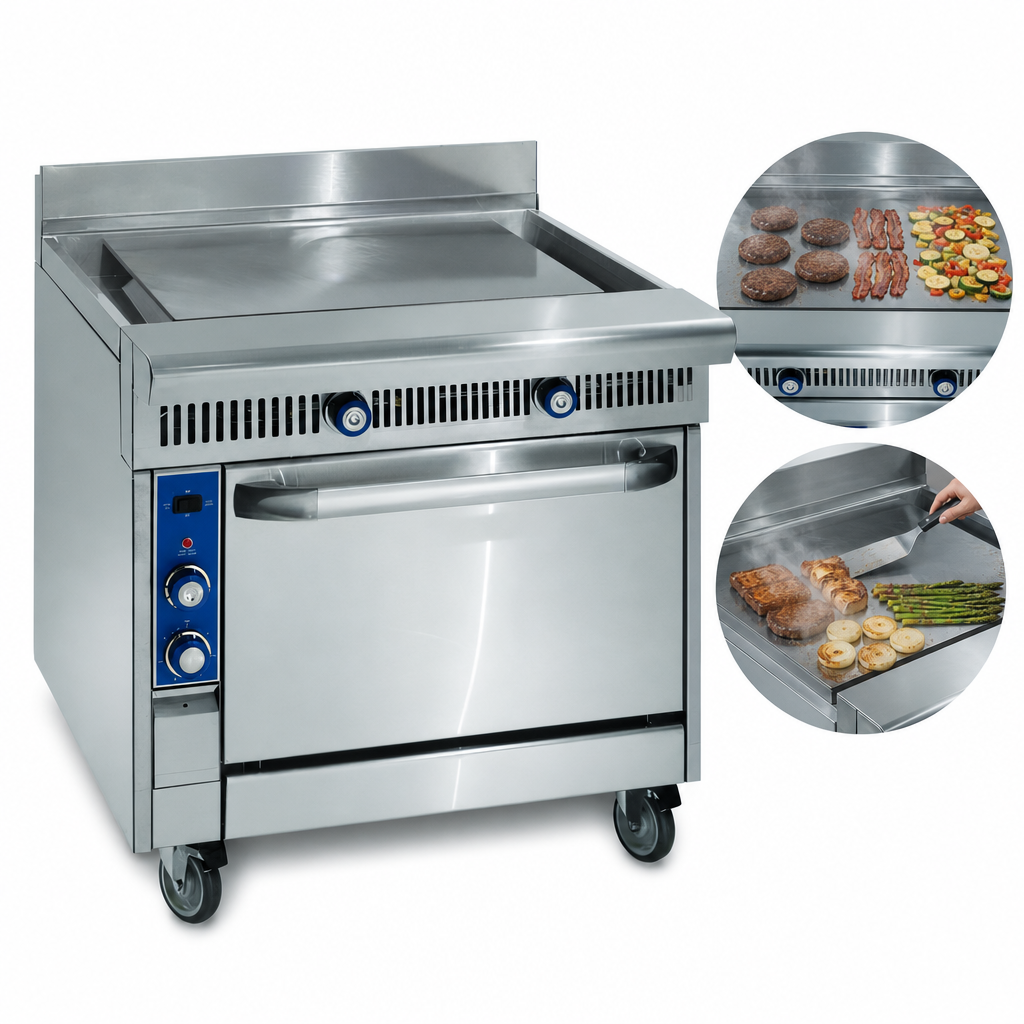

- True plancha performance – 28" W x 22 ½" D plate delivers consistent heat across the entire surface for caramelised crusts and perfect char-marks.
- Rapid heat-up thanks to a 70,000 BTU burner system with manual controls for infinite temperature adjustment.
- Heavy-duty standard oven – 40,000 BTU burner, 100 % safety pilot and heat-deflector shield that circulates heat throughout the cavity, not the floor.
- Roomy oven interior (26 ½" W × 26" D × 14" H) fits 18" × 26" sheet pans front-to-back or left-to-right; one chrome rack included.
- Full stainless exterior – front, sides, 5" landing ledge, backguard and kick plate resist corrosion and clean up fast.
- 6" (152 mm) legs with adjustable feet simplify leveling and sanitation.
- Cool-zone, cast-aluminum control knobs for lasting durability.
- Certified cETLus & NSF for gas safety and sanitation.
Technical specifications
| Model | IHR-PL36 (manual controls) |
|---|---|
| Total BTU / kW | 70,000 BTU | 21 kW |

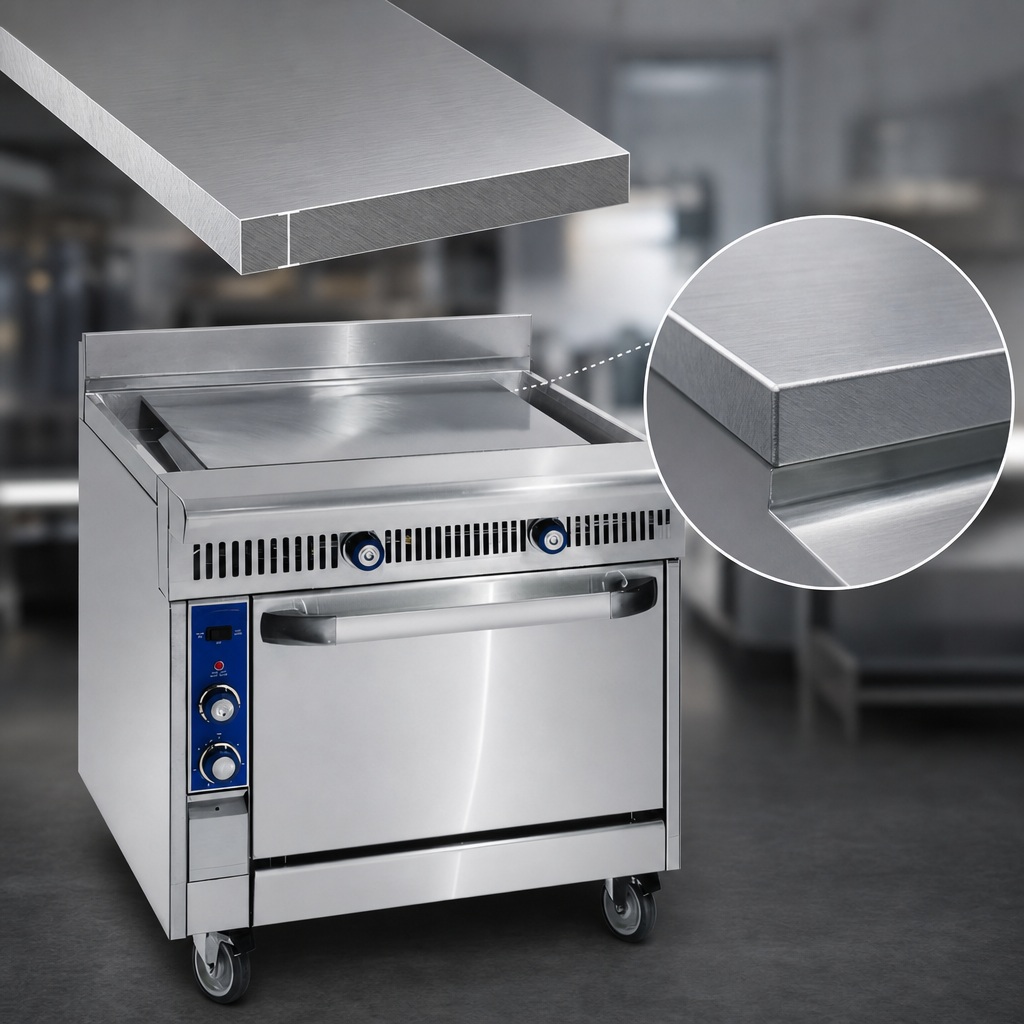

| Plancha plate | ½" (8 mm) polished steel • 28" W × 22 ½" D |
| Oven output | 40,000 BTU (12 kW) • 100 % safety pilot |
| Oven interior (WxDxH) | 26 ½" × 26" × 14" |
| Overall dimensions* | 36" W × 38" D × 36" H to cooktop |
| Gas connection | ¾" NPT rear |
| Manifold pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Shipping weight | 605 lb (275 kg) |
| Certifications | cETLus, NSF |
*Allow 0" clearance to non-combustible sides and 8" (203 mm) from combustible surfaces.
Popular options (sold separately)
- Stainless-steel backsplash or high-shelf
- Extra chrome oven racks
- Landing-ledge cut-outs for food pans
- 6" or 152 mm casters
- Quick-disconnect & flexible gas hose kits
- Modular equipment stand or refrigerated base
Peace-of-mind coverage
Imperial continually improves products and reserves the right to change specifications without notice. Images may show optional accessories.
