Imperial (Middleby) IHR-PL36-C Spec Series Gas Ranges
Description

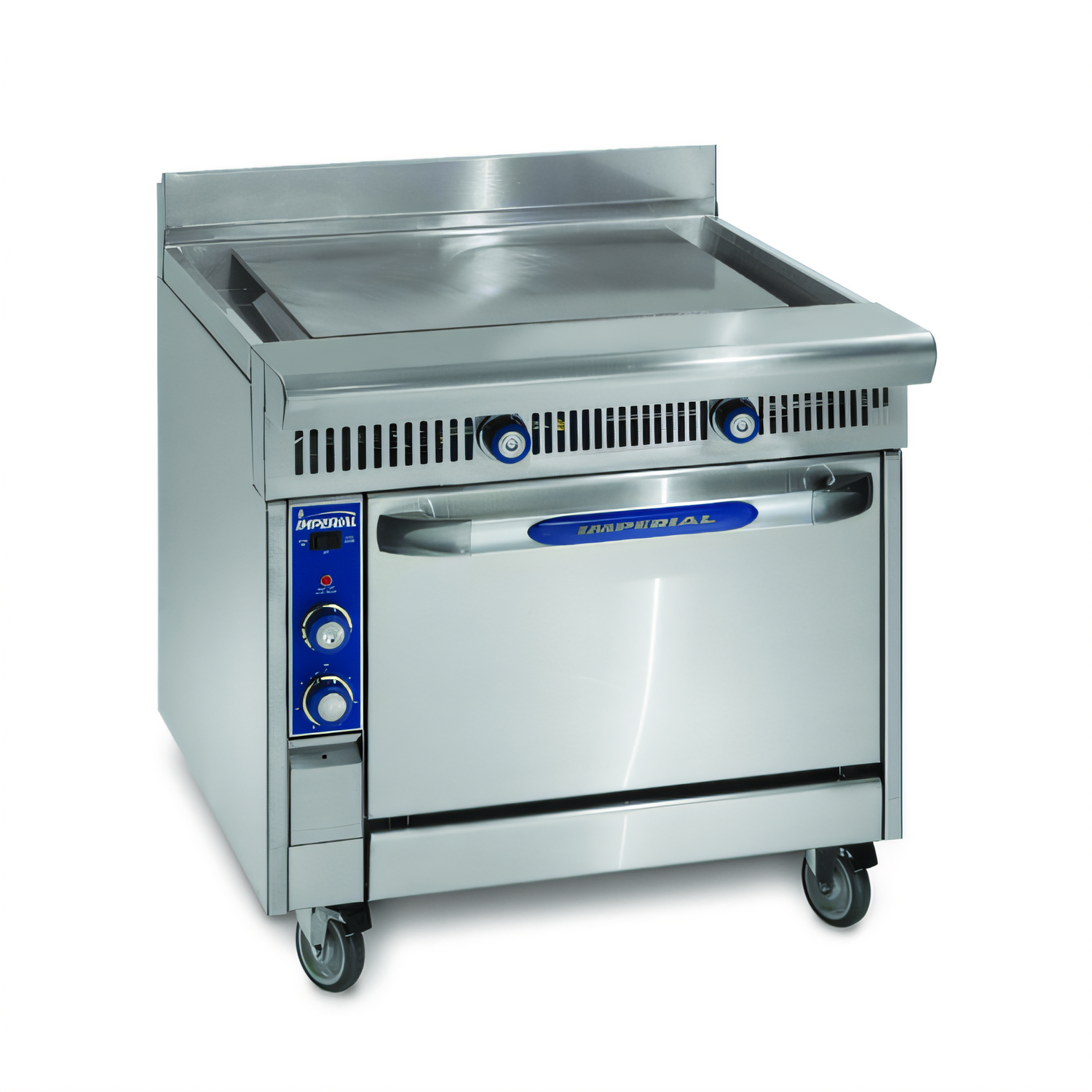

Imperial Spec Series 36″ Gas Plancha Top Range with Convection Oven
Model IHR-PL36-C • 65,000 BTU • cETLus & NSF ListedBuilt for busy commercial kitchens that need high-heat searing and high-volume baking in one footprint, the Imperial Spec Series 36″ Range pairs a thick steel plancha with a full-size convection oven— all wrapped in a sleek, easy-to-clean stainless-steel exterior.
Key Features

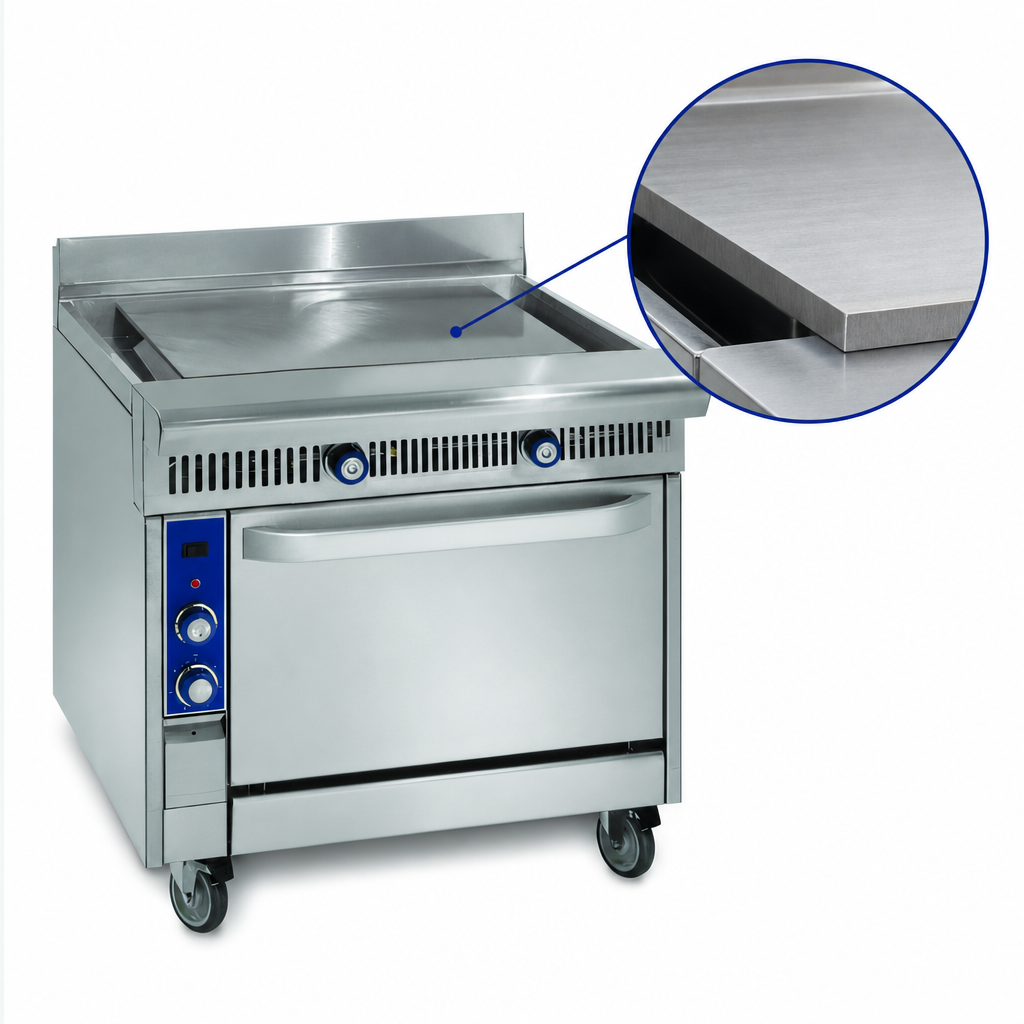

- 1 / 2″ (8 mm) polished steel plancha plate heats fast and delivers even surface temperatures.
- 28″ W × 22 1/ 2″ D cooking area handles dozens of portions at once.
- Total input: 65,000 BTU / 19 kW for powerful heat and quick recovery.

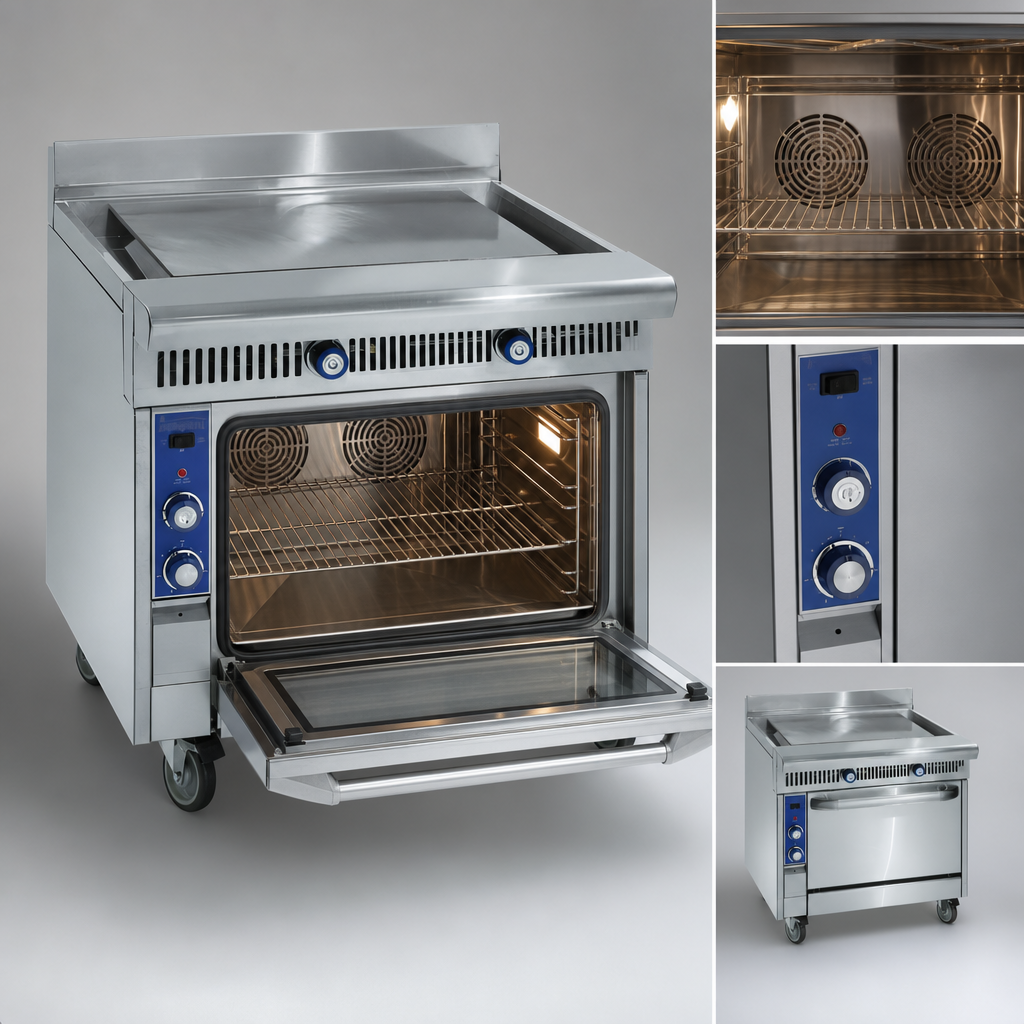

- 35,000 BTU convection oven with 1 / 2 HP blower cooks faster and more evenly than static ovens.
- Porcelainized oven cavity (sides, rear, deck & door liner) wipes clean in seconds.
- Three chrome racks fit full-size 18″ × 26″ sheet pans front-to-back.
- Stainless-steel front, sides, 5″ landing ledge, backguard & kick plate for a professional look and long life.
- 6″ (152 mm) heavy-duty legs with adjustable feet keep the unit level.
- Electronic ignition, “Burner ON” light, 3-position fan switch (cook / cool / off) and 1-hour timer for precise control.
- 0″ clearance to non-combustible surfaces; 8″ (203 mm) clearance to combustibles.
Specifications
| Model | IHR-PL36-C |
|---|---|
| Fuel | Natural or Propane Gas (field convertible) |
| Total Input | 65,000 BTU/hr • 19 kW |
| Plancha Plate | 1 / 2″ thick polished steel Cooking zone: 28″ W × 22 1/ 2″ D |
| Oven Type | Convection, 35,000 BTU burner with 1 / 2 HP blower |
| Oven Interior | 26 1/ 2″ W × 22 1/ 2″ D × 14″ H (673 × 572 × 356 mm) |
| Overall Dimensions | 36″ W × 38″ D × 36″ H to cooktop (914 × 965 × 914 mm) |
| Gas Connection | 3/4″ rear & 1-1/4″ front manifolds 5.0″ W.C. Natural • 10.0″ W.C. Propane |
| Certifications | cETLus • NSF |
| Ship Weight | 668 lb • 303 kg |
| Warranty | 1-year parts & labor (factory authorized service) |
Popular Accessories (sold separately)
- 6″ (152 mm) caster kit or stainless-steel equipment stand
- Heavy-duty stainless-steel backsplash or high shelf
- Salamander / cheesemelter mounting channels
- Additional chrome oven racks
- Landing-ledge cut-outs for food-pan insertion
Ask our team about lead times on factory-installed options.
Peace-of-Mind Warranty
Imperial covers this range with a 1-year, parts-and-labor warranty when installed and serviced by an authorized technician—giving you confidence from day one.
Elevate Your Kitchen Today
Bring the versatility of a high-heat plancha and the productivity of a convection oven to your cookline—add the Imperial Spec Series 36″ Range to your cart now or chat with us for a custom quote.
