Imperial Spec Series 36" Gas Griddle-Top Range – Thermostatic, Open Cabinet Base
Model IHR-GT36-XBGet the power of a heavy-duty range and the precision of a thermostatic griddle in one 36-inch footprint. Imperial’s Spec Series IHR-GT36-XB delivers 90,000 BTU of even heat across a 1" polished steel plate and stores your essentials in a convenient open cabinet base—perfect for high-volume kitchens that refuse to compromise on performance or durability.
Key Features

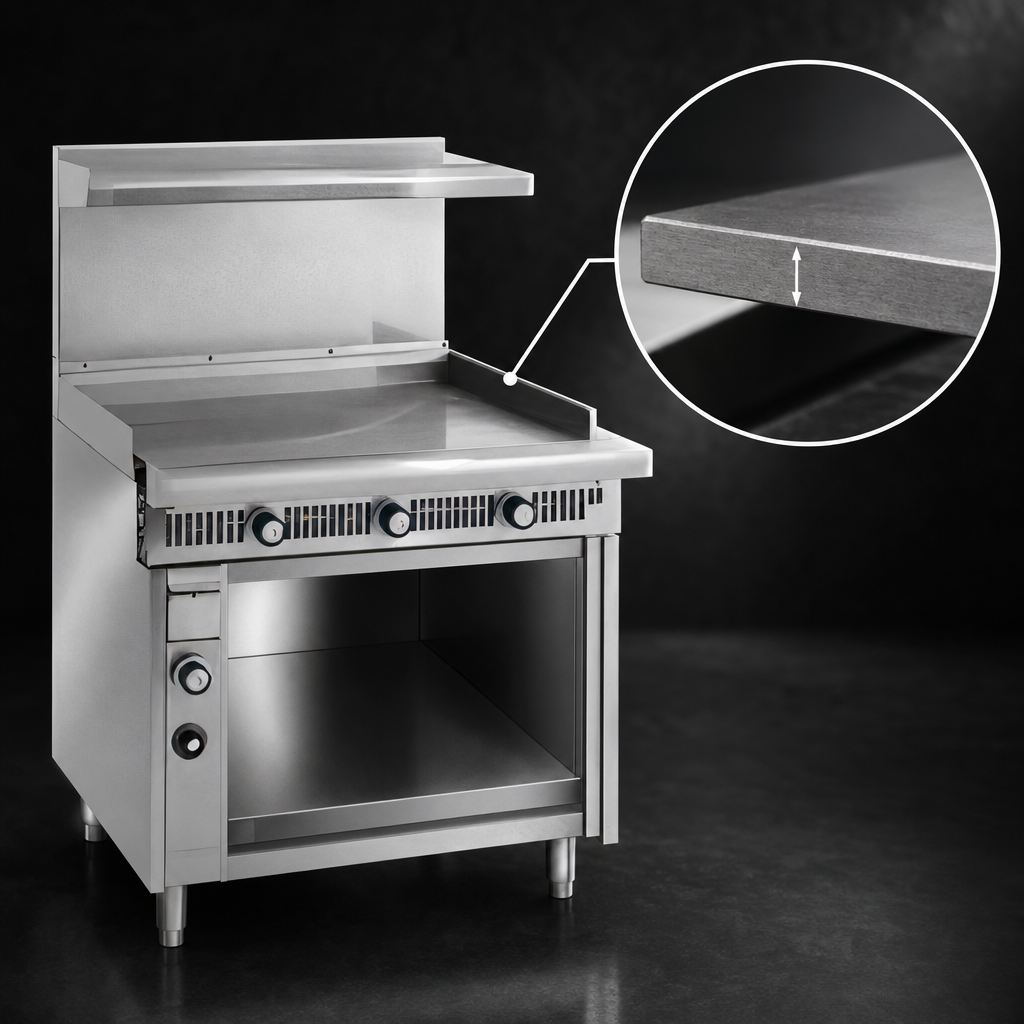

- 1" (25 mm) polished steel plate distributes heat uniformly and resists warping.
- Three 30,000 BTU “U”-shaped burners (one every 12") for a total of 90,000 BTU (26 kW).

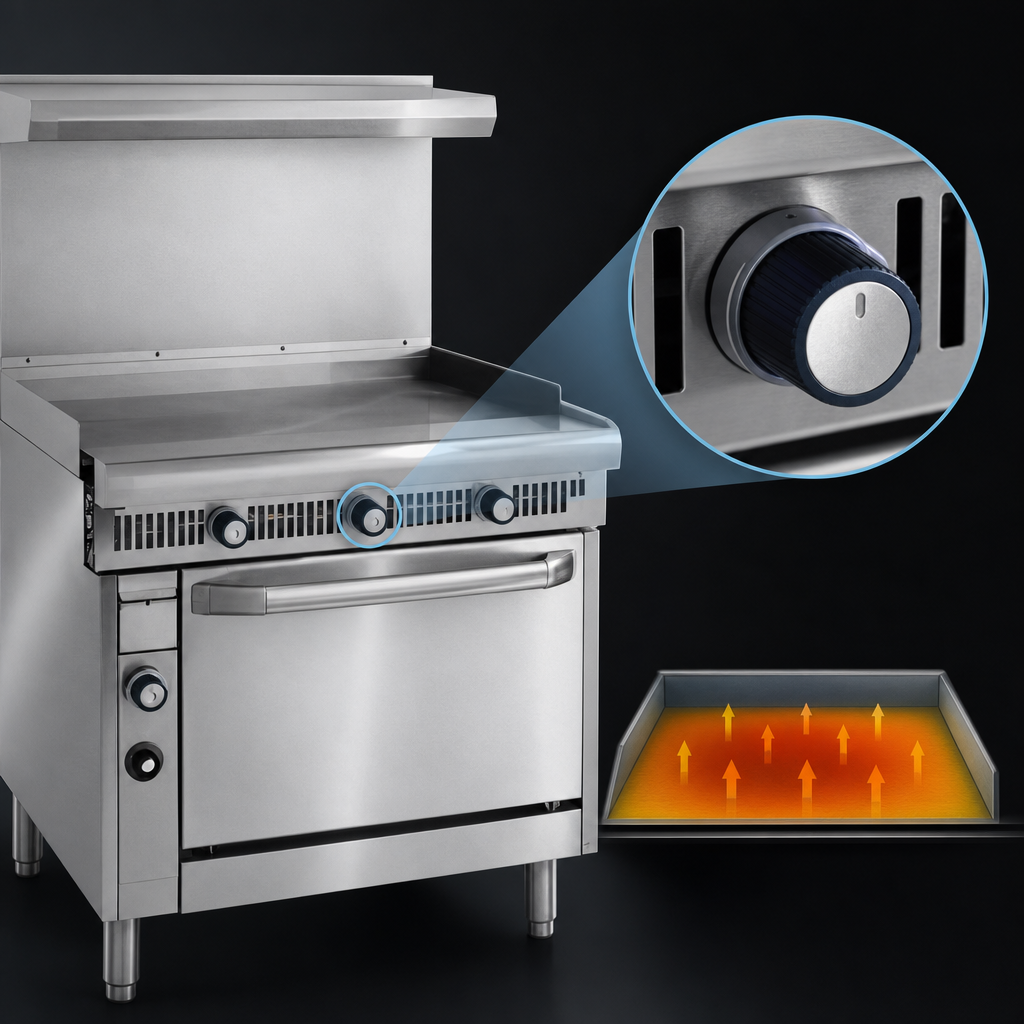

- Independent thermostats (150-450 °F / 65-232 °C) create precise multi-zone cooking.
- Aeration baffles between burners speed heat recovery during peak service.
- 4" (102 mm) wide grease gutter feeds a 1-gal (3.8 L) can for mess-free clean-up.
- Stainless steel front, sides, 5" landing ledge, backguard & kick plate for lasting strength.

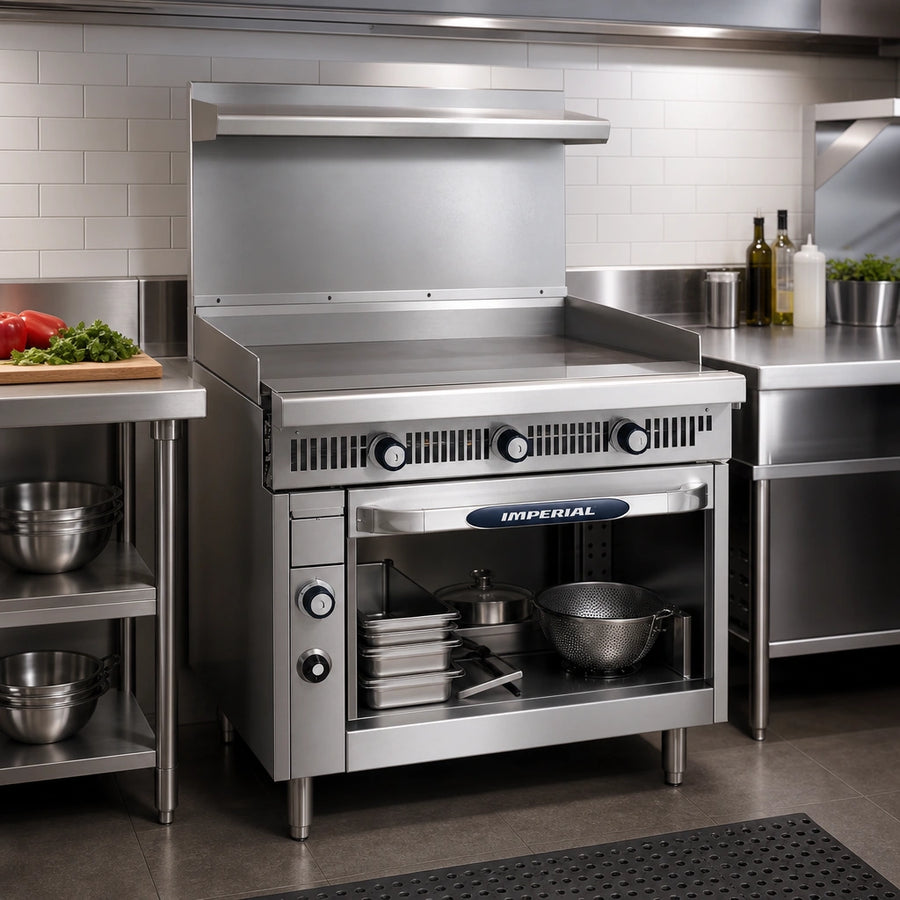

- Open cabinet base with heavy-duty bottom shelf keeps pans and utensils close at hand.
- 6" (152 mm) adjustable legs (2-½" dia.) for easy leveling on uneven floors.
- Cool-touch, cast-aluminum control knobs with integrated heat-shield grip.
Specifications
| Model | IHR-GT36-XB |
|---|---|
| Overall Width | 36" / 914 mm |
| Overall Depth | 38" / 965 mm |
| Overall Height | 36" / 914 mm to cooktop |
| Griddle Surface | 36" W × 24" D (914 × 610 mm) |
| Plate Thickness | 1" (25 mm) steel |
| Total Output | 90,000 BTU/hr (26 kW) |
| Gas Connection | 3/4" NPT rear; 5.0" W.C. Nat. / 10.0" W.C. LP |
| Controls | Three thermostatic zones with pilot & shut-off |
| Base Configuration | Open cabinet with bottom shelf |
| Shipping Weight | ≈ 590 lb / 268 kg |
| Certifications | cETLus, ETL Sanitation, NSF |
| Warranty | 1-year parts & labor |
Ideal For
- Diners, cafés & bistros serving breakfast through dinner
- Hotel, resort & banquet kitchens
- Catering commissaries and ghost kitchens with limited line space
- Institutional foodservice – schools, healthcare, corporate dining
Installation Note:
Use only on non-combustible floors. 0" side/rear clearance; 8" (203 mm) from combustible
surfaces required. Follow local codes and the Imperial installation manual.
Need a high shelf, grooved griddle surface or quick-disconnect gas hose? Ask our team about factory-approved options to tailor the Spec Series to your exact workflow.
$11,002.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Spec Series 36" gas range with 1" griddle, 90,000 BTU, thermostatic control, stainless steel, open cabinet, NSF-listed — heavy-duty reliability.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus, ETL
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
590.0lbs
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
cabinet(s)
Top
(1) griddle with thermostat
Specifications
Spec Series Heavy Duty Range, gas, 36"W, griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, thermostatic controls, open cabinet base, bottom shelf, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 90,000 BTU, 26kW, cETLus, ETL, NSF
