Imperial (Middleby) IHR-GT36-M Spec Series Gas Ranges
Description
Imperial Spec Series 36" Heavy-Duty Gas Griddle Module – IHR-GT36-M
90,000 BTU | Modular Countertop | Thermostatic ControlsEngineered for high-volume kitchens that refuse to compromise on performance, the Spec Series IHR-GT36-M couples a 1" thick steel plate with 90,000 BTU of even, controllable heat. Drop it into a custom battery line-up or mount it on an equipment stand and enjoy years of trouble-free service.
Why You’ll Love It

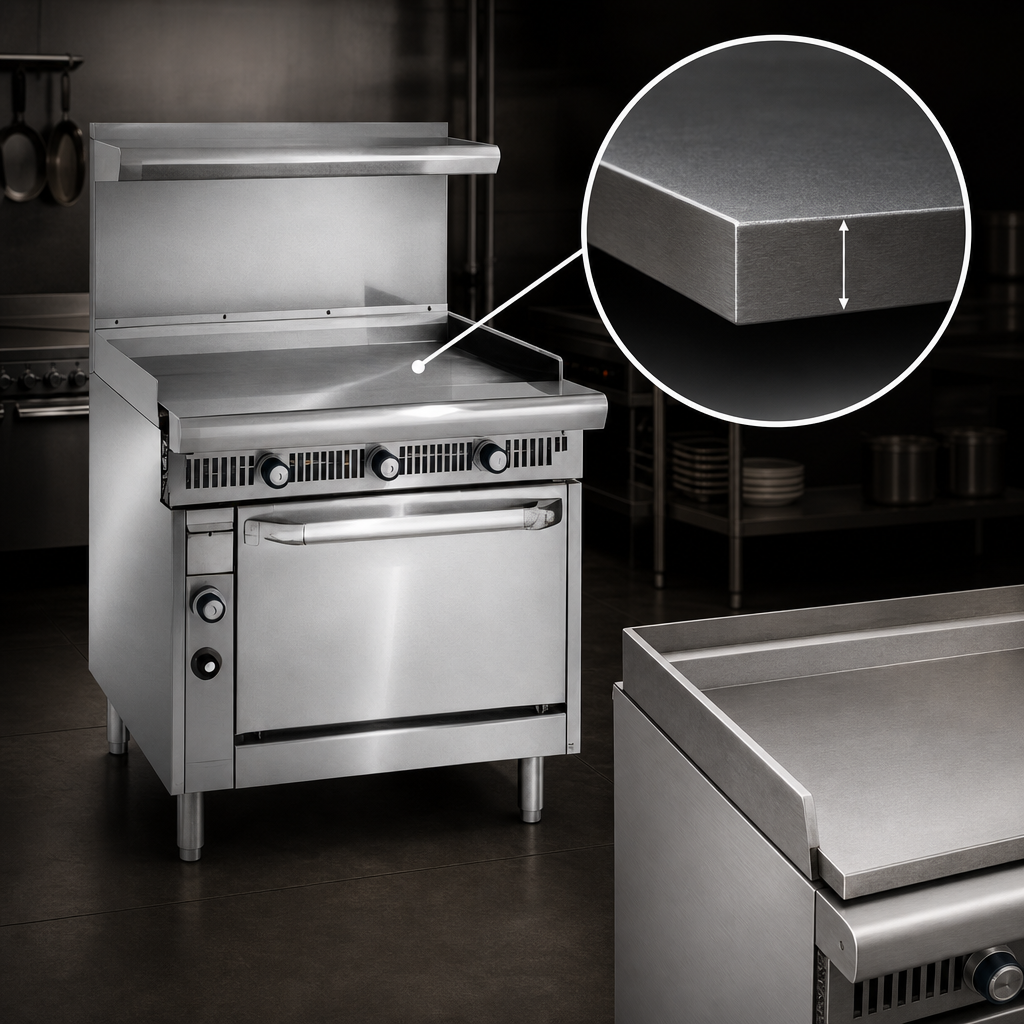

- 1" (25 mm) thick polished steel griddle plate resists warping and delivers uniform searing temperatures.
- Three 30,000 BTU “U”-shaped burners (one every 12") for rapid recovery — 90,000 BTU / 26 kW total.
- Independent thermostatic controls maintain precise zone temperatures for everything from pancakes to proteins.
- 4" (102 mm) wide grease gutter with a removable 1 gal (3.8 L) can keeps the work area clean and safe.
- All-stainless front, sides, 5" landing ledge and backguard stand up to daily commercial abuse.
- Low 11" cooktop height allows seamless installation on refrigerated or ambient bases, counters, or the optional stand.
- Cast-aluminum control knobs feature heat-shielded grips for operator comfort.
- Full-width crumb tray pulls out for swift end-of-shift cleaning.
Built for the Line

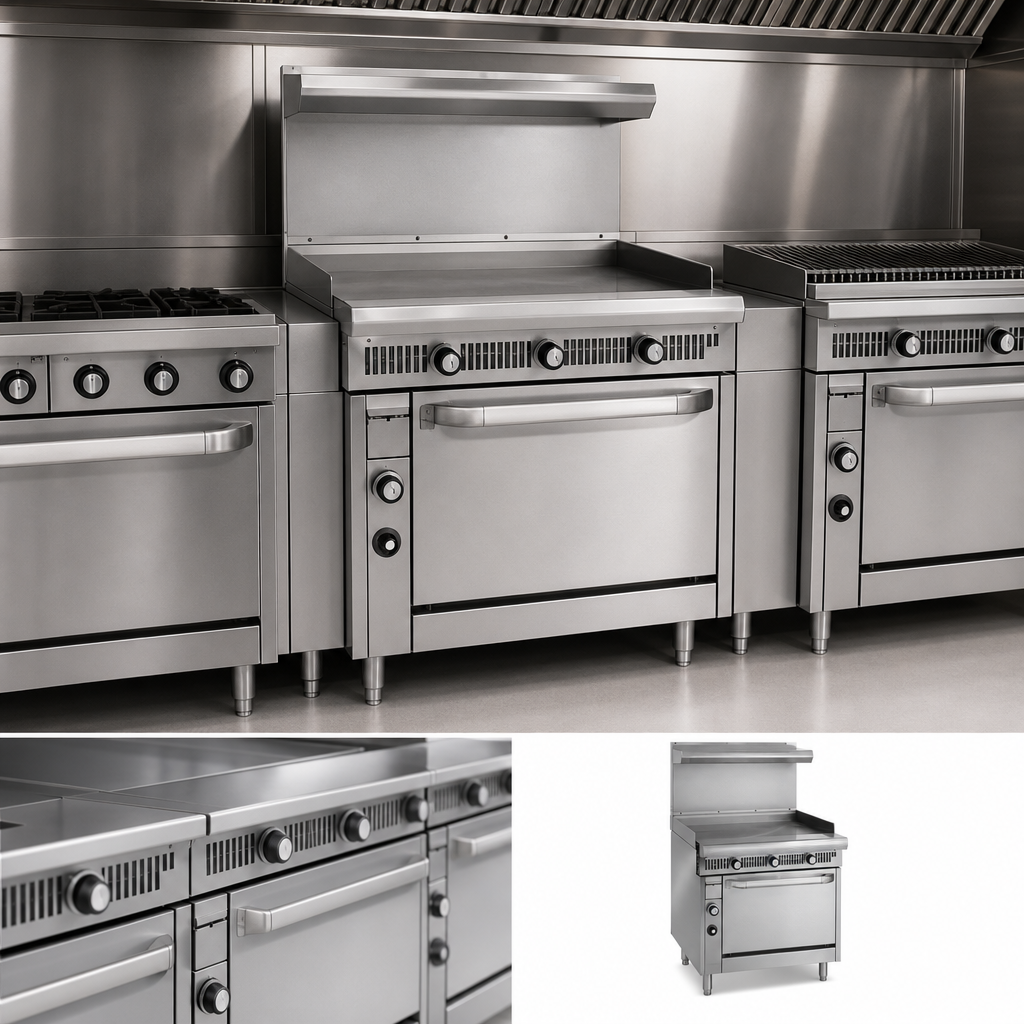

- Modular 36" width mates flush with other Spec Series units for a continuous, easy-to-sanitize cookline.
- cETLus & NSF certifications satisfy gas-safety and sanitation codes in the U.S. and Canada.
- Ships Natural Gas; LP conversion kit available.
- Protected by Imperial’s 1-year parts & labor warranty.
At-a-Glance Specs
| Model | IHR-GT36-M |
|---|---|
| Gas Type | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Total Input | 90,000 BTU/hr (26 kW) |
| Cooking Surface | 36" W griddle, 1" thick steel plate |
| Controls | 3 independent thermostats (one per 12" zone) |
| Grease Management | 4" gutter & 1 gal removable can |
| Overall Dimensions | 36" W × 38" D × 11" H (to cooktop) |
| Shipping Weight | 335 lb / 152 kg (crated) |
| Gas Connection | 1-1/4" rear NPT manifold |
| Certifications | cETLus, NSF |
Optional Accessories
- Stainless steel backguard with or without top shelf
- 36" stainless equipment stand with 6" locking casters
- Common front landing ledge or backguard (54"-108") for multi-unit batteries
- Gas shut-off valve, pressure regulator, and quick-disconnect hose kits
Looking for a custom cookline configuration? Contact our team — we’ll tailor an Imperial Spec Series solution to fit your kitchen, workflow, and menu.
