Imperial Spec Series 36" Gas Range
24" Thermostatic Griddle • 2 Open Burners • Cabinet Base
Model IHR-GT24-2-XB | 140,000 BTU | cETLus & NSF
Built for chef-driven kitchens that demand power, precision, and rugged durability, the Imperial Spec Series IHR-GT24-2-XB combines a full-size 24" thermostatic griddle and two 40,000 BTU open burners in a space-saving 36" footprint. A welded stainless cabinet base gives you instant pan storage while keeping the cooking surface at an ergonomic working height.
Key Features

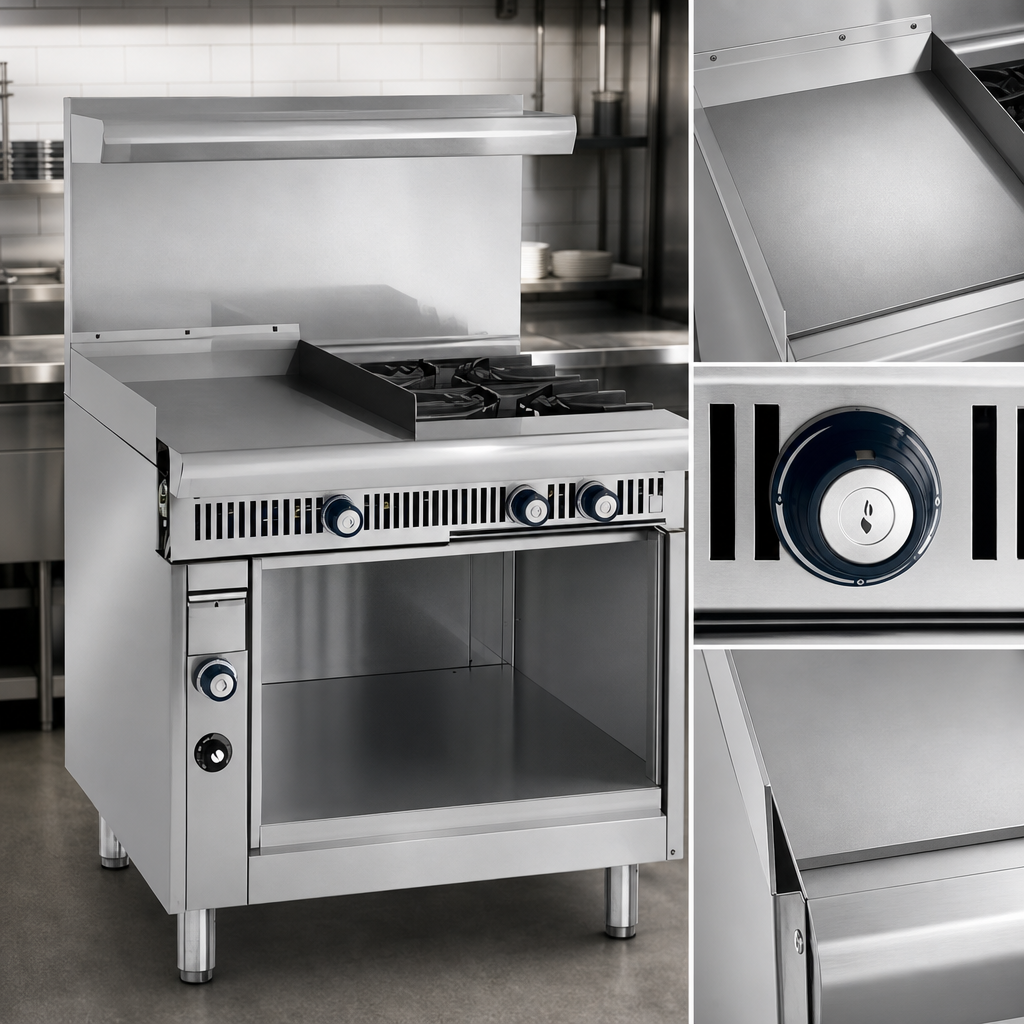

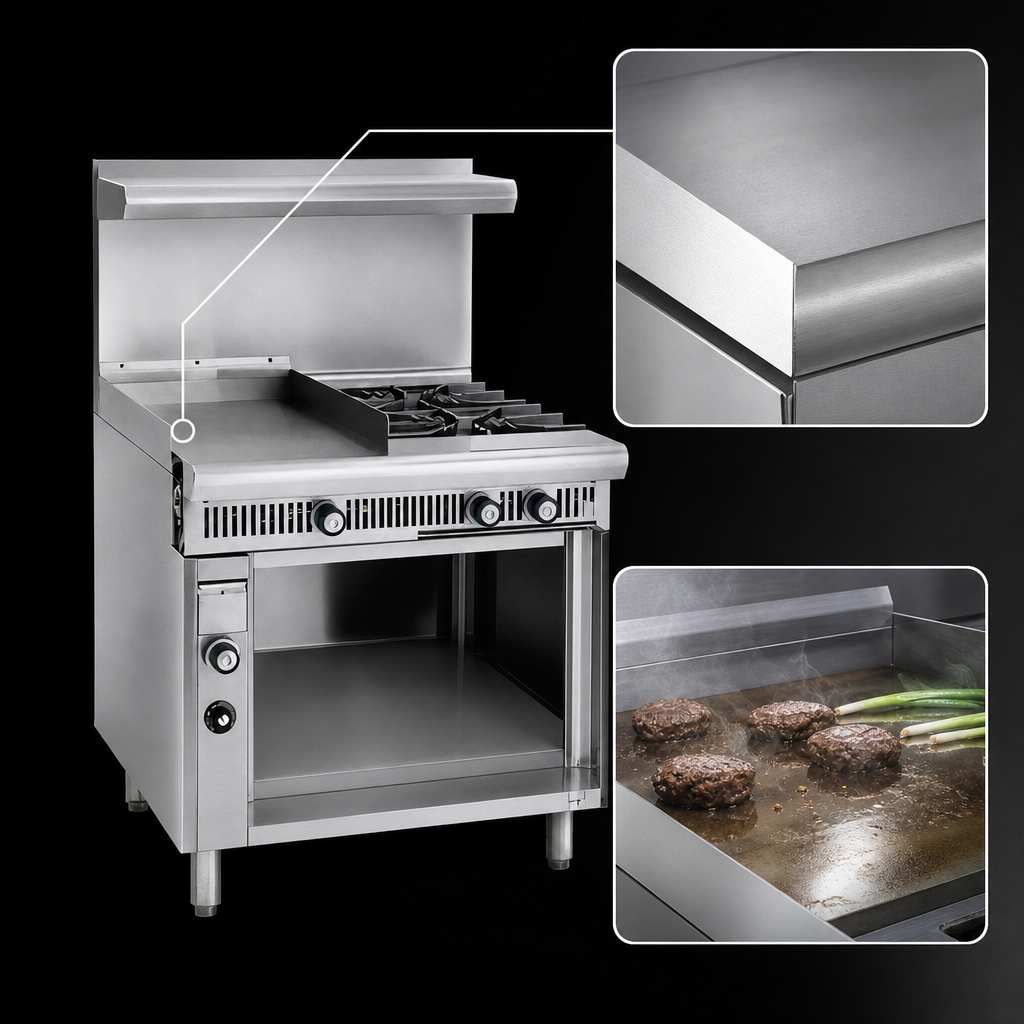

- Thermostatic 24" Griddle – 1" thick highly-polished steel plate delivers even heat and rapid recovery; 4" grease trough drains into a 1 gal. removable can.
- (2) 40,000 BTU Open Burners – Cast-iron “S” grates raise cookware for superior heat transfer and lift off for fast clean-up.
- Total Output 140,000 BTU (41 kW) – All the firepower you need for breakfast rushes or à-la-carte dinner service.
- Stainless Steel Construction – Front, sides, 5" landing ledge, backguard, and kick plate are all heavy-gauge stainless for maximum corrosion resistance.
- Open Cabinet Base – Keep sheet pans, stock pots or smallwares close at hand on the built-in bottom shelf.
- 6" Adjustable Legs – Level the unit on uneven floors; legs accept optional casters for added mobility.
- Removable crumb tray below the burners speeds nightly cleaning.
- Durable, heat-shielded cast-aluminum control knobs stand up to constant use.
- 1-year parts & labor warranty backed by Imperial’s nationwide service network.
At-a-Glance Specs
| Model | IHR-GT24-2-XB |
|---|---|
| Overall Width | 36" (914 mm) |
| Depth × Height to Cooktop | 38" × 36" (965 × 914 mm) |
| Griddle Width × Thickness | 24" × 1" (610 × 25 mm) |
| Open Burners | (2) 40,000 BTU cast-iron burners with 7,000 BTU simmer |
| Total Gas Input | 140,000 BTU / 41 kW |
| Manifold Gas Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Gas Connection | ¾" NPT rear manifold |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
| Shipping Weight | ≈ 626 lb (284 kg) |
Ideal Applications
- Diners & breakfast houses needing a dedicated pancake / egg griddle plus sauté burners.
- Full-service restaurants looking to consolidate line equipment without sacrificing BTUs.
- Ghost kitchens & food halls where rugged construction and easy cleaning are essential.

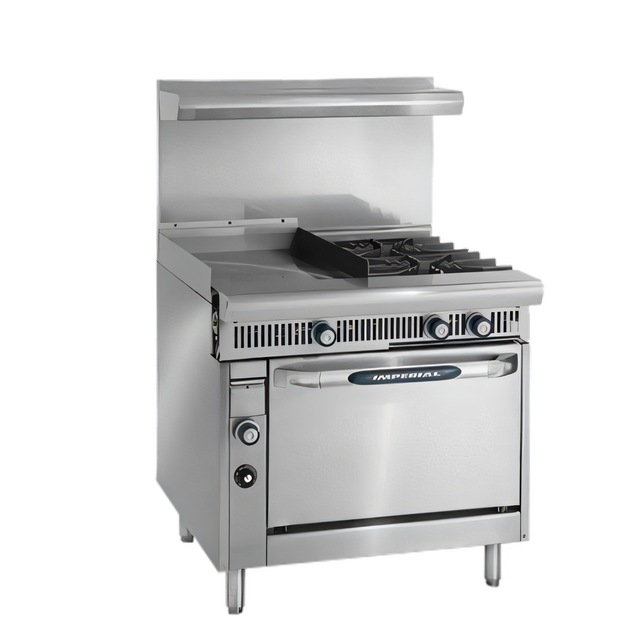

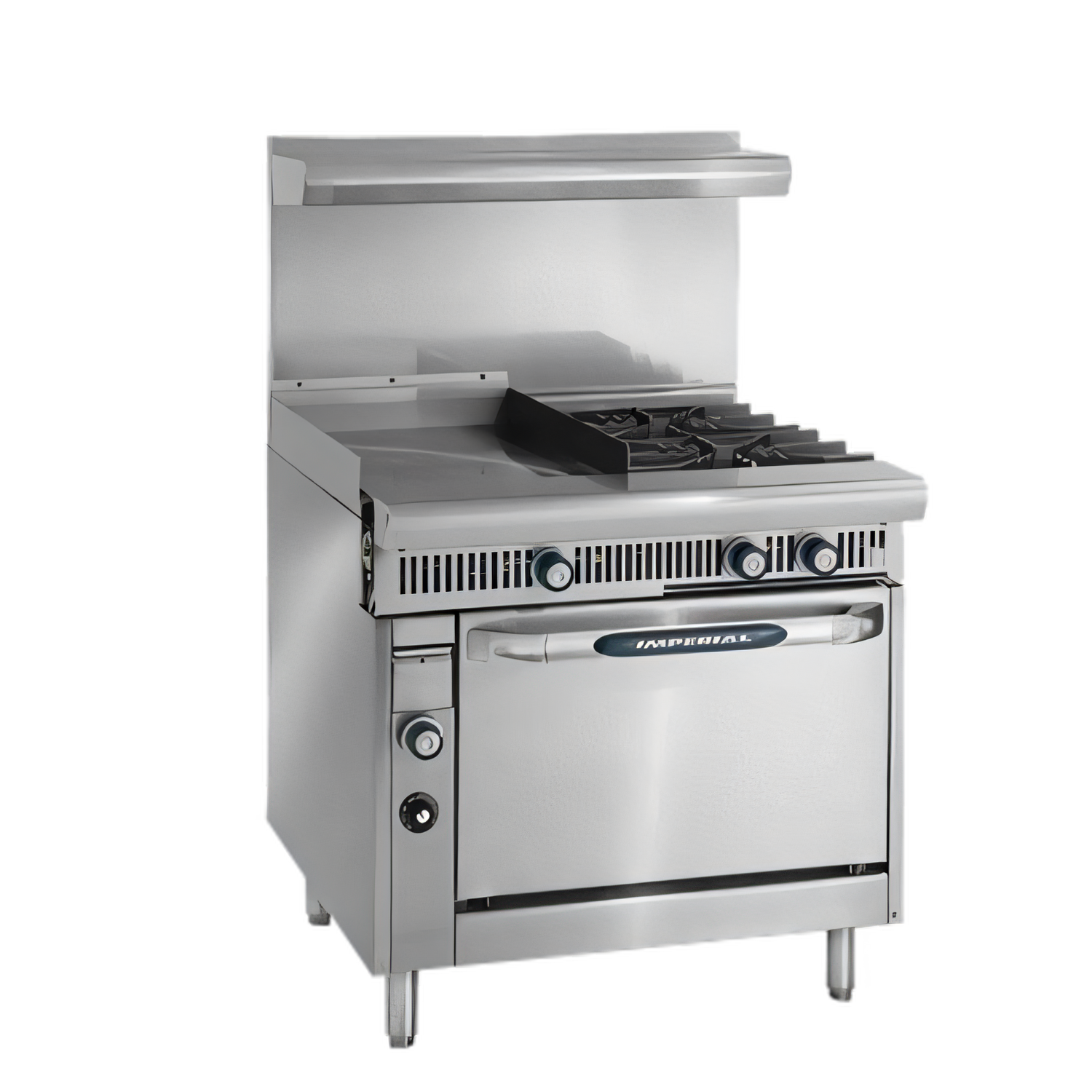

Range is shown in some images with an optional stainless backguard shelving kit; accessories such as salamanders, casters, or common landing ledges are sold separately.
$9,648.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-GT24-2-XB 36" gas range: heavy-duty 2 burners + 24" 1" griddle, thermostatic controls, stainless steel, NSF, 140,000 BTU.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
626.0lbs
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
cabinet(s)
Top
(2) open burners, (1) 24" griddle with thermostats
Specifications
Spec Series Heavy Duty Range, gas, 36"W, (2) open burners, cast iron "S" grates (standard), (1) 24"W griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, thermostatic controls, open cabinet base, bottom shelf, removable crumb tray, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 140,000 BTU, 41kW, cETLus, NSF
