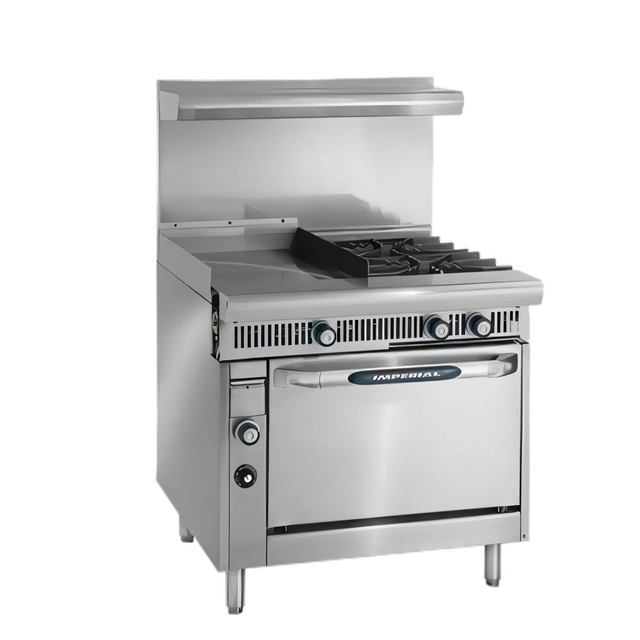

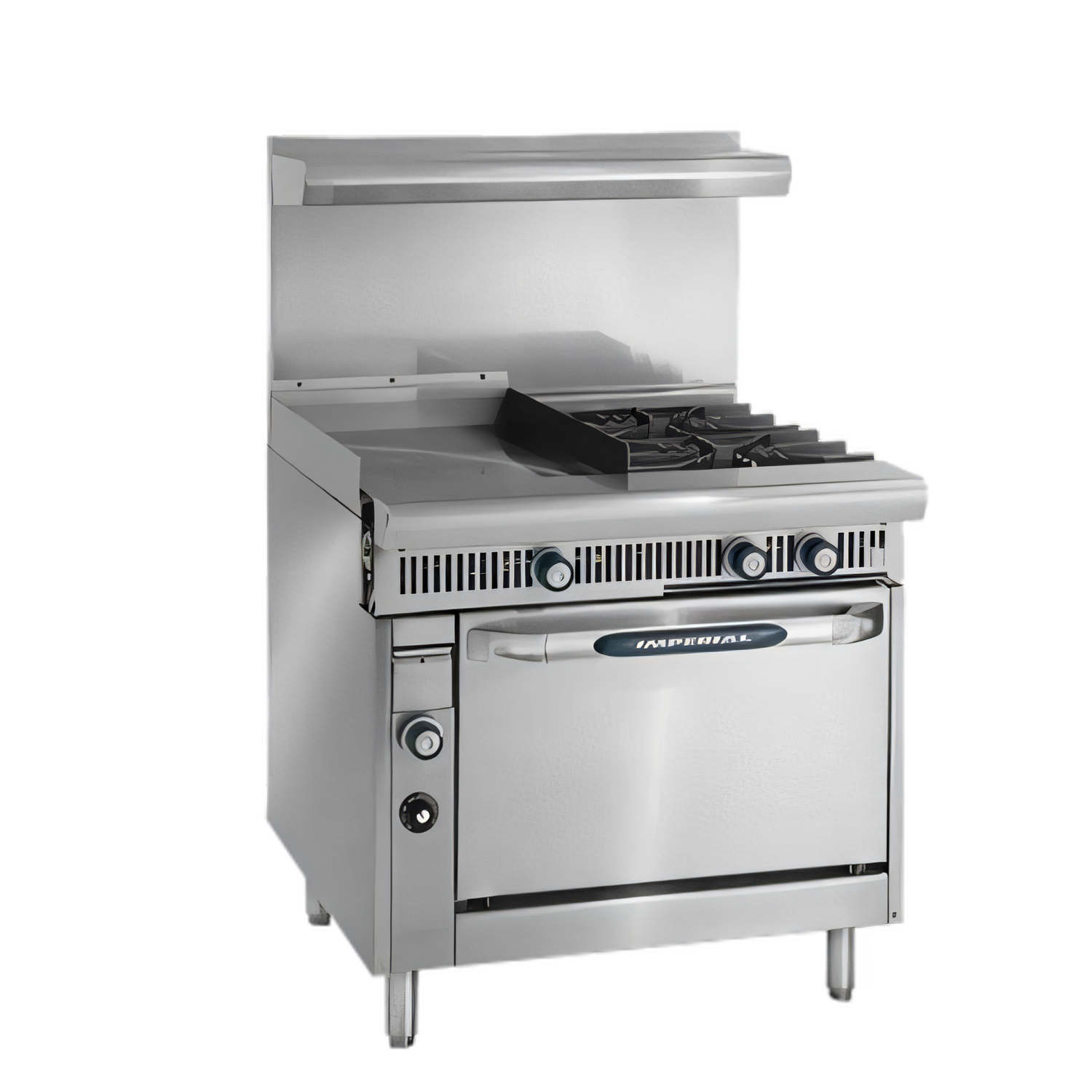

Imperial Spec Series 36″ Gas Range with 24″ Thermostatic Griddle & 2 Open Burners
Model IHR-GT24-2 | 180,000 BTU / 53 kWPower, precision and rugged durability come together in Imperial’s Spec Series heavy-duty range. The 36-inch footprint delivers a 24-inch thermostatic griddle, two high-performance open burners and a full-size oven—letting you sear, sauté, grill and bake all at once without giving up valuable line space.
Key advantages

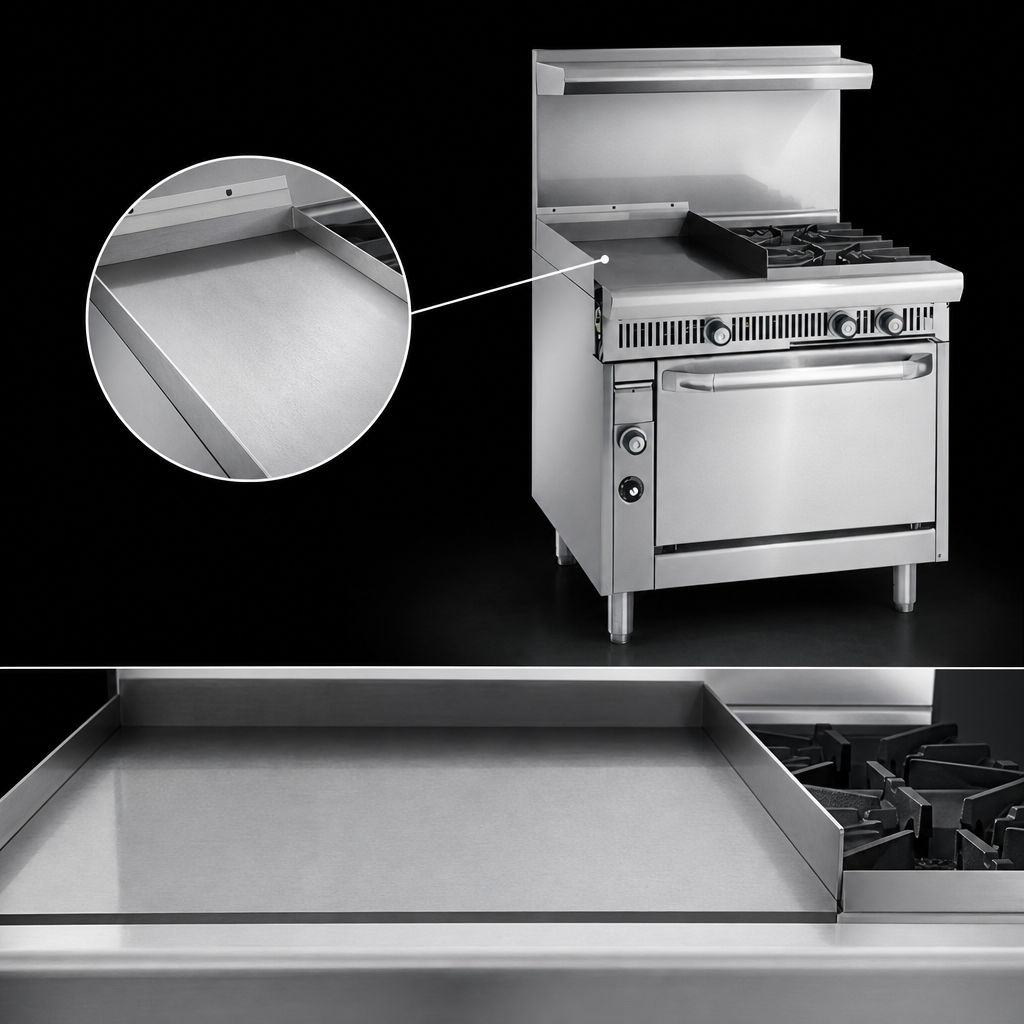

- 1″ thick, highly polished steel griddle plate (24″ W) with thermostatic controls for 200–550 °F accuracy.
- 4″ wide front grease gutter and 1 gal. removable can for fast, mess-free clean-up.

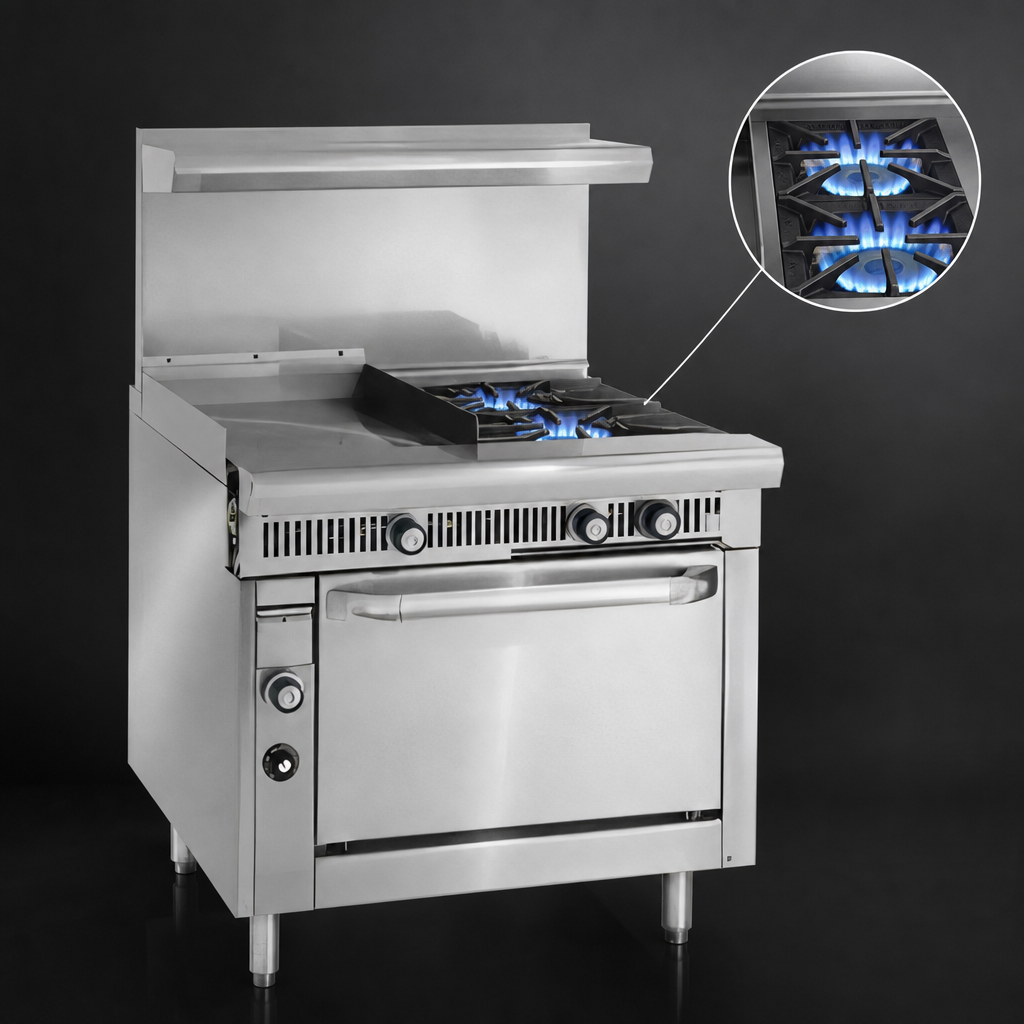

- (2) 35,000 BTU anti-clog “M” shaped open burners with 7,000 BTU low-simmer setting.
- Cast-iron “S” grates raise pans for superior heat transfer and let cookware slide easily across the top.
- 40,000 BTU standard oven fits full-size 18″ × 26″ sheet pans left-to-right or front-to-back.
- Total input 180,000 BTU keeps up with the highest-volume kitchens.
- Stainless steel front, sides, 5″ landing ledge, backguard & kick plate with welded seams.
- Heavy-duty cast-aluminum knobs with heat-protection grips.
- 6″ stainless legs with adjustable feet for perfect leveling.
- cETLus & NSF listed for gas safety and sanitation.
Performance & construction highlights
- U-shaped 30,000 BTU griddle burners every 12″ heat the plate evenly.
- Aeration baffles speed recovery after heavy loads.
- Heat deflector keeps oven warmth in the cavity—not on your floor.
- Side-mounted controls stay in the cool zone for operator comfort.
- Chef-depth oven interior: 26½″ W × 26″ D × 14″ H, porcelainized for easy cleaning.
Technical specifications
| Overall width | 36″ (914 mm) |
|---|---|
| Overall depth | 38″ (965 mm) to cooktop |
| Cooktop height | 36″ (914 mm) |
| Griddle surface | 24″ W × 24″ D, 1″ thick polished steel |
| Griddle burners | (2) 30,000 BTU U-shaped |
| Open burners | (2) 35,000 BTU cast-iron with 7,000 BTU simmer |
| Oven burner | 40,000 BTU, 100 % safety pilot |
| Total input | 180,000 BTU (53 kW) |
| Gas type | Natural or LP (field convertible) |
| Gas connection | ¾″ NPT rear; 5.0″ W.C. Nat / 10.0″ W.C. LP |
| Certifications | cETLus, NSF |
| Warranty | 1-Year parts & labor |
What’s in the box
- (1) Chrome oven rack
- Removable crumb tray
- 1 gal. front grease can
Popular add-ons (sold separately)
- Stainless steel backguard with shelf
- Extra chrome oven racks
- 6″ heavy-duty casters
- Salamander or cheesemelter mounting kit
- Quick-disconnect & flexible gas hose
Installation note: For use on non-combustible floors only. Provide 0″ clearance to non-combustible surfaces and 8″ (203 mm) to combustibles. Legs or casters must be fitted unless curb-mounted with a 2″ (51 mm) overhang.
Questions about configuration or lead times? Our foodservice equipment specialists are ready to help.
$12,842.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Middleby Spec Series 36" gas range: heavy-duty 2-burner + 24" griddle, 180k BTU, thermostatic controls, stainless steel, NSF certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
796.0lbs
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
(1) standard oven
Top
(2) open burners, (1) 24" griddle with thermostats
Specifications
Spec Series Heavy Duty Range, gas, 36"W, (2) open burners, cast iron "S" grates (standard), (1) 24"W griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, thermostatic controls, standard oven, (1) chrome rack, removable crumb tray, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 180,000 BTU, 53kW, cETLus, NSF
