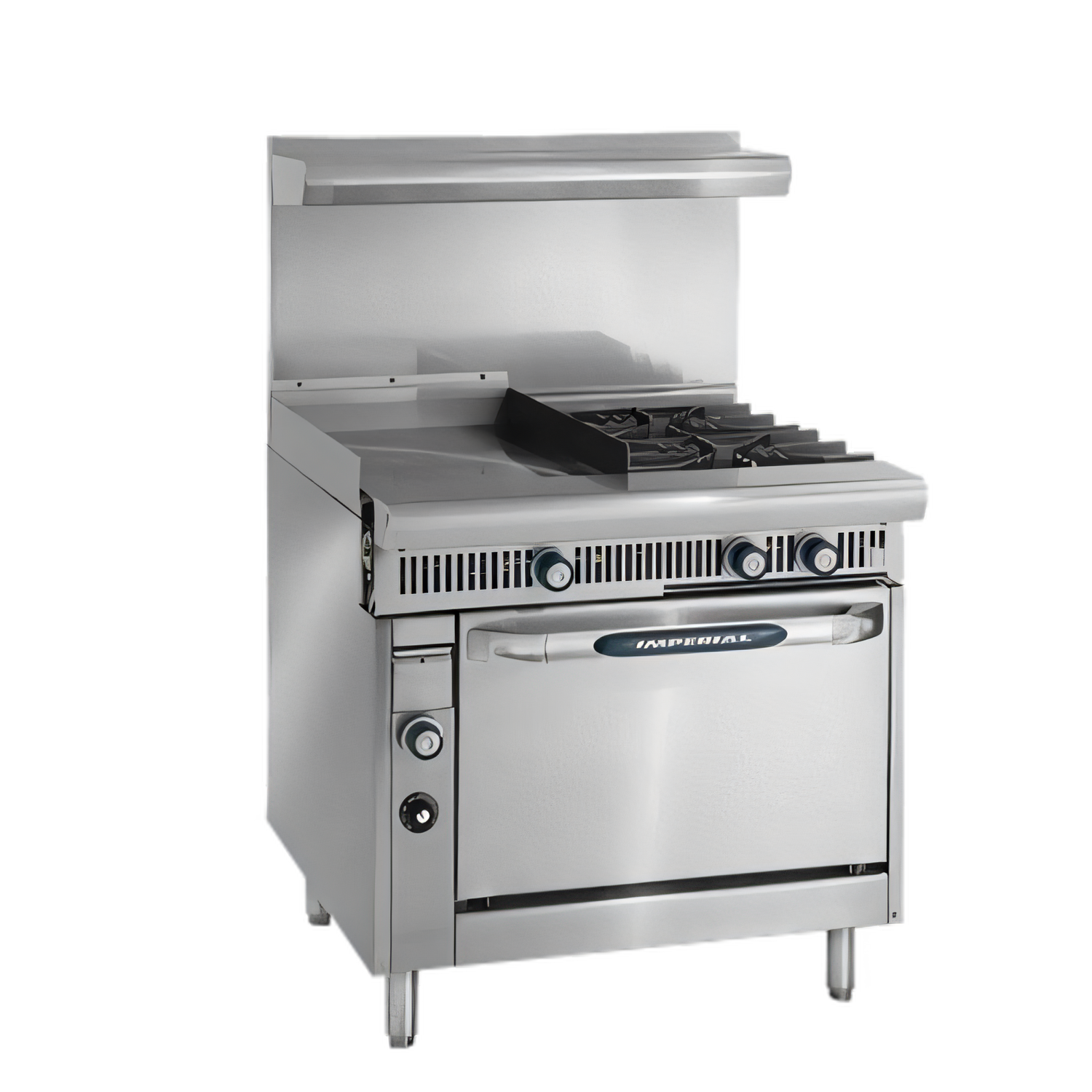

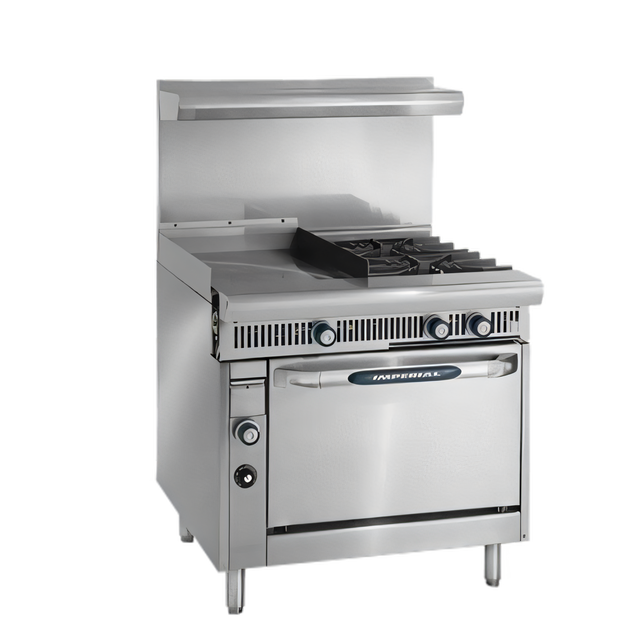

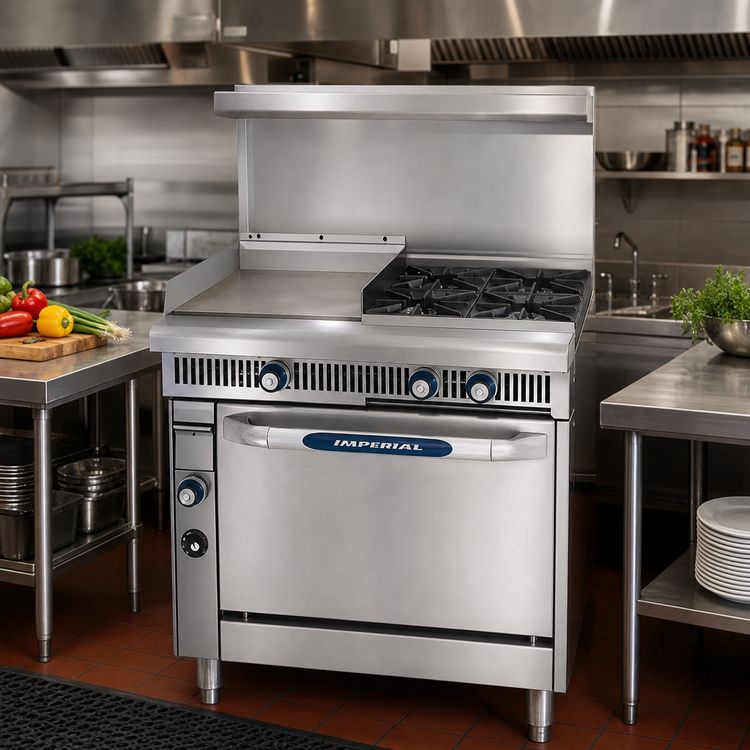

Imperial Spec Series 36" Modular Gas Range
24" Thermostatic Griddle • 2 Open Burners • 140,000 BTU
Engineered for the toughest commercial kitchens, Imperial’s Spec Series modular range combines a precision-controlled 24-inch griddle with two powerful open burners in a compact 36-inch footprint. Heavy-gauge stainless steel construction, cast-iron components, and smart grease-management features keep you cooking at peak efficiency shift after shift.
Why You’ll Love It
- 1" thick, highly polished steel griddle plate ensures even, fast heat recovery.
- Thermostatic controls let you dial-in exact surface temps for delicate crêpes or high-heat searing.

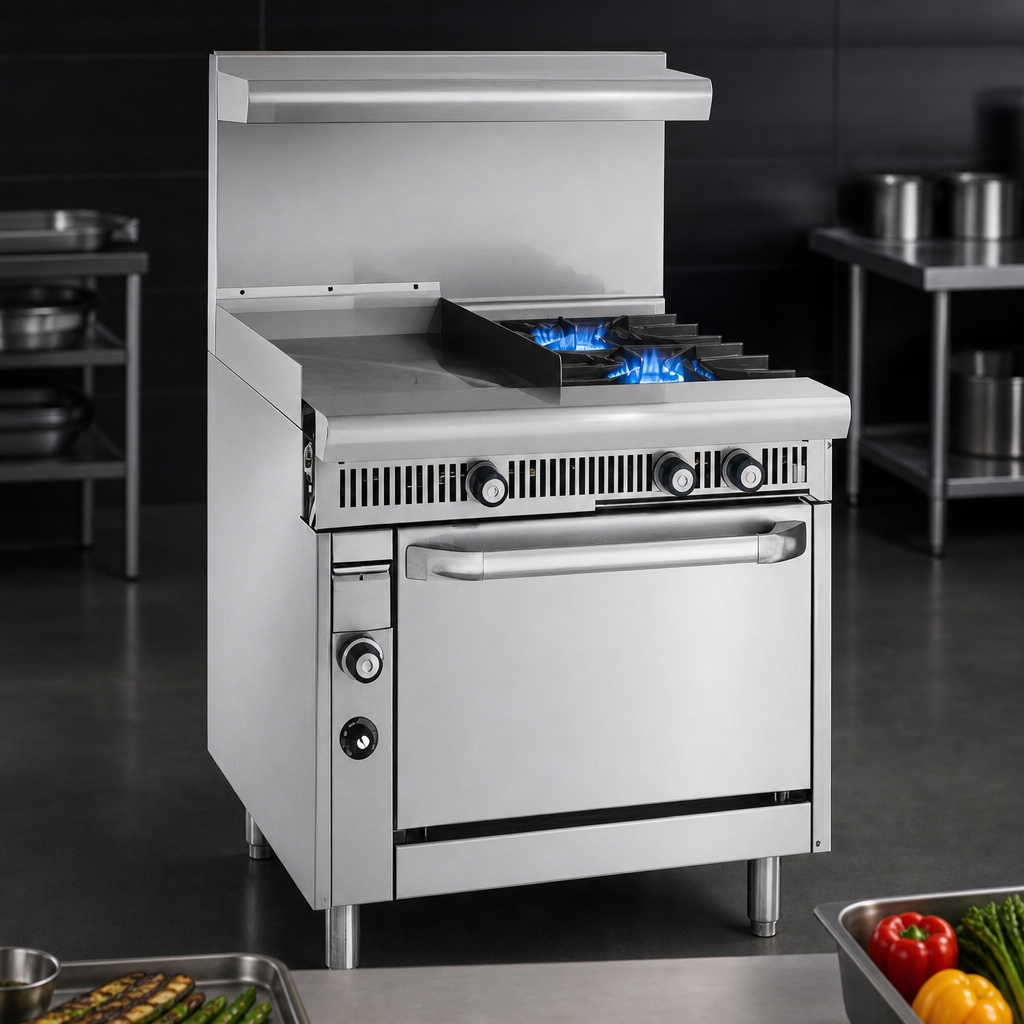

- Two High-Performance open burners (up to 40,000 BTU/hr each) with low-simmer capability.
- Heavy-duty cast-iron “S” grates elevate cookware for maximum flame contact and easy pot-to-pot transfer.
- 4" wide stainless grease gutter & 1-gallon can keep your workspace clean and safe.
- Removable crumb tray and lift-off burner heads speed up nightly cleanup.
- All-stainless front, sides, 5" landing ledge & backguard stand up to daily abuse and wipe down fast.
- Certified cETLus & NSF for gas safety and sanitation.
Performance & Construction
- Total Output: 140,000 BTU (41 kW)
- Burner Design: Anti-clogging, cast-iron with one-piece venturi for superior combustion.
- Low-Simmer: Down to 7,000 BTU for sauces & chocolates.
- Grease Management: Front-mounted, easy-pull 1-gal can + removable tray under burners.
- Modular “M” model mounts on a counter, equipment stand, refrigerated base, or chef-line suite.
- Reinforced chassis ready for optional salamander or cheesemelter.
Technical Specifications
| Model | IHR-GT24-2-M |
|---|---|
| Cooking Width | 36" (914 mm) |

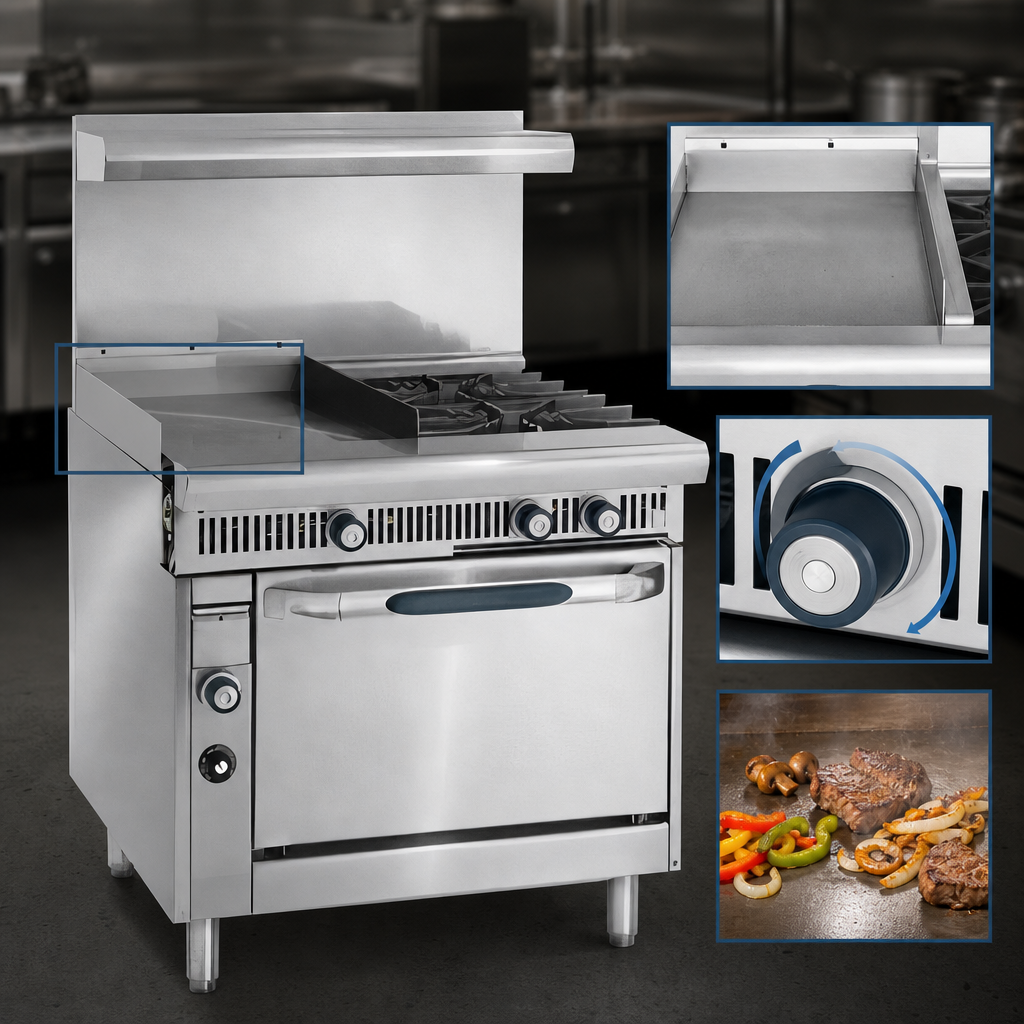

| Griddle | 24" W x 24" D, 1" thick polished steel, thermostatic |
| Open Burners | 2 × cast-iron, up to 40,000 BTU/hr ea. |
| Total Gas Input | 140,000 BTU/hr (41 kW) |
| Gas Connection | 3/4" NPT rear manifold (natural or LP) |
| Overall Dimensions* | 36" W × 38" D × 13-1/2" H to cooktop |
| Clearances | 0" sides & rear (non-combustible); 8" combustible |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
*Heights shown are for the modular top only and exclude optional stands or casters.
Modular Unit: This countertop model ships without a base. Add an equipment stand, refrigerated chef base, or suite mounting hardware to complete your installation.
Popular Factory Options (sold separately)
- Stainless steel backguard with shelf
- Salamander or cheesemelter ready-to-mount
- 10" stainless wok ring (drops onto grate)
- 6" heavy-duty adjustable legs or locking casters
- 3/4" or 1-1/4" gas quick-disconnect hose kit
Need a custom suite or accessories? Talk to our equipment specialists and configure the perfect line-up for your kitchen.
$8,409.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-GT24-2-M 36" heavy-duty gas range: 2 burners, 24" 1" griddle, thermostatic controls, stainless steel, 140,000 BTU, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
17.0in
Width
36.0in
Depth
38.0in
Shipping Weight
451.0lbs
Base
modular
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Top
(2) open burners, (1) 24" griddle with thermostats
Specifications
Spec Series Heavy Duty Range, gas, 36"W, modular, (2) open burners, cast iron "S" grates (standard), (1) 24"W griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, thermostatic controls, removable crumb tray, stainless steel front, sides, 5"D landing ledge & backguard, 140,000 BTU, 41kW, cETLus, NSF
