Imperial (Middleby) IHR-GT24-2-C Spec Series Gas Ranges
Imperial (Middleby) IHR-GT24-2-C Spec Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Imperial Spec Series™ 36" Gas Range – 24" Thermostatic Griddle, 2 Open Burners & Convection Oven (IHR-GT24-2-C)
175,000 BTU of chef-grade power in a single, space-saving stationBuilt for high-volume kitchens that refuse to compromise on versatility, the Imperial Spec Series IHR-GT24-2-C combines a mirror-polished 24" thermostatic griddle, two 40,000 BTU open burners and a fast-recovering convection oven—all inside a rugged 36" footprint. From breakfast rush to dinner service, you’ll sear, sauté, bake and roast with absolute confidence.
Why You’ll Love It

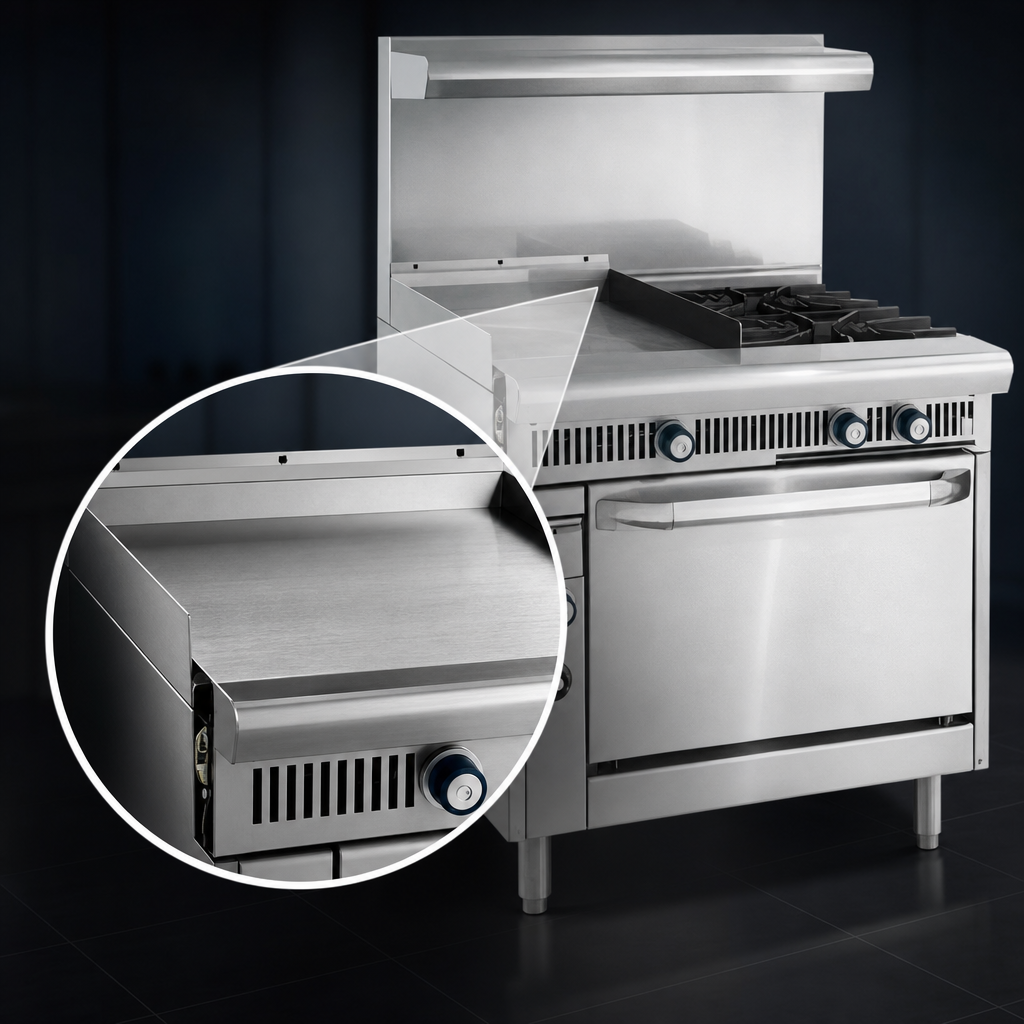

- 1" thick, highly-polished griddle plate delivers even heat and superior heat retention across the full 24" cooking surface.
- Thermostatic controls (one per 12" zone) hold set temps for consistent results shift after shift.

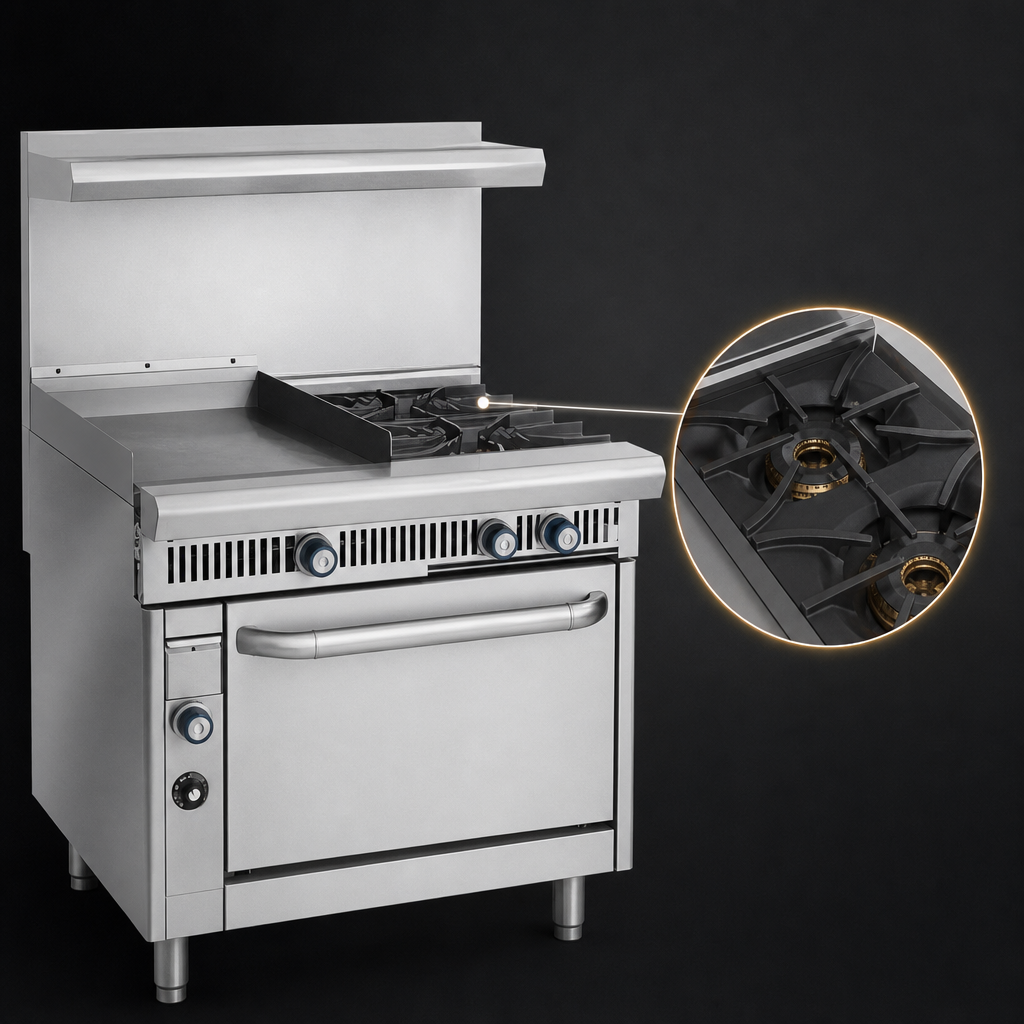

- Two open burners at 40,000 BTU each with cast-iron “S” grates—lift pans for better heat transfer and shield pilots from debris.
- Chef-depth convection oven (35,000 BTU) accepts full-size sheet pans front-to-back & side-to-side; three chrome racks included.
- Rapid, even baking via ½ HP blower, electronic ignition and three-position fan switch (cook / cool-down / off).
- Chef-friendly details: 5" stainless landing ledge, 4" grease gutter with 1 gal. can, removable crumb tray, durable cast-aluminum knobs.
- All-stainless exterior—front, sides, backguard & kick plate—welded and polished for a professional finish that wipes clean fast.
- Field-ready with 6" heavy-duty legs (adjustable), 120 V plug for the blower, and rear ¾" gas connection.
- Certified & backed by cETLus and NSF listings plus a 1-year parts & labor warranty.
Technical Specifications
Model | IHR-GT24-2-C |
---|---|
Footprint | 36" W × 38" D × 36" H to cooktop (914 × 965 × 914 mm) |
Total BTU | 175,000 BTU / 51 kW |
Open Burners | 2 × 40,000 BTU cast-iron burners with 7,000 BTU low-simmer |
Griddle | 24" W × 24" D, 1" thick steel, thermostatic (2 zones) |
Grease Management | 4" gutter & 1-gal. removable can |
Oven Type / Capacity | Gas convection, 26½" W × 22½" D × 14" H (Chef depth) |
Oven BTU | 35,000 BTU with electronic ignition |
Racks Supplied | 3 chrome-plated, adjustable |
Electrical | 120 V / 60 Hz / 1-Ph, 6 A (½ HP blower) |
Gas Connection | ¾" NPT rear manifold (5.0" W.C. NG | 10.0" W.C. LP) |
Construction | Stainless steel front, sides, back & kick plate; welded chassis |
Clearances | 0" to non-combustible, 8" to combustible surfaces |
Ship Weight | ≈ 856 lb / 389 kg |
Certifications | cETLus, NSF |
Warranty | 1-year parts & labor (USA/Canada) |
Make It Your Own
- Upgrade to a matching stainless-steel high-shelf or salamander broiler for extra production capacity.
- Add 6" heavy-duty casters for effortless mobility during deep-cleaning.
- Extra chrome oven racks and wok rings are available to expand your menu.
Accessories sold separately; contact your sales representative for details.
