Imperial (Middleby) IHR-GT18-2-XB Spec Series Gas Ranges
Description

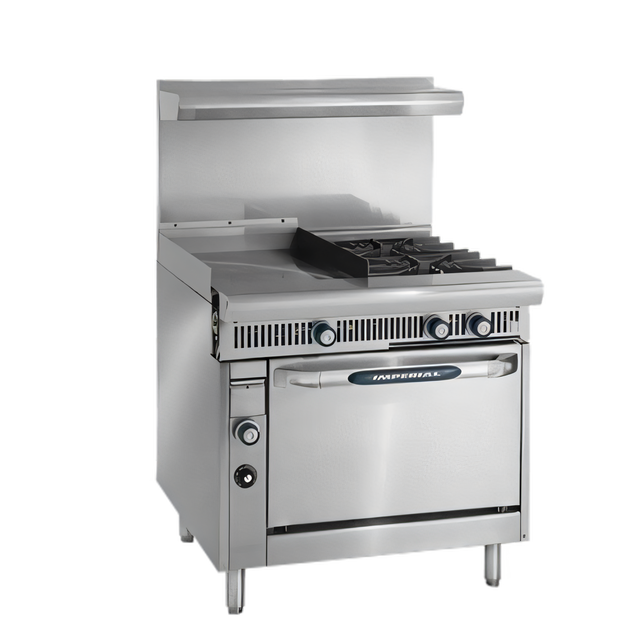

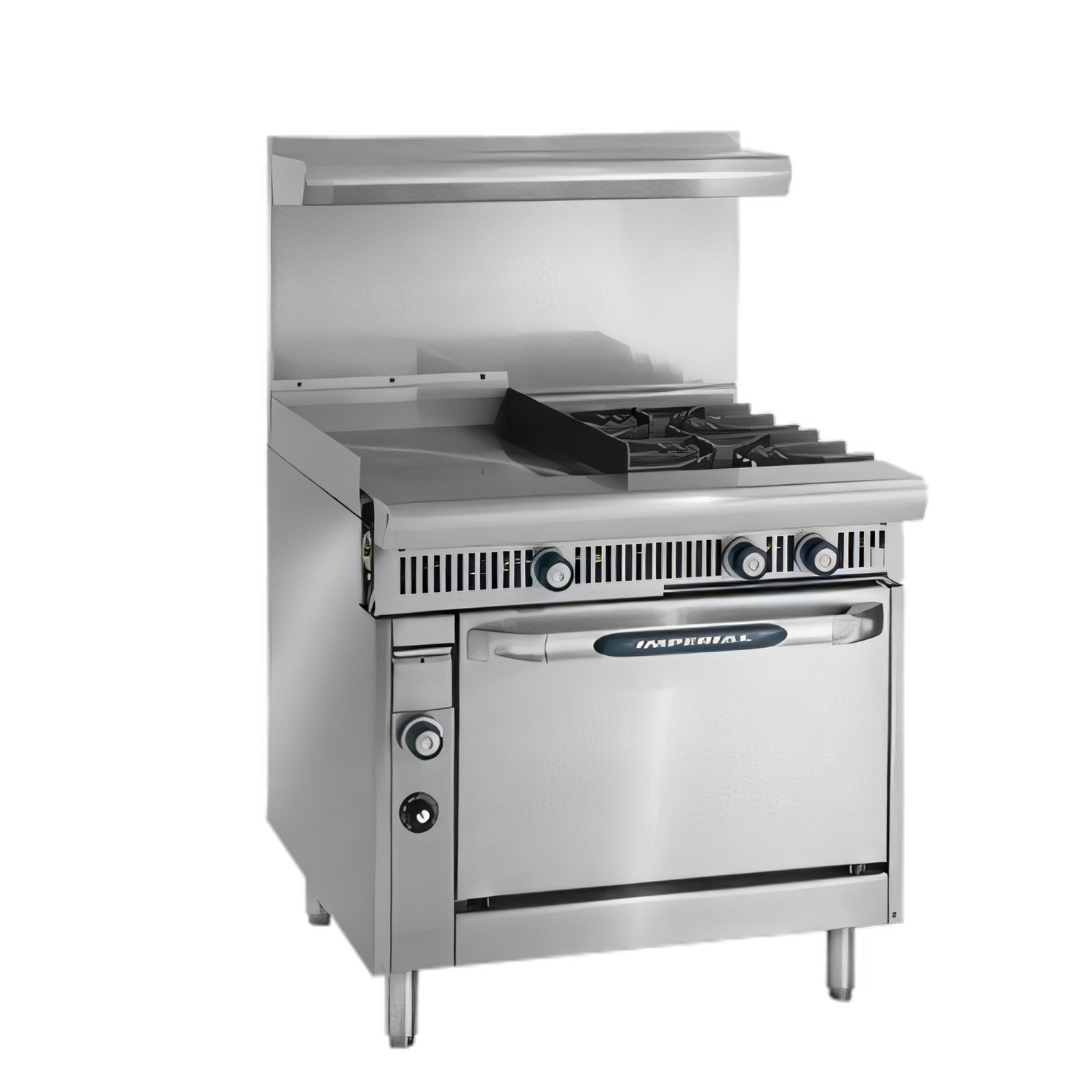

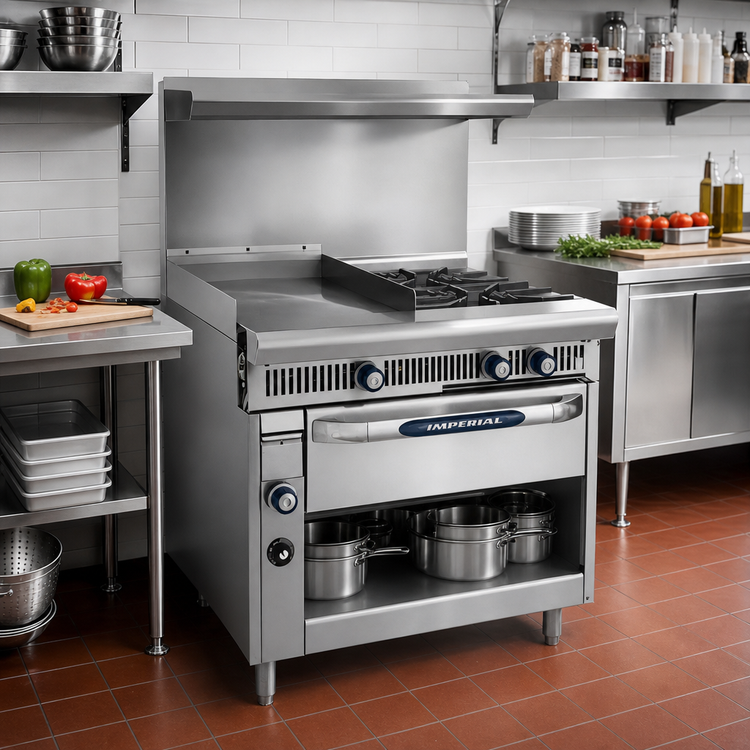

Imperial Spec Series 36" Gas Range
18" Thermostatic Griddle & 2 Open Burners – IHR-GT18-2-XB
Built for the busiest commercial kitchens, Imperial’s Spec Series IHR-GT18-2-XB combines two 40,000 BTU open burners with a precision-controlled 18" griddle on a space-saving 36" platform. All housed in a rugged stainless-steel chassis with an open cabinet base for convenient pan storage, this heavy-duty range delivers the cooking muscle and durability chefs demand, service after service.
Why You’ll Love It

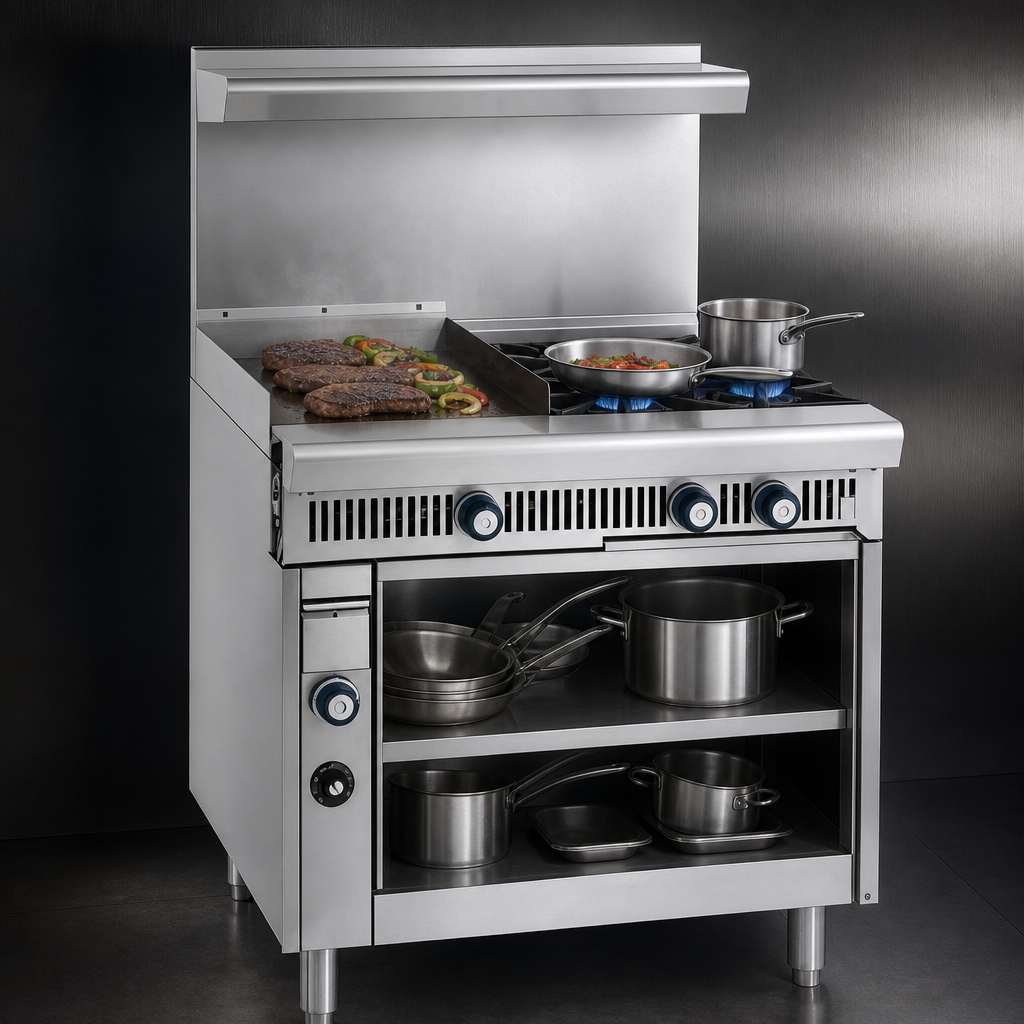

- (2) 40,000 BTU Open Burners – Cast-iron “M” shaped burners feature a 7,000 BTU low-simmer setting and lift-off design for easy cleaning.

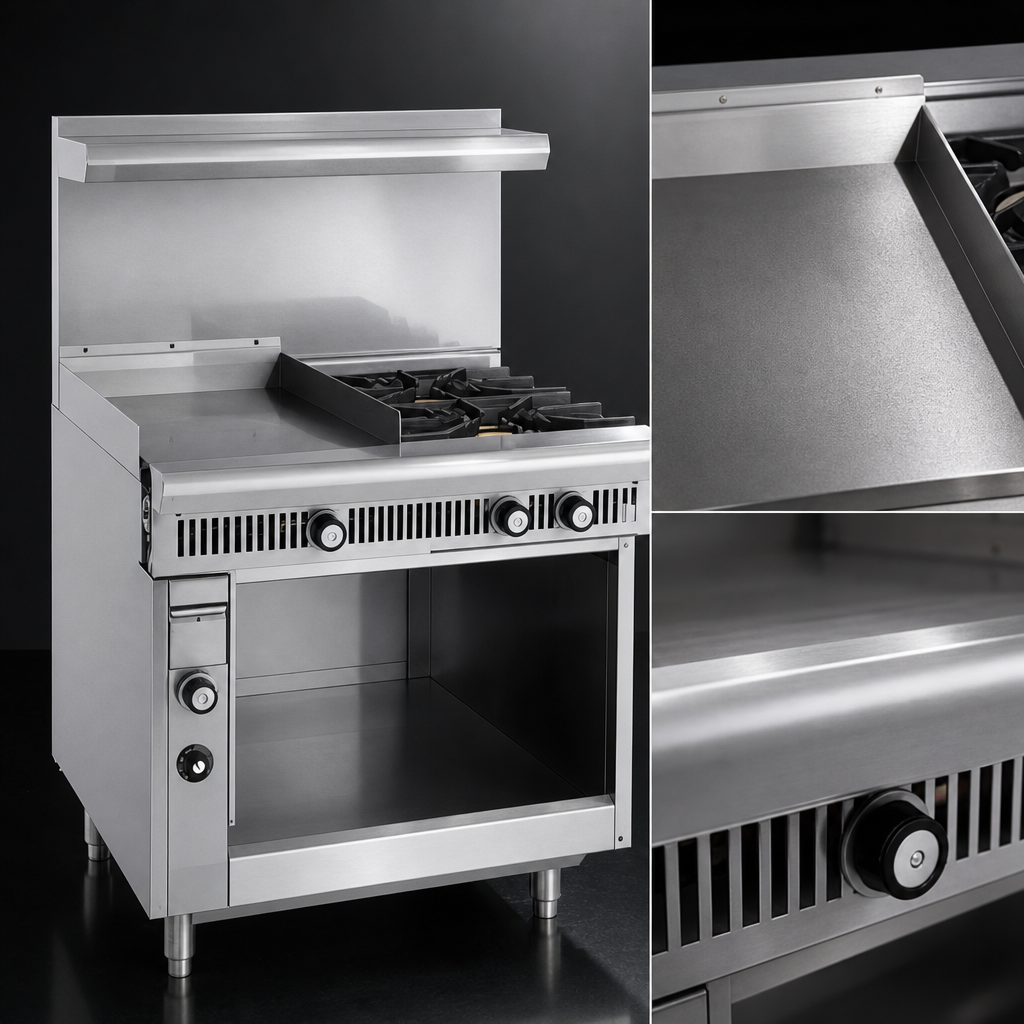

- 18" Thermostatic Griddle – 1" (25 mm) thick, highly polished steel plate with “U”-shaped 30,000 BTU burner and 200-550 °F thermostatic control for even, repeatable results.
- Heavy-Duty “S” Grates – Two-piece cast-iron grates raise cookware above the flame for superior heat transfer and protect pilots from debris.
- Open Cabinet Base – Full-width shelf keeps sheet pans, stock pots, and smallwares within arm’s reach.
- 5" Stainless Landing Ledge & Backguard – Stage plates or garnish while protecting the wall from splatter.
- All-Stainless Exterior – Front, sides, landing ledge, kick plate, and backguard are welded and polished for a professional look that wipes clean.
- Adjustable 6" Legs – Level the unit on uneven floors; optional casters available.
- Safety & Certifications – cETLus, ETL Sanitation, and NSF listed.
- One-Year Parts & Labor Warranty backed by Imperial’s nationwide service network.
At-a-Glance Specs
| Model | IHR-GT18-2-XB |
|---|---|
| Overall Width | 36" / 914 mm |
| Depth (including handles) | 38" / 965 mm |
| Cooktop Height | 36" / 914 mm to griddle surface |
| Open Burners | 2 × 40,000 BTU cast-iron (80,000 BTU total) |
| Griddle Section | 18" W × 24" D, 1" thick; thermostatic control, 40,000 BTU |
| Total Input | 120,000 BTU / 35 kW |
| Base Configuration | Open cabinet with bottom shelf |
| Gas Connection | ¾" NPT rear manifold; 5.0" W.C. (Natural) / 10.0" W.C. (LP) |
| Clearances* | 0" to non-combustible, 8" to combustible surfaces |
| Ship Weight | 580 lb / 264 kg |
| Certifications | cETLus, ETL, NSF |
*Legs or casters are required on non-combustible floors, or 2" curb-mount overhang.
Perfect For
- High-volume restaurants needing griddle real estate plus burner flexibility
- Short-order diners & breakfast operations
- Ghost kitchens and food halls where footprint is at a premium
- Institutional kitchens, hotels, and resorts
Peace-of-Mind Coverage
Imperial backs every Spec Series range with a one-year, parts-and-labor warranty when installed and serviced by an authorized agency. Full details are included with your unit.
