Imperial (Middleby) IHR-GT18-1HT Spec Series Gas Ranges
Description

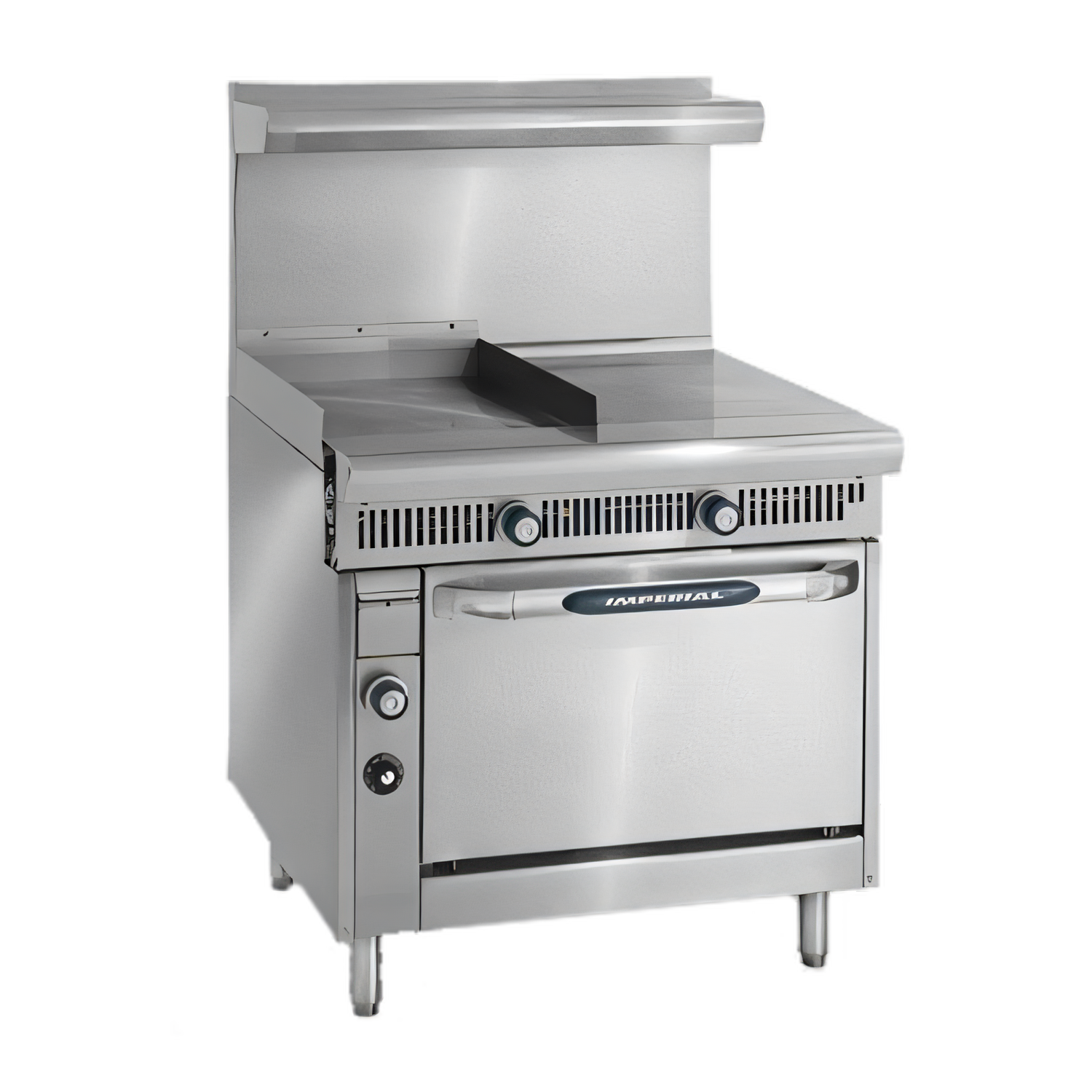

Imperial Spec Series 36" Heavy-Duty Gas Range
Model IHR-G18-1HT | 18" Thermostatic Griddle • 18" Even-Heat Hot Top • Standard Oven • 120,000 BTUBuilt for chefs who refuse to compromise, Imperial’s Spec Series combines a mirror-polished griddle, a high-output hot top and a spacious standard oven in a single, 36-inch footprint. Precision thermostatic controls, all-stainless construction and 120,000 BTU of total cooking power keep production lines moving while standing up to the abuse of high-volume kitchens.

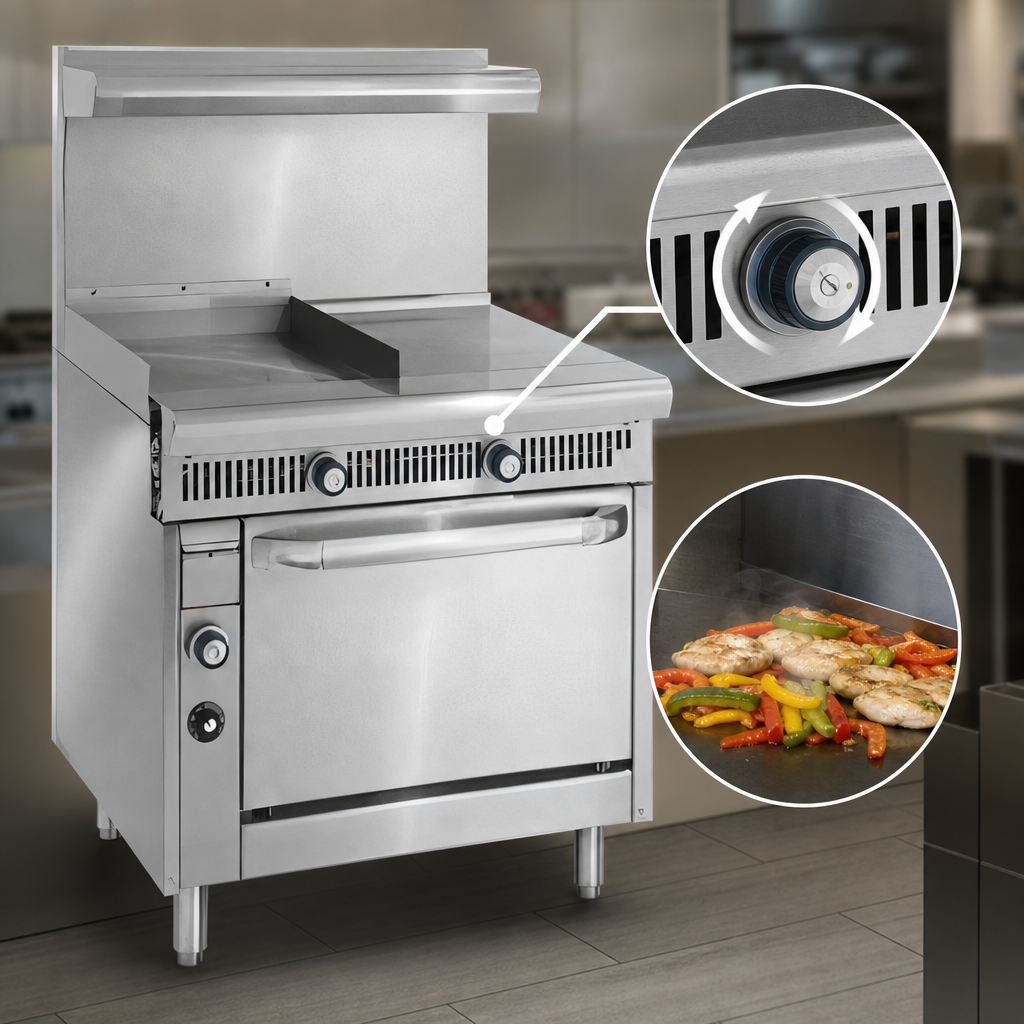

18" Thermostatic Griddle
- Highly polished 3/4" steel plate delivers even heat and quick recovery.
- 30,000 BTU “U”-shaped burner located every 12" with independent control.
- Factory-installed thermostatic control (200 – 450 °F / 93 – 232 °C) for consistent results.
- 4" wide grease gutter funnels into a 1-gal. (3.8 L) can for fast, mess-free clean-up.

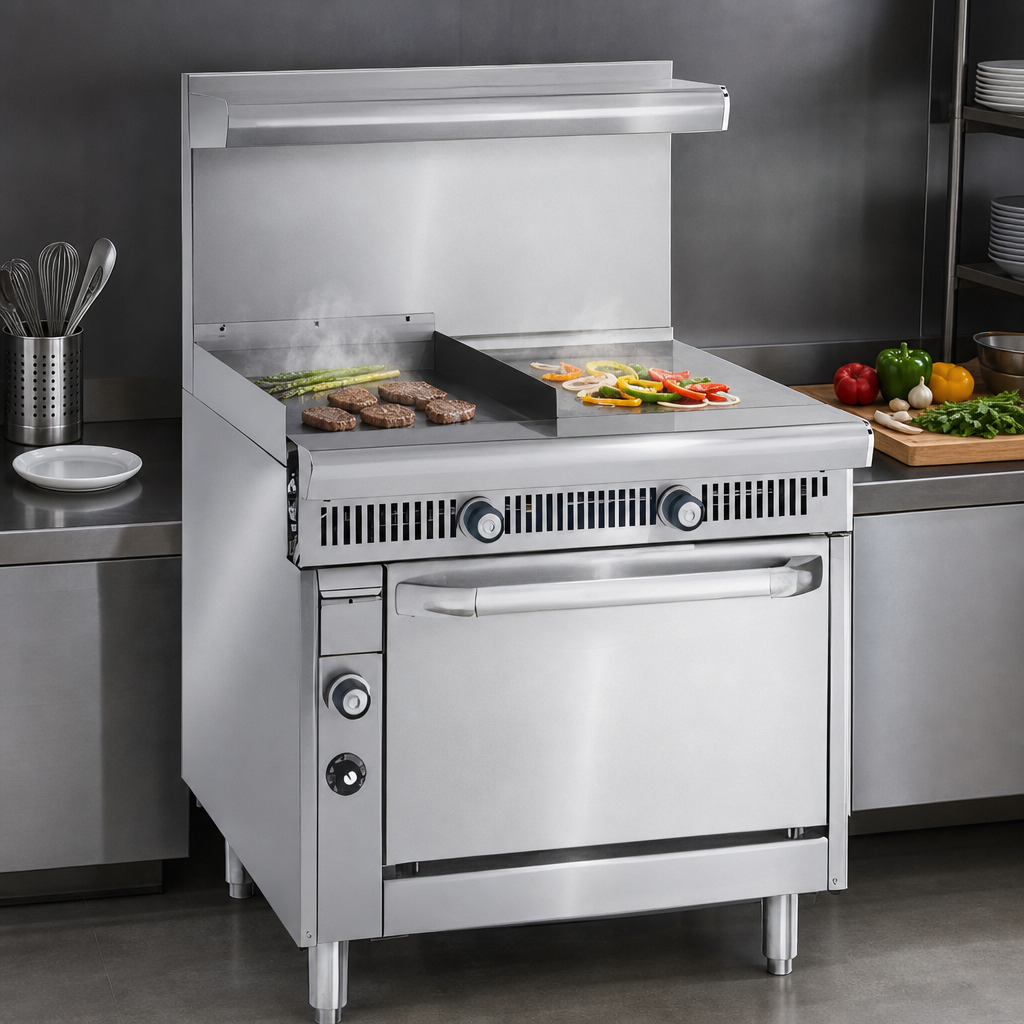

18" Even-Heat Hot Top
- Two heavy-duty, polished plates (18" W × 28" D) provide a contiguous cooking surface.
- 40,000 BTU “U”-shaped burner with aeration baffles for uniform heat distribution.
- Manual gas valve and standing pilot for each burner.
- Ideal for stock pots, braising pans and sauté work that demands steady heat.
Standard Oven Performance
- 40,000 BTU burner with 100 % safety pilot and manual shut-off valve.
- Chef-depth cavity: 18 1/2" W × 26" D × 14" H — fits full-size sheet pans left-to-right or front-to-back.
- Porcelainized sides, deck, rear & door liner for easy wipe-down.
- One chrome oven rack included; three rack positions total.
- Heat deflector baffle ensures even temperatures throughout the cavity.
Rugged, Sanitary Construction
- Stainless steel front, sides, 5" landing ledge, backguard & kick plate.
- Welded & polished seams create a sleek, European look that cleans quickly.
- Large, heat-shielded cast-aluminum control knobs with positive-grip design.
- (4) 6" stainless steel legs with 2-1/2" diameter tubing and adjustable feet.
- Rear 3/4" NPT gas connection; 1-1/4" NPT optional.
Key Specifications
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth | 38" (965 mm) to cooktop |
| Overall Height | 36" (914 mm) to cooking surface |
| Total Gas Input | 120,000 BTU/hr • 35 kW |
| Griddle Plate Size | 18" W × full depth |
| Hot-Top Plate Size | 18" W × 28" D |
| Oven Capacity | 18 1/2" W × 26" D × 14" H |
| Gas Pressure | Natural 5.0" W.C. • LP 10.0" W.C. |
| Certifications | cETLus, NSF |
| Shipping Weight | Approx. 347 lb (157 kg) |
| Warranty | 1-year parts & labor |
Installation & Clearance
- For use on non-combustible floors.
- 0" side and rear clearance to non-combustible surfaces; 8" (203 mm) to combustible.
- Field convertible for natural or propane gas (specify at order).
Need additional shelves, salamander broilers or common landing ledges? Ask our team about factory-installed options to build the perfect cooking suite.
