Imperial (Middleby) IHR-GT18-1HT-M Spec Series Gas Ranges
Description

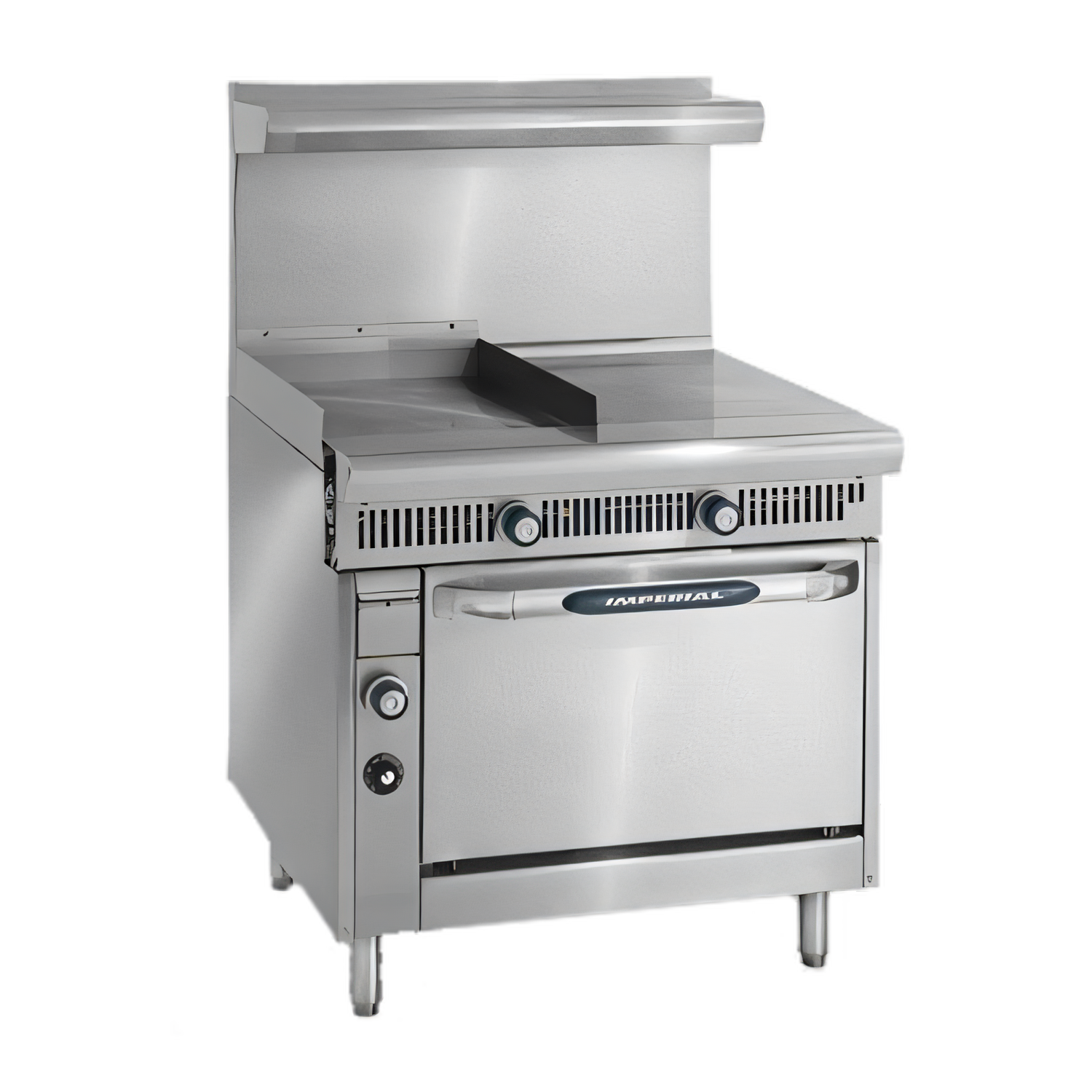

Spec Series™ 36" Countertop Gas Range
18" Thermostatic Griddle + 18" Even-Heat Hot Top • 80,000 BTUBuilt for relentless commercial workloads, Imperial’s Spec Series™ modular range combines a mirror-polished griddle and a cast-iron hot top in one 36" counter unit. From breakfast classics to low-simmer sauces, you’ll have the precise heat, extra landing space and stainless-steel durability chefs demand—without giving up valuable line footage.
Why This Unit Rocks

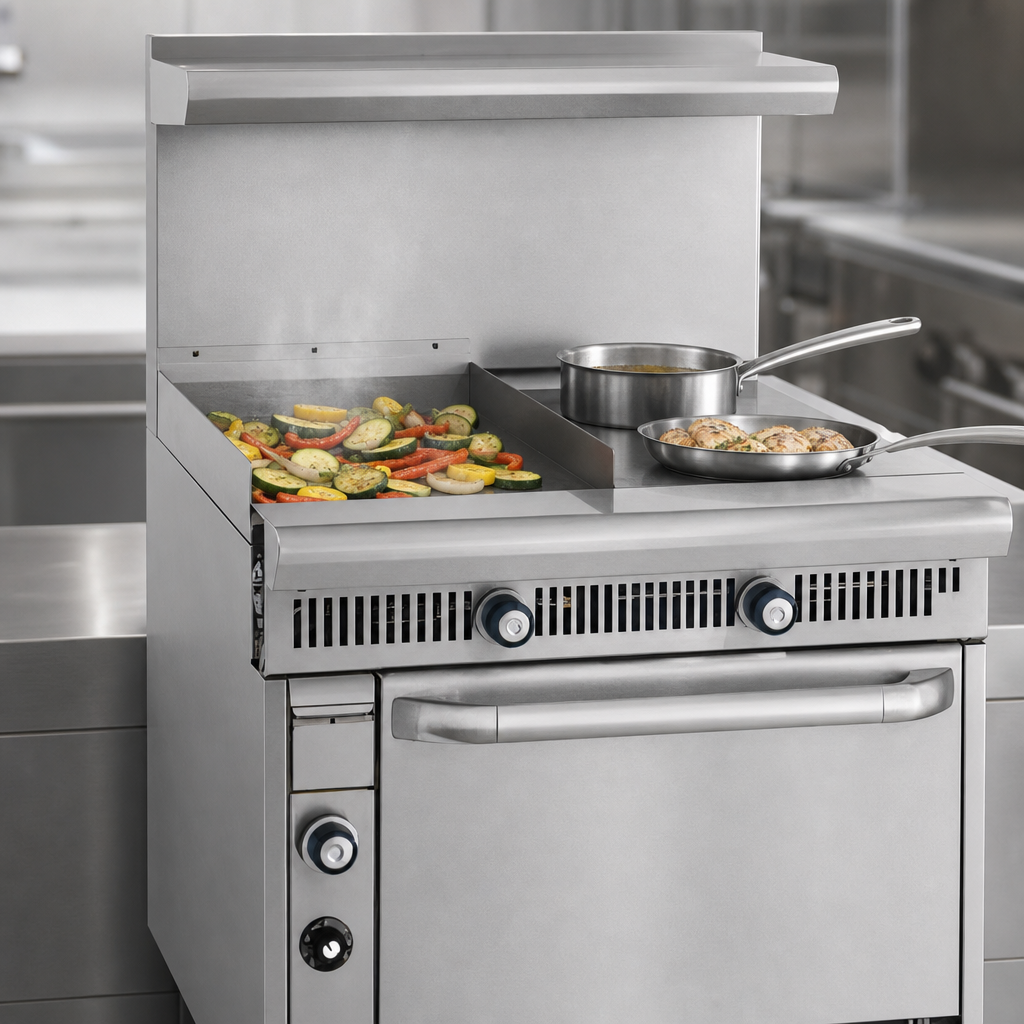

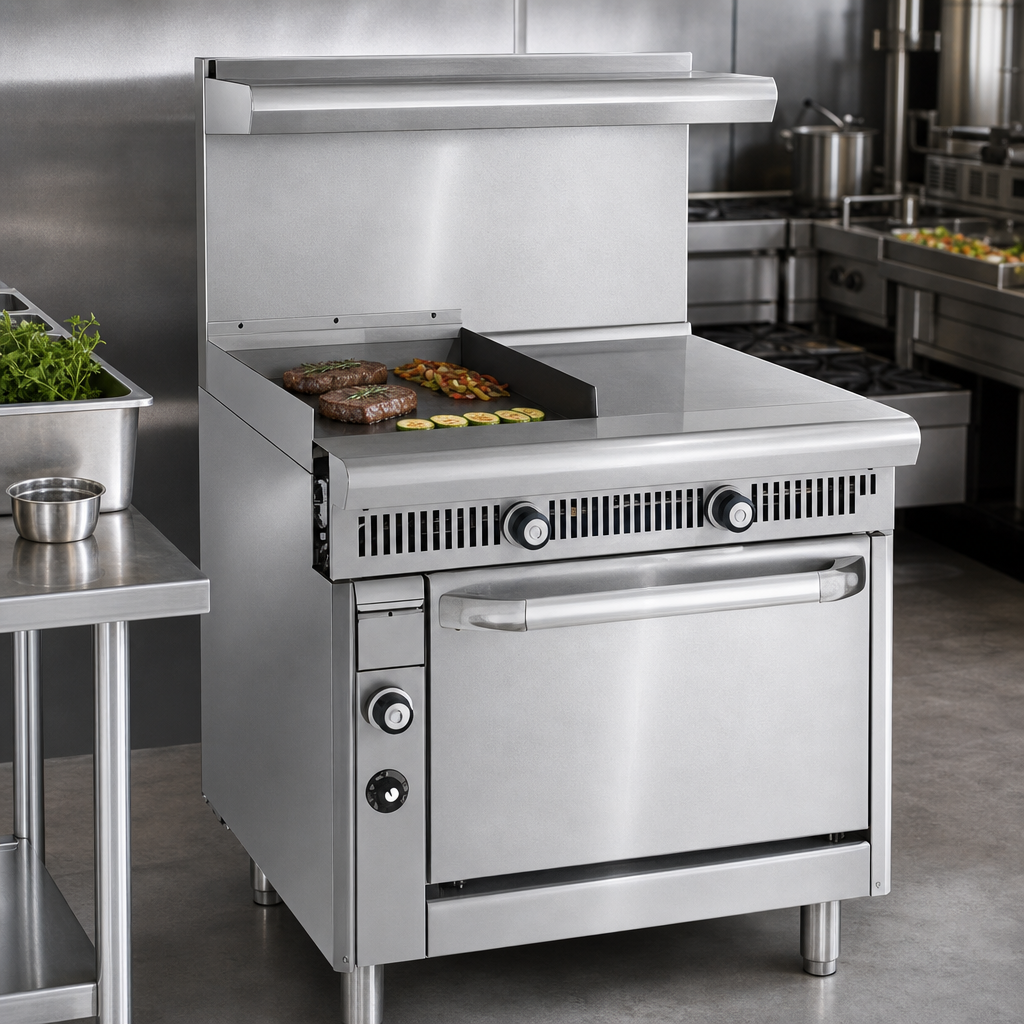

- Split-surface versatility – 18" thermostatic griddle for short-order speed; 18" heavy-duty hot top for stock-pots, sauté pans or holding.
- High-output burners – 30,000 BTU “U” burner under the griddle + 40,000 BTU “U” burner under the hot top for a combined 80,000 BTU (23 kW).
- Precision temperature control – Snap-action thermostat (gt36) maintains your target within ±15 °F across the griddle plate.
- Even heat, fast recovery – Aeration baffles distribute heat and speed rebound during rush periods.
- 5" (127 mm) deep landing ledge – Stage plates, squeeze bottles or ladles right in front of the action.
- Easy grease management – 4" (102 mm) wide gutter feeds a 1-gal. (3.8 L) removable can for fewer empty trips.
- All-stainless exterior – Front, sides, backguard and ledge resist corrosion and wipe clean in seconds.
- Cast-aluminum knobs with heat-protecting grip stay cool and stand up to daily abuse.
- Certified ETL & NSF for gas safety, sanitation and performance.
Technical Specifications
| Model | IHR-G18-1HT-M (Modular / Countertop) |
|---|---|
| Cooking Surface | 18" W x 24" D highly polished steel griddle 18" W x 28" D cast-iron even-heat hot top |
| Controls | Snap-action thermostat (griddle) Infinite-valve w/ standing pilot (hot top) |
| Total Gas Output | 80,000 BTU/hr • 23 kW |
| Manifold Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Gas Connection | 3/4" NPT rear connection (left-hand) |
| Exterior Dimensions | 36" W x 38" D (914 mm x 965 mm) – countertop height |
| Shipping Weight | 420 lb. (191 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor (see warranty statement) |
Installation Notes
- For use only on non-combustible countertops.
- Provide 2" (51 mm) rear clearance when curb mounted, 0" on sides.
- Unit ships natural-gas ready; LP conversion kit available.
- 3/4" flex or quick-disconnect gas hose recommended (sold separately).
Cleaning Made Simple
- Mirror-finish griddle plate scrapes clean fast.
- One-gallon grease can lifts out without tools.
- Stainless splash & landing surfaces wipe down with a damp cloth.
Need a different configuration? Spec Series™ modules mount flush for a seamless battery. Contact us for custom line-ups, partner accessories and volume pricing.
