Imperial Spec Series™ 12" Add-A-Unit Heavy-Duty Gas Griddle Range
Model IHR-GT12-XB | Open Cabinet BaseSqueeze full-size range power into just one linear foot of cookline. Imperial’s 12" Spec Series Add-A-Unit couples a high-output thermostatic griddle with a storage cabinet, giving chefs extra production and mise-en-place space without a costly kitchen remodel.
Top reasons operators choose this unit

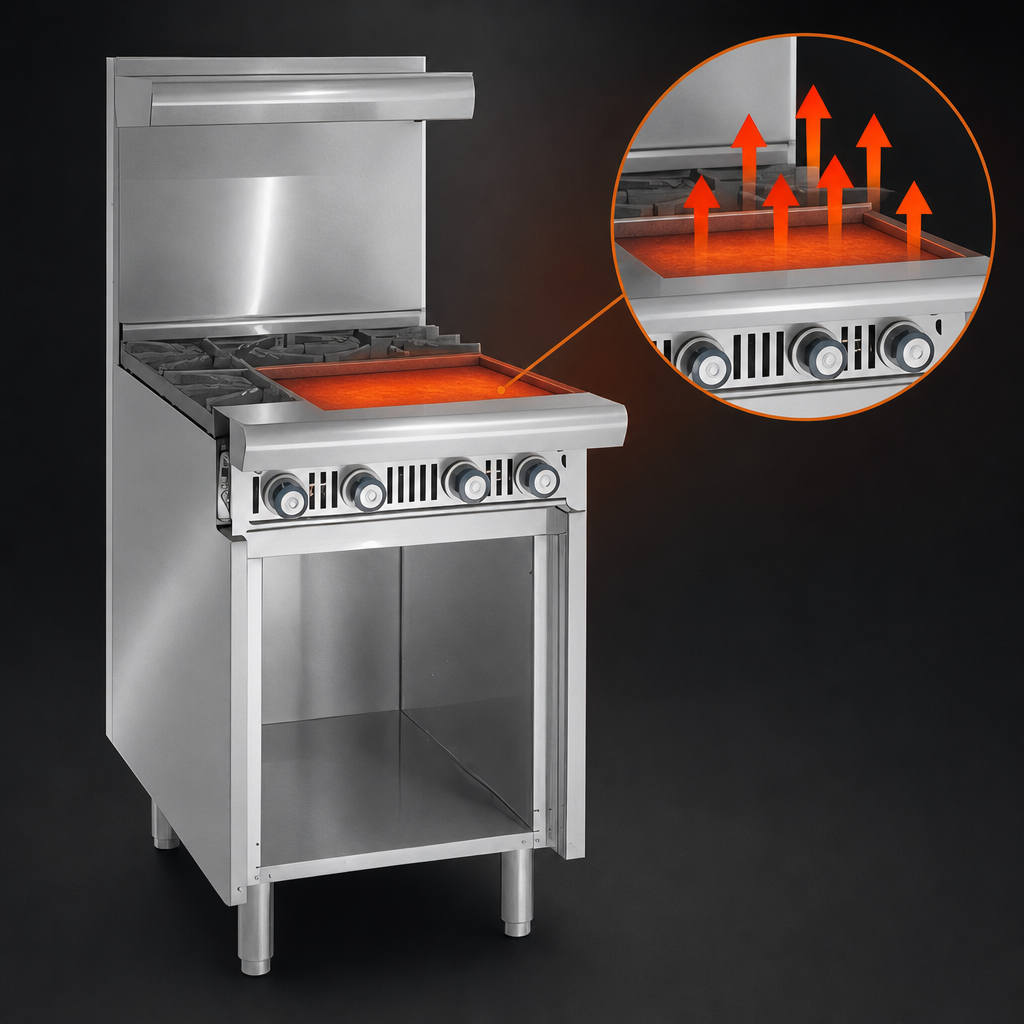

- 30,000 BTU “U”-shaped burner covers the entire plate for even edge-to-edge heat.
- 3⁄4" (19 mm) thick, highly polished steel plate delivers excellent heat retention and easy release.
- True thermostatic control (150-450 °F) maintains set point accuracy for consistent results.
- 4" wide grease gutter and 1-gal. removable can simplify clean-up.
- Full-width slide-out crumb tray catches drips and debris.
- Open cabinet with heavy-duty bottom shelf keeps hotel pans, sheet pans or chemicals close at hand.
- All-stainless front, sides, landing ledge & 22" backguard resist corrosion and wipe down fast.
- 6" adjustable stainless legs level the unit on uneven floors.
Engineered for the rush
- Sleek European styling with wide-radius edges for easier cleaning.
- Cast-aluminum control knobs stay cool and provide a positive-grip feel.
- 7" deep landing ledge offers a safe staging area for plates and utensils.
- Enclosed 1-1/4" front gas manifold allows “plug-and-play” line-ups with other Spec Series equipment.
- Aeration baffles speed heat recovery when the line is slammed.
Technical Specifications
| Cooking surface | 12" W × 24" D (305 × 610 mm) polished steel plate |
|---|---|
| Overall width | 12" (305 mm) |
| Overall depth | 38" (965 mm) |
| Overall height | 47" (1194 mm) – includes legs & backguard |
| Heat input | 30,000 BTU/hr (9 kW) |
| Controls | Thermostatic, 150-450 °F (66-232 °C) |
| Gas type | Natural or Propane (field convertible – specify when ordering) |
| Manifold pressure | NG: 5.0" W.C. | LP: 10.0" W.C. |
| Gas connection | 3/4" NPT (rear or top) |
| Base | Open cabinet with stainless bottom shelf |
| Shipping weight | 160 lb (72 kg) |
| Certifications | cETLus, NSF |
Certifications & Warranty
- Meets NSF sanitation standards and is certified for U.S. & Canadian gas safety (cETLus).
- Backed by Imperial’s 1-year parts & labor warranty.
Popular options & accessories (sold separately)
- Stainless common front landing ledges – 54", 72", 90", 108"
- Stainless common backguards – 54", 72", 90", 108"
- 600,000 BTU 1-1/4" rear gas connection manifold
- Quick-disconnect & flexible gas hoses (3/4" or 1-1/4")
- Heavy-duty stainless equipment stands or casters
- Seismic legs for areas requiring OSHPD compliance
Installation note: This appliance must be installed, gas-converted and commissioned by a licensed technician. Follow all local codes and the Imperial installation manual.
Specifications are based on information available at the time of publication and are subject to change without notice.
$4,863.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Spec Series 12" gas Add-A-Unit range with griddle, thermostatic controls, stainless steel, 30,000 BTU, NSF cETLus—durable commercial performance.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
12.0in
Depth
38.0in
Shipping Weight
315.0lbs
Type
add-a-unit
Exterior Finish
stainless steel front & sides
Top
(1) griddle with thermostat
Base
cabinet(s)
Plate Thickness
1.000" = 1"
Specifications
Spec Series Heavy Duty Range, gas, 12", Add-A-Unit, griddle, open cabinet, bottom shelf, thermostatic controls, 4"W grease gutter, removable crumb tray, stainless steel front, sides, landing ledge & backguard, 6" legs, adjustable feet, 30,000 BTU, cETLus, NSF
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
