Spec Series™ 24" Add-A-Unit Thermostatic Griddle Range
Model IHR-GT24-XB | 60,000 BTU Gas | Open Cabinet BaseBuild out a seamless cookline or add high-performance griddle capacity wherever you need it. The Imperial Spec Series IHR-GT24-XB delivers heavy-duty durability, precise thermostatic control, and the storage convenience of an open-cabinet base—all in a compact 24 in. footprint.
Why Chefs Choose This Unit
- 60,000 BTU “U”-shaped burners (30,000 BTU every 12") for fast recovery and even heat.

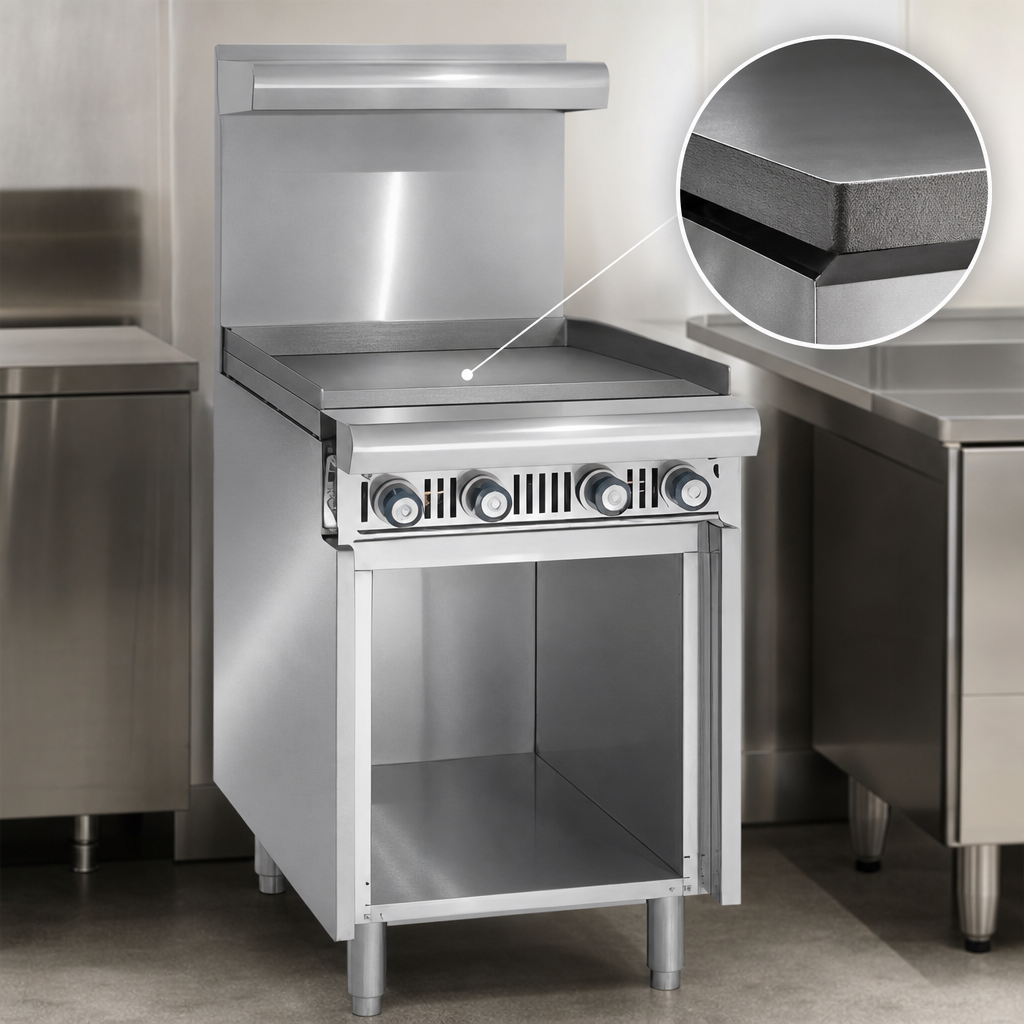

- 1" (25 mm) highly-polished steel griddle plate for superior searing and easy cleanup.
- Snap-action thermostatic controls (one per 12") maintain set temps for consistent results.
- 4" (102 mm) wide front grease trough and large removable crumb tray simplify maintenance.
- Open cabinet with heavy-duty bottom shelf keeps pans, utensils, or stock pots within reach.
- All-stainless front, sides, landing ledge, and 21" (533 mm) high backguard stand up to daily abuse.
- 6" (152 mm) stainless legs with adjustable feet level easily on uneven floors.
- cETLus & NSF listed; meets strict sanitation and safety standards.
Built For High-Volume Performance
- ‘U’ burners are spaced 12" (305 mm) apart for uniform heat across the entire 24" x 24" plate.
- Aeration baffles between burners speed recovery after heavy loads.
- Full-width, pull-out crumb tray removes completely for sink washing.
- Cast-aluminum control knobs stay cool and feature a textured grip for grease-free adjustments.
- Connects to a ¾" NPT gas line; rear and front manifold ports simplify line-up installations.
Specifications
| Model | IHR-GT24-XB |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total BTU | 60,000 BTU (17.6 kW) |
| Burners / Controls | 2 “U” burners with independent thermostats (150 °F – 450 °F / 66 °C – 232 °C) |
| Plate Size | 24" W × 24" D × 1" T (610 × 610 × 25 mm) |
| Overall Dimensions | 24" W × 38" D × 47" H (610 × 965 × 1194 mm, to top of backguard) |
| Cooking Height | 36" (914 mm) |
| Cabinet Opening | 21" W × 20" H (533 × 508 mm) with fixed bottom shelf |
| Gas Connection | ¾" NPT rear; 1 ¼" front gas manifold |
| Shipping Weight | ≈ 305 lb (138 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (standard) |
Popular Options (Factory Installed)
- Stainless steel backguard with high shelf
- Common front landing ledge for suite line-ups (54", 72", 90", 108")
- Stainless cabinet interior & double doors in place of open base
- Rear gas connection capacity up to 600,000 BTU for multi-unit batteries
- Quick-disconnect & flexible gas hose kits
Imperial equipment must be installed and serviced by an authorized technician, and operated in accordance with the user manual, to keep the limited one-year parts & labor warranty in force.
$6,880.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial (Middleby) IHR-GT-24-XB: 24" heavy-duty gas range with griddle, thermostatic controls, stainless steel, open cabinet, 60,000 BTU, NSF certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
24.0in
Depth
38.0in
Shipping Weight
435.0lbs
Base
cabinet(s)
Type
add-a-unit
Top
(1) griddle with thermostat
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Specifications
Spec Series Heavy Duty Range, gas, 24", Add-A-Unit, griddle, open cabinet, bottom shelf, thermostatic controls, 4"W grease gutter, removable crumb tray, stainless steel front, sides, landing ledge & backguard, 6" legs, adjustable feet, 60,000 BTU, cETLus, NSF
