Imperial (Middleby) IHR-GT-24-M Spec Series Gas Ranges
Description

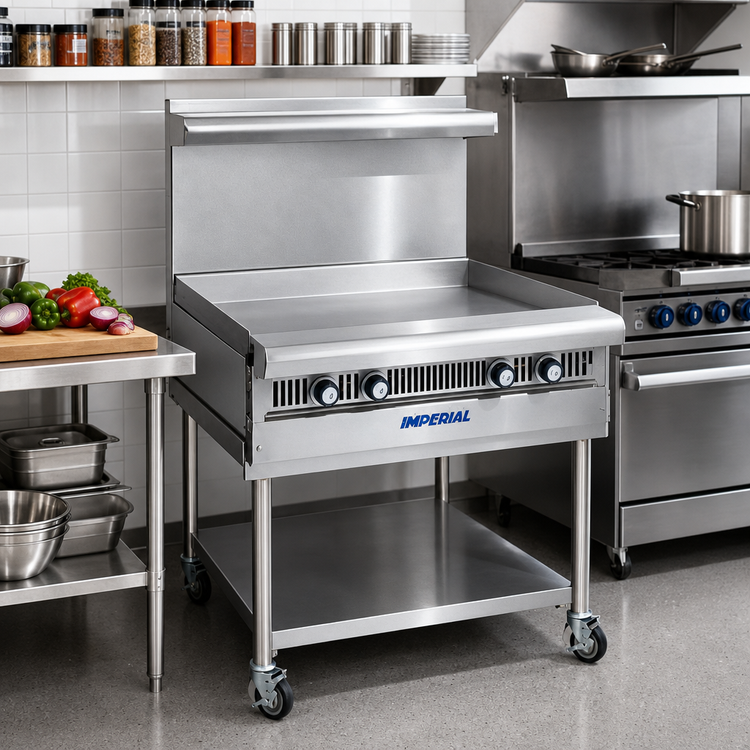

Imperial Spec Series IHR-GT24-M 24" Modular Gas Griddle Top – 60,000 BTU
Heavy-Duty “Add-A-Unit” Range Module with Thermostatic ControlsBuild the cookline you’ve always wanted, one rock-solid module at a time. The 24" Imperial Spec Series IHR-GT24-M drops into any Add-A-Unit line-up to deliver blistering griddle performance, rugged stainless-steel construction and precision thermostatic control – all in a space-saving footprint.
Why You’ll Love It
- Rapid, even heat – two U-shaped burners (30,000 BTU each) blanket the plate for consistent results from corner to corner.

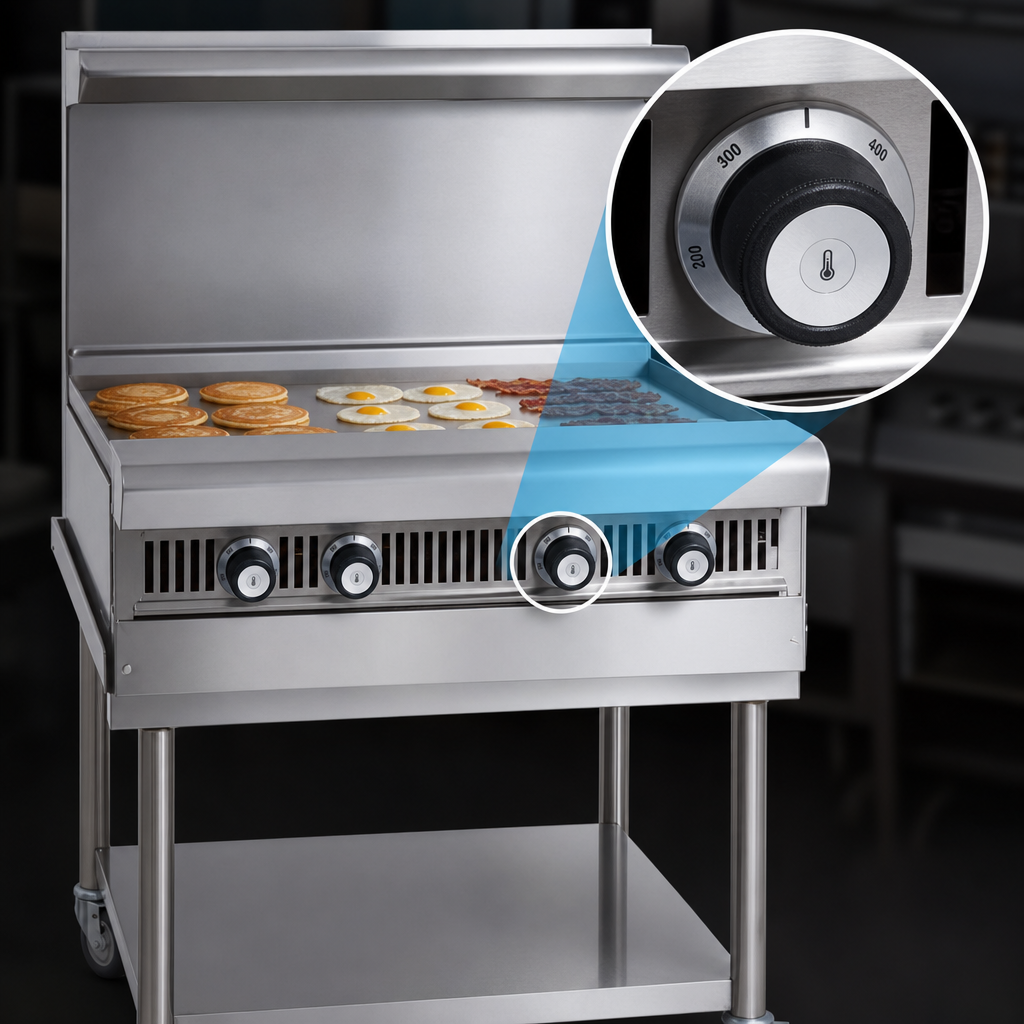

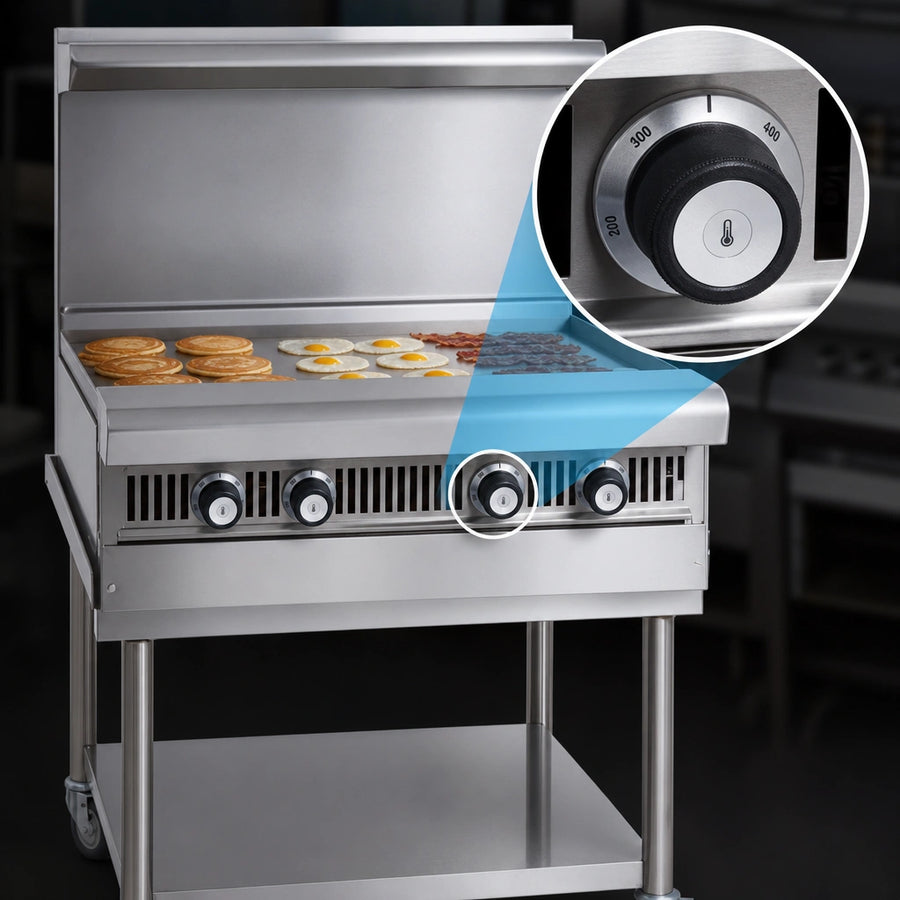

- Precision thermostats – independent controls let you dial in exact temperatures for breakfast, lunch or dinner menus.
- Cleaner workstation – a 4" (102 mm) wide grease gutter feeds a 1-gal. (3.8 L) can, while a full-width crumb tray slides out for easy emptying.
- All-stainless exterior – front, sides, 7" landing ledge and 6" backguard are built to shrug off daily abuse and wipe down fast.
- Modular freedom – sits on a counter or equipment stand and mates seamlessly with other Spec Series units to create a custom suite.
- Operator-friendly knobs – cast-aluminum controls stay cool and include a heat-protection grip.
- Certified & supported – cETLus & NSF listed and protected by Imperial’s one-year parts & labor warranty.
Technical Specifications
| Model | IHR-GT24-M |
|---|---|
| Type | Modular “Add-A-Unit” gas griddle top, thermostatic |

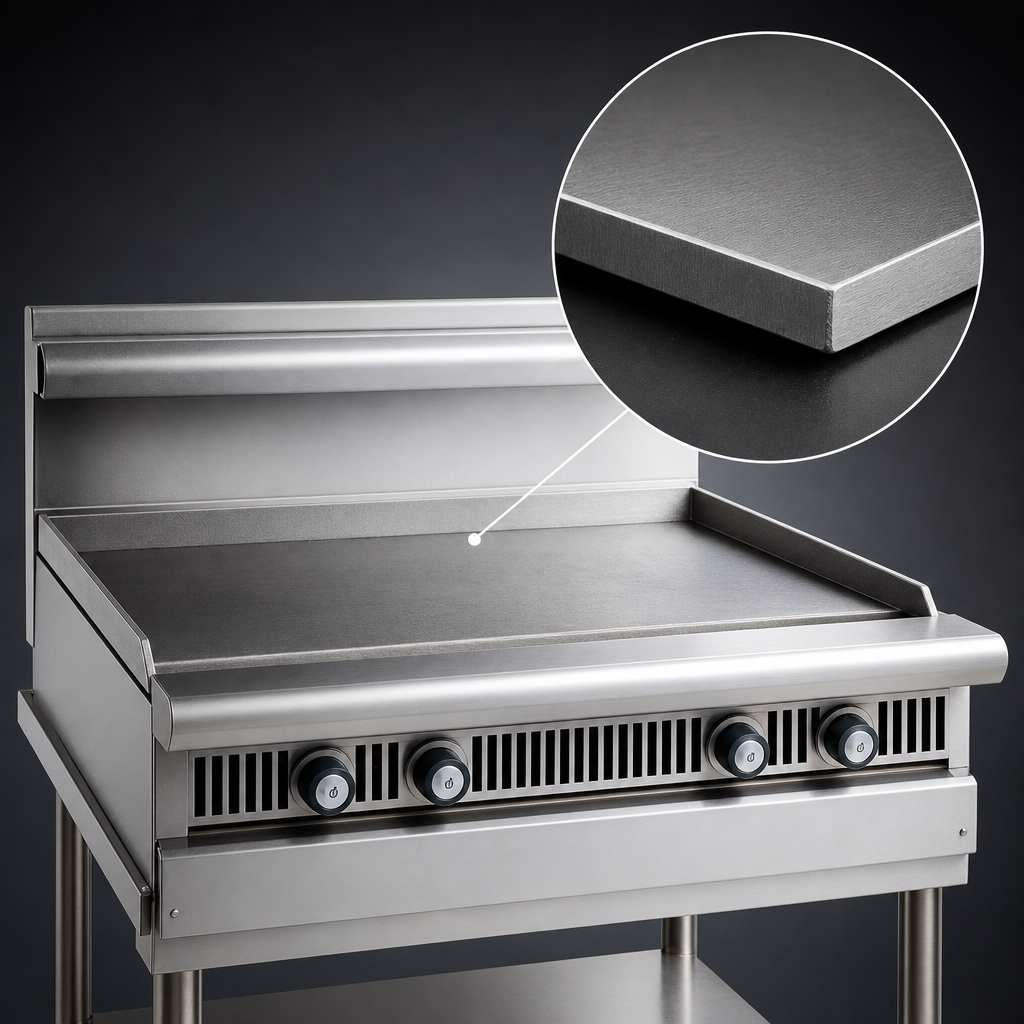

| Plate Width | 24" (610 mm) |
| Overall Dimensions | 24" W × 28" D × 11" H (610 × 965 × 279 mm) |
| BTU / kW | 60,000 BTU / 18 kW (2 × 30,000 BTU burners) |
| Gas Connection | 3/4" NPT rear manifold; 5.0" W.C. Natural | 10.0" W.C. LP |
| Shipping Weight | ≈ 305 lb (138 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
Perfect For
- Breakfast diners cranking out pancakes, bacon & eggs
- Food trucks or ghost kitchens needing a compact, powerful griddle
- Institutional kitchens adding extra capacity without a full range
- High-volume restaurants assembling a custom Imperial cook suite
Installation & Care Notes
- Requires 0" clearance from non-combustible and 6" from combustible surfaces.
- Must be installed under an appropriate ventilation hood by a licensed professional.
- Season the griddle plate before first use to maximize non-stick performance.
- Empty the grease can and crumb tray daily to maintain sanitation and burner efficiency.
Imperial warrants the Spec Series range line for one (1) year on parts and labor when installed and serviced by an authorized agency. Full warranty terms are shipped with the unit or may be requested from Imperial Technical Support.
