Imperial Spec Series 36" Heavy-Duty Gas Griddle Range – Open Cabinet Base
Model: IHR-GT36-XB | 90,000 BTU / 26 kWBuilt for demanding cooklines, the Imperial Spec Series 36" griddle range couples rock-solid construction with precision heat control and generous under-counter storage—perfect for high-volume restaurants, hotels and institutional kitchens that refuse to compromise on performance.
Highlights- 1" (25 mm) thick, highly-polished steel griddle plate for superior heat retention and even cooking.
- (3) 30,000 BTU U-shaped burners (one every 12") with independent manual controls—total 90,000 BTU.
- 4" (102 mm) wide welded grease gutter with 1 gal (3.8 L) can keeps workstations clean and safe.
- Open cabinet base with stainless bottom shelf stores sheet pans, utensils and mise en place within arm’s reach.
- Stainless steel front, sides, 5" (127 mm) landing ledge, backguard & kick plate for long-term durability and easy wipe-downs.

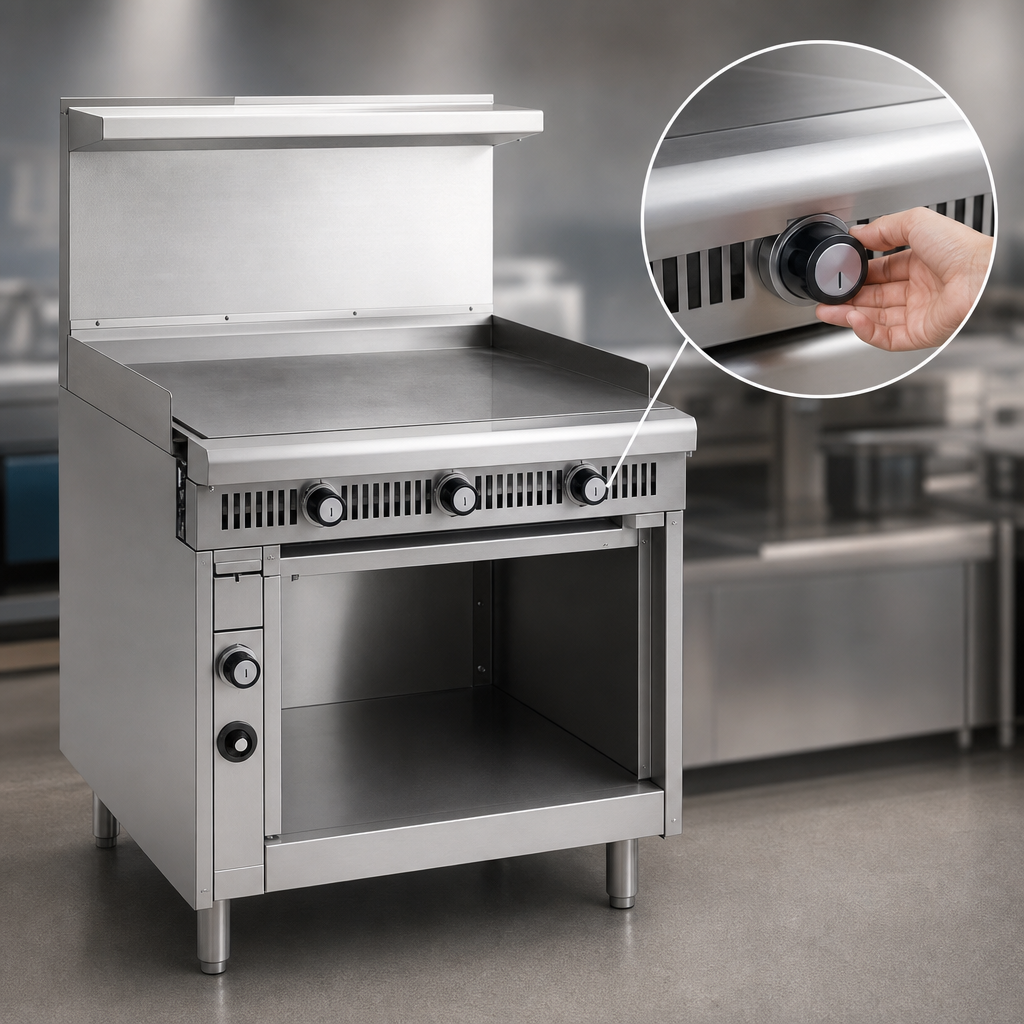

- Cool-grip cast-aluminum control knobs with built-in heat shield.
- Sleek welded seams and radius edges deliver a premium, professional finish.
- 6" (152 mm) heavy-duty legs with adjustable feet for perfect leveling.
| Cooking surface | 36" W × 24" D (914 × 610 mm) griddle |
|---|---|
| Plate thickness | 1" (25 mm) ground & polished steel |
| Total output | 90,000 BTU/hr (26 kW) |
| Burner type | (3) cast-iron U-burners, 30,000 BTU each |
| Gas connection | 3/4" NPT (Natural 5.0" W.C. / LP 10.0" W.C.) |
| Base configuration | Open cabinet with stainless shelf |
| Landing ledge | 5" (127 mm) deep, stainless steel |
| Grease management | 4" gutter, 1 gal can |
| Certifications | cETLus, ETL Sanitation, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
- Full-service restaurants & hotels
- Diners, cafés & short-order operations
- Catering halls & banquet production lines
- Any kitchen that needs heavy-duty griddle power with convenient under-counter storage
- Stainless common landing ledge extensions (54", 72", 90")
- Salamander or cheesemelter rail kits
- 6" locking caster set for mobility
- Quick disconnect & flexible gas hose kits
Gas notice: Appliance must be installed by qualified personnel in accordance with local codes.
Adequate ventilation and a 3/4" gas supply line are required.
Have questions or need a volume quote? Chat with us or call—our equipment specialists are here to help configure the perfect Imperial range for your kitchen.
$8,541.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G36-XB 36" heavy-duty gas range with 1" griddle, 90,000 BTU, stainless steel, open cabinet, NSF/ETL — durable commercial cooking power.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus, ETL
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
590.0lbs
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Top
(1) griddle
Base
cabinet(s)
Specifications
Spec Series Heavy Duty Range, gas, 36"W, griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, manual controls, open cabinet base, bottom shelf, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 90,000 BTU, 26kW, cETLus, ETL, NSF
