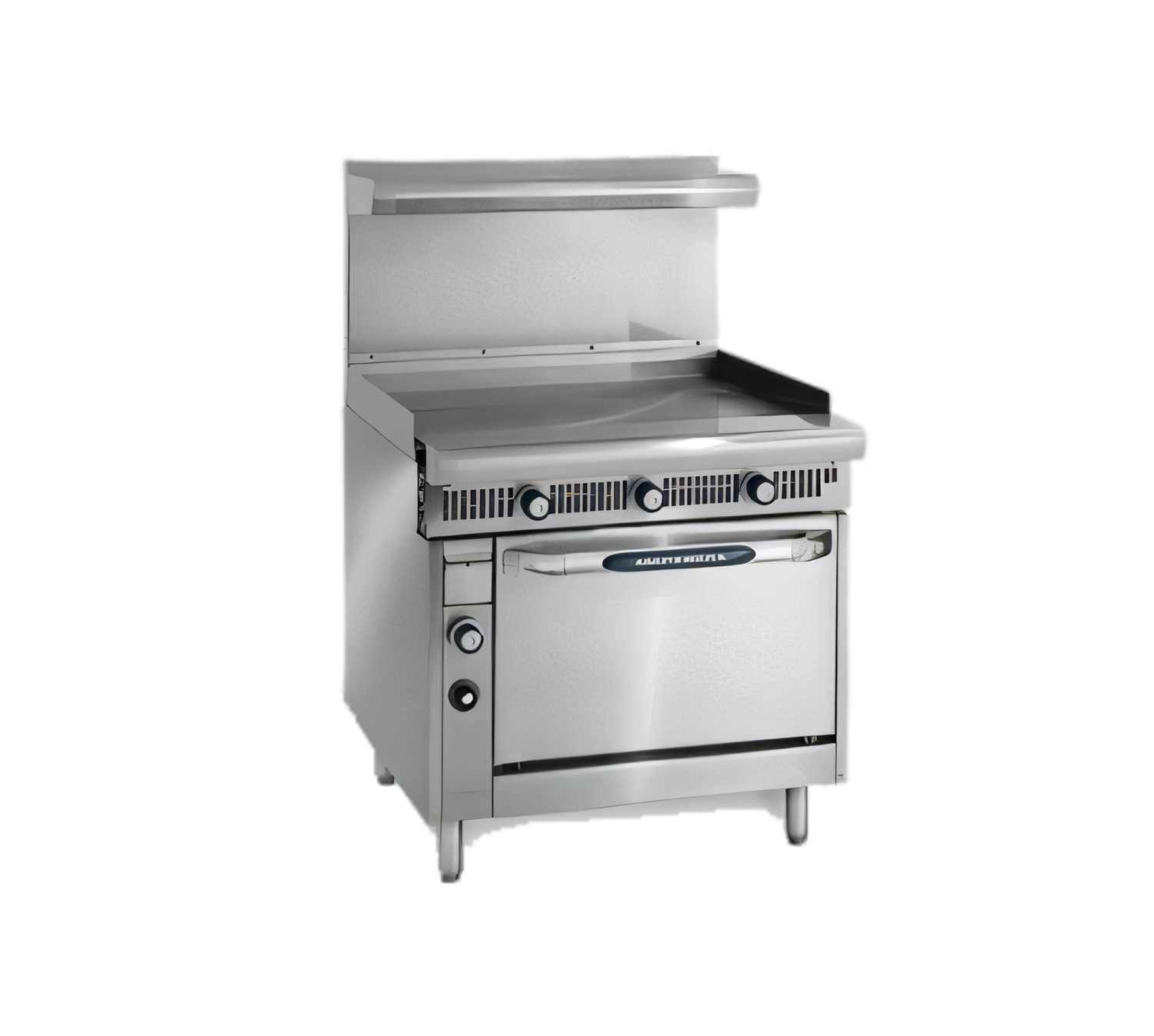

Imperial Spec Series 36" Gas Griddle-Top Range with Convection Oven – 125,000 BTU
Model IHR-GT36-C | Manual ControlsBuilt for the punishing pace of today’s commercial kitchens, the Imperial Spec Series IHR-GT36-C combines an ultra-thick griddle, high-efficiency convection baking and all-stainless construction in one 36-inch footprint. Four powerful “U” burners deliver instant, even heat across a 1" polished steel plate, while a ½ HP forced-air oven bakes, roasts and finishes with exceptional uniformity.

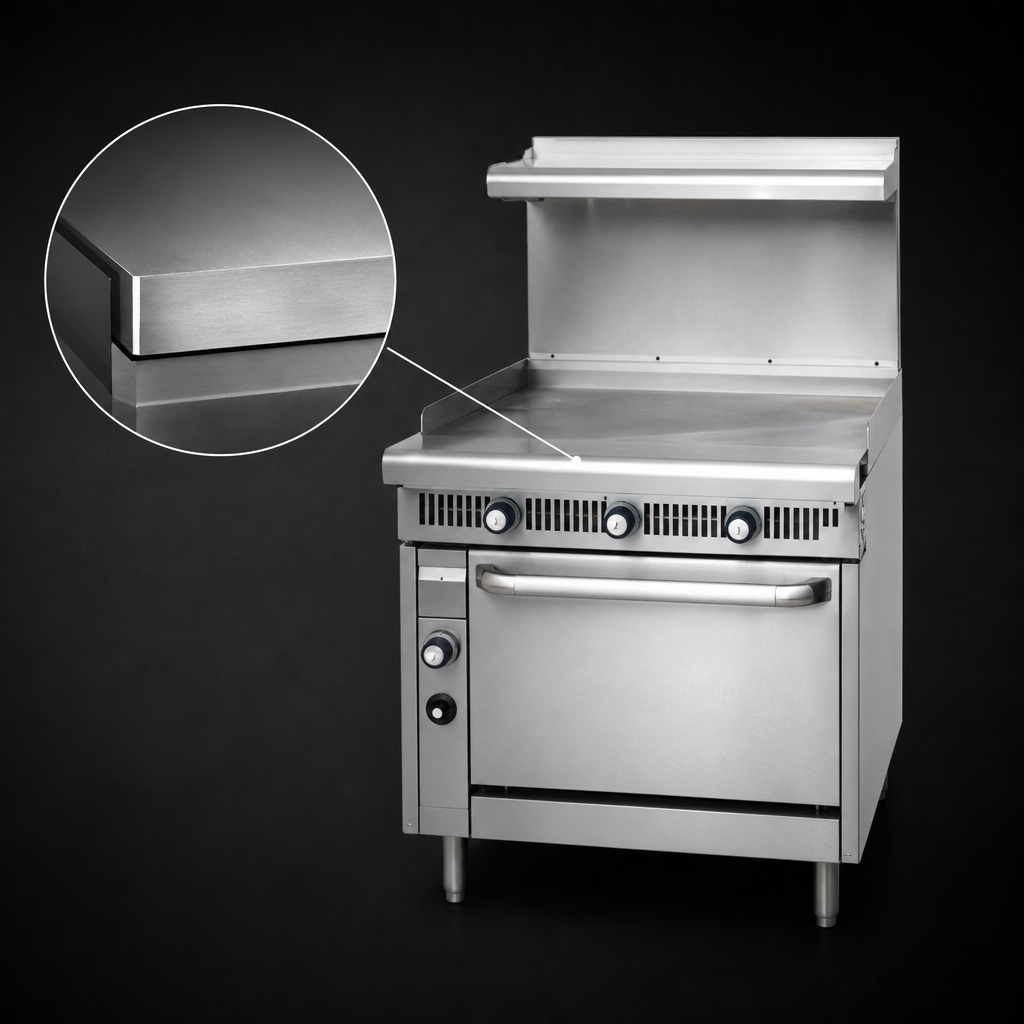

Why chefs choose the Spec Series- 1" (25 mm) polished steel griddle plate rapidly recovers after every load and resists warping.
- Four independent 30,000 BTU “U” burners (one every 12") for precise zone control.

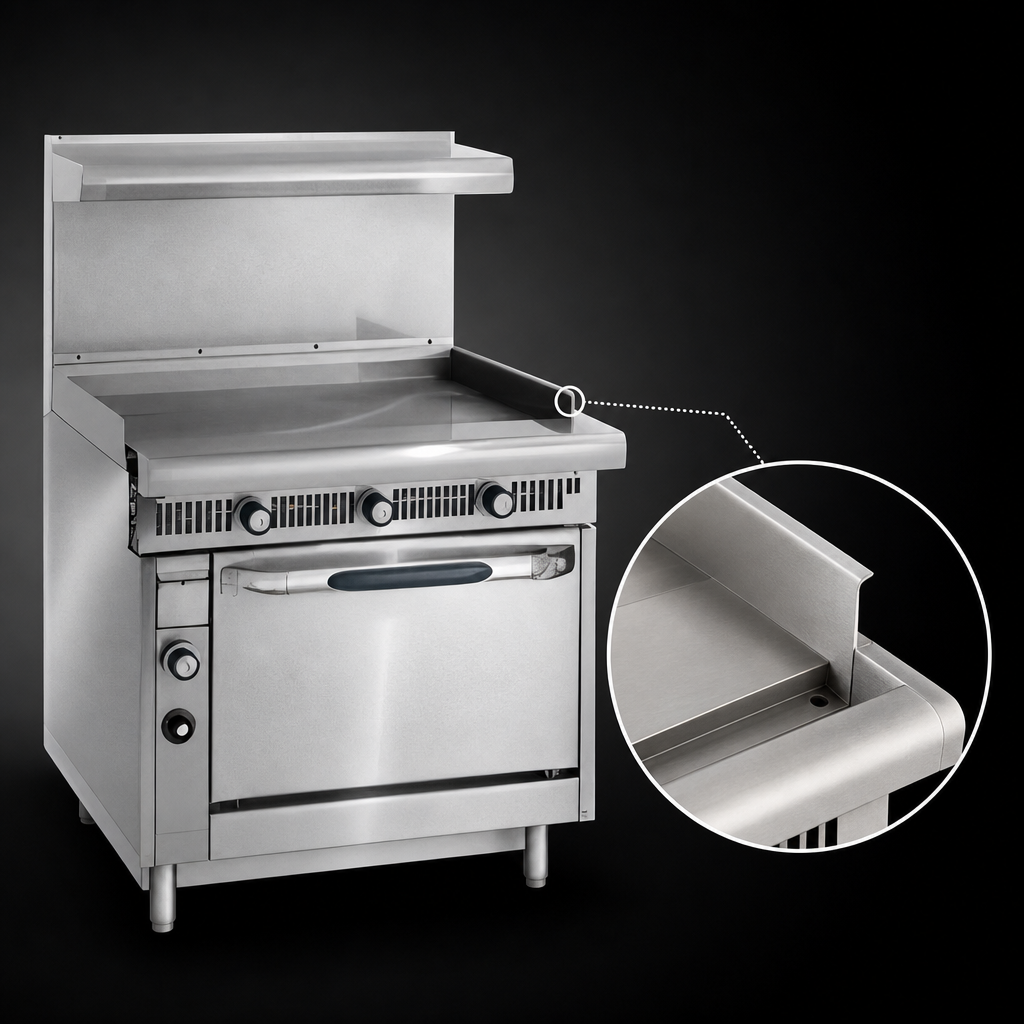

- 4" (102 mm) wide grease gutter feeds a 1 gal (3.8 L) removable can for fast, safe clean-up.
- 35,000 BTU convection oven with ½ HP blower circulates hot air for even cooking and reduced shrinkage.
- Three chrome oven racks with three slide positions handle full-size 18 " × 26 " pans front-to-back or side-to-side.
- 5" stainless landing ledge, welded radius front corners and enclosed 1-¼" manifold for a seamless, professional look.
- Stainless steel front, sides, backguard, kick plate and door liner for maximum durability and easy wipe-down.
- 6" (152 mm) heavy-duty legs with adjustable feet keep the range level on any surface.
- Cool-touch cast-aluminum control knobs and heavy-duty oven door hinge built to survive daily abuse.
- Certified cETLus, ETL Sanitation (NSF) and backed by a 1-year parts & labor warranty.
- Total gas input: 125,000 BTU | 37 kW
- Manifold pressure: 5.0" W.C. Natural / 10.0" W.C. Propane
- Electrical: 120 V, 1-Phase, 6.0 A (oven blower & ignition)
- Field convertible for natural or LP gas – ¾" NPT rear connection
| Exterior width | 36" / 914 mm |
|---|---|
| Overall depth (to landing ledge) | 38" / 965 mm |
| Cooking height | 36" / 914 mm to cooktop surface |
| Griddle dimensions | 36" W × 24" D (914 × 610 mm) |
| Griddle plate thickness | 1" (25 mm) polished steel |
| Oven interior (W × D × H) | 26 ½" × 22 ½" × 14" (673 × 572 × 356 mm) |
| Oven fan motor | ½ HP, 1725 RPM |
| Included oven racks | 3 chrome-plated, removable |
| Total gas input | 125,000 BTU/hr (37 kW) |
| Electrical requirement | 120 V, 60 Hz, 1 PH, 6.0 A (cord & plug supplied) |
| Certifications | cETLus, ETL, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Manufactured in Corona, California — Imperial reserves the right to improve products without notice.
Installation Notice: This equipment is intended for commercial use only and must be installed,
adjusted and serviced by qualified personnel in accordance with local codes. A ventilation hood,
proper gas regulator and electrical connection are required (not included).
$15,700.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G36-C 36" heavy-duty gas range with 1" griddle, convection oven, 125,000 BTU, stainless steel, NSF-certified for commercial kitchens.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus, ETL
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
820.0lbs
Base
(1) convection oven
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Top
(1) griddle
Specifications
Spec Series Heavy Duty Range, gas, 36"W, griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, convection oven, 1/2 HP blower motor, (3) chrome racks, manual controls, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 125,000 BTU, 37kW, 120v/60, 6.0 amps, cETLus, ETL, NSF
