Imperial (Middleby) IHR-G24-M Spec Series Gas Ranges
Description

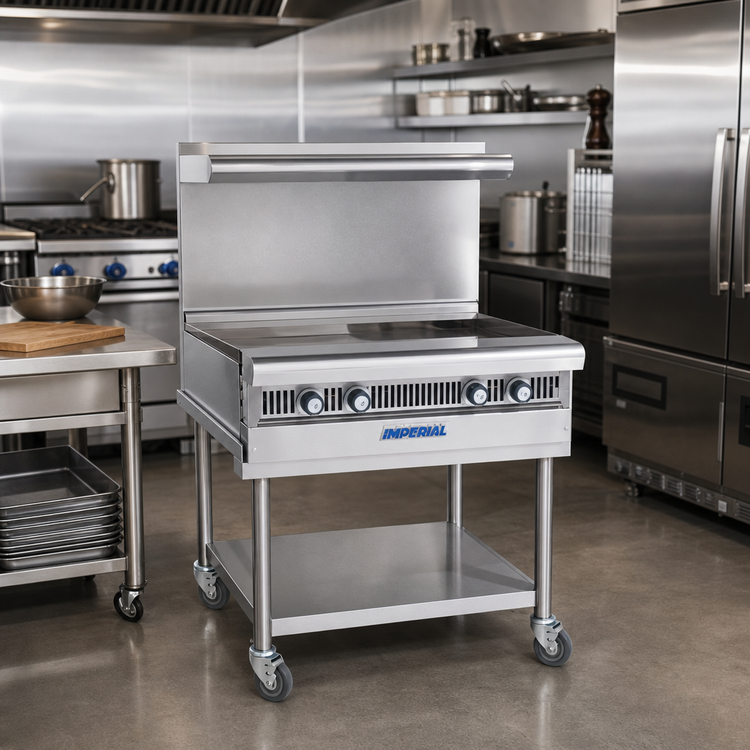

Imperial Spec Series 24" Add-A-Unit Modular Gas Griddle Top
Model IHR-G24-M | 60,000 BTU (18 kW) • cETLus • NSFGive your cook line the flexibility of a countertop unit with the power and durability of a full-size range. The Imperial Spec Series IHR-G24-M delivers a whopping 60,000 BTU across a highly-polished 24-inch griddle plate, making it the perfect “add-on” for short-order stations, à-la-carte kitchens, stadium suites, concessions, and anywhere you need extra searing or finishing capacity without giving up floor space.
Key advantages

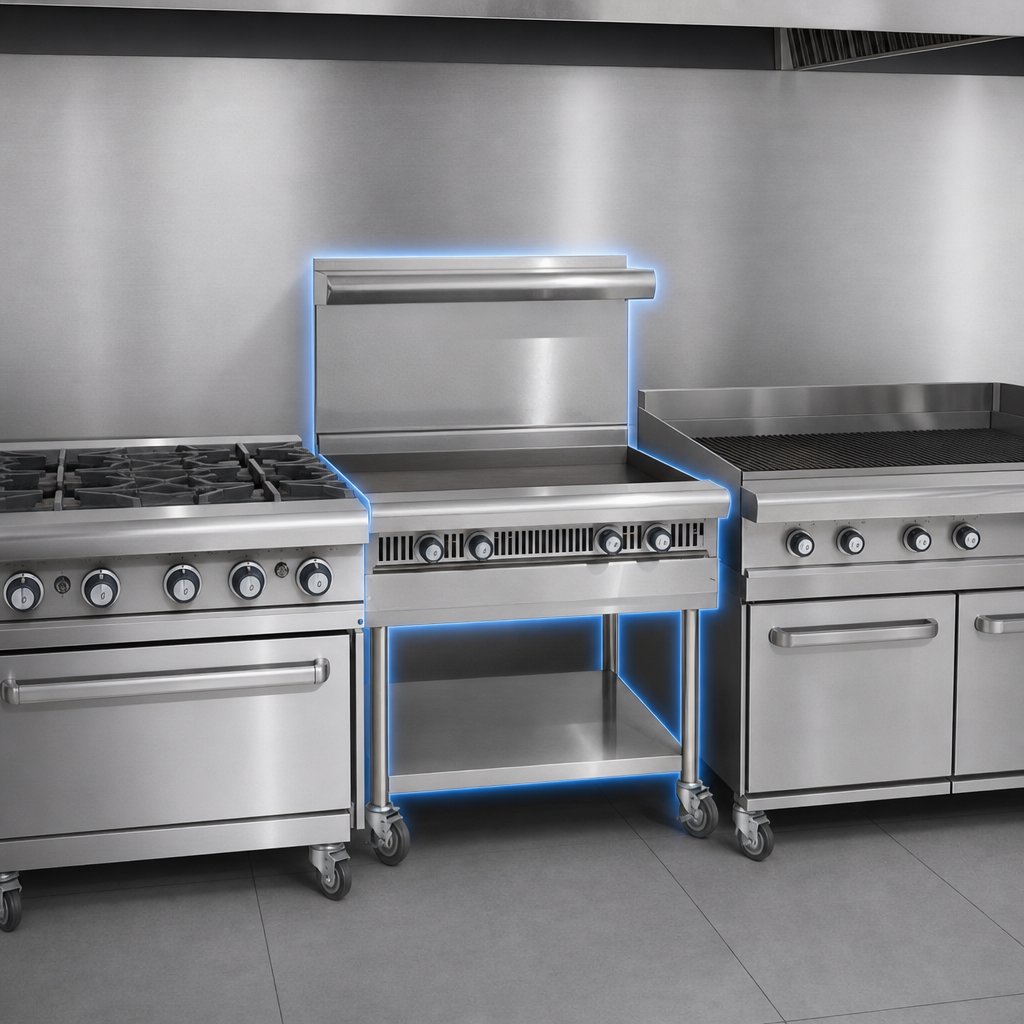

- Modular “Add-A-Unit” design integrates seamlessly with other Imperial Spec Series equipment for a continuous cook surface.
- Two 30,000 BTU U-shaped burners (one every 12") provide even heat distribution and rapid recovery.
- Manual individual controls for pinpoint surface management and maximum operator feel.
- 4" (102 mm) wide grease gutter feeds a 1-gallon (3.8 L) removable grease can for cleaner, safer operation.
- Full-width removable crumb tray speeds daily clean-up.
- 7" (178 mm) deep landing ledge and 6" (152 mm) stainless backguard protect surrounding equipment and walls.
- Stainless-steel front, sides, ledge and backguard stand up to the toughest kitchen environments.
- Large, cast-aluminum control knobs stay cool to the touch and resist kitchen abuse.
- Rear ¾" NPT gas connection—factory-set for Natural Gas, convertible to Propane (5.0" / 10.0" W.C. manifold).
- Meets NSF sanitation standards and is cETLus certified for gas safety.
Technical specifications
| Model | IHR-G24-M |
|---|---|
| Unit type | Countertop / Modular Add-A-Unit Gas Griddle |

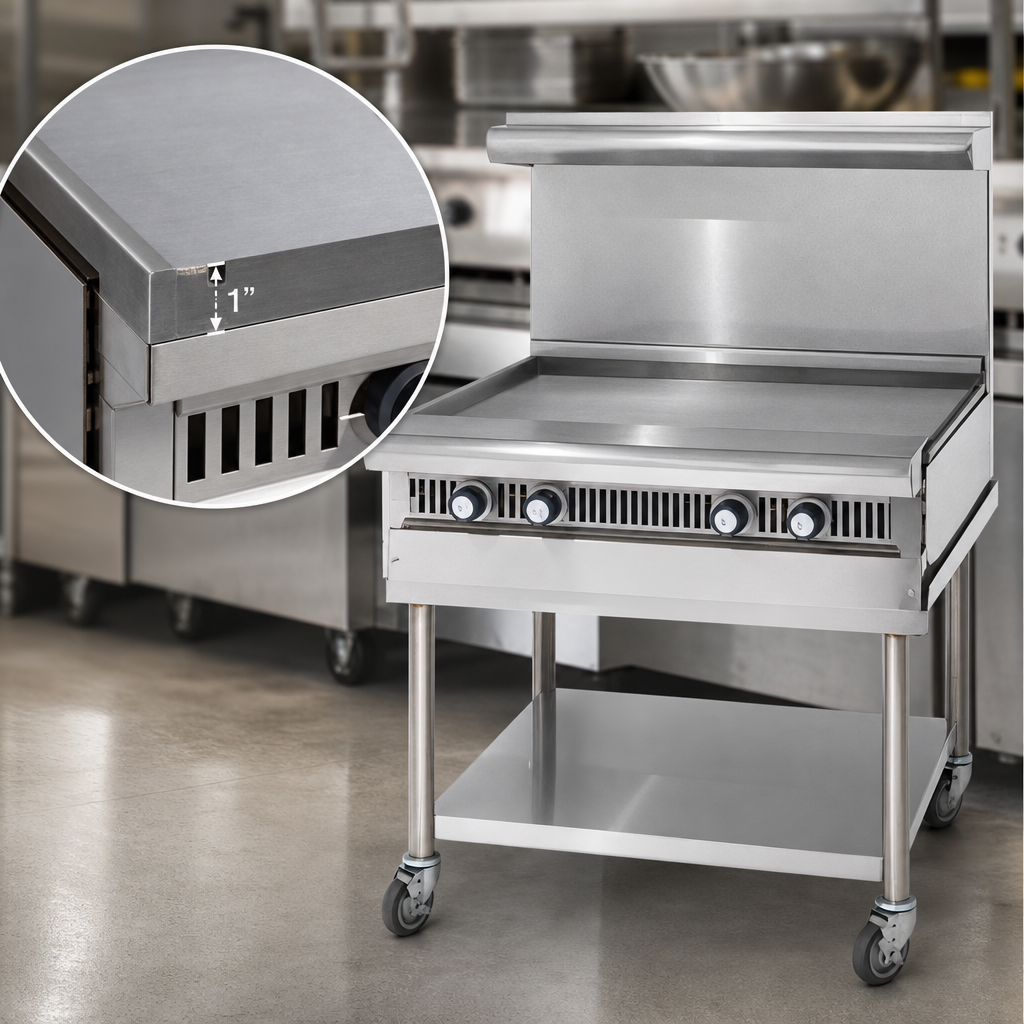

| Cook surface | 24" W (610 mm) highly-polished steel plate |
| Overall dimensions (WxDxH) | 24" × 38" × 11" (610 × 965 × 279 mm) |
| Total BTU / kW | 60,000 BTU/h (18 kW) |
| Burners / Controls | 2 U-shaped burners • 2 manual infinite valves |
| Grease management | 4" gutter with 1-gal (3.8 L) can + full-width crumb tray |
| Gas connection | ¾" NPT (rear, right-hand) • 5.0" W.C. NG / 10.0" W.C. LP |
| Shipping weight | Approx. 305 lb (138 kg) |
| Approvals | cETLus, NSF |
| Warranty | One-year parts & labor (standard Imperial warranty) |
Installation & options
- 0" clearance required to non-combustible surfaces; maintain 6" (152 mm) to combustibles.
- Optional heavy-duty stainless stands or refrigerated chef bases (36" & 72" widths) allow flexible mounting.
- Joiner kits available to create battery lines up to 600,000 BTU (176 kW).
- 6" (152 mm) seismic legs or casters for mobile applications.
Need an easy way to budget your purchase? Ask us about Middleby Equipment Financing to turn a one-time investment into manageable monthly payments.
