Imperial Spec Series 36" Gas Range – 24" Griddle & 2 Open Burners, Cabinet Base
Model IHR-G24-2-XBOne powerhouse, three cooking zones. Imperial’s Spec Series 36" range delivers a full-size 24" griddle plus two 40,000 BTU open burners, all wrapped in rugged stainless steel with an open cabinet base for at-hand storage. From breakfast service to late-night sauté, this workhorse keeps pace with the busiest commercial kitchens.
Why You’ll Love It
- 140,000 BTU total output – rapid recovery and high-heat searing when you need it most.

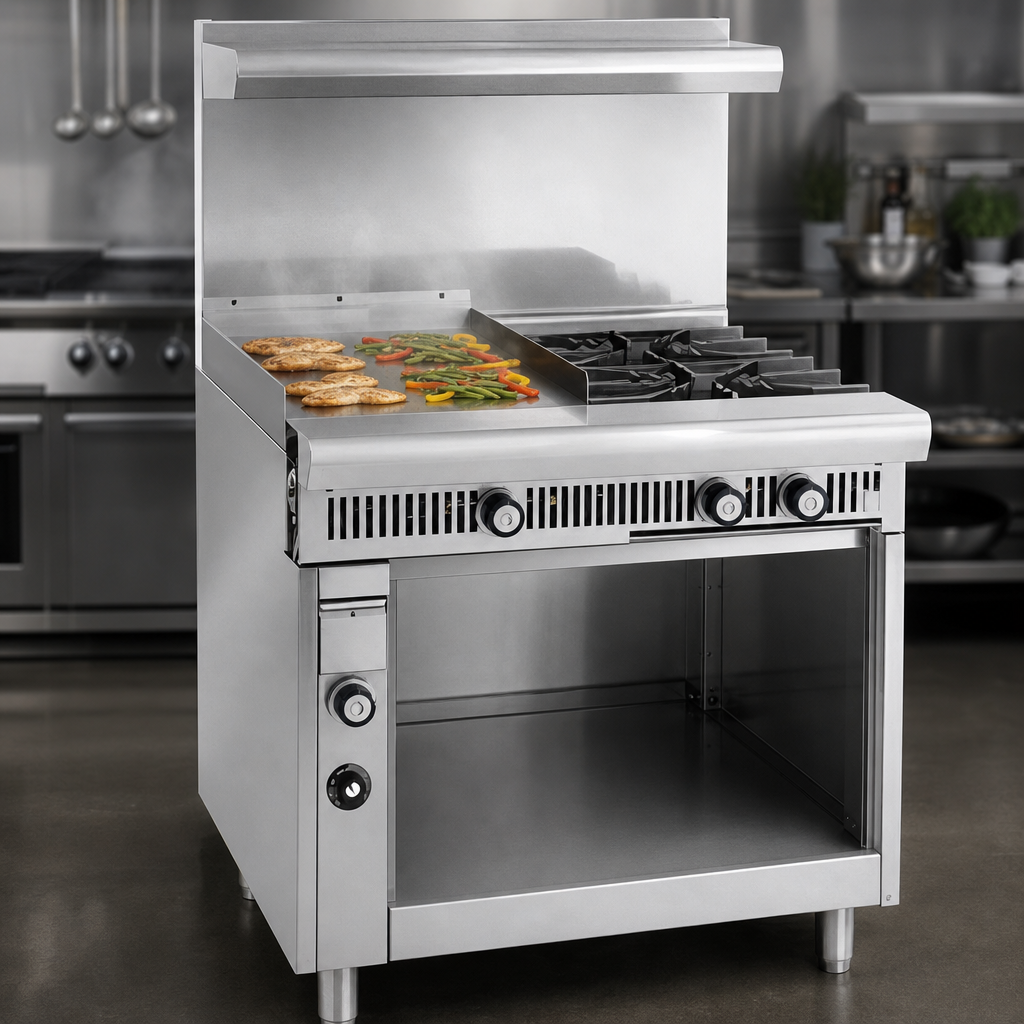

- 24" wide, 1" thick polished steel griddle heated by dual 30,000 BTU “U”-shaped burners for edge-to-edge evenness.

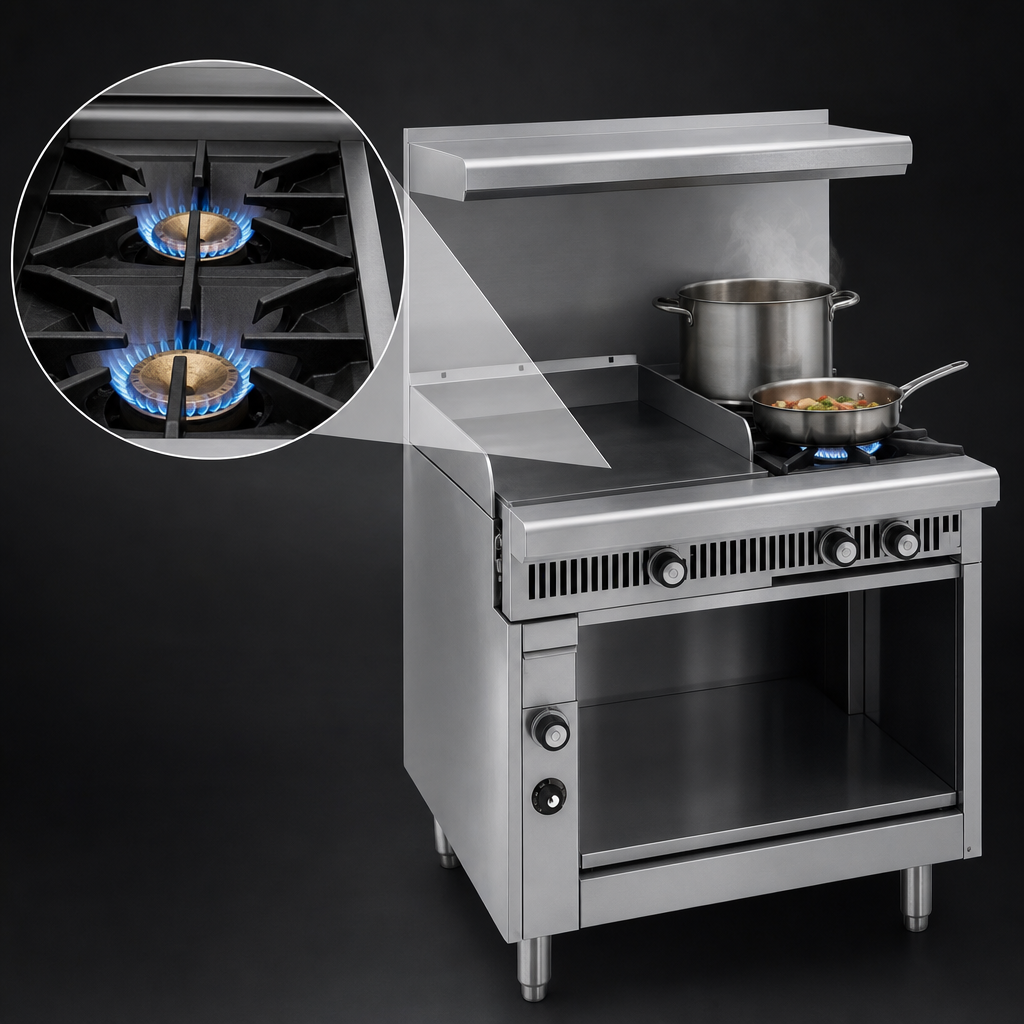

- (2) 40,000 BTU anti-clog “M” shaped open burners with low 7,000 BTU simmer setting.
- Removable cast-iron “S” grates raise pans above the flame for superior heat transfer and pilot protection.
- 4" wide grease gutter flows to a 1-gal can; full-width crumb tray pulls out for quick clean-up.
- All-stainless front, sides, 5" landing ledge, backguard & kick plate resist daily wear and tear.

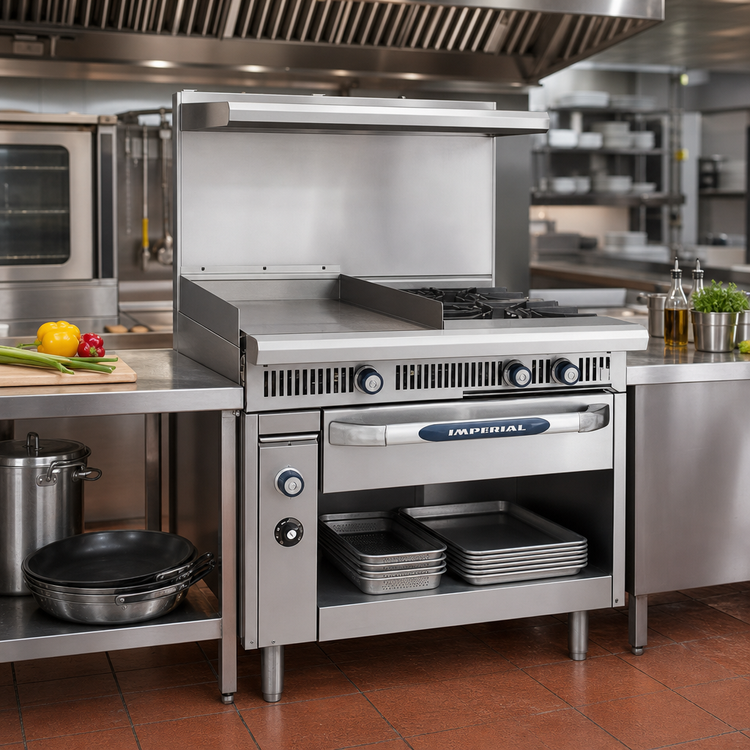

- Open cabinet base with bottom shelf keeps sheet pans, stock pots or hotel pans within reach.
- 6" heavy-duty legs with adjustable feet simplify leveling on uneven floors.
Built for High-Volume Kitchens
- Manual burner & griddle controls give chefs instant heat adjustment without thermostatic lag.
- Welded, polished seams enhance durability and simplify wipe-downs.
- Cool-touch, cast-aluminum knobs stand up to repeated, high-temp use.
- 0" clearance required from non-combustible surfaces (8" from combustible) – ideal for line-ups.
Certifications & Warranty
- cETLus & ETL Sanitation (NSF) approved for commercial use.
- Covered by Imperial’s 1-year parts & labor warranty, serviced by an authorized network.
Technical Specifications
| Model | IHR-G24-2-XB |
|---|---|
| Overall Width | 36" / 914 mm |
| Depth (front-to-back) | 38" / 965 mm |
| Height to Cooktop | 36" / 914 mm |
| Griddle Plate | 24" W × 24" D, 1" thick polished steel |
| Open Burners | (2) 40,000 BTU cast-iron burners, 12" × 14" grates |
| Total Input | 140,000 BTU / 41 kW |
| Gas Connection | 3/4" NPT rear, 5.0" W.C. NG / 10.0" W.C. LP |
| Base Type | Open cabinet with stainless shelf |
| Legs | 6" stainless, adjustable |
| Shipping Weight | 626 lb / 284 kg |
| Approvals | cETLus, ETL (NSF) |
| Warranty | 1-year parts & labor |
Image may show optional accessories. Specifications subject to change without notice.
$8,252.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G24-2-XB 36" heavy-duty gas range: 2 burners + 24" 1" griddle, 140k BTU, stainless steel, open cabinet, NSF/ETL certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus, ETL
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
626.0lbs
Base
cabinet(s)
Plate Thickness
1.000" = 1"
Top
(2) open burners, (1) 24" griddle
Exterior Finish
stainless steel front
Specifications
Spec Series Heavy Duty Range, gas, 36"W, (2) open burners, cast iron "S" grates (standard), (1) 24"W griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, manual controls, open cabinet base, bottom shelf, removable crumb tray, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 140,000 BTU, 41kW, cETLus, ETL, NSF
