Imperial (Middleby) IHR-G24-2 Spec Series Gas Ranges
Description

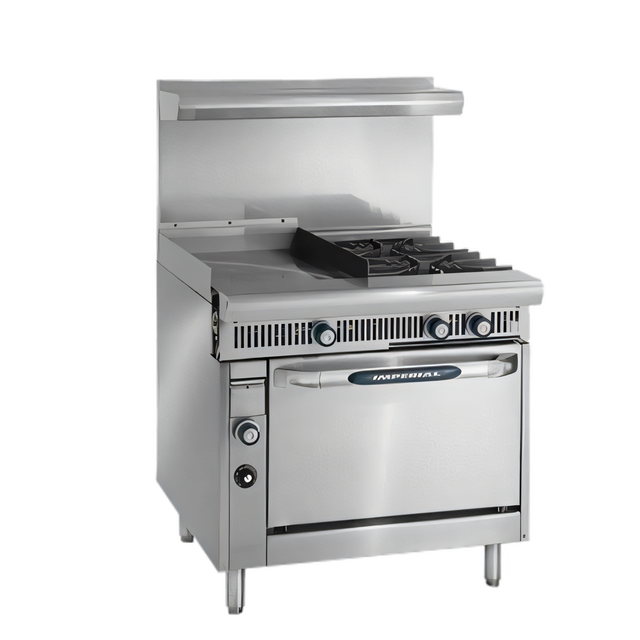

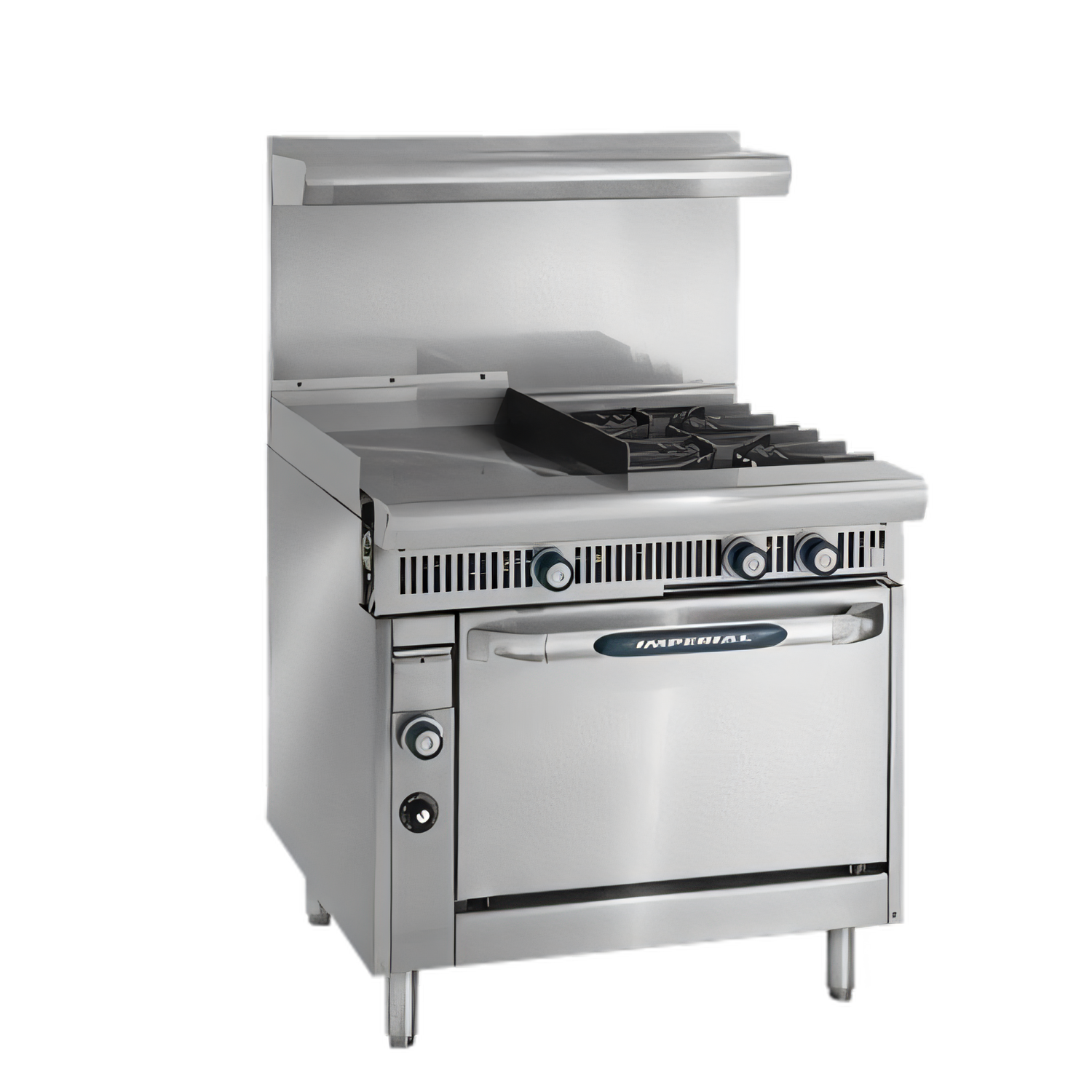

Imperial Spec Series™ 36" Gas Range
IHR-G24-2
24" Griddle • 2 Open Burners • Standard Oven • 180,000 BTU
Engineered for kitchens that refuse to compromise, Imperial’s Spec Series IHR-G24-2 combines a highly-polished, 1" thick steel griddle, two powerful open burners, and a full-size oven in one rugged 36" footprint. Heavy-duty stainless construction, tool-free cleanup features, and industry-leading burner technology deliver the speed, consistency, and durability busy food-service operations demand.
Why you’ll love it

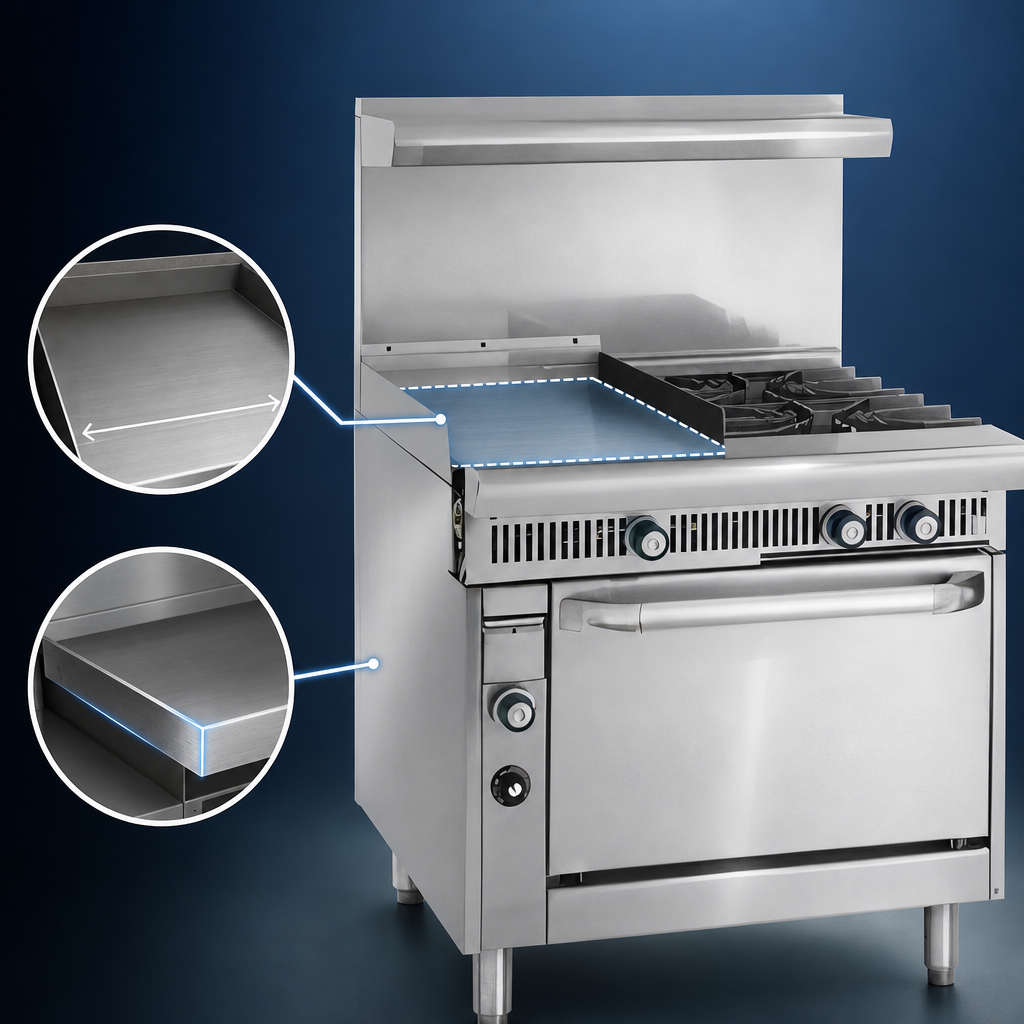

- 24" Griddle Top – 1" (25 mm) thick polished steel plate ensures even heat distribution and fast recovery.

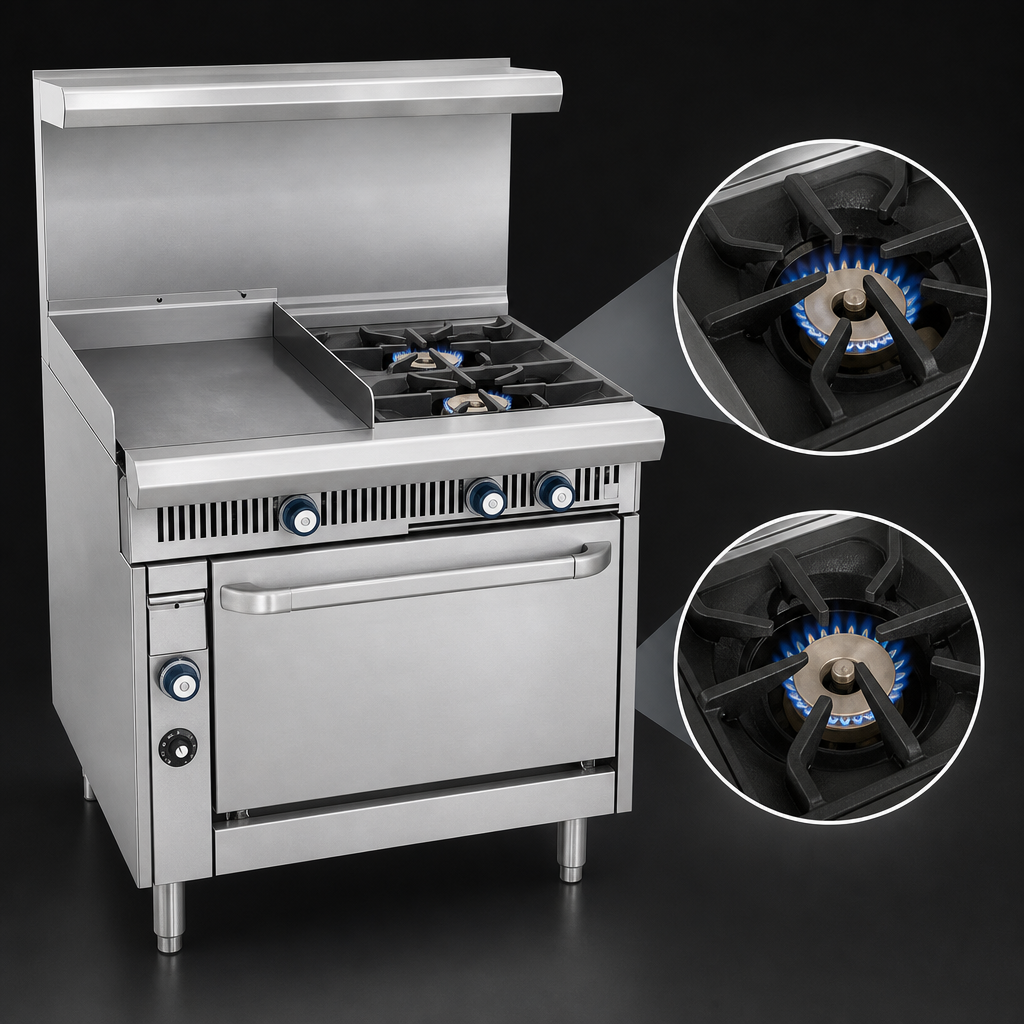

- Two 35,000 BTU Open Burners – Cast-iron “S” grates lift cookware above the flame for superior heat transfer and easy slide-across movement.
- Grease Management Made Easy – 4" (102 mm) wide gutter funnels into a 1-gallon can for fewer trips to the sink.
- Standard Chef-Depth Oven – 40,000 BTU burner, heat deflector, and baffled design provide even baking on full-size sheet pans (left-to-right or front-to-back).
- All-Manual Controls – Simple, snap-action valves give you instant flame adjustment without electronic components.
- Built for Abuse – Welded stainless front, sides, 5" landing ledge, backguard, and kick plate withstand daily impacts and chemical wash-downs.
- Fast Daily Cleanup – Lift-off grates, removable crumb tray, and porcelainized oven interior cut turn-down time.
- Field-Adjustable 6" Legs – Level the range on any non-combustible floor; 0" clearance sides & rear to non-combustibles.
Technical specifications
| Model | IHR-G24-2 |
|---|---|
| Overall width | 36" (914 mm) |
| Cooking surface | 24" griddle + two 12" open burners |
| Total input | 180,000 BTU / 53 kW |
| Open burners | 2 × 35,000 BTU cast-iron “S” burners (7,000 BTU low simmer) |
| Griddle burners | “U” shaped, 30,000 BTU each, spaced every 12" |
| Griddle plate | 1" thick polished steel |
| Oven | Standard (chef depth) – 40,000 BTU, 26½" W × 26" D × 14" H Includes 1 chrome rack, 3 rack positions |
| Gas connection | 3⁄4" NPT rear; Natural gas 5" W.C. / LP 10" W.C. |
| Construction | Stainless front, sides, backguard & kick plate; cast-aluminum knobs with heat-protection grips |
| Adjustable legs | 6" heavy-duty stainless with feet |
| Certifications | cETLus, ETL-Sanitation, NSF |
| Warranty | 1-year parts & labor, factory authorized service |
Installation notes
- For use on non-combustible floors; 0" sides/rear clearance to non-combustibles.
- Allow 8" (203 mm) clearance from combustible surfaces.
- Regulator & gas shut-off valve (3⁄4" NPT) required – installer supplied.
Shown with optional accessories. Always verify utility requirements & local code compliance prior to installation.
