Imperial (Middleby) IHR-G24-2-M Spec Series Gas Ranges

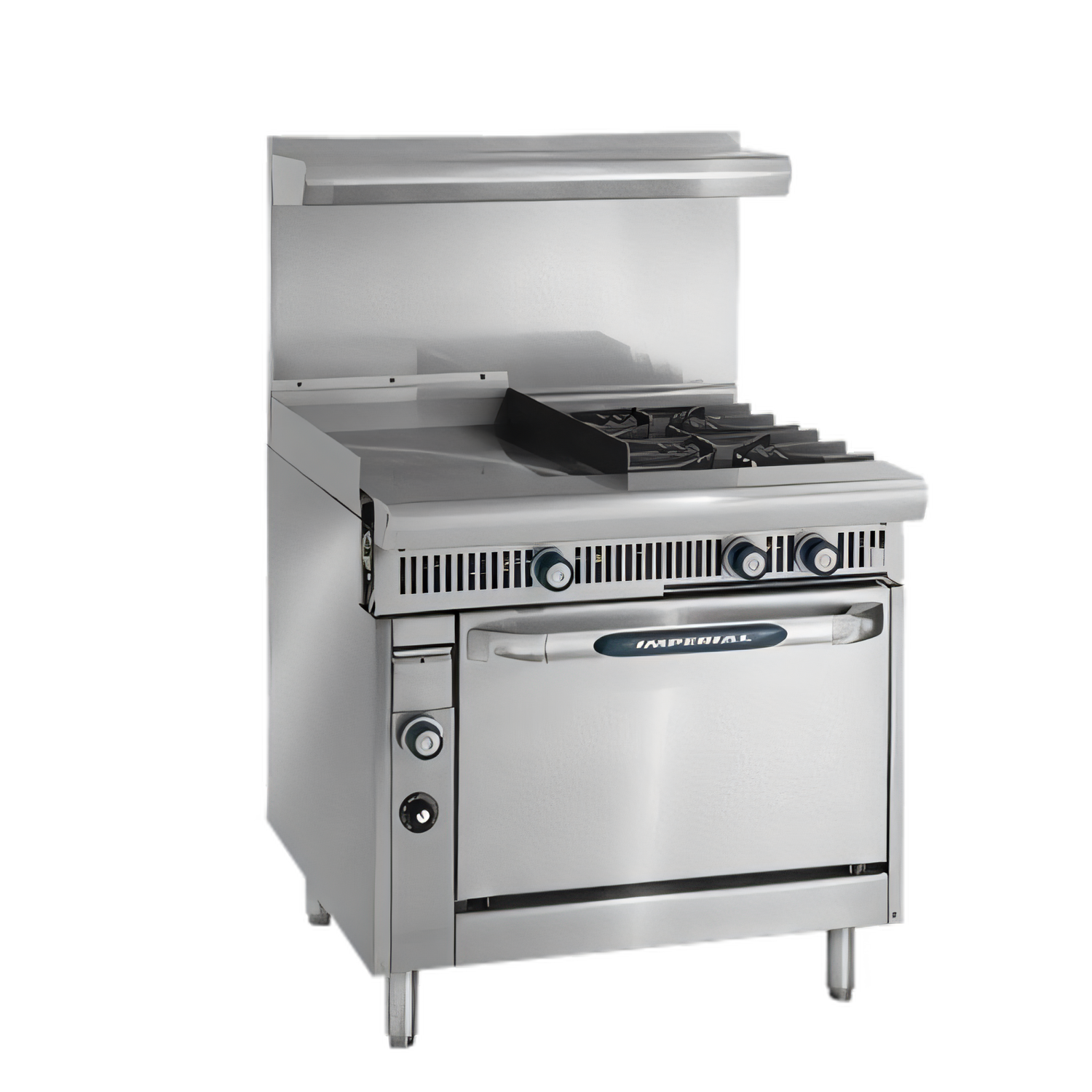

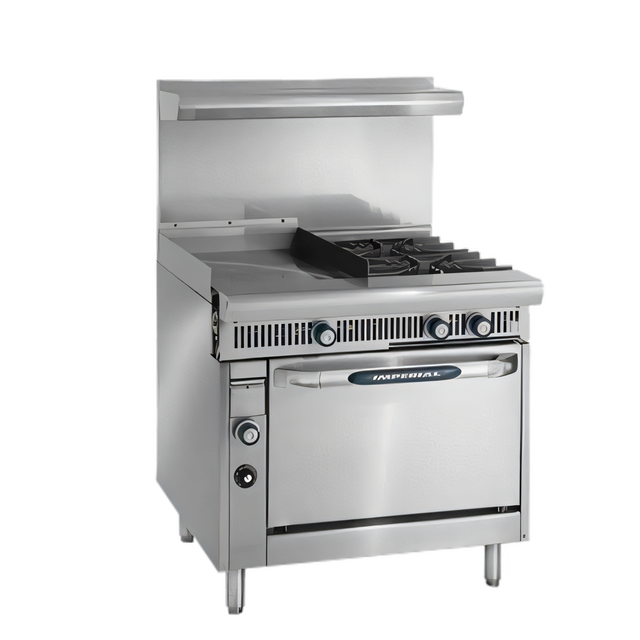

Imperial Spec Series™ 36" Modular Gas Range Top – 24" Griddle & 2 Open Burners

Bring multi-zone cooking performance to your cook-line without sacrificing space. The Imperial Spec Series modular range top pairs a full-size 24" heavy-duty griddle with two powerful open burners, giving chefs the freedom to sear, sauté, boil, and grill on a single 36" footprint.

Why You’ll Love It

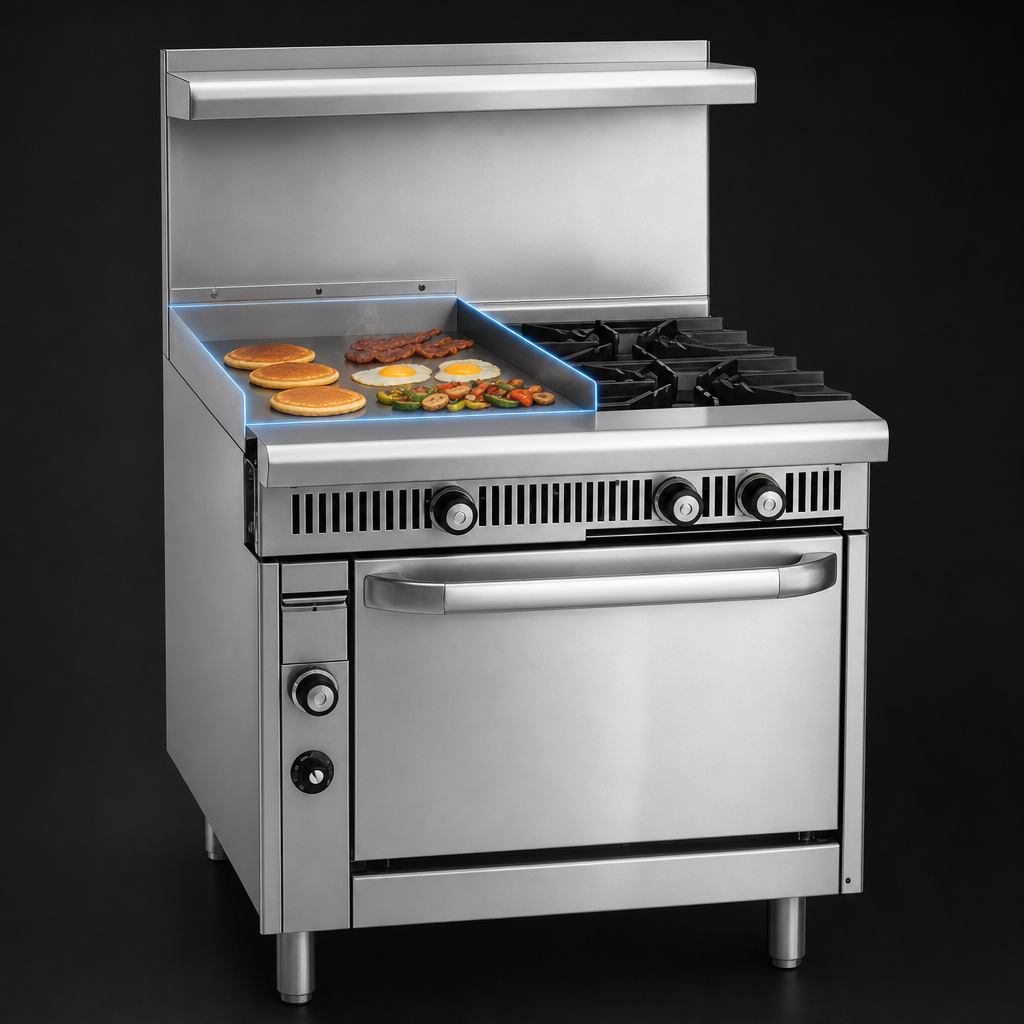

• Built-in versatility – 24" (610 mm) griddle + two 40,000 BTU open burners share one seamless chassis.
• 1" thick polished steel plate delivers even heat and lightning-fast recovery for consistent browning and caramelization.
• Cast-iron “S” grates raise pans above the flame to maximize heat transfer and let you slide stock pots from one burner to the next.
• 4" wide front trough & 1 gal grease can keep your workspace clean and make end-of-shift disposal a breeze.
• Manual independent controls for each burner and every 12" griddle zone put precise flame adjustment at your fingertips.
• All-stainless exterior—front, sides, 5" deep landing ledge, and backguard—stands up to daily commercial abuse and wipes down fast.
• Modular countertop design drops into any cook line and ships with 6" adjustable legs for perfect leveling.
• cETLus & NSF listed for gas safety and sanitation compliance in the USA & Canada.

Power & Performance

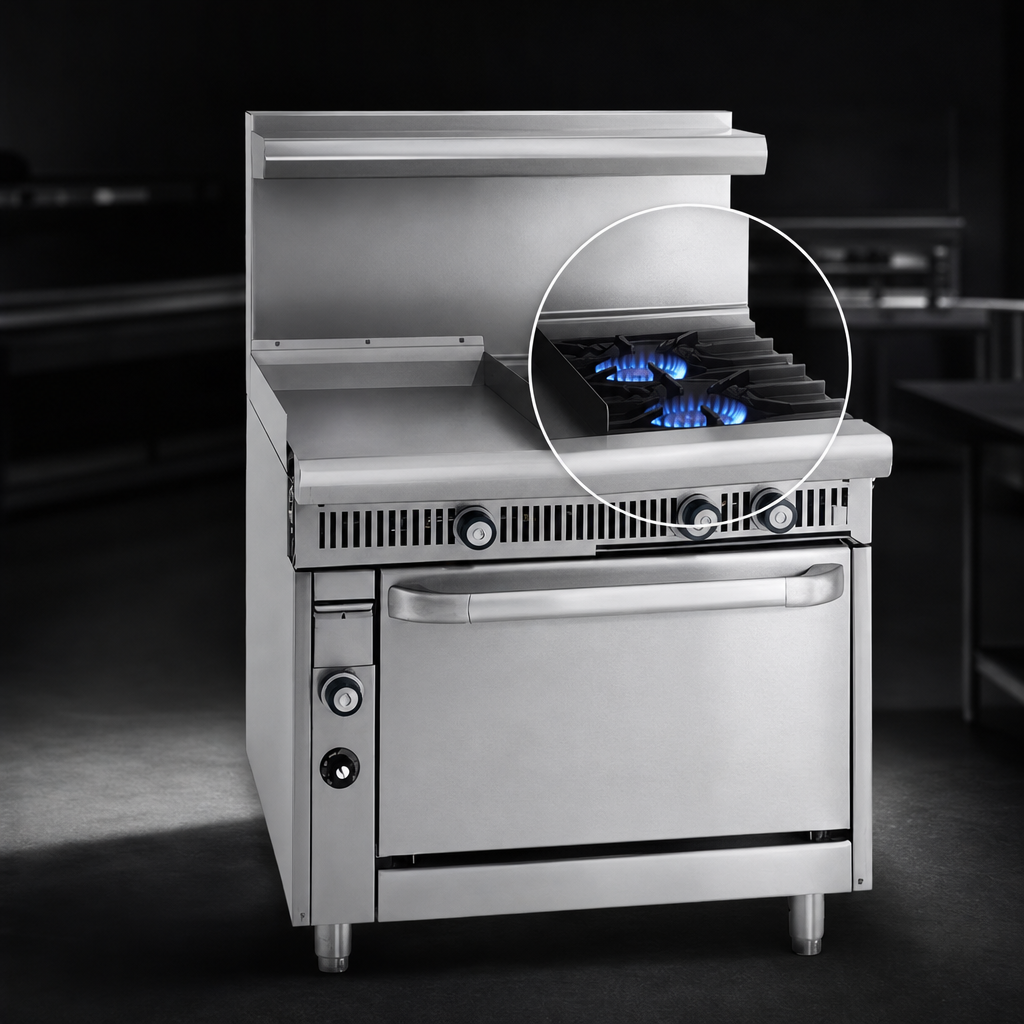

• Two open burners: 40,000 BTU/hr each, anti-clog cast-iron with 7,000 BTU simmer capability.
• Griddle section: two U-shaped burners (30,000 BTU/hr every 12") heat the plate edge-to-edge.
• Total input: 140,000 BTU/hr (41 kW) for high-volume production.
• Manifold pressure: 5" W.C. Natural Gas / 10" W.C. Propane.

Built to Last

• Fully welded & polished stainless seams resist corrosion and splatter.
• Durable cast-aluminum control knobs stay cool and are easy to replace.
• Removable crumb tray and lift-off grates/plate simplify daily cleaning.
• Field-convertible 3/4" NPT rear gas connection; 1-1/4" manifold available for battery systems up to 600,000 BTU.

Specifications

Optional accessories—stainless backguards, salamanders/cheesemelters, common landing ledges, wok rings, and casters—are available upon request.
