Imperial (Middleby) IHR-G24-2-C Spec Series Gas Ranges

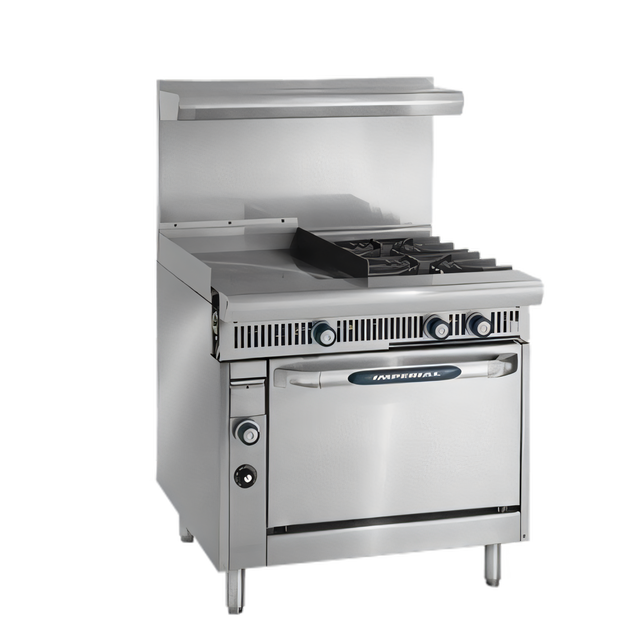

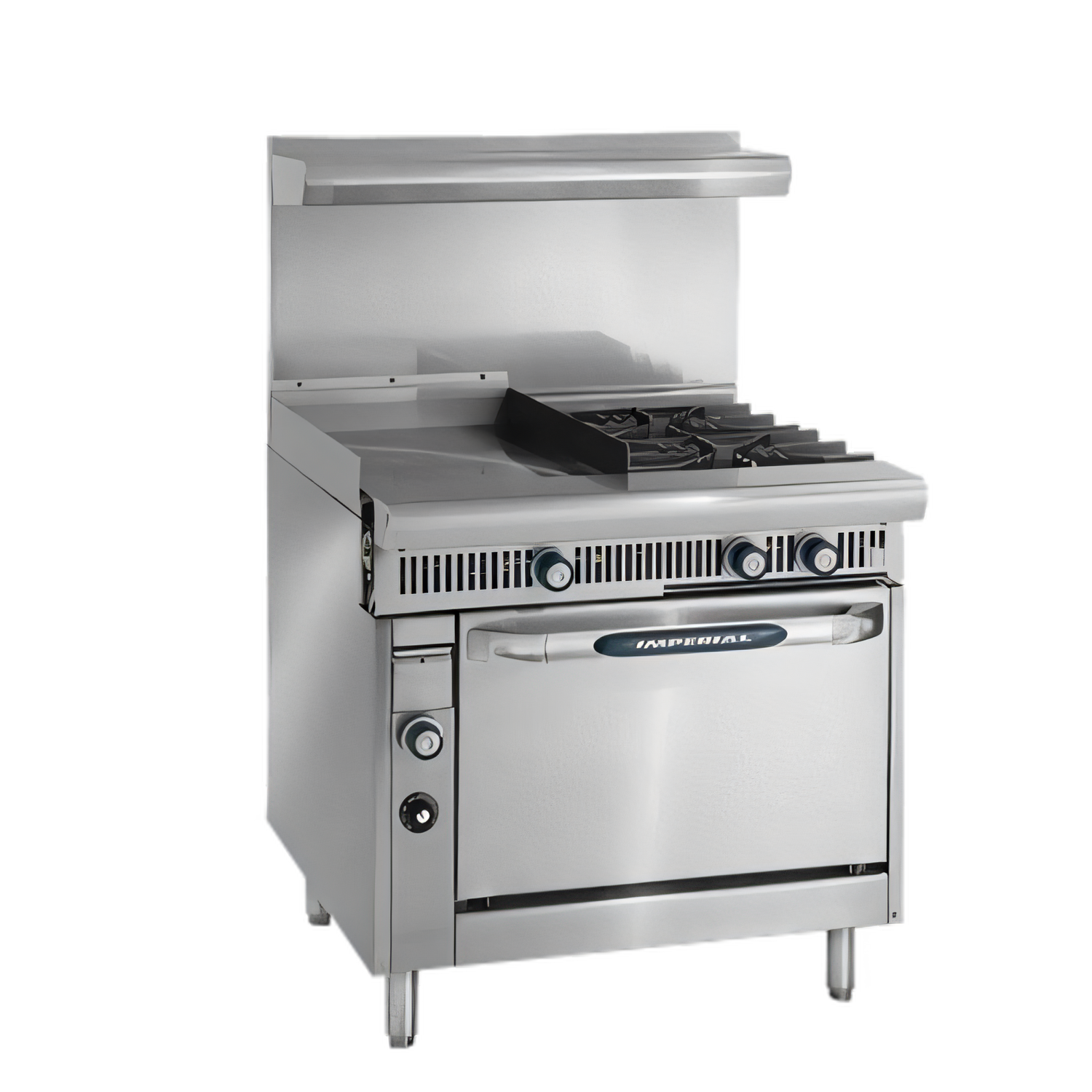

Imperial Spec Series 36" Gas Range w/ 24" Griddle & Convection Oven – IHR-G24-2-C

Created for high-volume kitchens that demand versatility and staying power, the Imperial Spec Series IHR-G24-2-C combines a 24-inch griddle, two heavy-duty open burners and a full-size convection oven in a compact 36-inch footprint. From breakfast rush to banquet service, this range delivers the consistent heat, rugged construction and easy clean-up professionals rely on shift after shift.

Top-side cooking power

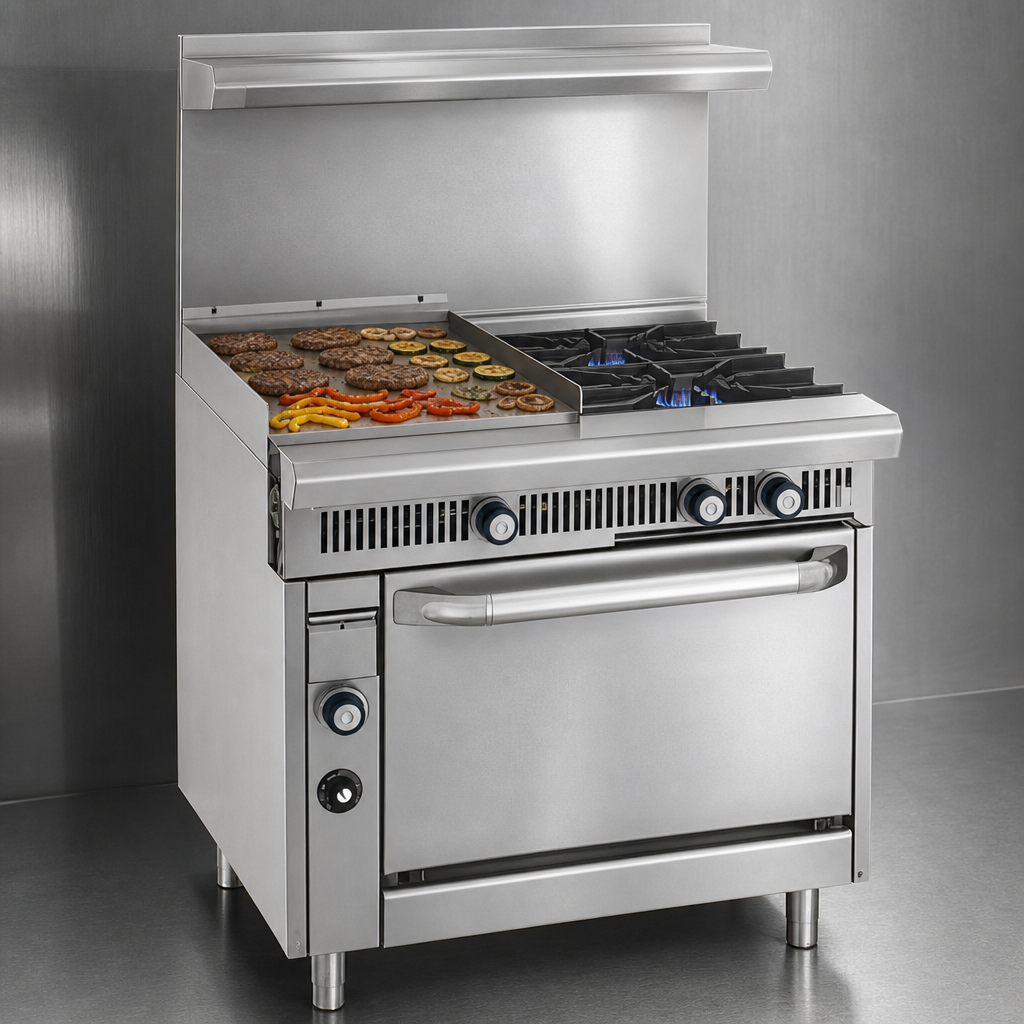

• 24" (610 mm) griddle heated by two 30,000 BTU “U”-shaped burners for even, edge-to-edge temperatures.

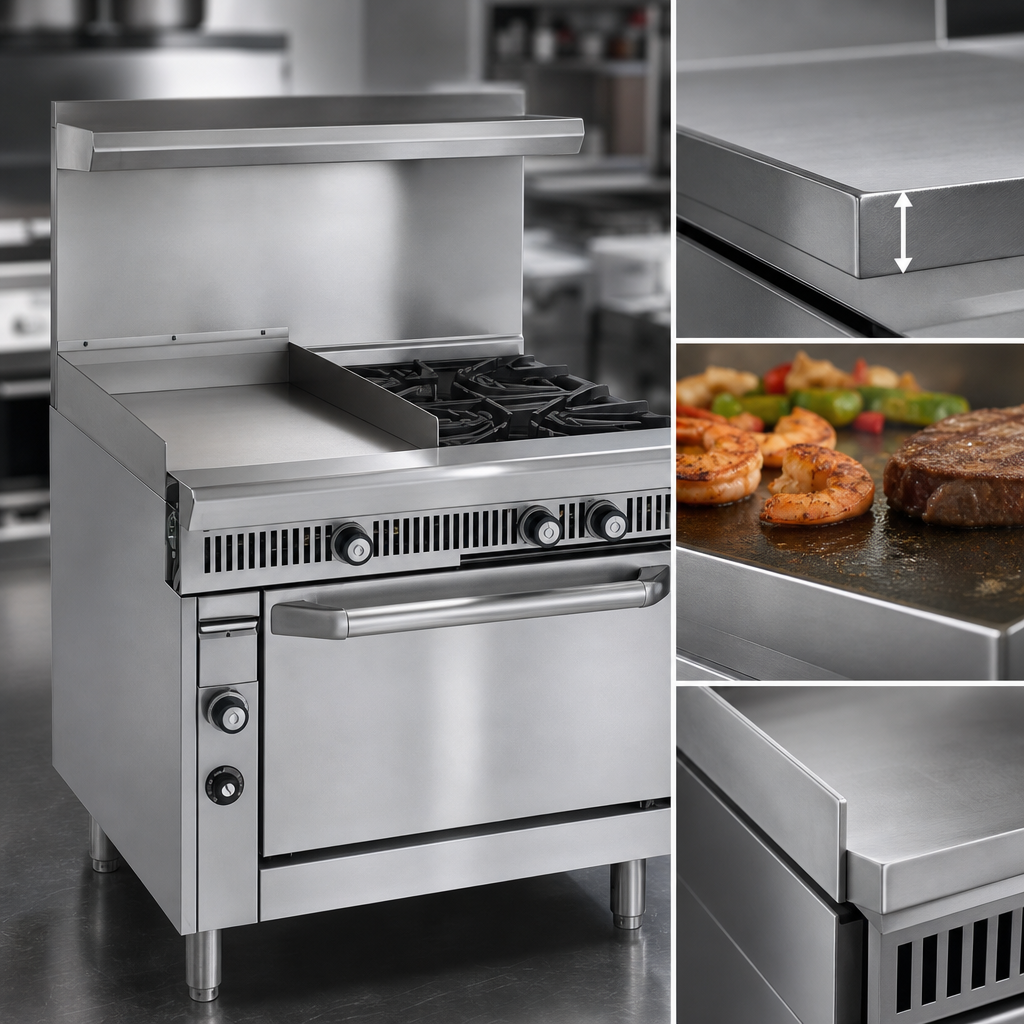

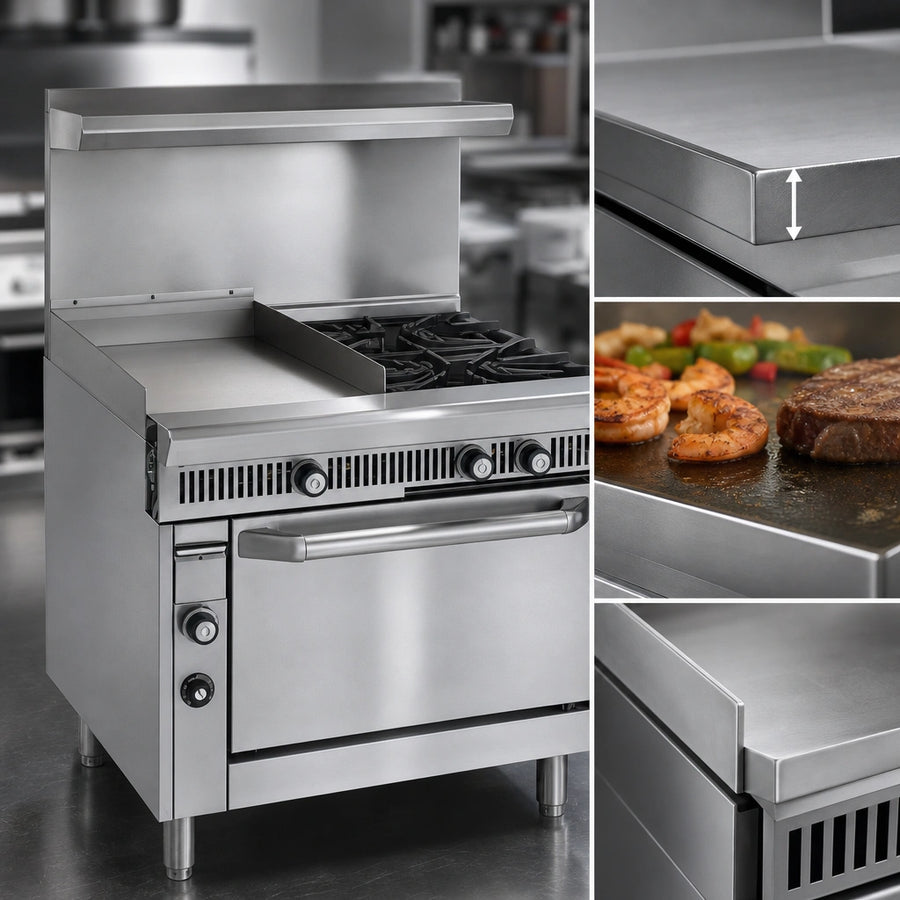

• 1" (25 mm) thick, highly polished steel plate maximizes heat retention and recovery.
• 4" grease gutter funnels run-off into a removable 1-gallon (3.8 L) can for mess-free clean-up.
• (2) 40,000 BTU cast-iron open burners with a 7,000 BTU low-simmer setting handle everything from searing to gentle sauces.
• Anti-clog cast-iron “S” grates raise cookware for superior flame contact and slide easily from burner to burner.
• Full-width removable crumb tray speeds end-of-day cleaning.

High-performance convection oven

• 35,000 BTU burner paired with a ½ HP blower motor cooks faster and more evenly with less shrinkage.
• Chef-depth cavity (26 ½" W × 22 ½" D × 14" H) fits full-size 18" × 26" sheet pans front-to-back or side-to-side.
• Porcelainized interior wipes clean; stainless-steel door gasket resists wear.
• (3) chrome racks included; multiple rack guides maximize capacity.
• Electronic ignition, one-hour timer and burner “ON” indicator simplify operation.
• Fan stops automatically when the door opens for operator safety.

Built for the rigors of the line

• All-stainless front, sides, backguard, 5"-deep landing ledge and kick plate stand up to daily abuse.
• Welded and polished seams eliminate crevices that collect grease and debris.
• Cast-aluminum control knobs feature a heat-shield grip for cool, confident adjustments.
• 6" heavy-duty legs with adjustable feet make leveling quick and easy.

Specifications

Clearance: 0" from non-combustible surfaces, 8" (203 mm) from combustibles. Refer to the installation manual for complete utility and safety requirements.
