Imperial Spec Series 18" Add-A-Unit Gas Griddle Range
Model IHR-G18-XB • Manual Controls • 30,000 BTUPack high-performance cooking power into a slim 18" footprint. Built for continuous, heavy-duty use, the Imperial Spec Series Add-A-Unit combines a precision-ground griddle plate, rugged stainless construction and a handy open-cabinet base—perfect for expanding or customizing any cook line.
Stand-Out Features
- Highly polished 18" (457 mm) steel griddle plate for uniform heat and effortless release.
- One 30,000 BTU U-shaped burner (positioned every 12") with aeration baffles for rapid recovery.

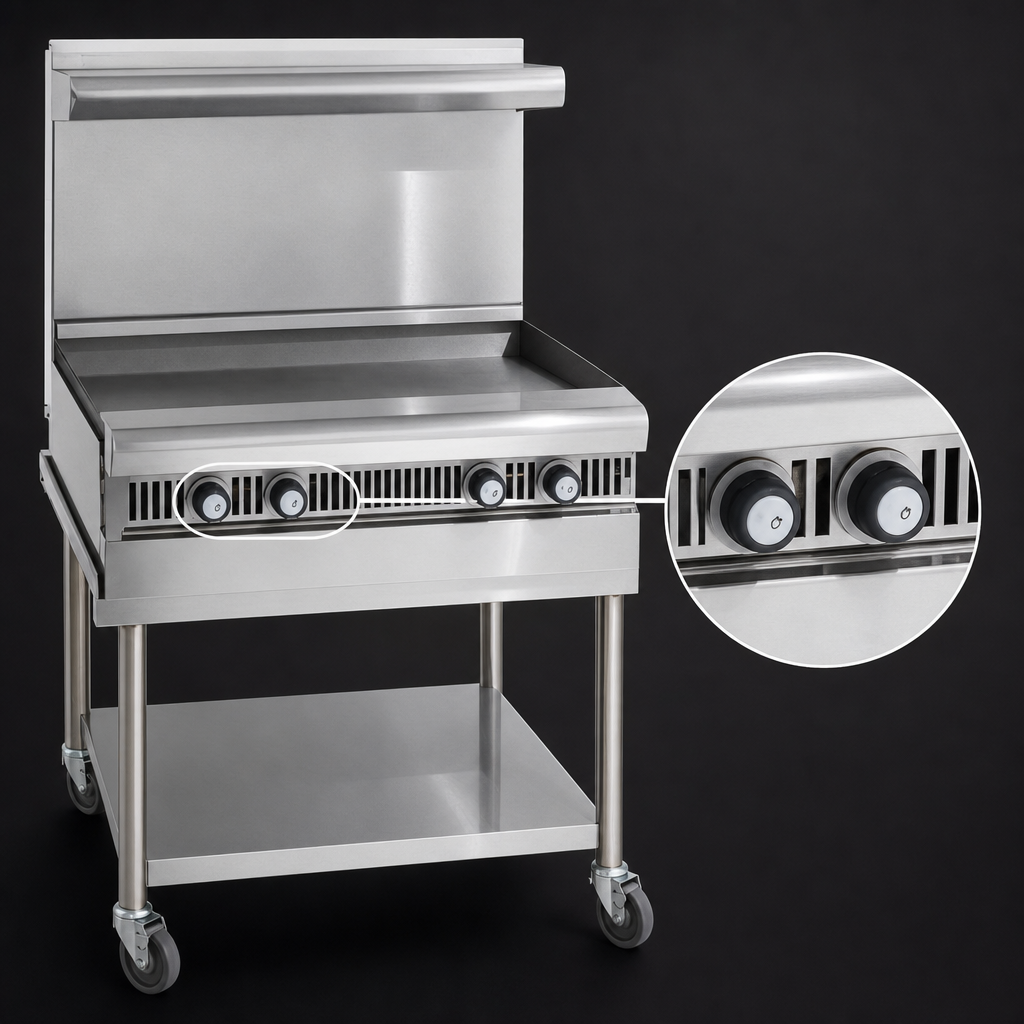

- Front-mounted manual valve delivers infinite heat adjustment from low to high.
- 4" (102 mm) wide grease gutter and full-width removable crumb tray simplify clean-up.
- Open cabinet base with stainless steel bottom shelf keeps pans or supplies close at hand.
- All-stainless front, sides, landing ledge & 3" backguard resist rust and wipe clean fast.
- (4) 6" adjustable stainless legs let you level the unit on uneven floors.
- Field-convertible for Natural or LP gas; 3⁄4" rear connection.
- cETLus gas safety & NSF sanitation certified for commercial kitchens.
Product Specifications
| Width | 18" / 457 mm |
|---|---|
| Depth | 38" / 965 mm |
| Height (to cooking surface) | ≈ 36" / 914 mm |
| Plate Thickness | 1" (25 mm) steel |
| Total BTU Input | 30,000 BTU (8.8 kW) |
| Burners | (1) U-shaped, cast-iron, 30 K BTU |
| Controls | Manual valve, infinite |
| Grease Management | 4" gutter + removable crumb tray |
| Gas Connection | 3⁄4" NPT rear | 5.0"W.C. Nat / 10.0"W.C. LP |
| Base Configuration | Open cabinet with stainless shelf |
| Certifications | cETLus, NSF |
| Warranty | 1-Year Parts & Labor (Limited) |
| Approx. Shipping Weight | 110 lb / 50 kg |
Need a matching backsplash, salamander channels or gas quick-disconnect? Contact your Imperial representative for factory-installed options.
Built for the Spec Series Line-Up
- Pairs seamlessly with 12", 24" or 36" Spec Series ranges, fryers and even-height equipment.
- Wide-radius edges deliver modern styling and eliminate sharp corners on the cook line.
- Large 7" (178 mm) stainless landing ledge provides extra plating and garnish space.
- Cool-to-touch cast-aluminum knobs with positive-grip texture.
- Designed, manufactured and supported in the USA by Imperial—part of the Middleby family.
Installation Notice: Gas equipment must be installed and
serviced by a qualified technician in accordance with local codes to retain
warranty coverage.
Looking to spread out the cost? Competitive financing is available through Middleby Equipment Financing—ask your dealer for details.
$5,173.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G18-XB 18" gas range: heavy-duty 30,000 BTU, griddle, open cabinet with shelf, stainless steel, NSF/cETLus certified, manual controls.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
18.0in
Depth
38.0in
Shipping Weight
346.0lbs
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
storage base
Type
add-a-unit
Top
(1) griddle
Specifications
Spec Series Heavy Duty Range, gas, 18", Add-A-Unit, griddle, open cabinet, bottom shelf, manual controls, 4"W grease gutter, removable crumb tray, stainless steel front, sides, landing ledge & backguard, 6" legs, adjustable feet, 30,000 BTU, cETLus, NSF
