Imperial (Middleby)  |  Spec Series  |  SKU: IHR-G18-2-XB

Imperial (Middleby) IHR-G18-2-XB Spec Series Gas Ranges

$8,173.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts list Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Spec Series 36" Gas Range with 18" Griddle & 2 Open Burners

Model IHR-G18-2-XB | Imperial (Middleby)

Built for high-volume lines, the Imperial Spec Series combines two 40,000 BTU open burners with a full-service 18" griddle – all mounted over a spacious open cabinet base. From breakfast rush to late-night service, this heavy-duty range is engineered to keep pace with the busiest kitchens.

Why you’ll love it

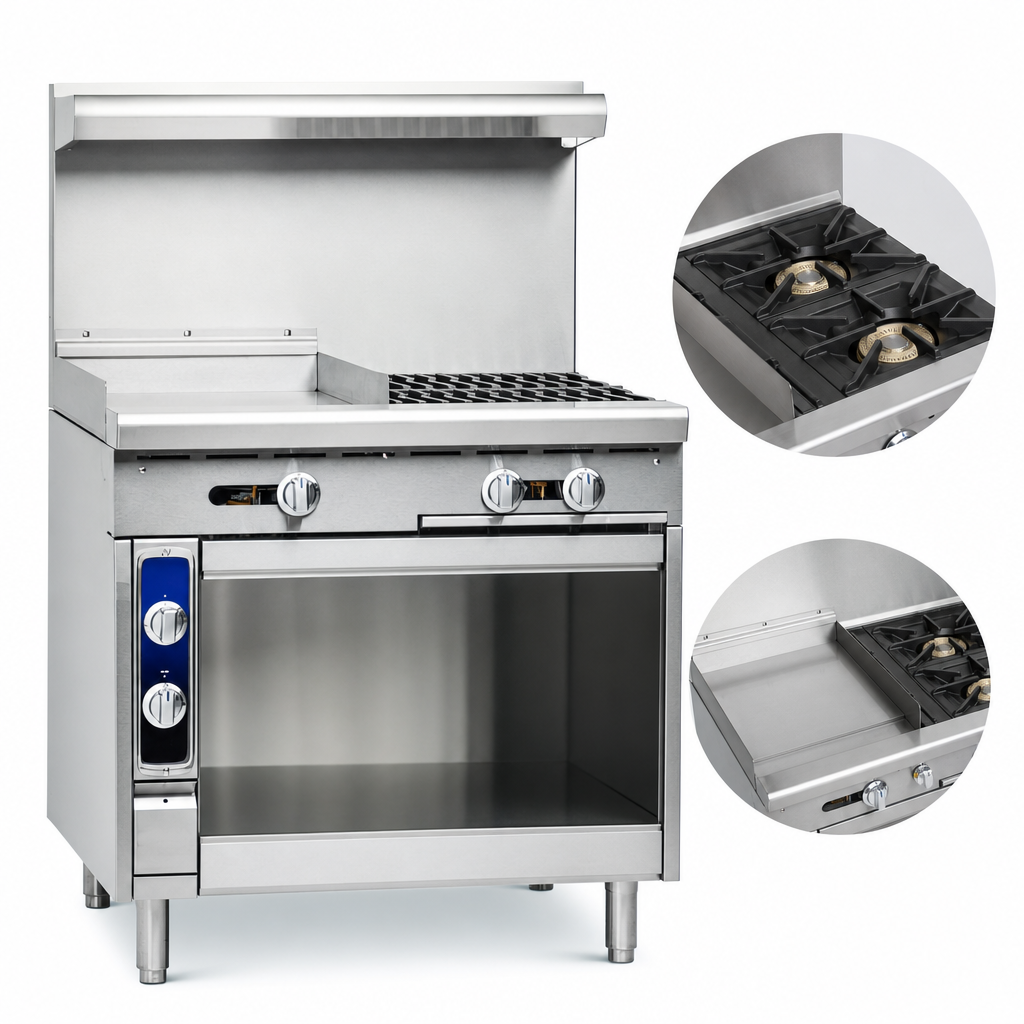

  • 120,000 BTU total output – instant searing heat for sautéing, grilling, or pan-roasting.
  • Two cast-iron “S” grates lift pans above the flame for superior heat transfer and pilot protection.

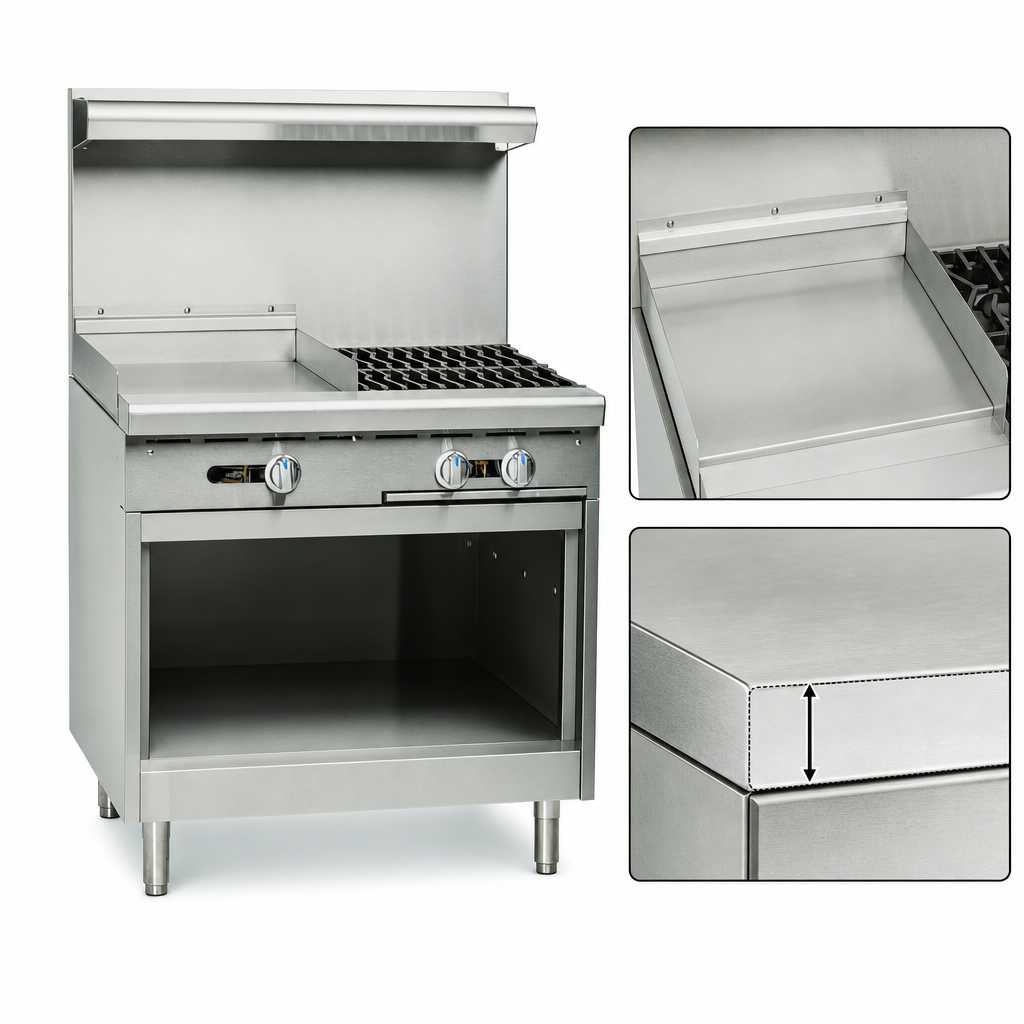

  • 18" x 24" (457 mm) 1" thick polished steel griddle provides even surface temperatures and fast recovery.
  • 4" wide grease gutter funnels into a 1 gal. can for quick, mess-free clean-up.
  • Manual burner & griddle controls give chefs direct flame management.
  • All-stainless front, sides, 5" landing ledge, backguard & kick plate stand up to daily abuse.
  • Open cabinet base with bottom shelf keeps sheet pans and smallwares within arm’s reach.
  • 6" adjustable legs level the range on uneven floors.
  • cETLus, ETL & NSF listed for safe, code-compliant installation.

Performance at a glance

Cooking width 36" (914 mm)
Open burners 2 × 40,000 BTU cast-iron “M” shaped burners
Griddle plate 18" W × 24" D; 1" thick, highly polished steel
Total input 120,000 BTU / 35 kW
Gas connection ¾" NPT rear manifold (natural or LP; 5" / 10" W.C.)
Base type Open cabinet with bottom shelf (XB suffix)
Overall dimensions* 36" W × 38" D × 36" H to cooktop
Ship weight 580 lb / 264 kg
Warranty 1-year parts & labor, factory-authorized service

*See spec sheet for detailed dimensional drawings and clearance requirements.

Engineered for durability

  • Welded & polished stainless seams resist corrosion and simplify wipe-downs.
  • Die-cast aluminum knobs stay cool and feature heat-shielded grips.
  • One-piece venturi bases eliminate gaskets for a longer service life.
  • Removable cast-iron burner heads and grates allow effortless deep cleaning.

Certifications

  • cETLus – Gas safety
  • ETL Sanitation – NSF/ANSI 4 compliant food-service equipment
Important: Range must be installed on non-combustible floors with 0" clearance to non-combustible surfaces and 8" (203 mm) to combustible surfaces. Legs or casters are required unless curb-mounted with a 2" overhang.

Shown with optional accessories. Specifications are subject to change without notice. Always verify gas type and pressure before connecting.
Need a salamander or extra racks? View compatible options at the Imperial resource center or contact your Imperial dealer.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

NSF, cETLus, ETL

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

430.0lbs

Plate Thickness

1.000" = 1"

Top

(2) open burners, (1) 18" griddle

Exterior Finish

stainless steel front & sides

Base

cabinet(s)

Specifications

Spec Series Heavy Duty Range, gas, 36"W, (2) open burners, cast iron "S" grates (standard), (1) 18"W griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, open cabinet base, bottom shelf, manual controls, removable crumb tray, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 120,000 BTU, 35kW, cETLus, ETL, NSF
