Imperial (Middleby)  |  Spec Series  |  SKU: IHR-G18-1HT-C

Imperial (Middleby) IHR-G18-1HT-C Spec Series Gas Ranges

$15,024.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Training video Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

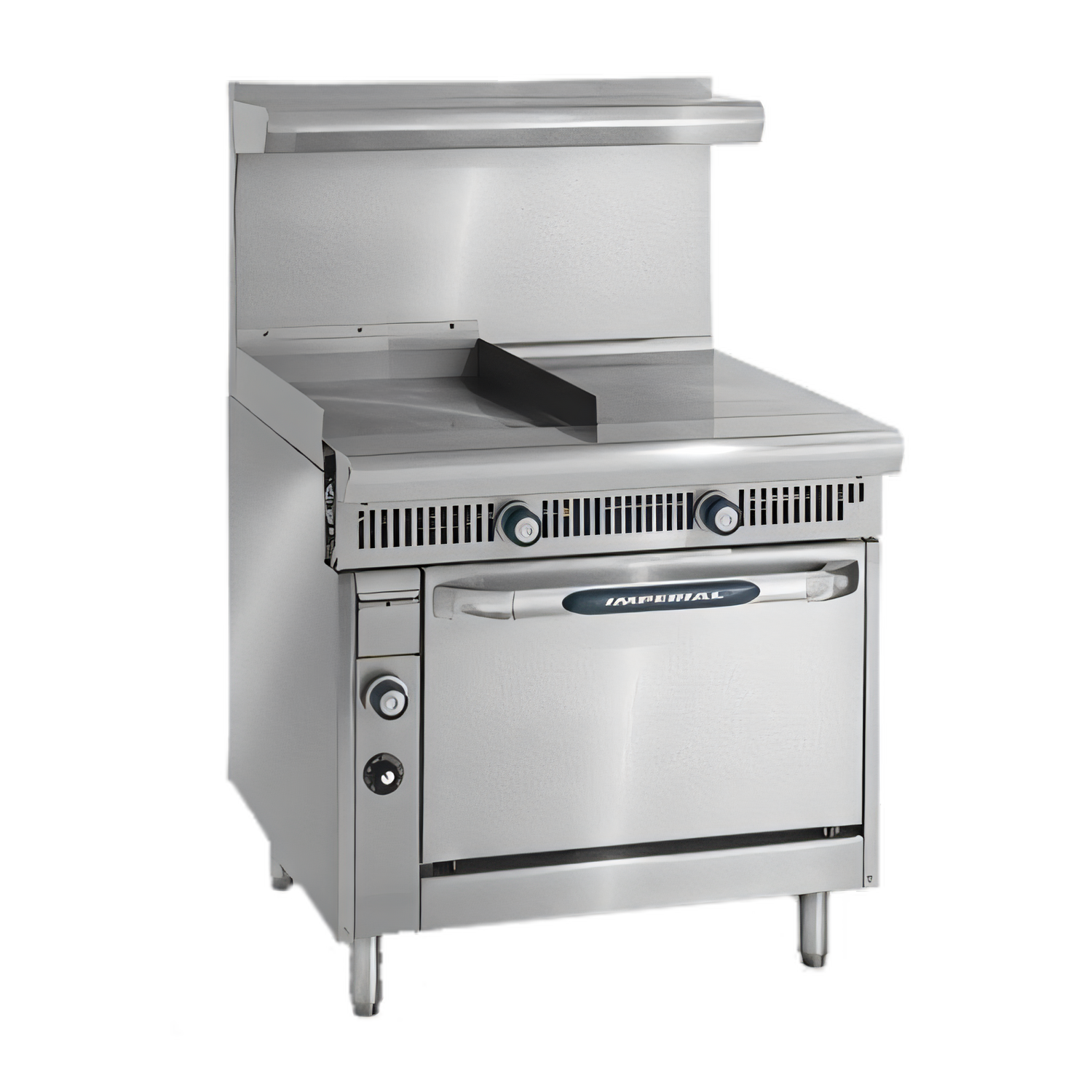

Imperial Spec Series 36" Heavy-Duty Gas Range – 18" Griddle / 18" Hot Top & Convection Oven

Model IHR-G18-1HT | 115,000 BTU (34 kW)  | cETLus • NSF

One powerhouse, three cooking zones. Imperial’s Spec Series puts a precision griddle, an even-heat hot top and a high-performance convection oven into a single 36-inch footprint—perfect for high-volume lines that refuse to compromise on versatility or durability.

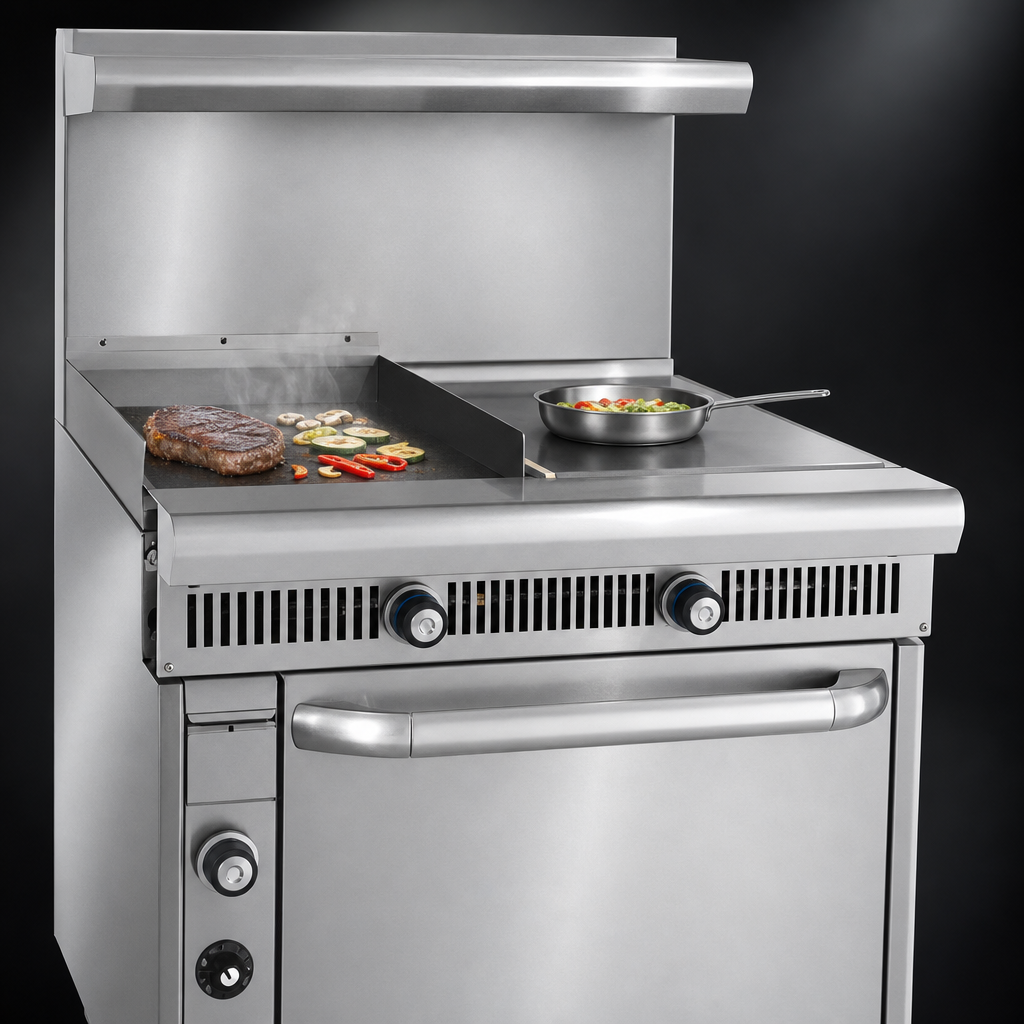

Cooktop Highlights
  • 18" polished steel griddle with 30,000 BTU “U”-shaped burner for edge-to-edge heat and rapid recovery.
  • 18" even-heat hot top powered by a 40,000 BTU burner; twin heavy plates spread heat evenly across the surface.
  • Manual gas valves deliver instant, precise flame control.
  • 4" (102 mm) grease gutter and 1-gal (3.8 L) removable can keep the line clean and safe.
  • 5" (178 mm) stainless landing ledge for plating and prep.

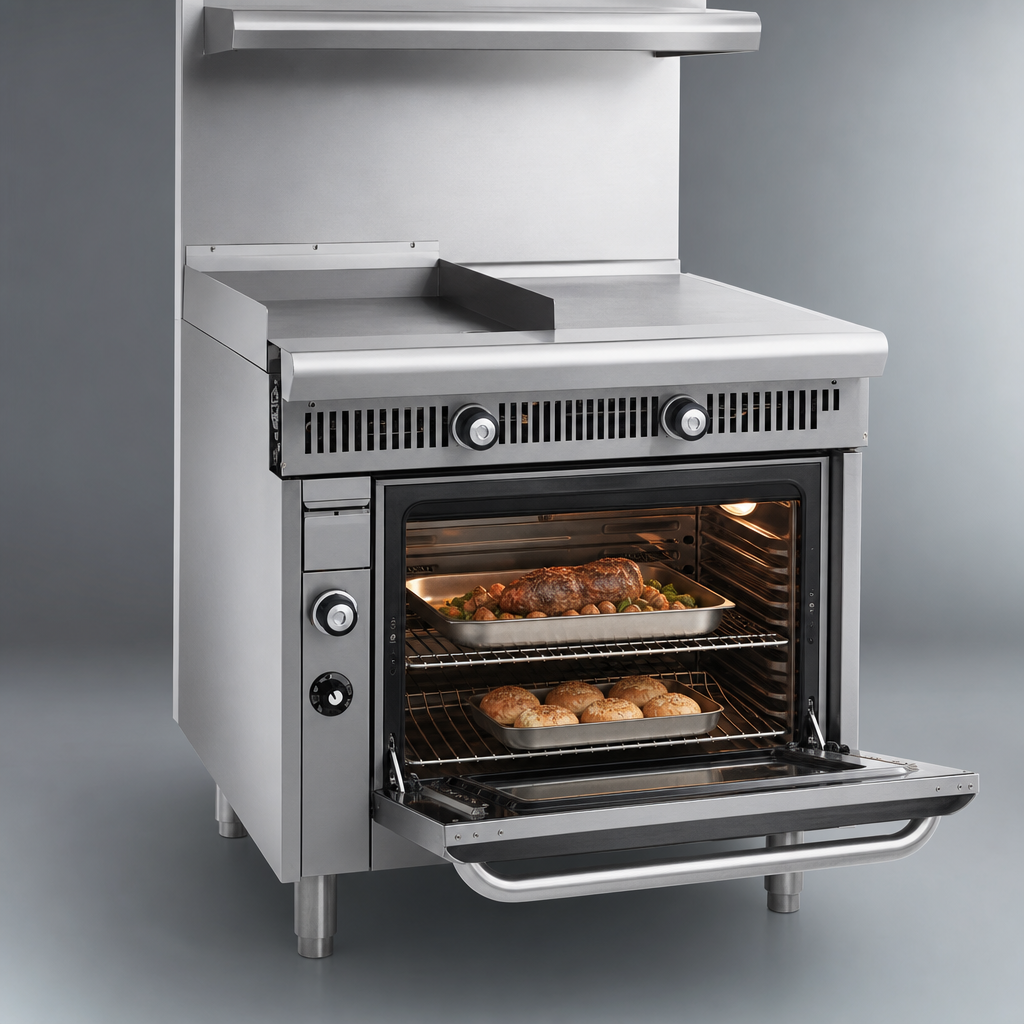

High-Performance Convection Oven
  • 35,000 BTU burner with a ½ HP blower motor surrounds food with consistent, high-velocity heat.
  • Porcelainized sides, deck, rear and inner door liner for fast wipe-down cleaning.
  • (3) chrome racks on multi-position guides handle everything from sheet pans to hotel pans.
  • “Burner ON” indicator and door-activated fan cut-off enhance safety and efficiency.
Built to Last
  • Stainless steel front, sides, backguard and kick plate resist dents, corrosion and daily abuse.
  • Welded, polished frame and one-piece 1-¼" (32 mm) gas manifold for long-term reliability.
  • 6" (152 mm) steel legs with adjustable feet simplify leveling on uneven floors.
Specifications
Overall width 36"  / 914 mm
Overall depth 38"  / 965 mm
Cooktop height 36"  / 914 mm
Griddle plate 18" W × 28" D (457 × 711 mm)
Hot top 18" W × 28" D (457 × 711 mm)
Oven cavity 26 ½" W × 22 ½" D × 14" H (673 × 572 × 356 mm)
Total gas input 115,000 BTU/hr (34 kW)
Electrical 120 V / 60 Hz / 1-Ph / 6.0 A
Gas connection ¾" NPT (rear)
Certifications cETLus, NSF
Ship weight Approx. 765 lb / 347 kg
What’s in the Box
  • (3) chrome oven racks
  • 1-gal removable grease can
  • Factory-installed 6" adjustable legs
  • Operator’s manual
Installation Note: Connect to a ¾" NPT gas line and 120 V power source. Maintain 2" (51 mm) side/rear clearance from combustibles and 8" (203 mm) overhead clearance. Follow all local codes.
Warranty

Covered by Imperial’s 1-year parts & labor warranty when installed and serviced by an authorized technician.

Need extra oven racks, a high-shelf or casters? Contact us for factory-approved accessories and custom configurations.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

NSF, cETLus

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

825.0lbs

Exterior Finish

stainless steel front & sides

Base

(1) convection oven

Plate Thickness

1.000" = 1"

Top

(1) 18" griddle, (1) 18" hot top

Specifications

Spec Series Heavy Duty Range, gas, 36"W, (1) 18"W griddle, (1) 18"W hot top, convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, manual controls, 4"W grease gutter with 1 gallon can capacity, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 115,000 BTU, 34kW, 120v/60, 6.0 amps, cETLus, NSF
