Imperial (Middleby) IHR-F75 Spec Series Gas Fryers
$12,457.00
Unit price
/
Unavailable
Description

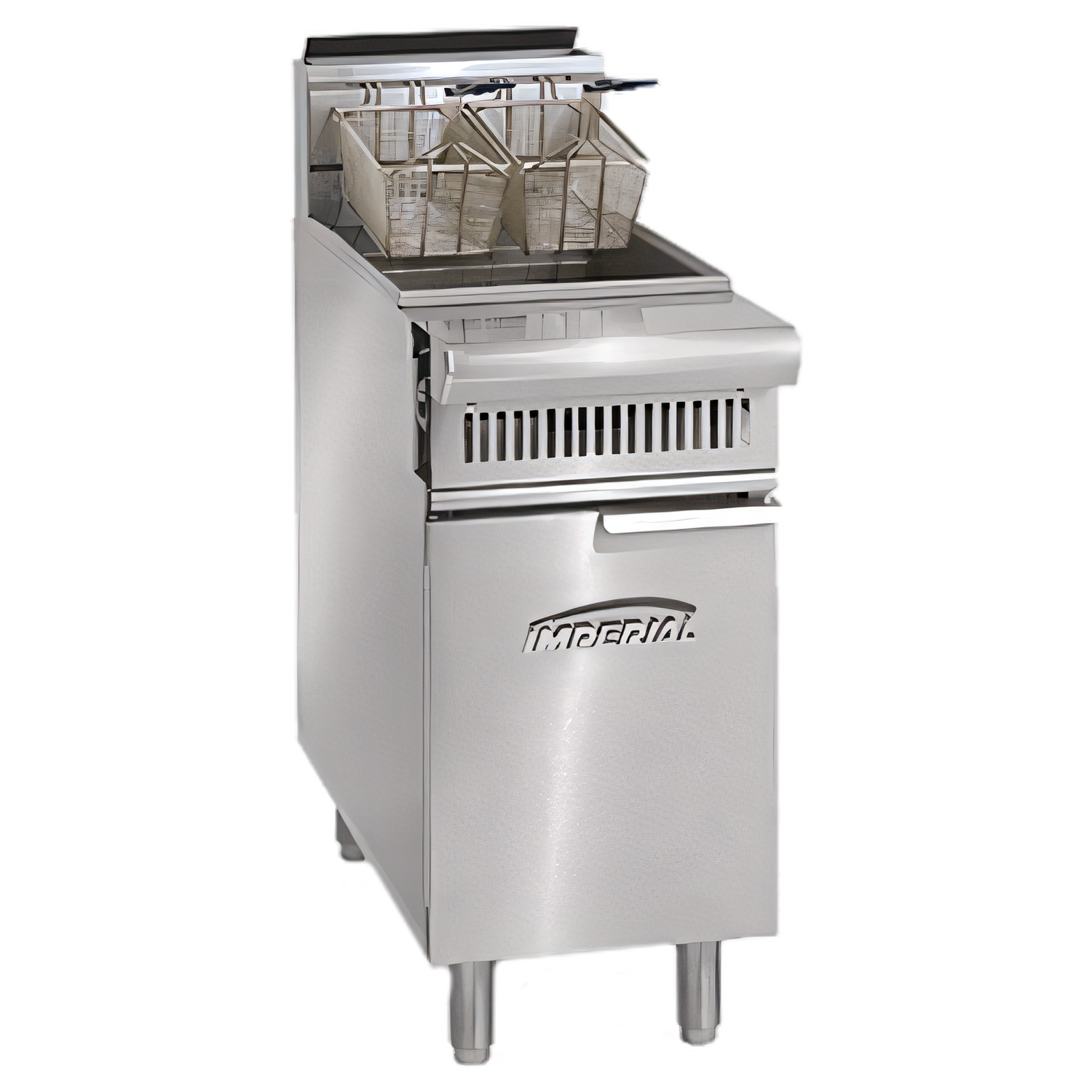

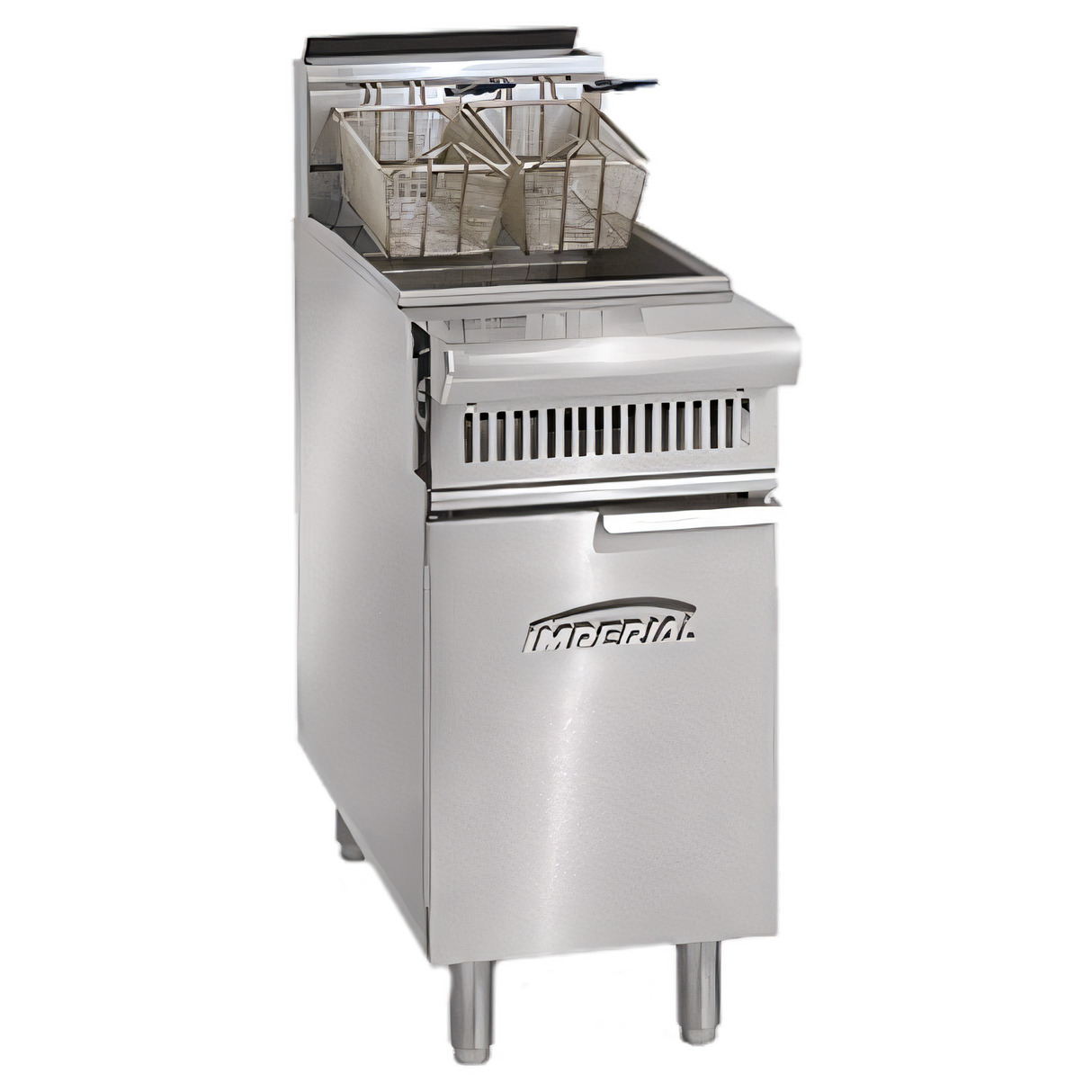

Imperial Spec Series IHR-F75 Heavy-Duty 75 lb Tube-Fired Gas Fryer
175,000 BTU | Millivolt Controls | Stainless Steel Construction | NSF & CSA CertifiedBuilt to keep pace with the busiest commercial kitchens, the Imperial Spec Series IHR-F75 delivers rapid recovery, consistent frying temperatures and rock-solid durability—all without requiring an electrical hookup.
Performance Highlights

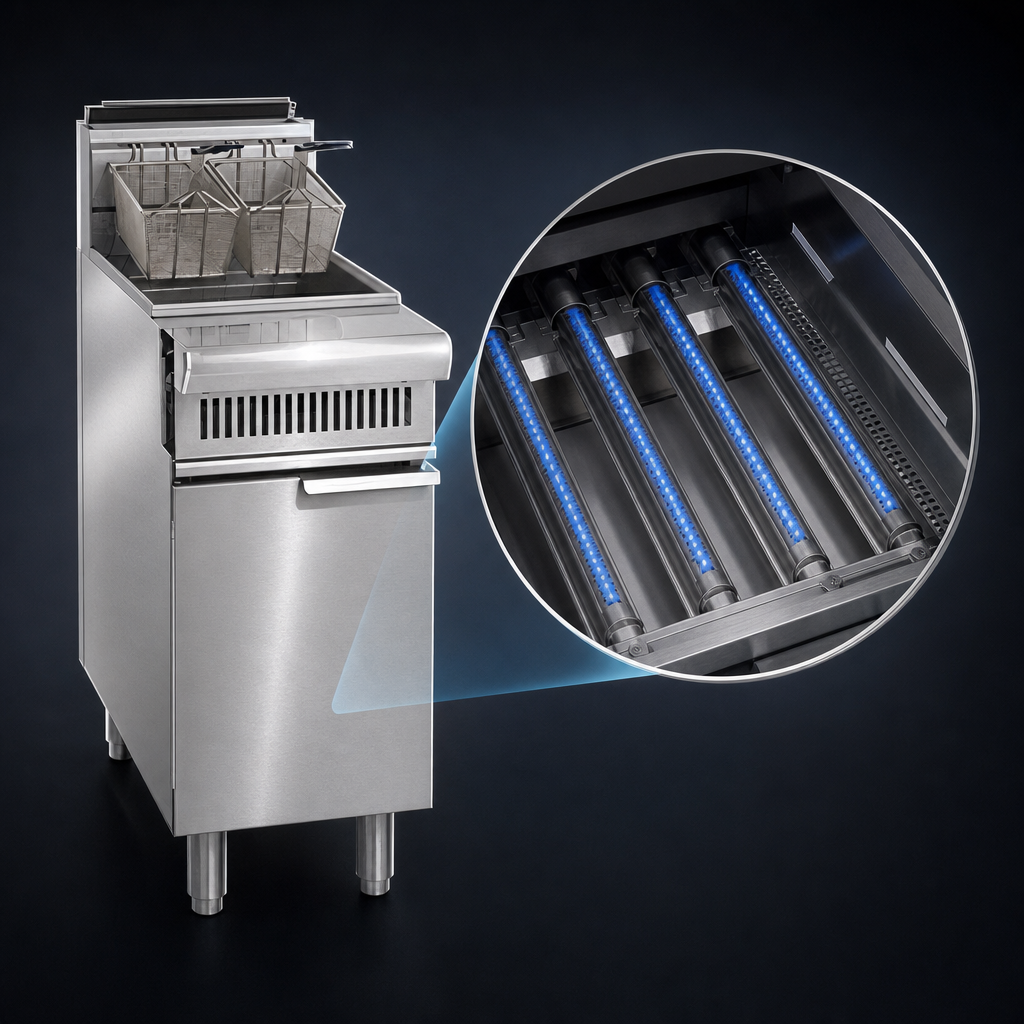

- Five high-efficiency tube-fired cast iron burners with built-in deflector system maximize heat transfer.

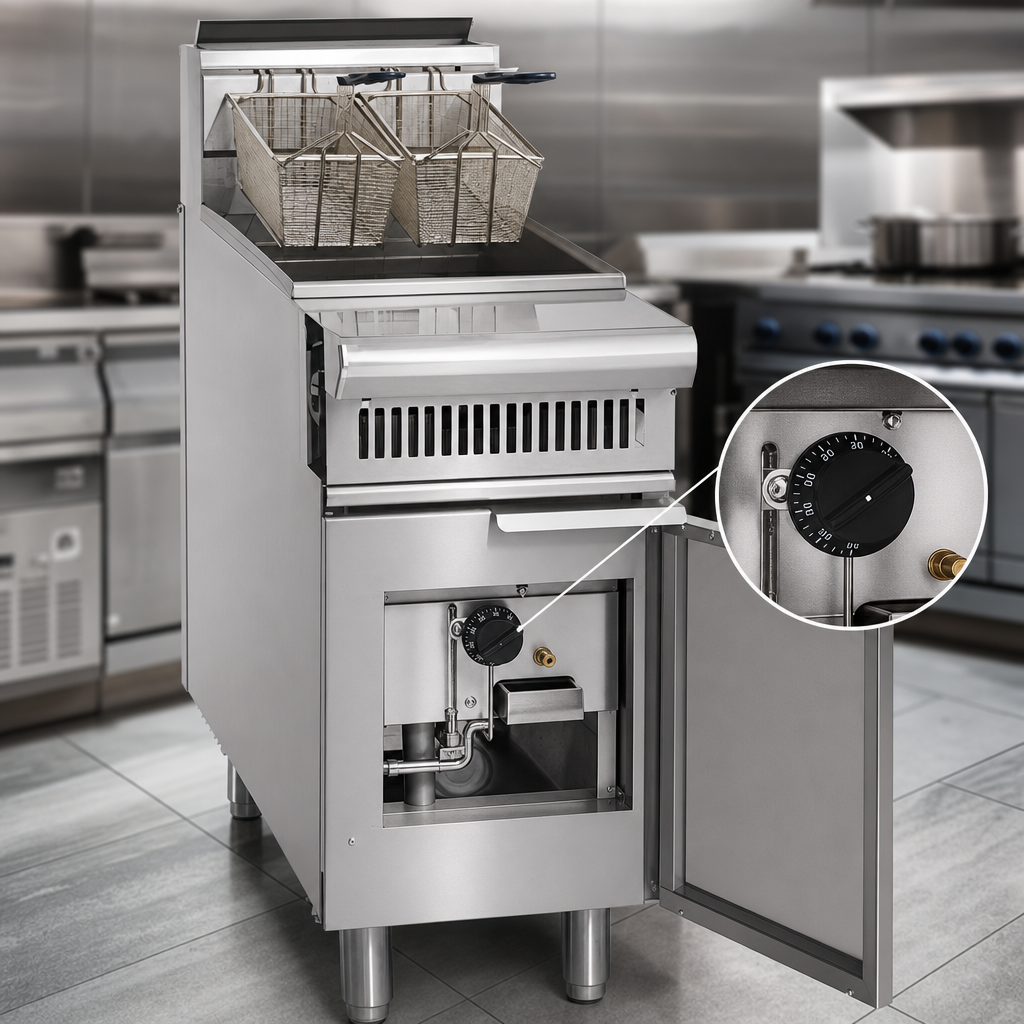

- Snap-action millivolt thermostat maintains 200 °F – 400 °F (93 °C – 204 °C) and operates without electricity.
- 75 lb (41 L) oil capacity handles high-volume demands with ease.
- Generous 18" × 18" frying area accommodates large batches of fries, chicken and seafood.
- Deep cool zone and wire-mesh crumb screen capture sediment to extend oil life and improve product quality.
- 100 % safety shut-off and fast pilot re-light for worry-free operation.
Built-to-Last Construction
- All-stainless front, door, sides, basket hanger and frypot resist corrosion and simplify cleanup.
- Robotically welded frypot carries a pro-rated 5-year warranty.
- Full heat shield protects the control panel and extends component life.
- 6" (152 mm) heavy-duty stainless steel legs provide a sturdy, level work height (casters optional).
- 3/4" NPT rear gas connection for streamlined utility hook-up.
Specifications
| Model | IHR-F75 |
|---|---|
| Oil Capacity | 75 lb / 41 L |
| Heat Output | 175,000 BTU/hr (51 kW) |
| Number of Burners | 5 tube-fired cast iron |
| Thermostat Range | 200 °F – 400 °F (93 °C – 204 °C) |
| Frying Area | 18" W × 18" D (457 × 457 mm) |
| Overall Dimensions | 19.5" W × 40" D × 46.5" H (495 × 1016 × 1181 mm) |
| Gas Connection | 3/4" NPT (rear) |
| Shipping Weight | ≈ 298 lb (135 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
What’s Included
- (2) full-size nickel-plated fry baskets with vinyl-coated handles
- Wire-mesh crumb screen
- 6" stainless steel legs
- User & installation manual
Warranty
1-year limited parts & labor warranty plus a pro-rated 5-year frypot warranty when installed and serviced per Imperial guidelines.
Installation Note: For use on non-combustible floors only—legs or optional casters are required. Provide 0" clearance from non-combustible surfaces and 8" (203 mm) from combustible surfaces. Always follow local codes and the installation manual.
Features & Specs
Features & Specs
Manufacturer
Imperial (Middleby)
Brand_name
Spec Series
Certifications
NSF, CSA Star, CSA Flame
Height
46.5in
Width
19.5in
Depth
40.75in
Shipping Weight
298.0lbs
Controls
millivolt controls
Type
heavy duty, range match
Basket Lifts
without basket lifts
Exterior Finish
stainless steel front & sides
Fat Capacity (approximate)
75 lb
Fry pot
stainless steel fry pot
Filter
no filter
Specifications
Spec Series Heavy Duty Range Match Fryer, gas, floor model, 75 lb. capacity, tube fired cast iron burners, millivolt temperature controls, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel front, door, sides, basket hanger & frypot, 6" legs, 175,000 BTU, 51kW, CSA Flame, CSA Star, NSF
