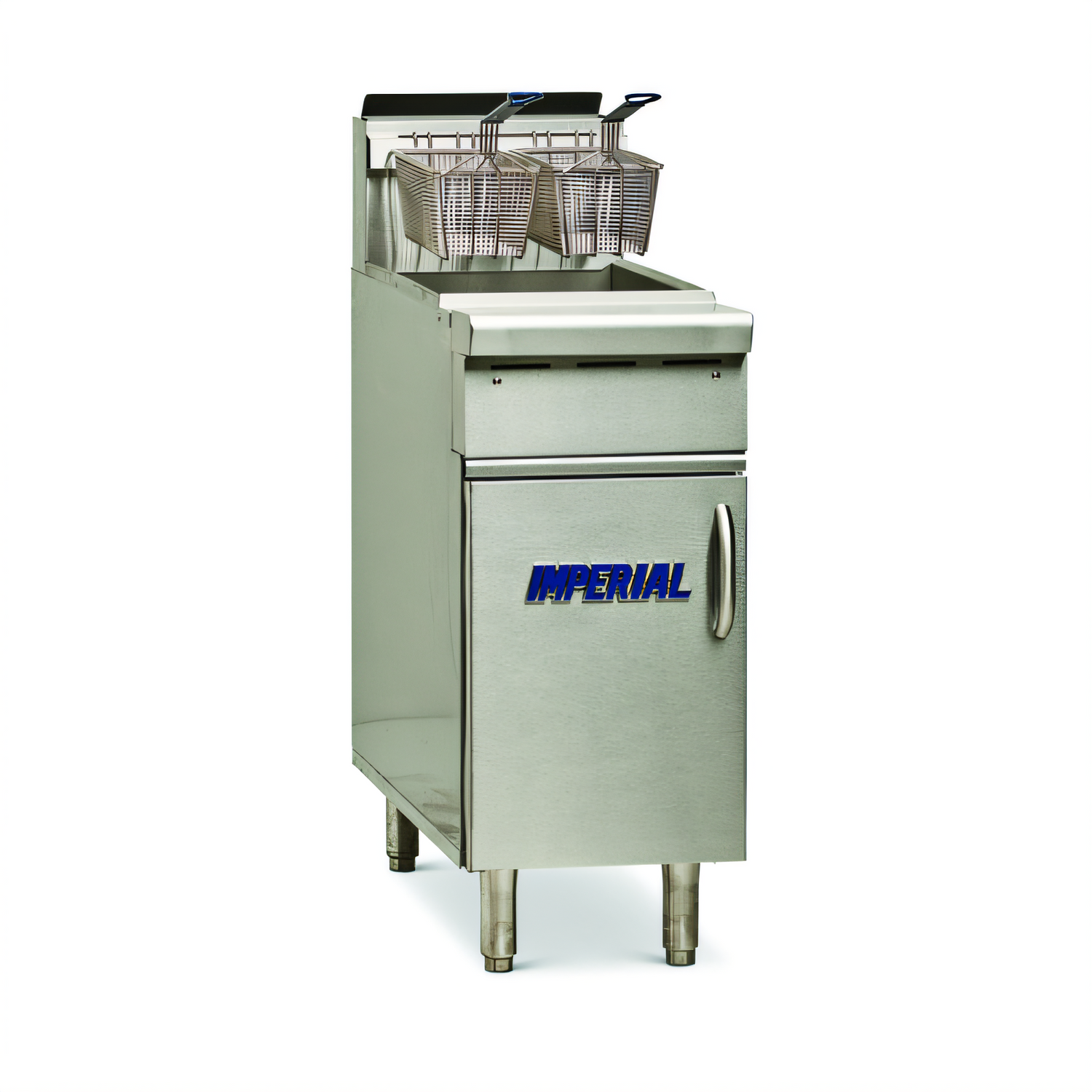

Imperial Spec Series IHR-F50 50 lb Tube-Fired Gas Fryer
140,000 BTU | Floor Model | CSA & NSF CertifiedBuilt to match the powerful profile of Imperial Spec Series ranges, the IHR-F50 fryer delivers rapid recovery, rock-solid temperature accuracy, and rugged all-stainless construction for the busiest commercial kitchens.
Key Features
- Four high-efficiency tube-fired cast-iron burners producing a total of 140,000 BTU/hr.
- Millivolt snap-acting thermostat maintains 200 °F – 400 °F (93 °C – 204 °C) with no electric hookup.

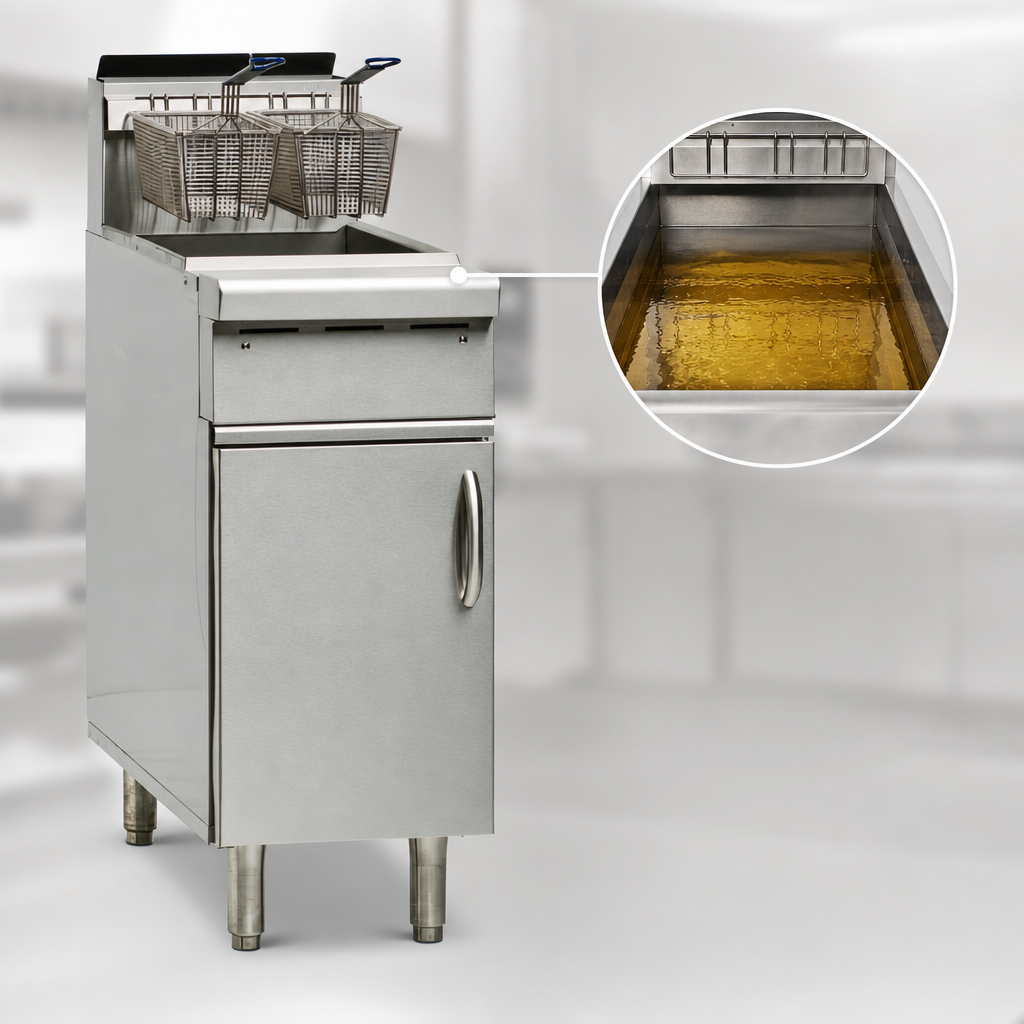

- 50 lb (27 L) stainless steel frypot, robotically welded for leak-free durability.
- Large cool zone captures crumbs and extends oil life while reducing taste transfer.
- 1 ¼" full-port drain valve angled toward the drain for fast, safe oil evacuation.
- Includes wire-mesh crumb screen and (2) nickel-plated fry baskets with vinyl-coated, heat-resistant handles.
- All stainless steel front, door, sides, frypot and basket hanger for quick clean-up and corrosion resistance.
- 6" (152 mm) heavy-duty stainless steel legs standard; optional locking casters available.
- 100 % gas safety shut-off and hi-limit control for operator peace of mind.
- Made in the USA and fully range-match compatible.
Performance Specifications
| Model | IHR-F50 |
|---|---|
| Oil Capacity | 50 lb / 27 L |
| Frying Area | 14" x 14" (356 x 356 mm) |
| Total Heat Input | 140,000 BTU/hr (41 kW) |
| Number of Burners | 4 tube-fired cast iron |
| Temperature Range | 200 °F – 400 °F (93 °C – 204 °C) |
| Gas Connection | 3/4" NPT rear |
| Overall Dimensions | 15 1/2"W x 40"D x 46"H (394 x 1035 x 1181 mm) |
| Ship Weight | 286 lb (129 kg) |
| Certifications | CSA Flame, CSA Star, NSF, Made in USA |
Options & Accessories
- Heavy-duty stainless steel backguards
- Common front landing ledge (54" – 108" widths)
- Fryer drain station with storage cabinet
- Automatic basket lifts or manual timer
- Computer controls for programmable frying
- Extra fry baskets, quick-disconnect hose & gas shut-off valve
- Locking swivel casters
Warranty: 1-year parts & labor. Stainless steel frypot carries a 5-year limited, prorated warranty.
Use only on non-combustible floors. Provide 0" clearance to non-combustible surfaces and 8" (203 mm) to combustible surfaces.
Use only on non-combustible floors. Provide 0" clearance to non-combustible surfaces and 8" (203 mm) to combustible surfaces.
Need flexible payment options? Ask us about Middleby Equipment Financing for fast approvals and affordable monthly plans.
$11,543.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Heavy-duty Imperial IHR-F50 gas floor fryer, 50 lb capacity, 140,000 BTU, stainless steel, tube-fired burners, millivolt controls, NSF/CSA certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, CSA Star, CSA Flame
Height
46.5in
Width
15.5in
Depth
40.75in
Shipping Weight
286.0lbs
Controls
millivolt controls
Type
heavy duty, range match
Basket Lifts
without basket lifts
Exterior Finish
stainless steel front & sides
Fat Capacity (approximate)
50 lb
Fry pot
stainless steel fry pot
Filter
no filter
Specifications
Spec Series Heavy Duty Range Match Fryer, gas, floor model, 50 lb. capacity, tube fired cast iron burners, millivolt temperature controls, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel front, door, sides, basket hanger & frypot, 6" legs, 140,000 BTU, 41kW, CSA Flame, CSA Star, NSF
