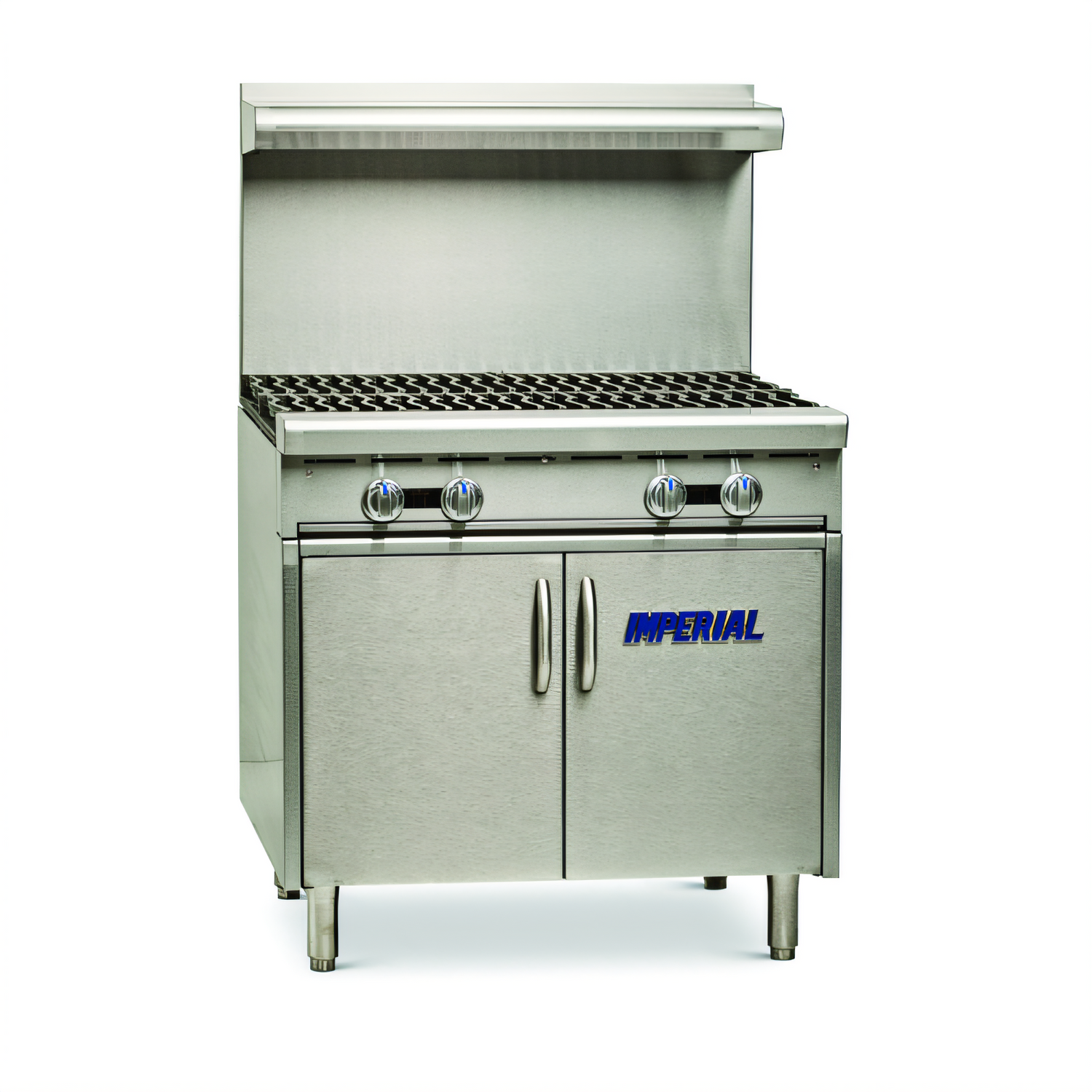

Imperial Spec Series 36" Heavy-Duty 4-Burner Gas Range with Open Cabinet Base
Model IHR-4-XB | 160,000 BTU (47 kW)Get the rugged power of Imperial’s Spec Series on your cooking line. This 36" range delivers 40,000 BTU on each of its four anti-clogging open burners while the open cabinet base gives you instant access to pans, stock pots and smallwares—perfect for high-volume restaurants that need performance and flexibility in one compact footprint.
Key advantages

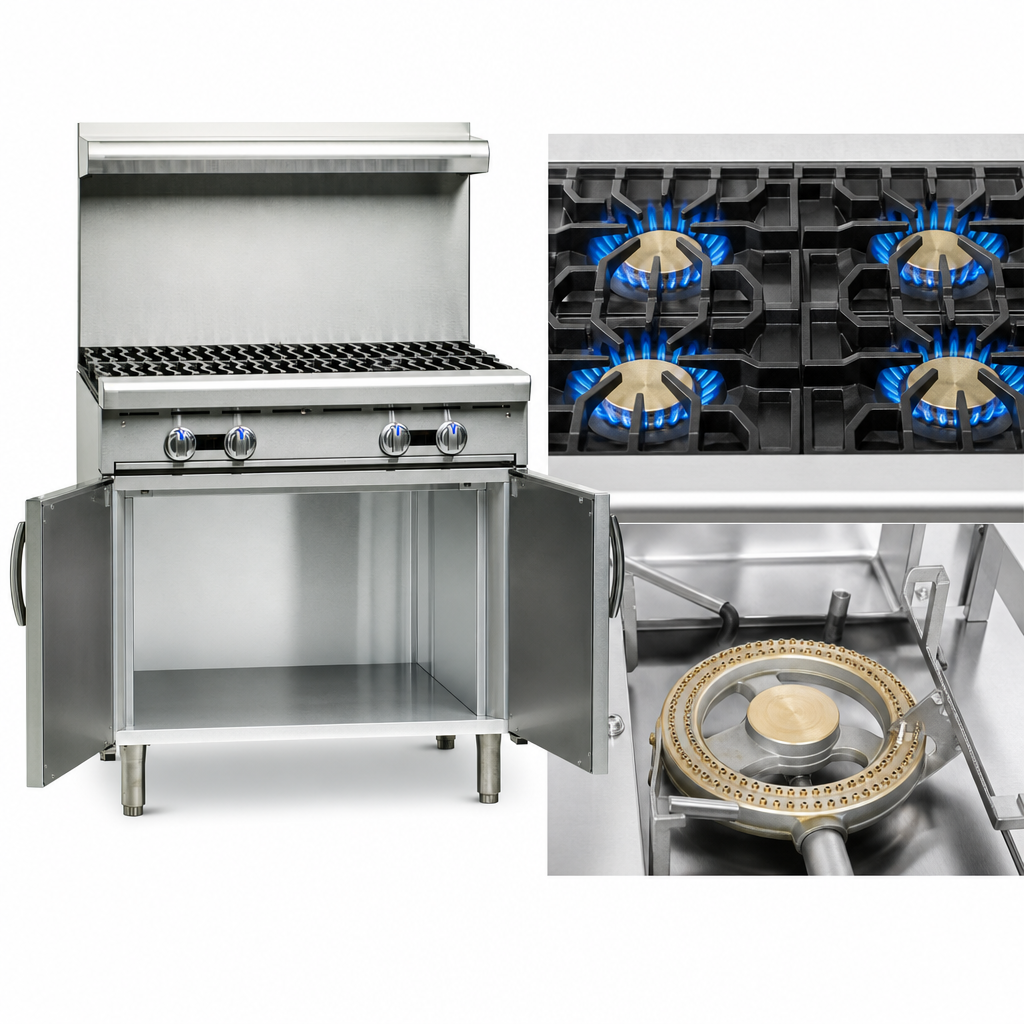

- Four 40,000 BTU cast-iron open burners with 7,000 BTU low-simmer setting

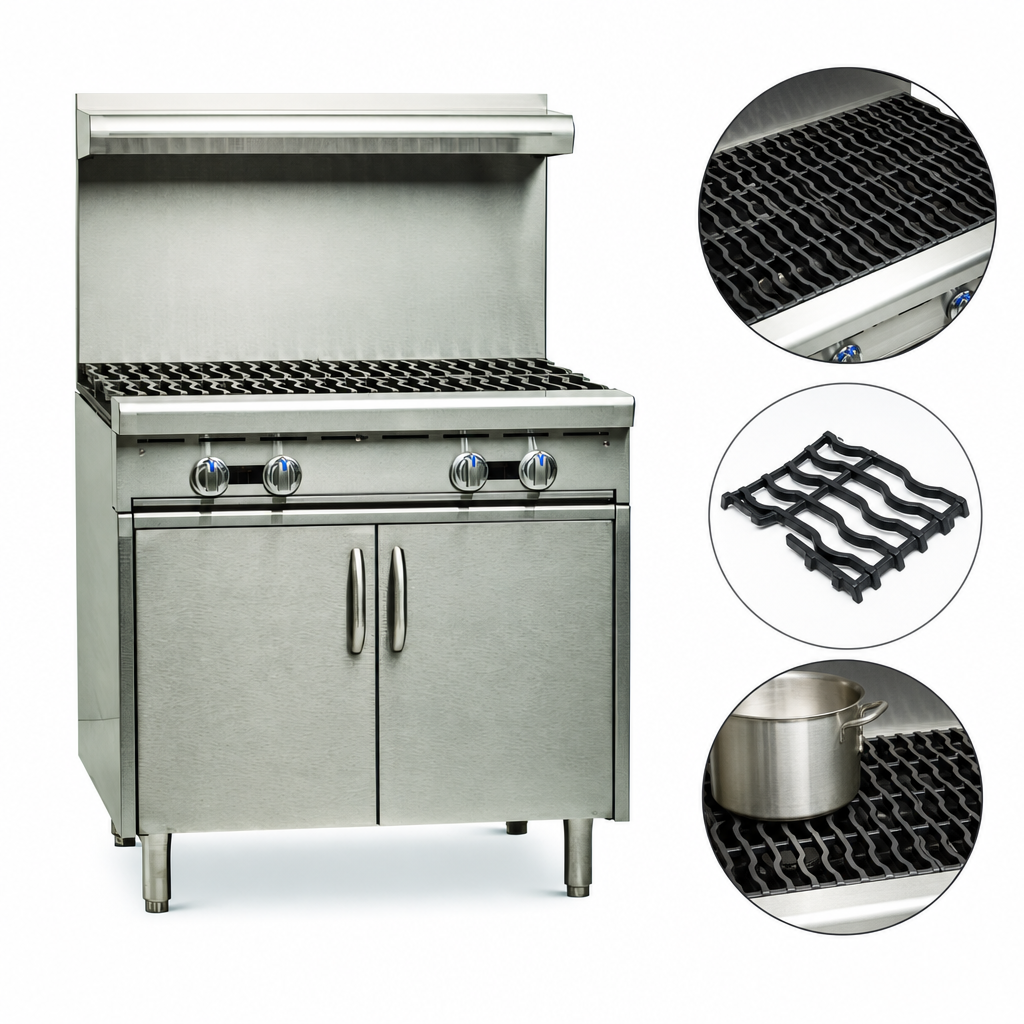

- Standard 18" × 14" cast-iron “S” grates—remove individually for fast cleanup
- Open cabinet base with bottom shelf and removable crumb tray keeps essentials close
- 5" deep stainless steel landing ledge for plating & staging
- Full stainless steel exterior, backguard & kick plate with welded polished seams
- Manual gas controls and heat-shielded cast-aluminum knobs
- 6" (152 mm) heavy-duty legs with adjustable feet for perfect leveling
- cETLus & NSF listed for gas safety and sanitation
- Backed by Imperial’s 1-year parts & labor warranty
Open burner technology
- Anti-clogging burner head keeps ports clear of grease and debris
- One-piece sloped venturi design improves heat transfer and eliminates gasket leaks
- All-metal gas system—stainless tubing with solid-brass valves—for long service life
- Burner castings separate for deep cleaning at the end of service
Rugged construction
- Wide-radius front ledge delivers sleek, modern styling and easy wipe-down
- Enclosed 1-¼" front manifold shields internal components
- Welded stainless seams stand up to daily wear and aggressive cleaning
Specifications
| Overall width | 36" (914 mm) |
|---|---|
| Overall depth | 38" (965 mm) |
| Height to cooktop | 36" (914 mm) on 6" legs |
| Burners | 4 open, cast iron |
| BTU per burner | 40,000 BTU (12 kW) |
| Total input | 160,000 BTU (47 kW) |
| Grate size | 18" × 14" “S” pattern, cast iron |
| Base type | Open cabinet with bottom shelf |
| Gas connection | 3/4" NPT rear (1-¼" optional) |
| Manifold pressure | Natural 5" W.C. | Propane 10" W.C. |
| Clearances | 0" sides & rear (non-combustible) • 8" (203 mm) from combustible |
| Certifications | cETLus, NSF |
| Shipping weight | 570 lb (259 kg) |
Warranty
One-year parts & labor warranty when installed, operated and maintained per Imperial guidelines.
Images may show optional accessories (casters, high shelf, salamander, cheesemelter) that are sold separately.
$7,412.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-4-XB 36" heavy-duty gas range—4 open burners, cast iron grates, stainless steel build, open cabinet base, 160,000 BTU, NSF-certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
570.0lbs
Exterior Finish
stainless steel front & sides
Top
(4) open burners
Base
cabinet(s)
Specifications
Spec Series Heavy Duty Range, gas, 36"W, (4) open burners, cast iron "S" grates (standard), manual controls, open cabinet base, bottom shelf, removable crumb tray, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 160,000 BTU, 47kW, cETLus, NSF
