Imperial (Middleby) IHR-4-M Spec Series Gas Ranges
Description

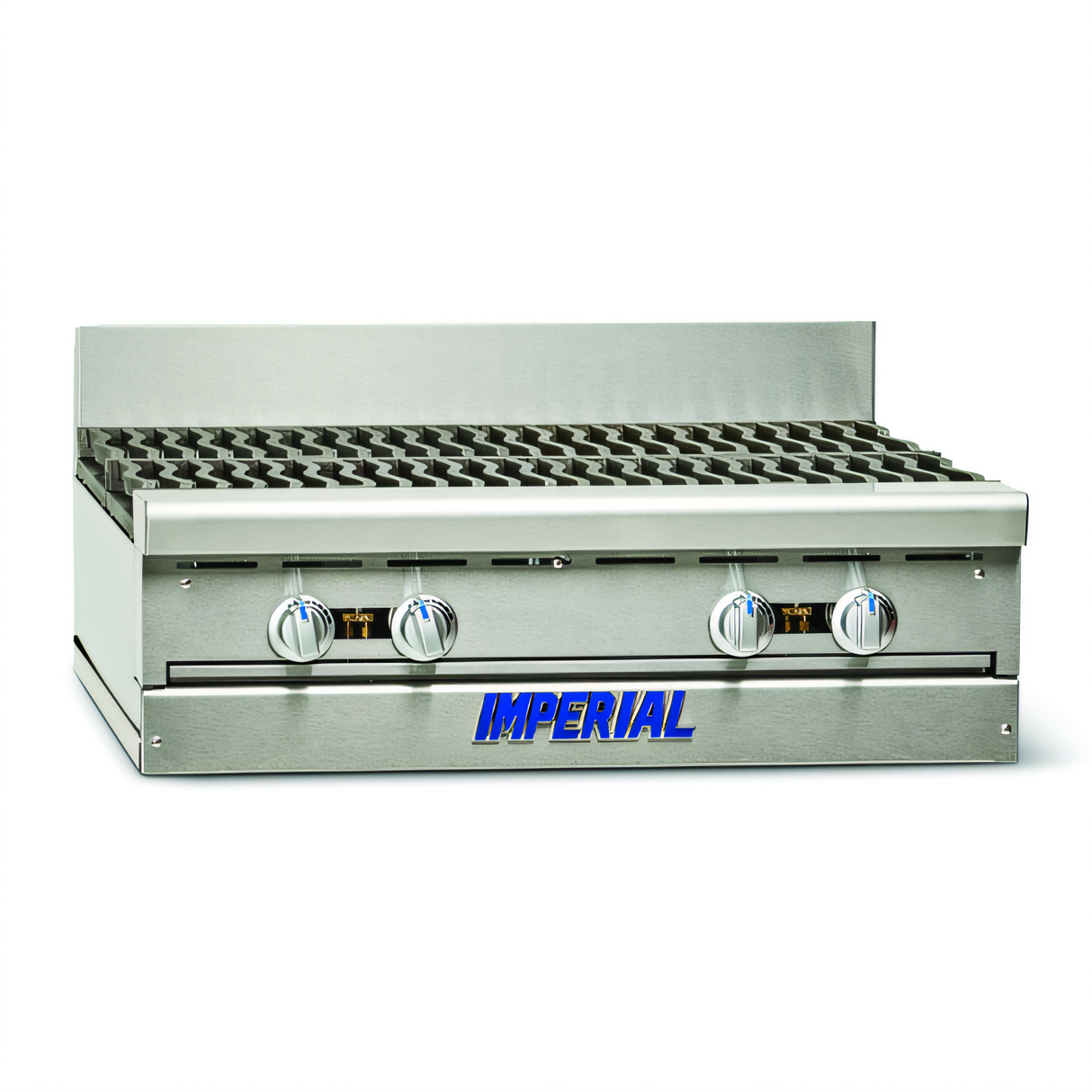

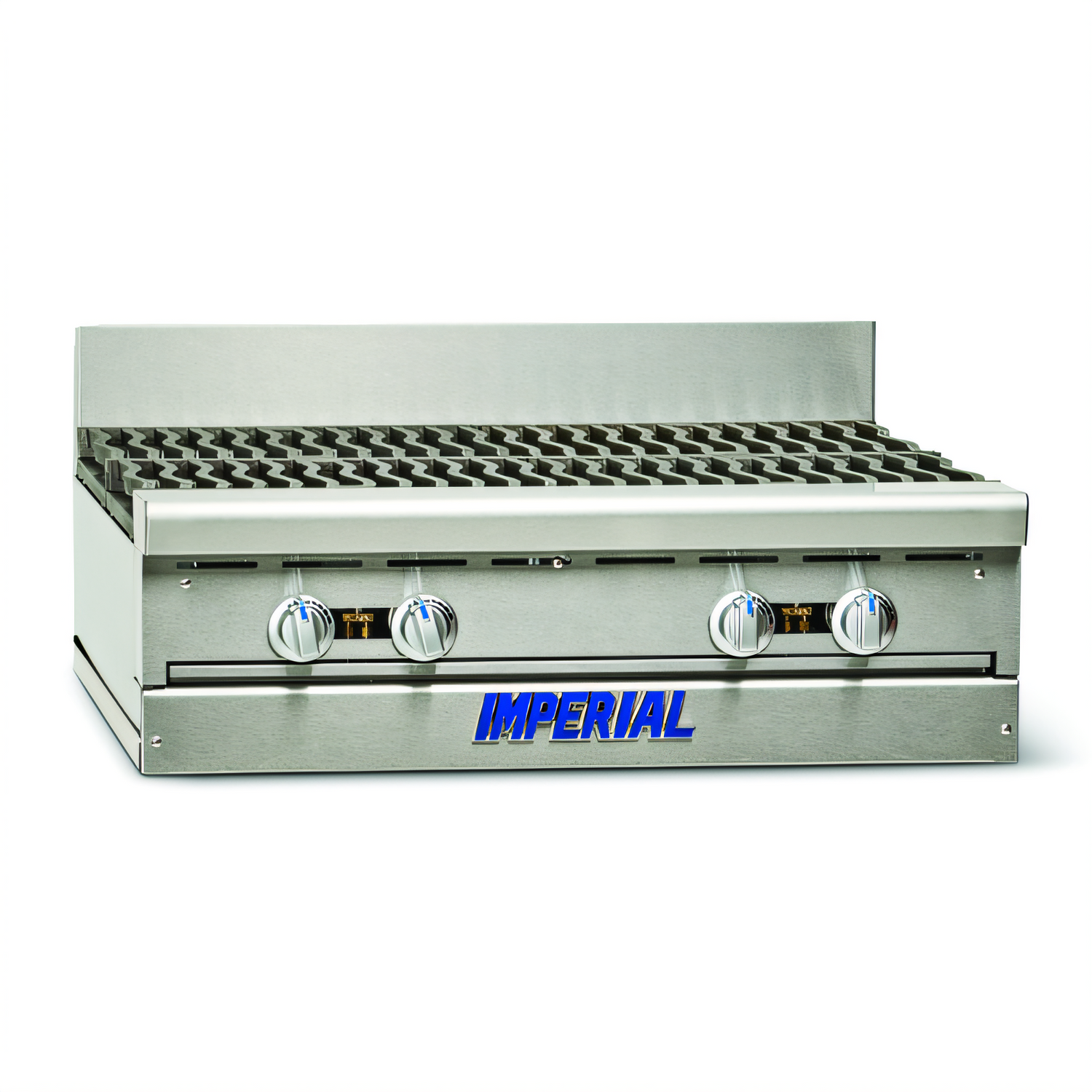

Spec Series™ 36" Heavy-Duty Modular Gas Range
4 Open Burners • 160,000 BTU • cETLus & NSF ListedBuilt for the busiest commercial kitchens, the Imperial Spec Series modular range delivers uncompromising power, rugged all-stainless construction and the flexibility of a countertop design. With four 40,000 BTU anti-clog open burners and industry-leading “S” grates, this 36-inch cooktop is ready to tackle everything from rapid sauté work to high-volume stock production—all while fitting seamlessly into a custom cook line.
Key Features & Benefits

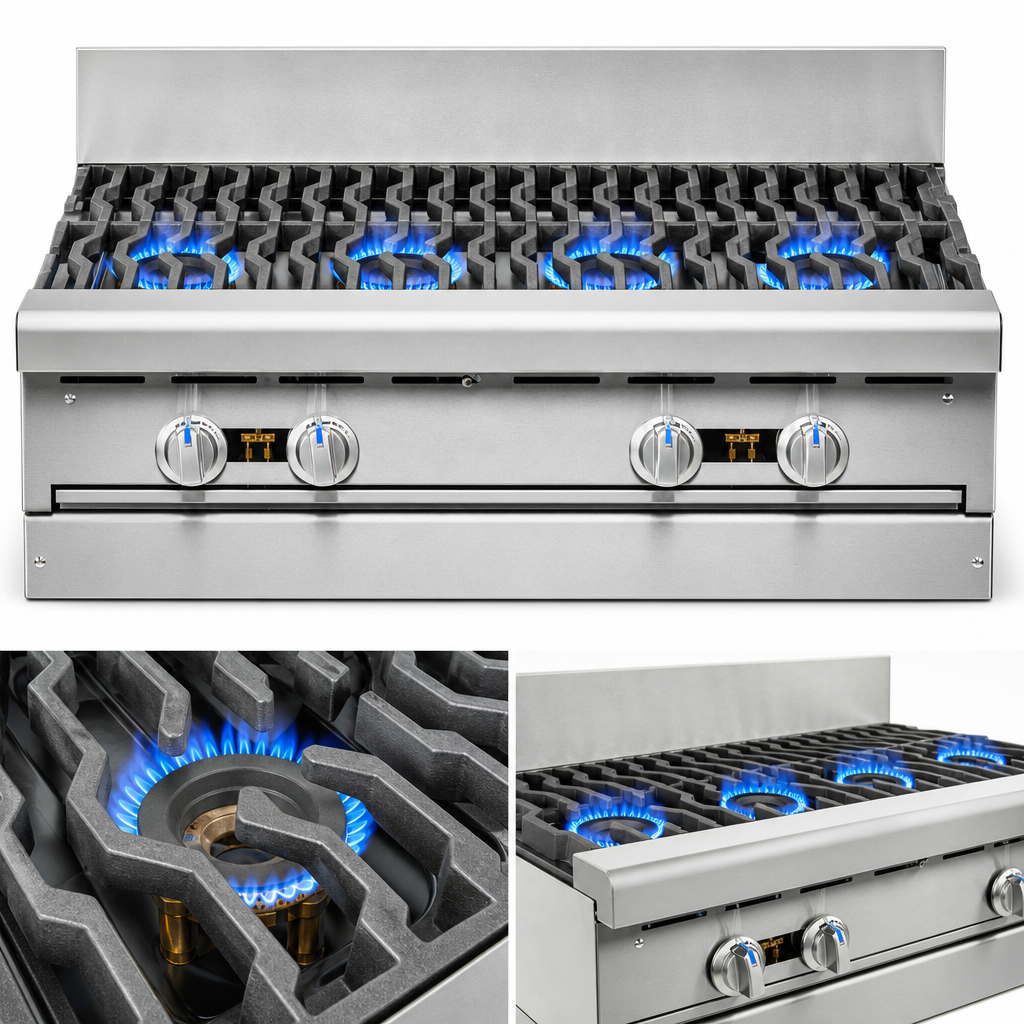

- 160,000 BTU total output (4 × 40,000) for fast recovery and consistent heat.
- Anti-clogging burner design protects pilots from grease and food debris—less downtime, fewer service calls.
- Cast-iron “S” grates (18" × 14") create a continuous surface that slides heavy stock pots across burners with ease.
- One-piece venturi burner base—sloped to direct spills away from the flame and eliminate gasket failures.
- Manual infinite-control valves with heat-shielded, cast-aluminum knobs for precise flame adjustment.
- 5" deep stainless steel landing ledge doubles as plating/utensil staging area.
- 6" stainless steel backguard contains splatter and protects walls.
- Full-width, removable stainless steel crumb tray speeds end-of-shift clean-up.
- All-welded stainless steel front, sides and grates for maximum durability in high-heat, high-moisture environments.
- Countertop (modular) design integrates easily with salamanders, cheesemelters or other line equipment.
Specifications
| Model | Spec Series 36" Modular, 4 Burners (IHR-4-M equivalent) |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total BTU / kW | 160,000 BTU /hr • 47 kW |
| Burners | Four open burners, 40,000 BTU each; anti-clog design |
| Grates | Cast-iron “S” grates, 18" × 14" (457 × 356 mm) each |
| Exterior Dimensions | 36" W × 38" D × 13 ⁄ 16"H (cooktop module) |
| Gas Connection | 3⁄4" NPT rear manifold (1-¼" optional) |
| Manifold Pressure | 5.0" W.C. Natural • 10.0" W.C. Propane |
| Controls | 4 manual infinite valves with standing pilots |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (authorized service network) |
Optional Accessories
- 6" (152 mm) adjustable stainless steel legs or 6" casters
- Common stainless steel shelves, backguards or high shelves for continuous line-up install
- Quick-disconnect & flexible gas hose kits, ¾" or 1-¼"
- Rear gas manifold battery up to 600,000 BTU/ hr single connection
- Spider or wok ring grates
Need a matching oven base or charbroiler? Explore the full Imperial Spec Series for seamless side-by-side integration.
Full terms, conditions and warranty details are available from Imperial or your authorized distributor.
